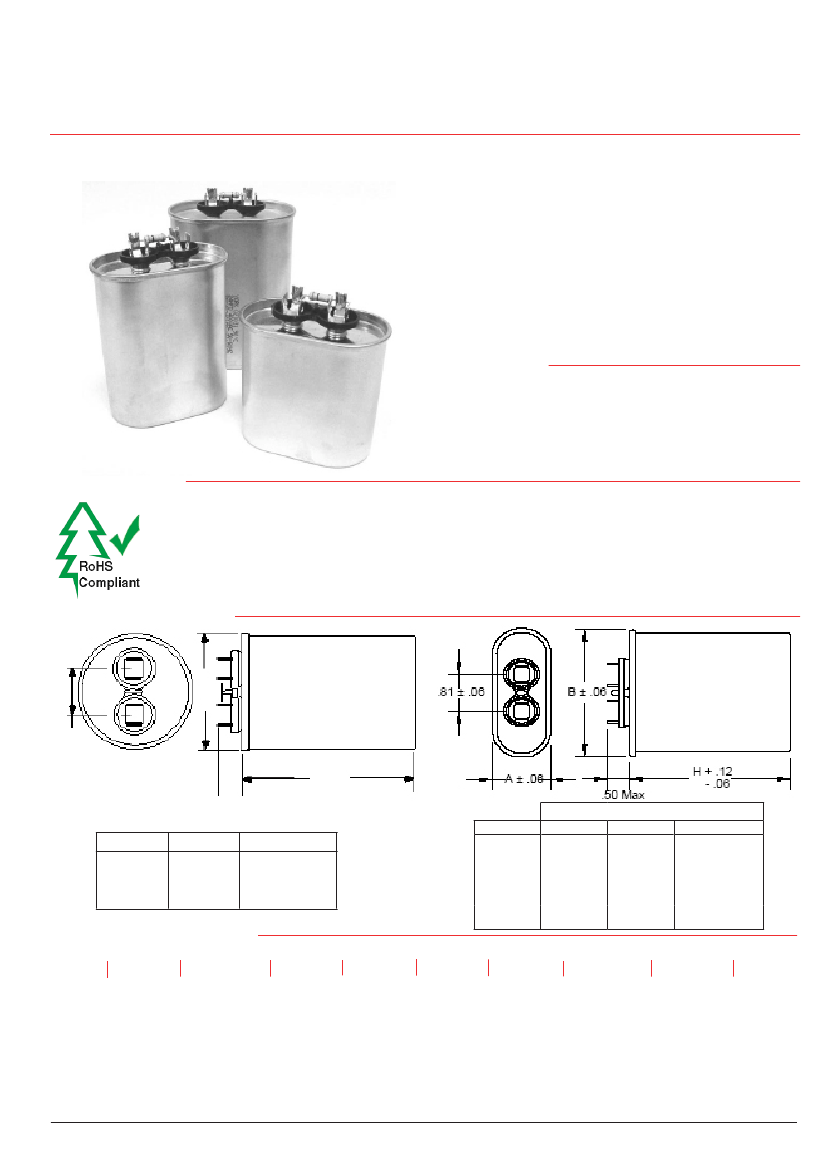

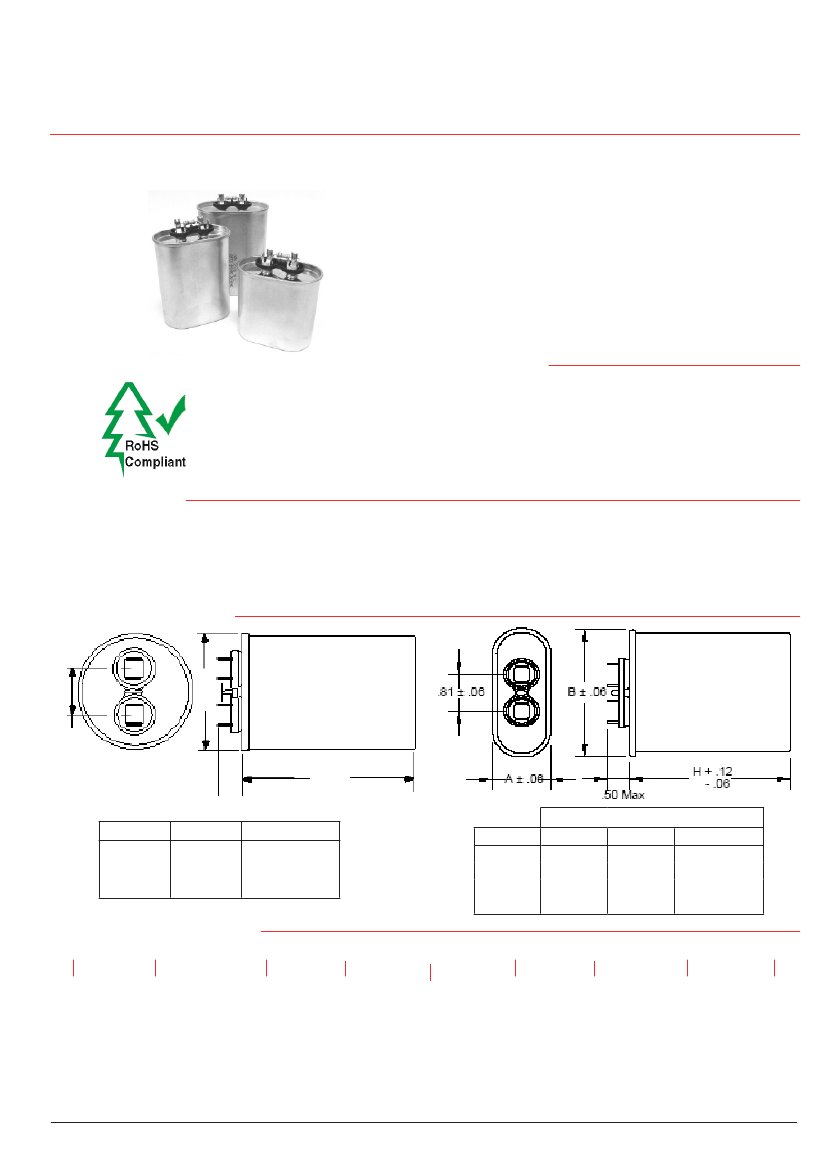

Type SF
Lighting Capacitors, 90 °C Rated, Oil Filled
AC Rated, Oil Filled/Impregnated, Metallized Polypropylene Capacitors
For better performance in HID Lighting and HV Bal-
lasts,
Type SF oval and round oil filled metallized poly-
propylene lighting capacitors are built for operating in
the high temperature environments for high intensity
discharge (HID) lighting and other high voltage ballast
applications. Each HID catalog capacitor includes an
external resistor that discharges the capacitor to less
than 50V in one minute, and the oil filled process assures
better reliability than dry capacitors.
Highlights
Complies with the EU Directive
2002/95/EC requirement
restricting the use of Lead (Pb),
Mercury (Hg), Cadmium (Cd),
Hexavalent chromium (Cr(VI)),
PolyBrominated Biphenyls (PBB)
and PolyBrominated Diphenyl
Ethers (PBDE).
•
•
•
•
Protected: UL recognized under E71645
Meets EIA Standard EIA-456-A
Casing: tin-plated steel standard, aluminum optional
Paint: (U.L. recognized) optional
Specifications
Outline Drawings
.81 ± .06
D ±.06
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Temperature Range:
Operating Frequency:
5 µF to 55 µF
280 Vac to 525 Vac, other voltages available
±3%
–40 °C, +90 °C
Operating frequency: 50 - 60 Hz
Round
Oval
0.5 Max.
Case Code
P
S
T
D (Inches)
1.87
2.12
2.62
H
H
+.12
–.06
Oval
Case Code
A
B
C
D
A
1.31
1.56
1.91
1.97
Dimensions (Inches)
B
2.16
2.69
2.91
3.66
H
See Ratings Table
See Ratings Table
See Ratings Table
See Ratings Table
See Ratings Table
See Ratings Table
See Ratings Table
Part Numbering System
SF
Type
SF
C
Case Size
A
= 1 1/4" Oval
B
= 1 1/2" Oval
C
= 1 3/4" Oval
D
= 2.0" Oval
P
= 1 3/4" Round
S
= 2.0" Round
T
= 2 1/2" Round
40
Voltage
30
= 300 Vac
33
= 330 Vac
40
= 400 Vac
48
= 480 Vac
52
= 525 Vac
S
Case Matl.
15
Cap
7
= 7.0 µF
32
= 32.0 µF
19.5
= 19.5 µF
L
Tolerance
L
= ±3%
291
Can Height
K
Terminals
-F
RoHS
Compliant
28
= 280 Vac
S
= Steel
291
= 2.91
K =
2-tine with
391
= 3.91 fork and external
resistor, 90 ºC
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508) 996-3830 • www.cde.com
Type SF
Lighting Capacitors, 90 °C Rated, Oil Filled
Ratings - Round Case Style
Catalog
Cap.
(µF)
5.0
7.0
10.0
12.0
14.0
17.5
20.0
35.0
48.0
55.0
10.0
12.0
14.0
16.0
20.0
22.5
24.0
26.0
28.0
30.0
10.0
15.0
19.5
20.5
24.0
12.0
15.0
18.0
19.0
21.0
24.0
16.0
26.0
32.0
SFP28S5L238K-F
SFP28S7L238K-F
SFP28S10L238K-F
SFP28S12L238K-F
SFP28S14L238K-F
SFP28S17.5L238K-F
SFP28S20L288K-F
SFP28S35L288K-F
SFP28S48L375K-F
SFS28S55L375K-F
SFP30S10L238K-F
SFP30S12L238K-F
SFP30S14L238K-F
SFP30S16L238K-F
SFP30S20L238K-F
SFP33S22.5L288K-F
SFP33S24L288K-F
SFP33S26L288K-F
SFP33S28L288K-F
SFP33S30L288K-F
SFP40S10L288K-F
SFP40S15L288K-F
SFP40S19.5L288K-F
SFP40S20.5L288K-F
SFP40S24L375K-F
SFP48S12L288K-F
SFP48S15L288K-F
SFS48S18L288K-F
SFS48S19L288K-F
SFS48S21L288K-F
SFP48S24L375K-F
SFS52S16L288K-F
SFT52S26L391K-F
SFT52S32L391K-F
P
P
P
P
P
P
P
P
P
S
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
S
S
S
P
S
T
T
Part Number
Case
Code
H
(Inches)
2.38
2.38
2.38
2.38
2.38
2.38
2.88
2.88
3.75
3.75
2.38
2.38
2.38
2.38
2.38
2.88
2.88
2.88
2.88
2.88
2.88
2.88
2.88
2.88
3.75
2.88
2.88
2.88
2.88
2.88
3.75
2.88
3.91
3.91
Cap.
(µF)
5.0
7.0
10.0
12.0
14.0
17.5
20.0
35.0
48.0
55.0
10.0
12.0
14.0
16.0
20.0
22.5
24.0
26.0
28.0
30.0
10.0
15.0
19.5
20.5
24.0
12.0
15.0
18.0
19.0
21.0
24.0
16.0
26.0
32.0
SFA28S5L156K-F
SFA28S7L156K-F
SFA28S10L288K-F
SFA28S12L288K-F
SFA28S14L288K-F
SFC28S17.5L291K-F
SFC28S20L291K-F
SFC28S35L291K-F
SFC28S48L391K-F
SFC28S55L391K-F
SFA30S10L288K-F
SFA30S12L288K-F
SFA30S14L288K-F
SFC30S16L291K-F
SFC30S20L291K-F
SFC33S22.5L291K-F
SFC33S24L291K-F
SFC33S26L291K-F
SFC33S28L291K-F
SFC33S30L291K-F
SFA40S10L288K-F
SFC40S15L291K-F
SFC40S19.5L291K-F
SFC40S20.5L291K-F
SFC40S24L391K-F
SFC48S12L291K-F
SFC48S15L291K-F
SFC48S18L291K-F
SFC48S19L291K-F
SFC48S21L391K-F
SFC48S24L391K-F
SFC52S16L391K-F
SFD52S26L391K-F
SFD52S32L391K-F
A
A
A
A
A
C
C
C
C
C
A
A
A
C
C
C
C
C
C
C
A
C
C
C
C
C
C
C
C
C
C
C
D
D
Ratings - Oval Case Style
Catalog
Part Number
Case
Code
H
(Inches)
1.56
1.56
2.88
2.88
2.88
2.91
2.91
2.91
3.91
3.91
2.88
2.88
2.88
2.91
2.91
2.91
2.91
2.91
2.91
2.91
2.88
2.91
2.91
2.91
3.91
2.91
2.91
2.91
2.91
3.91
3.91
3.91
3.91
3.91
280 Vac Round 90 °C Case Temperature
280 Vac Oval 90 °C Case Temperature
300 Vac Round 90 °C Case Temperature
300 Vac Oval 90 °C Case Temperature
330 Vac Round 90 °C Case Temperature
330 Vac Oval 90 °C Case Temperature
400 Vac Round 90 °C Case Temperature
400 Vac Oval 90 °C Case Temperature
480 Vac Round 90 °C Case Temperature
480 Vac Oval 90 °C Case Temperature
525 Vac Round 90 °C Case Temperature
525 Vac Oval 90 °C Case Temperature
The capacitors listed satisfy the majority of applications. Please contact the factory for other ratings as custom designs.
See Capacitor Hardware for Clamps and Brackets
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508) 996-3830 • www.cde.com
Type SF
