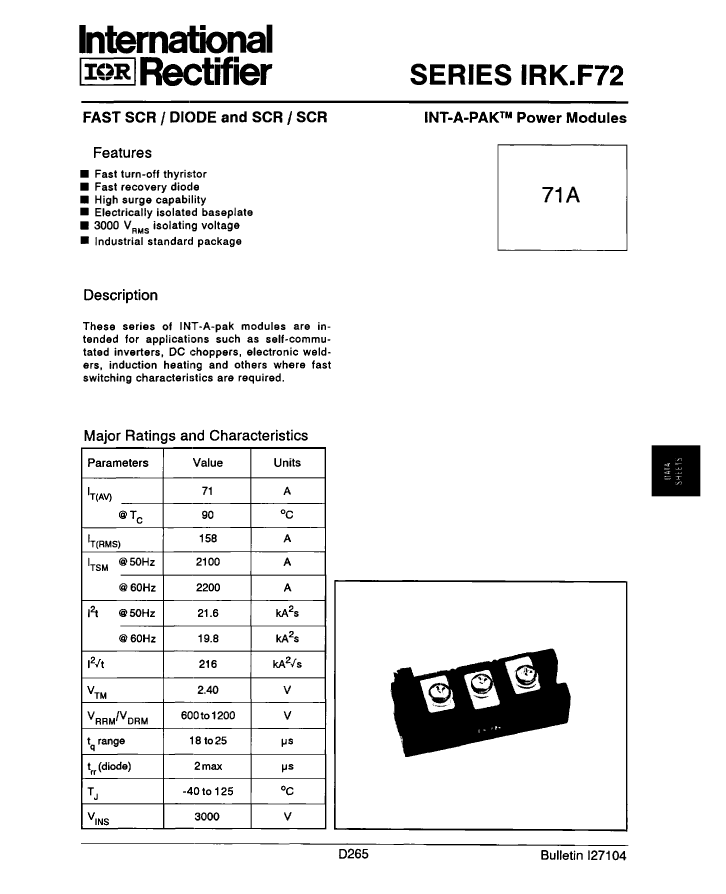

IRKHF71-12CJ datasheet, PDF - EEWORLD Datasheet

IRKHF71-12CJ: DescriptionSilicon Controlled Rectifier, 158A I(T)RMS, 71000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, POWER, INT-A-PAK-5; CategoryAnalog mixed-signal IC Trigger device; File Size290KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

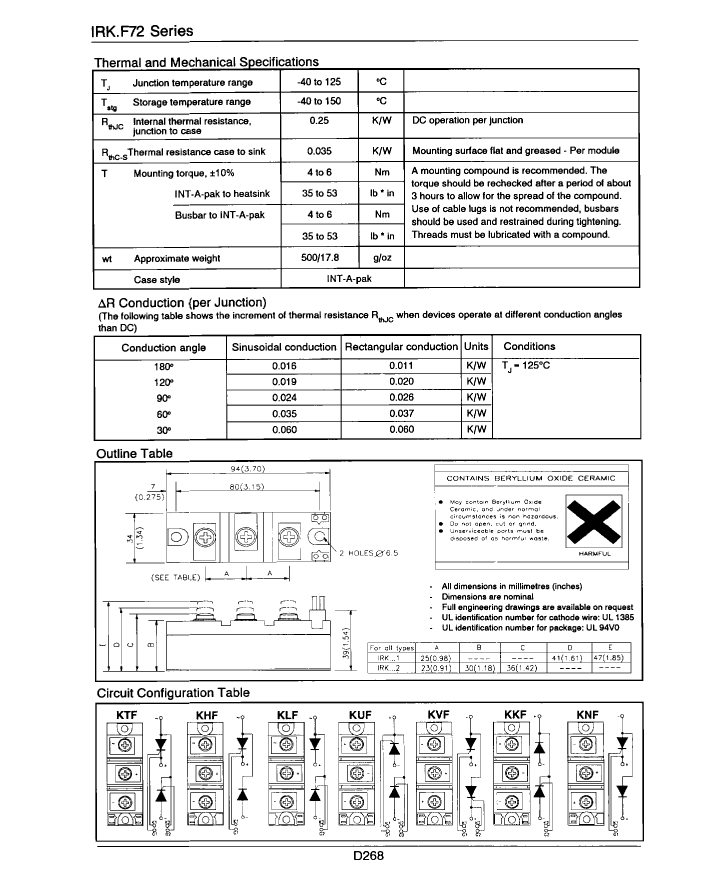

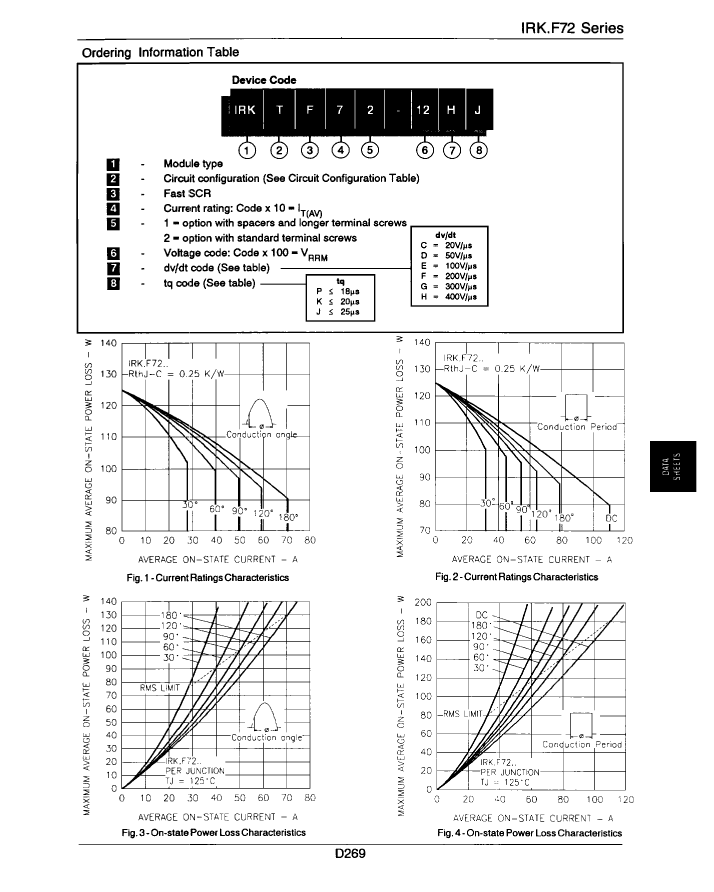

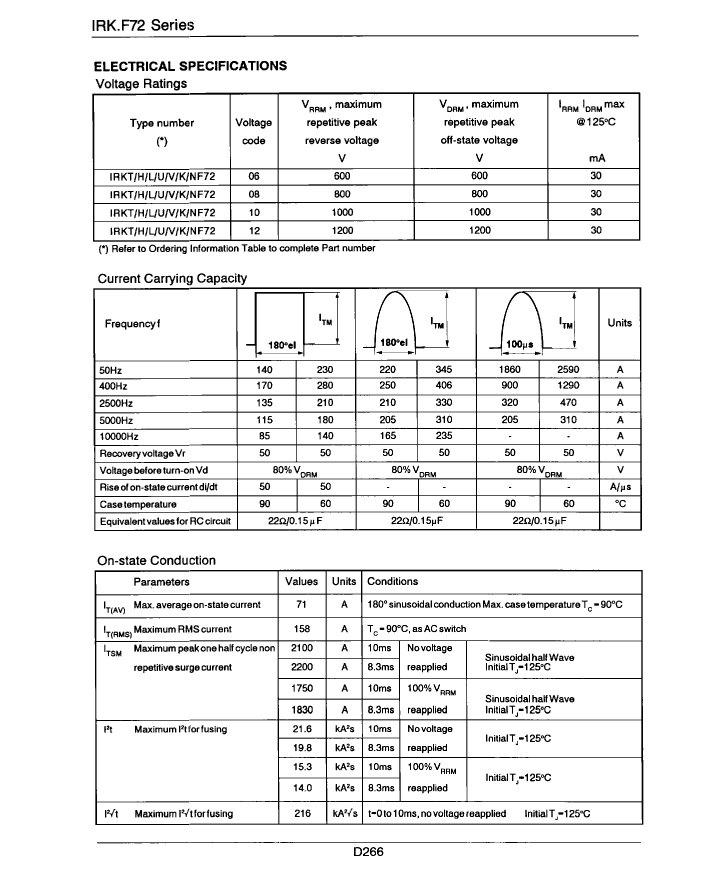

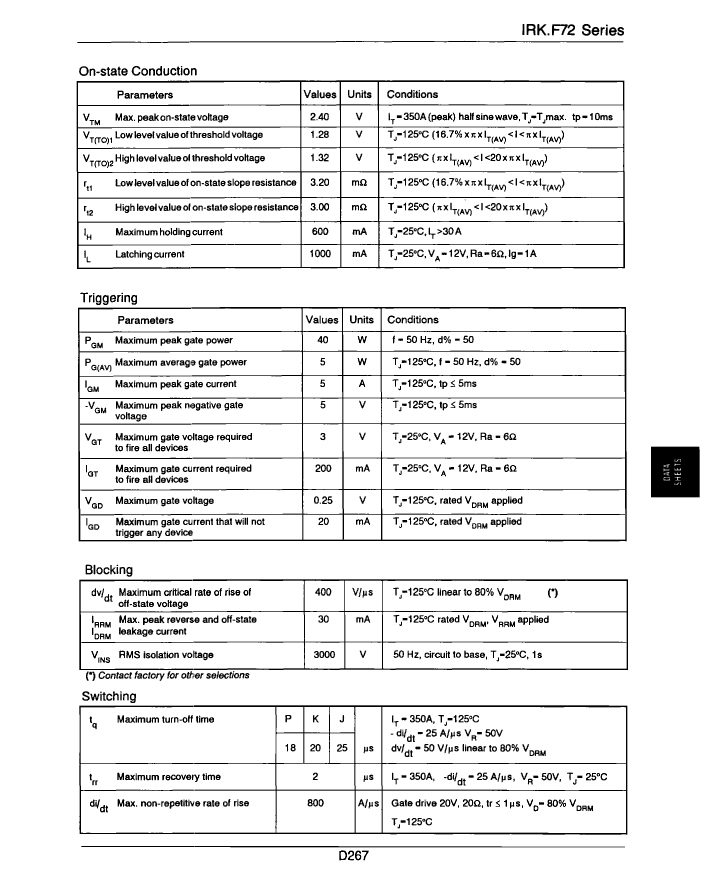

IRKHF71-12CJ Overview

Silicon Controlled Rectifier, 158A I(T)RMS, 71000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, POWER, INT-A-PAK-5

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-X5
Contacts	5
Reach Compliance Code	unknown
Shell connection	ISOLATED
Nominal circuit commutation break time	25 µs
Configuration	SINGLE WITH BUILT-IN SERIES DIODE
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	G-GR
Description of screw terminals	A-K-AK
Maximum holding current	600 mA
JESD-30 code	R-PUFM-X5
Maximum leakage current	30 mA
Humidity sensitivity level	1
On-state non-repetitive peak current	2200 A
Number of components	1
Number of terminals	5
Maximum on-state current	71000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum rms on-state current	158 A
Maximum repetitive peak off-state leakage current	30000 µA
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
