MB95F284KWQN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MB95F284KWQN

MB95F284KWQN: DescriptionMicrocontroller, 8-Bit, FLASH, CMOS, PQCC32, 5 X 5 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, PLASTIC, QFN-32; CategoryThe embedded processor and controller Microcontrollers and processors; File Size178KB，2 Pages; ManufacturerSPANSION; Websitehttp://www.spansion.com/

Download Datasheet Parametric View All

MB95F284KWQN Overview

Microcontroller, 8-Bit, FLASH, CMOS, PQCC32, 5 X 5 MM, 0.80 MM HEIGHT, 0.50 MM PITCH, PLASTIC, QFN-32

MB95F284KWQN Parametric

Parameter Name	Attribute value
Maker	SPANSION
Parts packaging code	QFN
package instruction	HQCCN,
Contacts	32
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	8
maximum clock frequency	16.25 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQCC-N32
Number of I/O lines	13
Number of terminals	32
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	HQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG
Certification status	Not Qualified
ROM programmability	FLASH
Maximum supply voltage	5.5 V
Minimum supply voltage	2.4 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

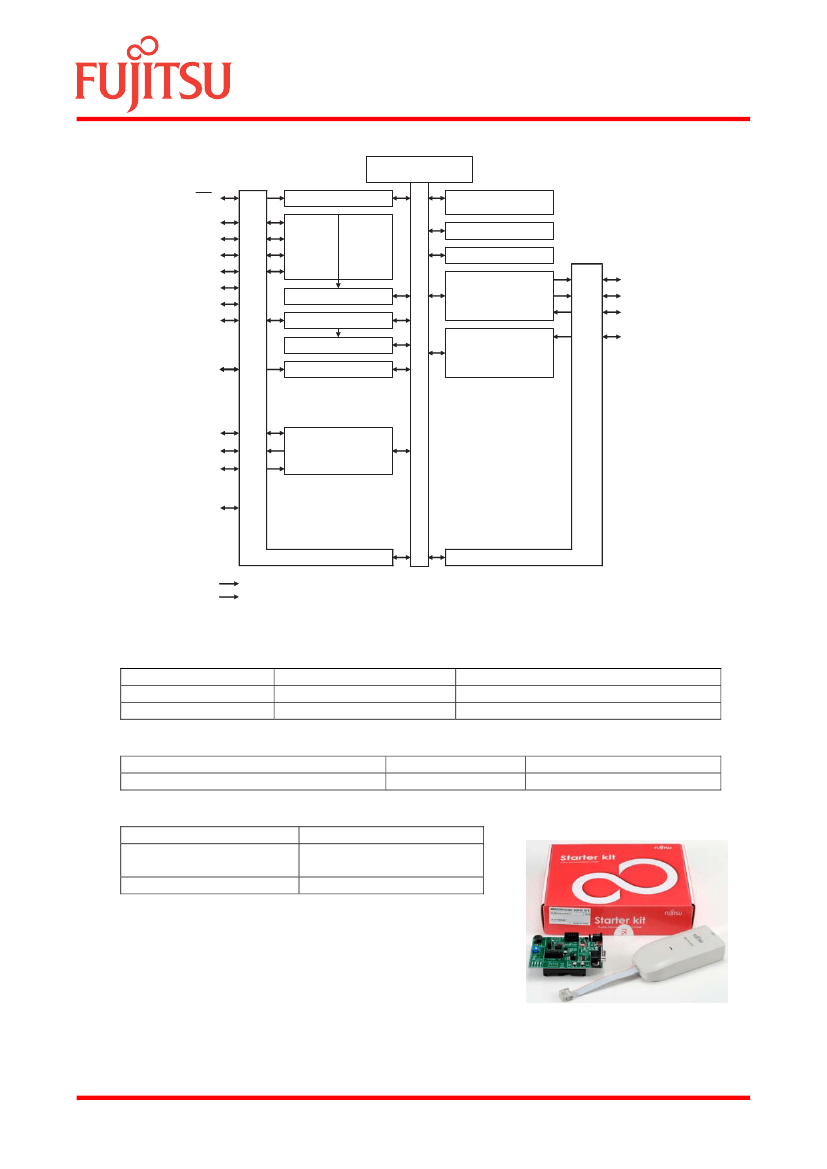

FUJITSU SEMICONDUCTOR

INTRODUCTION SHEET

NP07-12636-1E

8-bit Microcontrollers

MB95280H Series

MB95280H is 8-bit low-pin-count microcontroller series that

has "Easy to use" as a product concept.

This series has the function that is enough for the control of

various small scale systems such as electric home appliance.

And can be used as sub-microcontroller for function addition

in the cause of the specification change.

■ FEATURES



MC-8FX CPU

Instruction set optimized for controllers

■PRODUCT LINEUP

Part number

Parameter

MB95F

282H

MB95F

283H

MB95F

284H

MB95F

282K

MB95F

283K

MB95F

284K



Clock

Maximum clock frequency：16.25MHz

Type

ROM

(Byte)

RAM

(Byte)

Low-voltage

detection

reset

240

12K

Flash memory product

20K

496

240

12K

496

20K



8/16-bit composite timer

case for 8-bit timer：2 channels

case for 16-bit timer：1 channels



Timebase timer

：1 channel



Watch prescaler

：1 channel



External interrupt

：6 channels

- Interrupt by edge detection

- Can be used to wake up the device from different

low power consumption (standby) modes

Yes

■ORDERING INFORMATION

Product name

MB95F282HWQN

MB95F282KWQN

MB95F283HWQN

MB95F283KWQN

MB95F284HWQN

MB95F284KWQN

MB95F282HPH

MB95F282KPH

MB95F283HPH

MB95F283KPH

MB95F284HPH

MB95F284KPH

MB95F282HPF

MB95F282KPF

MB95F283HPF

MB95F283KPF

MB95F284HPF

MB95F284KPF

Package

Plastic・QFN,32-pins

(LCC-32P-M19)

5.00mm□,0.50mm pitch

Remarks



8/10-bit A/D converter：5 channels



Low power consumption (standby) modes

Stop mode

Sleep mode

Watch mode

Time-base timer mode



I/O port

MB95F282K/F283K/F284K：13

MB95F282H/F283H/F284H：12

Plastic・DIP,16-pins

(DIP-16P-M06)

19.55mm×6.35mm,2.54mm pitch



On-chip debug

- 1-wire serial control

- Serial writing supported (asynchronous mode)



Low-voltage detection reset circuit

MB95F282K/F283K/F284K



Clock supervisor counter



Dual operation Flash memory



Flash memory security function



Power supply：2.4½5.5V

*The range of the power supply voltage is different

according to the operating frequency and the operating

temperature.

Plastic・SOP,16-pins

(FPT-16P-M06)

5.30mm×10.15mm,1.27mm pitch

■PACKAGE EXAMPLE OF REFERENCE

Plastic ・ SOP, 16-pins

(FPT-16P-M06)

May, 2010

1/2
