BTW43-600H datasheet, PDF - EEWORLD Datasheet

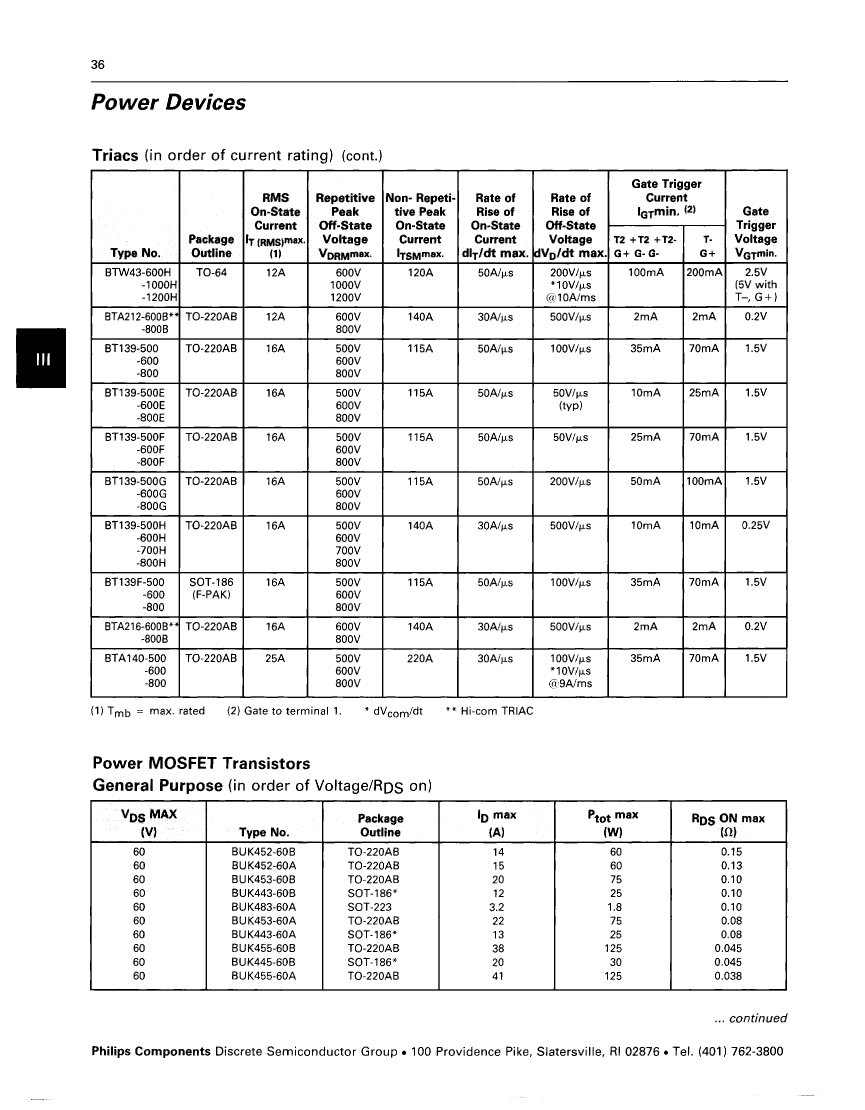

BTW43-600H: DescriptionTRIAC, 600 V, 12 A, TRIAC, TO-64; CategoryAnalog mixed-signal IC Trigger device; File Size45KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BTW43-600H Overview

TRIAC, 600 V, 12 A, TRIAC, TO-64

Parameter Name	Attribute value
Maker	NXP
package instruction	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	unknown
Configuration	SINGLE
JEDEC-95 code	TO-64
JESD-30 code	O-MUPM-D2
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	TRIAC

	BTW43-600H	BUK483-60ATRL13	BUK483-60ATRL	BTW43-1000H	BTW43-1200H	BT139-700H
Description	TRIAC, 600 V, 12 A, TRIAC, TO-64	TRANSISTOR 3.2 A, 60 V, 0.1 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power	TRANSISTOR 3.2 A, 60 V, 0.1 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power	TRIAC, 1000 V, 12 A, TRIAC, TO-64	TRIAC, 1200 V, 12 A, TRIAC, TO-64	700V, 16A, TRIAC, TO-220AB
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	POST/STUD MOUNT, O-MUPM-D2	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	compliant
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JESD-30 code	O-MUPM-D2	R-PDSO-G4	R-PDSO-G4	O-MUPM-D2	O-MUPM-D2	R-PSFM-T3
Number of components	1	1	1	1	1	1
Number of terminals	2	4	4	2	2	3
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	METAL	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND	ROUND	RECTANGULAR
Package form	POST/STUD MOUNT	SMALL OUTLINE	SMALL OUTLINE	POST/STUD MOUNT	POST/STUD MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES	NO	NO	NO
Terminal form	SOLDER LUG	GULL WING	GULL WING	SOLDER LUG	SOLDER LUG	THROUGH-HOLE
Terminal location	UPPER	DUAL	DUAL	UPPER	UPPER	SINGLE
JEDEC-95 code	TO-64	-	-	TO-64	TO-64	TO-220AB
Maximum rms on-state current	12 A	-	-	12 A	12 A	16 A
Off-state repetitive peak voltage	600 V	-	-	1000 V	1200 V	700 V
Trigger device type	TRIAC	-	-	TRIAC	TRIAC	TRIAC
