IPT1-105-01-VS-S-D-VS datasheet, PDF

Datasheet> All Categories > The connector> The connector> IPT1-105-01-VS-S-D-VS

IPT1-105-01-VS-S-D-VS: DescriptionRectangular Power Connector, 10 Contact(s), Male, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size501KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IPT1-105-01-VS-S-D-VS Overview

Rectangular Power Connector, 10 Contact(s), Male, Surface Mount Terminal, ROHS COMPLIANT

IPT1-105-01-VS-S-D-VS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	IPT1
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SURFACE MOUNT
Total number of contacts	10

Preview

Download Datasheet

View All

F-209-1

IPT1–110–01–S–D

IPS1–120–01–S–D–RA

IPS1–120–01–S–D–VS

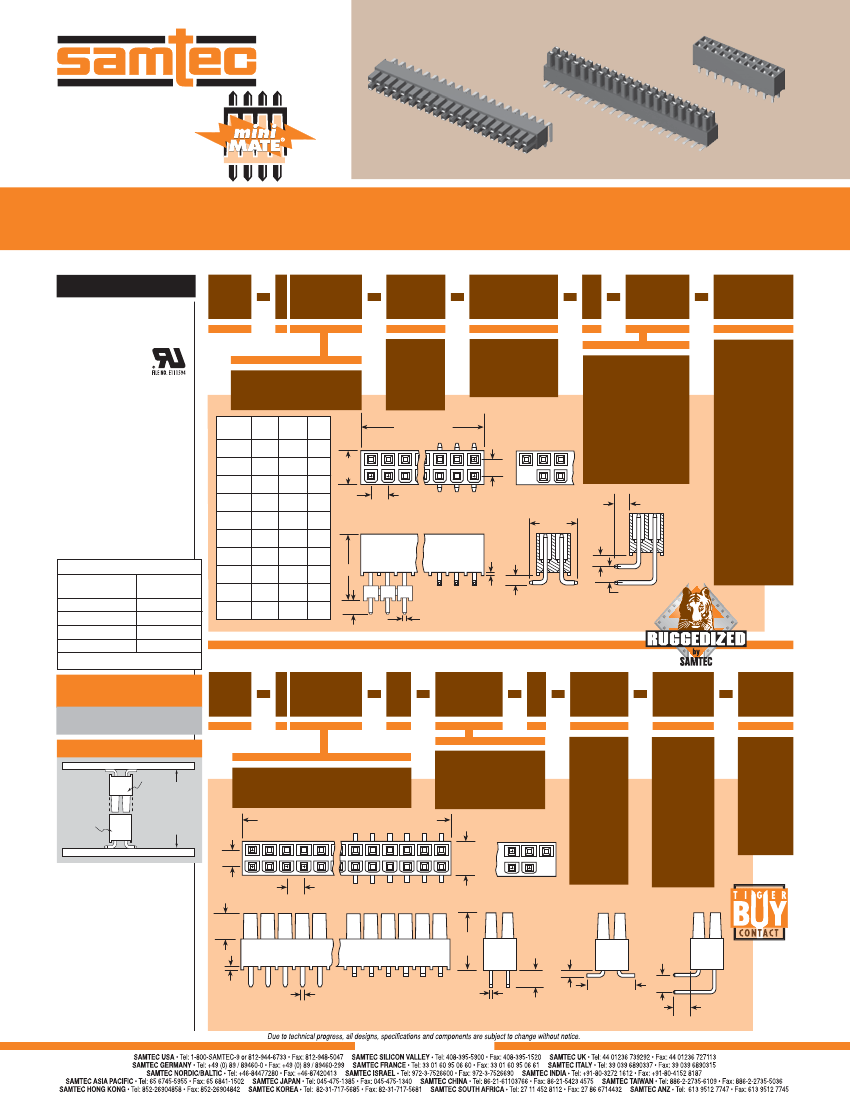

MINI MATE CONNECTOR SET

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?IPT1 or

www.samtec.com?IPS1

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ" (1,27µm) Ni

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

Insertion Depth:

(3,71mm)

.146" to (6,48mm) .255"

Wiping Distance:

(0,38mm) .015"

Insertion Force (SMT):

3.0oz (0,83N) avg.

Withdrawal Force (SMT):

2.6oz (0,72N) avg.

Insertion Force (T/H):

6.0oz (1,67N) avg.

Withdrawal Force (T/H):

5.0oz (1,39N) avg.

Voltage Rating:

550 VAC

RoHS Compliant:

Yes

CURRENT RATING

AMBIENT

TEMP

20°C

40°C

60°C

95°C

IPT1/IPS1

7.2A

4.1A

IPT1,

IPS1

OTHER

OPTION

IPT1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

No. of positions

x (2,54) .100

+ (0,51) .020

PLATING

OPTION

TAIL

OPTION

Mates with:

IPS1

–S

= 30µ" (0,76µm)

Gold on contact,

Matte Tin on Tail

Requires –01

Lead Style

(Leave blank for

Through-Hole)

–K

= (6,00mm)

.236" DIA

Polyimide ﬁlm

Pick & Place Pad

(–VS only)

05, 10, 15, 20, 25

(Call Samtec for other sizes)

LEAD

STYLE

–RA

= Right Angle

–01

(11,05) (5,84) (2,16)

.435 .250 .085

-01-VS

.535 .250 N/A

–02

(14,00) (9,30) (2,64)

.551 .366 .104

–03

–04

–05

–06

–07

–08

–09

(13,59) (5,84)

–LC

= Locking Clip

(–VS only)

(N/A with -A)

(5,08)

.200

(2,54)

.100

–VS

= Surface Mount

(2,54)

(16,00) (11,30) (2,16)

.100

.630 .445 .085

(17,00) (12,30) (2,69)

.669 .484 .106

(19,00) (14,30) (2,46)

.748 .563 .097

(20,00) (15,30) (2,35)

.787 .602 .093

(25,00) (20,30) (2,31)

.984 .799 .091

(30,00) (25,30) (2,39)

1.181 .996 .094

(35,00) (30,30) (2,46)

1.378 1.193 .097

–POL

(7,16)

.282

Through-

hole

Surface

Mount

(1,27)

.050

(0,51)

.020

(0,64) .025 SQ

(2,30)

.090

(1,50)

.060

–A

= Alignment Pin

(–VS only) (N/A

with -LC)

–POL

= No. 1 position

polarized

(2,54) .100

–RA

–VS

6 POSITIONS (2x3)

APPLICATION

SPECIFIC OPTION

Latching feature available.

Call Samtec.

IPS1

NO. PINS

PER ROW

PLATING

OPTION

TAIL

OPTION

Leave

blank for

Through-

hole

OTHER

OPTION

POL

OPTION

APPLICATION

IPS1

= Board

Stack

Height

Mated

with IPS1

Mates with:

IPT1

–S

05, 10, 15, 20, 25

(Call Samtec for other sizes)

No. of positions x (2,54) .100 + (0,38) .015

–K

= (5,50mm)

.217" DIA

Polyimide

ﬁlm Pick &

Place Pad

(–VS only)

–POL

= No. 1

position

polarized

= 30µ" (0,76µm)

Gold on contact,

Matte Tin on Tail

–VS

= Surface

Mount

–TR

= Tape &

Reel

Packaging

IPT1

(4,95)

.195

–RA

–LC

= Locking

Clip

(–VS only)

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,13mm) .005" max (05-10)

(0,15mm) .006" max (15-25)

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(2,54)

.100

(3,81)

.150

(2,54)

.100

= Right

Angle

–POL

(8,51)

.335

(2,54)

.100

(1,27)

.050

(7,87) .310

–VS

(2,54)

.100

(0,51)

.020

(0,79) .031

(0,41) .016

Through-hole

Surface Mount

(2,54)

.100

–RA

WWW.SAMTEC.COM
