AT22V10B-12NC datasheet, PDF - EEWORLD Datasheet

AT22V10B-12NC: DescriptionOT PLD, 12ns, PAL-Type, CMOS, CQCC28, CERAMIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size280KB，10 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

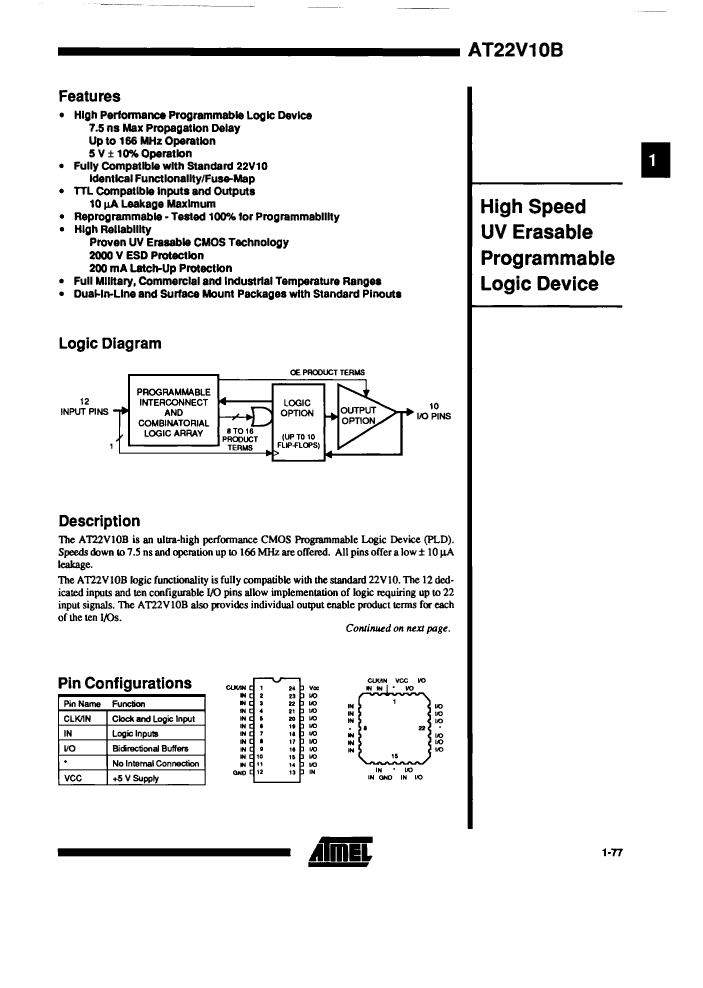

AT22V10B-12NC Overview

OT PLD, 12ns, PAL-Type, CMOS, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	QLCC
package instruction	QCCN, LCC28,.45SQ
Contacts	28
Reach Compliance Code	unknown

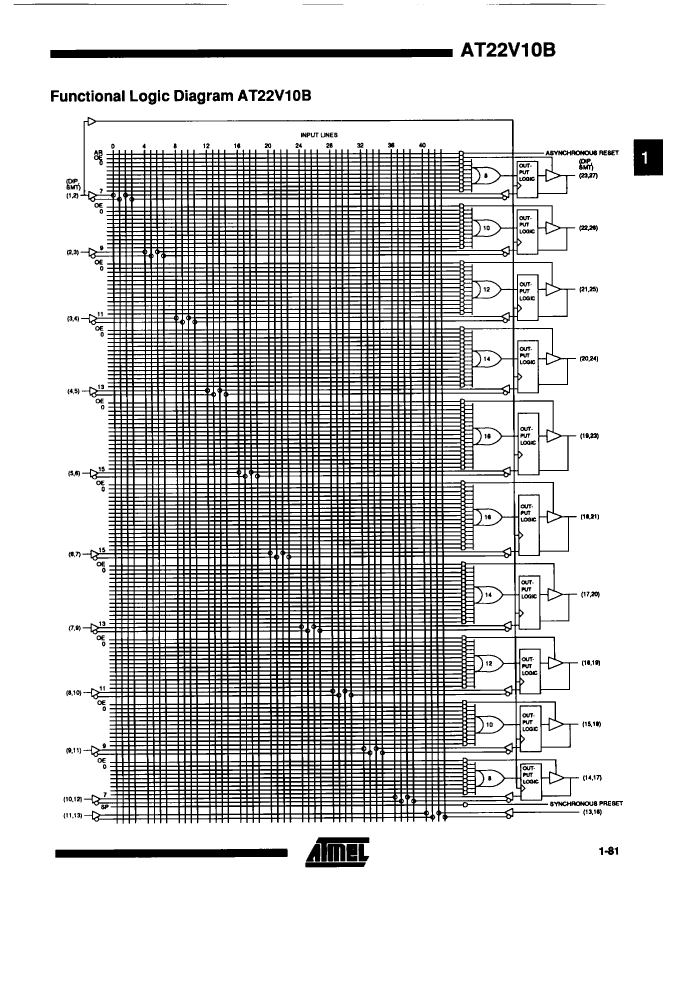

Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
Architecture	PAL-TYPE
maximum clock frequency	74 MHz
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	11
Number of I/O lines	10
Number of entries	22
Output times	10
Number of product terms	132
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

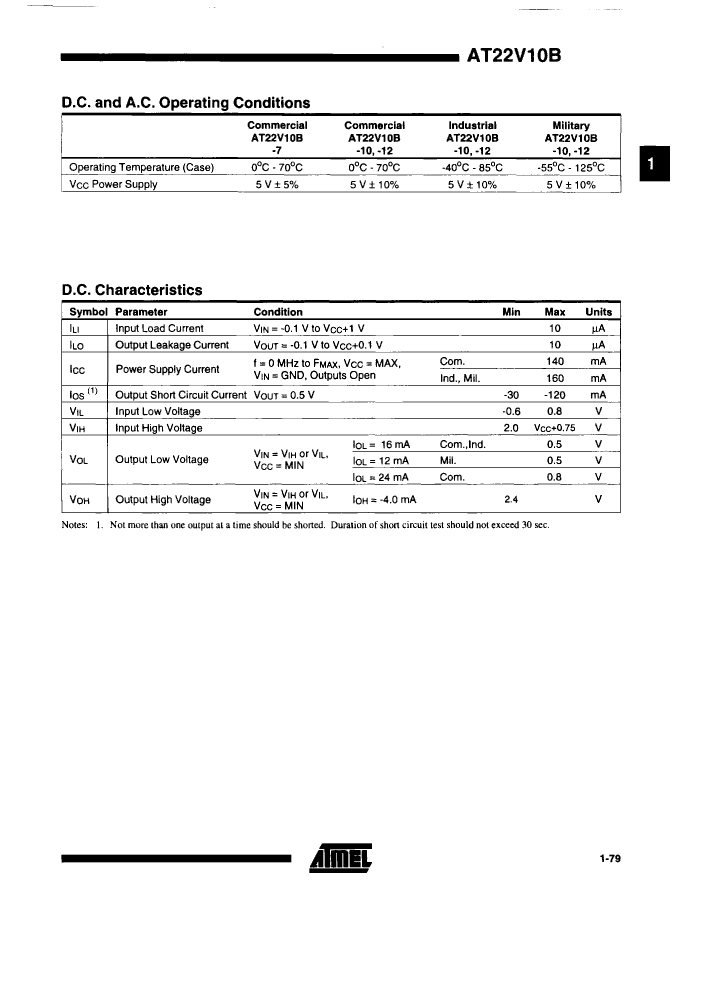

power supply	5 V
Programmable logic type	OT PLD

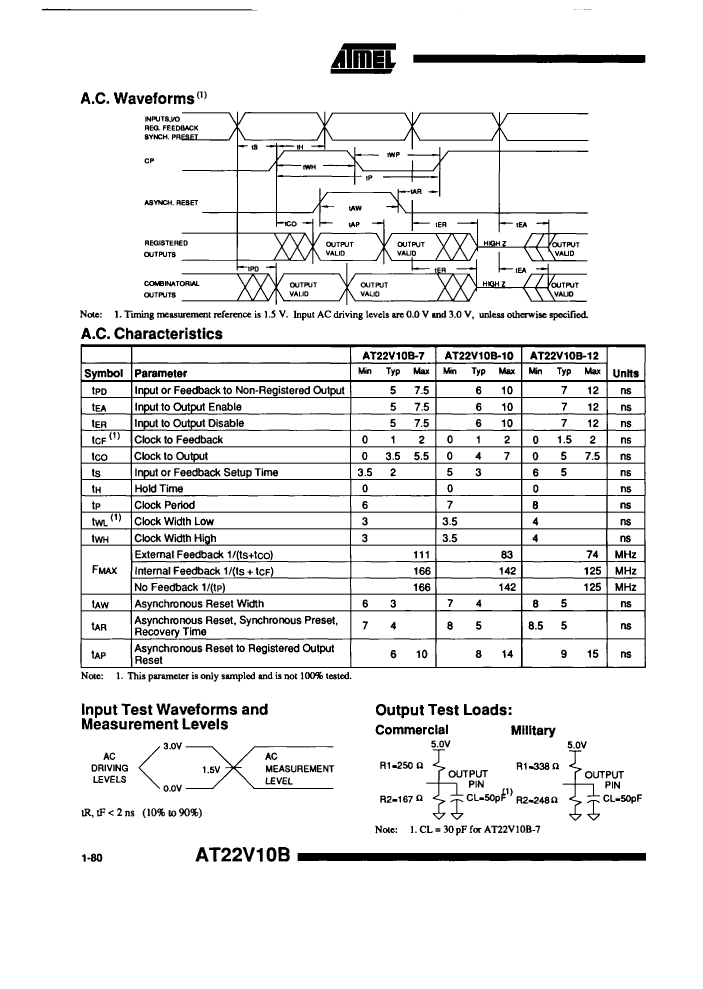

propagation delay	12 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm

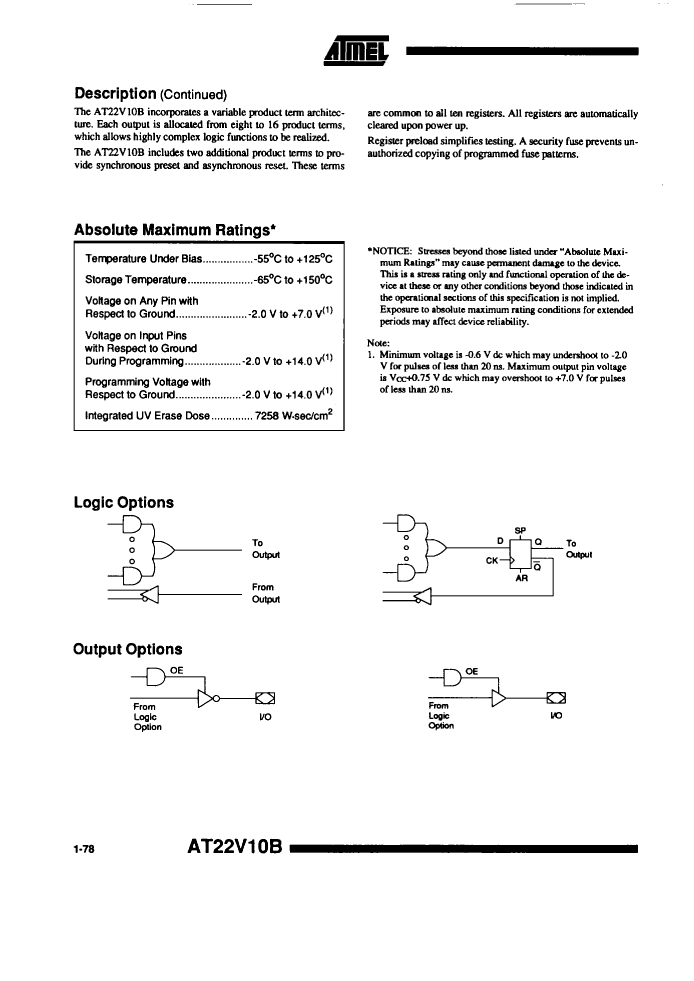

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
