BTA208-500F datasheet, PDF - EEWORLD Datasheet

BTA208-500F: Description500V, 8A, TRIAC, TO-220AB; CategoryAnalog mixed-signal IC Trigger device; File Size83KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

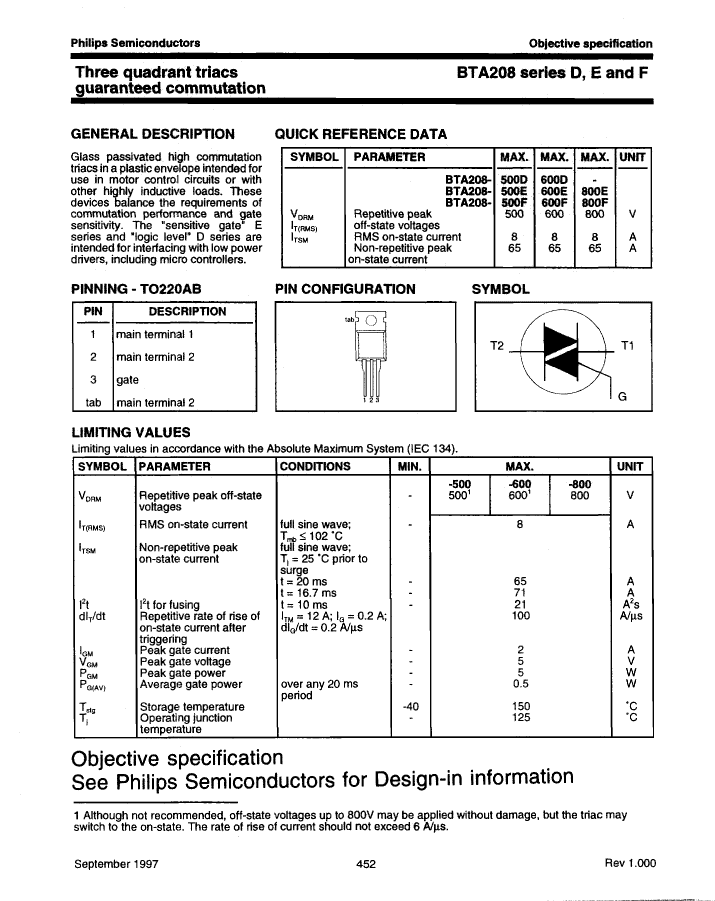

BTA208-500F Overview

500V, 8A, TRIAC, TO-220AB

Parameter Name	Attribute value
Maker	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE

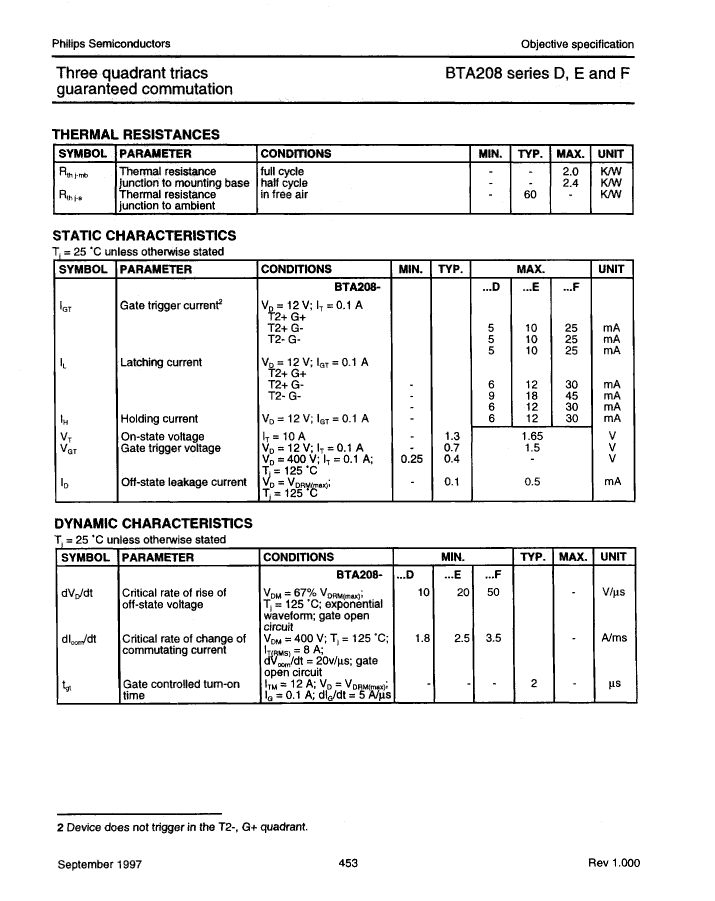

Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	25 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	30 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	8 A
Maximum repetitive peak off-state leakage current	500 µA
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	TRIAC

	BTA208-500F	BTA208-500E	BTA208-500D
Description	500V, 8A, TRIAC, TO-220AB	500V, 8A, TRIAC, TO-220AB	500V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-220AB
Maker	NXP	NXP	NXP
Reach Compliance Code	unknown	compliant	compliant
Shell connection	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2
Configuration	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us	20 V/us	10 V/us
Maximum DC gate trigger current	25 mA	10 mA	5 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	30 mA	12 mA	6 mA
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	8 A	8 A	8 A
Maximum repetitive peak off-state leakage current	500 µA	500 µA	500 µA
Off-state repetitive peak voltage	500 V	500 V	500 V
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Trigger device type	TRIAC	TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	-
Maximum leakage current	-	0.5 mA	0.5 mA
