BTA212B500D datasheet, PDF - EEWORLD Datasheet

BTA212B500D: DescriptionTRIAC, 500V V(DRM), 12A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size164KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

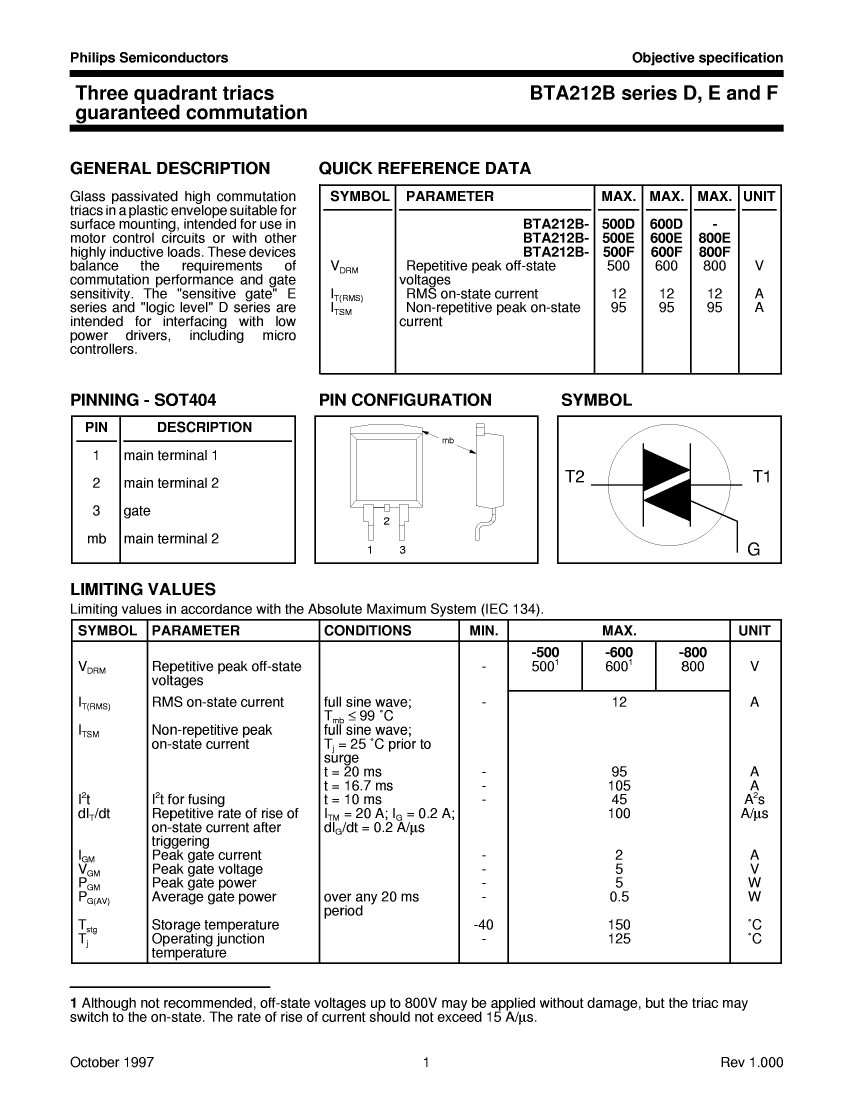

BTA212B500D Overview

TRIAC, 500V V(DRM), 12A I(T)RMS

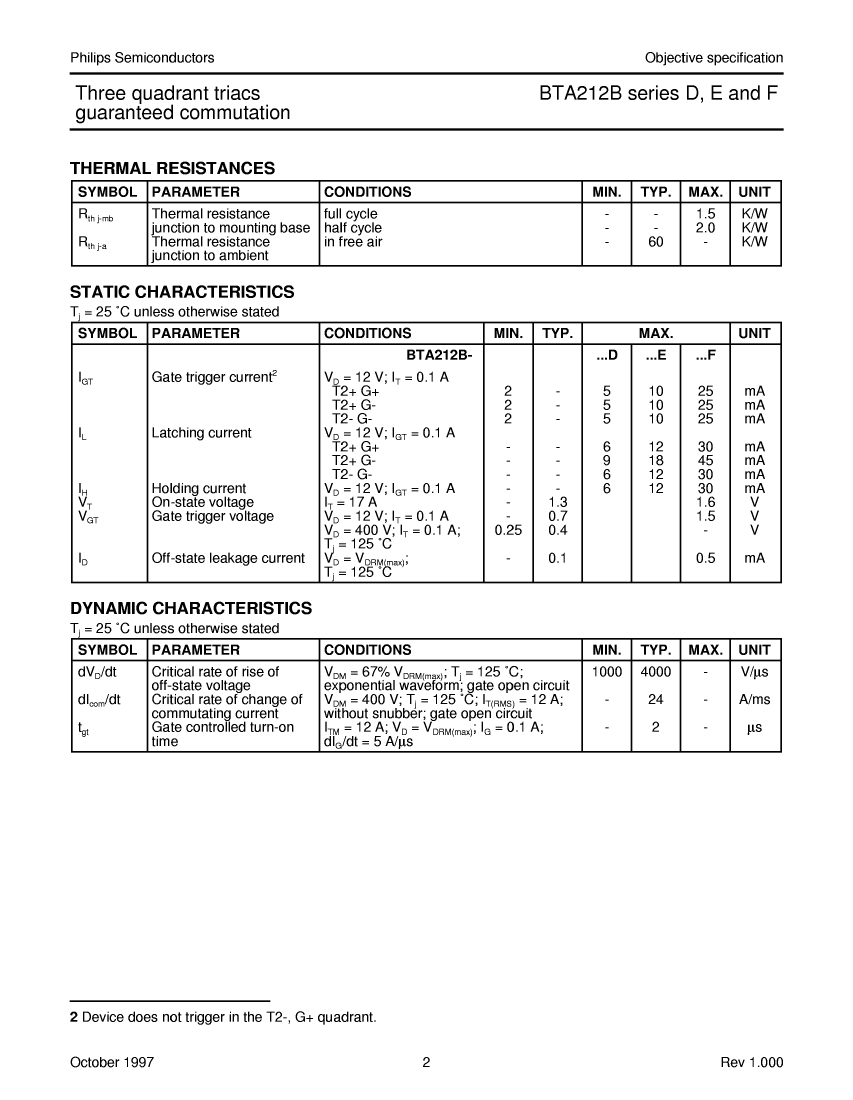

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	6 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.6 V
Maximum operating temperature	125 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BTA212B500D	BTA212B500E	BTA212B500F
Description	TRIAC, 500V V(DRM), 12A I(T)RMS	TRIAC, 500V V(DRM), 12A I(T)RMS	TRIAC, 500V V(DRM), 12A I(T)RMS
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	5 mA	10 mA	25 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	6 mA	12 mA	30 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.6 V	1.6 V	1.6 V
Maximum operating temperature	125 °C	125 °C	125 °C
Maximum rms on-state current	12 A	12 A	12 A
Off-state repetitive peak voltage	500 V	500 V	500 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC
