BRX49 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BRX49

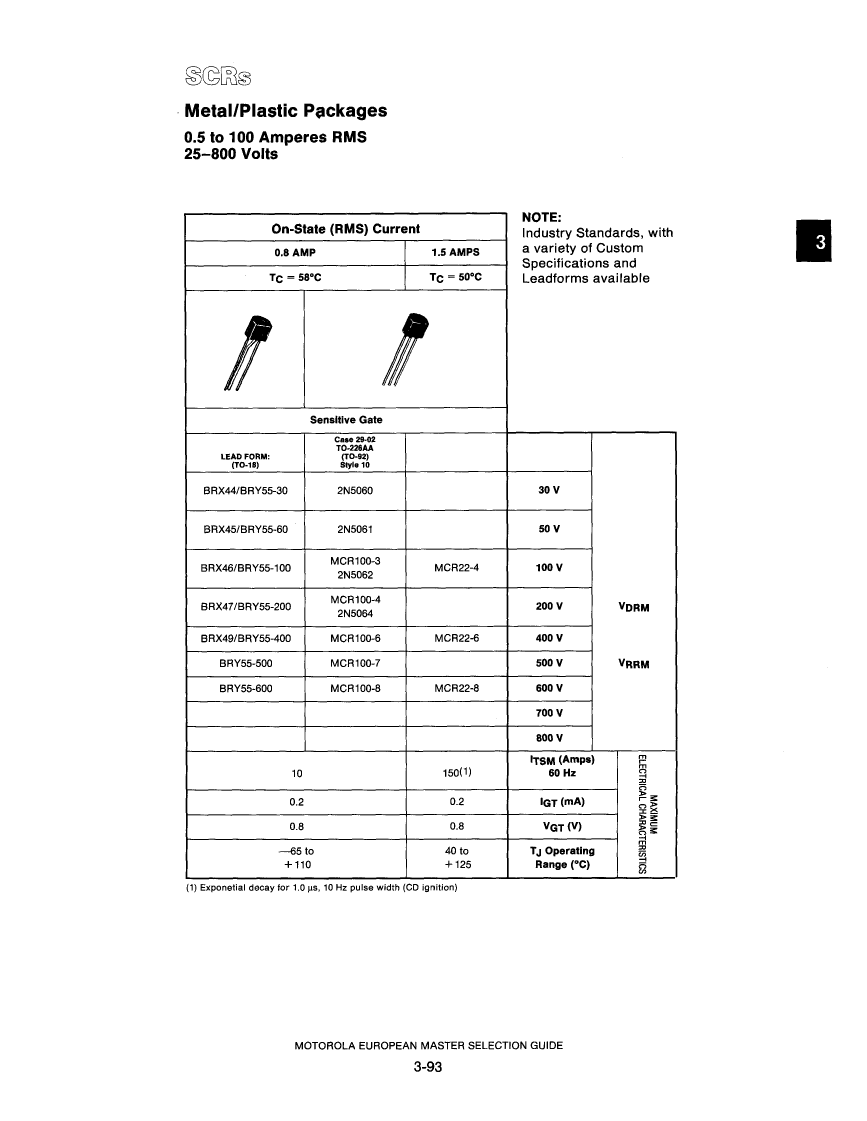

BRX49: DescriptionSilicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-226AA; CategoryAnalog mixed-signal IC Trigger device; File Size23KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BRX49 Overview

Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-226AA

BRX49 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
Nominal circuit commutation break time	8 µs
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	5 mA
JEDEC-95 code	TO-226AA
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Maximum leakage current	0.1 mA
On-state non-repetitive peak current	8 A
Number of components	1
Number of terminals	3
Maximum on-state voltage	1.7 V
Maximum on-state current	800 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	0.8 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

BRX49 Related Products

	BRX49	2N5061	BRX44	BRY55-100	BRY55-500	BRY55-600	BRX45	BRX46
Description	Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 510mA I(T), 60V V(DRM), 60V V(RRM), 1 Element, TO-92, PLASTIC, TO-226AA, 3 PIN	Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 30V V(DRM), 30V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 500V V(DRM), 500V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 60V V(DRM), 60V V(RRM), 1 Element, TO-226AA	Silicon Controlled Rectifier, 0.8A I(T)RMS, 800mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-226AA
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	8 µs	10 µs	8 µs	30 µs	20 µs	20 µs	8 µs	8 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
Maximum holding current	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA
JEDEC-95 code	TO-226AA	TO-92	TO-226AA	TO-226AA	TO-226AA	TO-226AA	TO-226AA	TO-226AA
JESD-30 code	O-PBCY-T3	O-PBCY-W3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum leakage current	0.1 mA	0.01 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA	0.1 mA
On-state non-repetitive peak current	8 A	10 A	8 A	8 A	8 A	8 A	8 A	8 A
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum on-state voltage	1.7 V	1.7 V	1.7 V	1.7 V	1.5 V	1.7 V	1.7 V	1.7 V
Maximum on-state current	800 A	510 A	800 A	800 A	800 A	800 A	800 A	800 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-65 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A	0.8 A
Off-state repetitive peak voltage	400 V	60 V	30 V	100 V	500 V	600 V	60 V	100 V
Repeated peak reverse voltage	400 V	60 V	30 V	100 V	500 V	600 V	60 V	100 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Maker	Motorola ( NXP )	-	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-T3	-	-	-	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	1	-	-
