BR211-120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BR211-120

BR211-120: DescriptionSilicon Surge Protector, 135V V(BO) Max,; CategoryAnalog mixed-signal IC Trigger device; File Size477KB，10 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

BR211-120 Overview

Silicon Surge Protector, 135V V(BO) Max,

BR211-120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Maximum breakover voltage	135 V
Maximum holding current	150 mA
JESD-609 code	e0
Maximum on-state voltage	2.5 V
Maximum operating temperature	70 °C
Repeated peak reverse voltage	105 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SILICON SURGE PROTECTOR

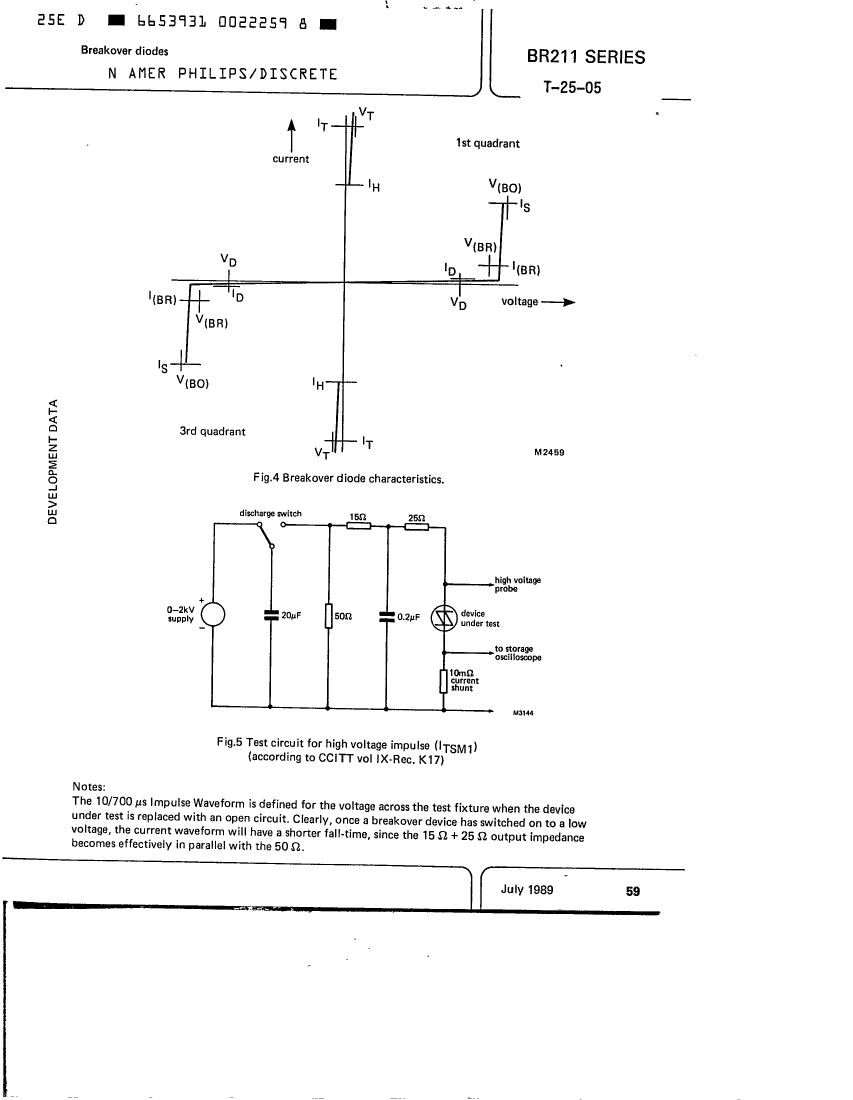

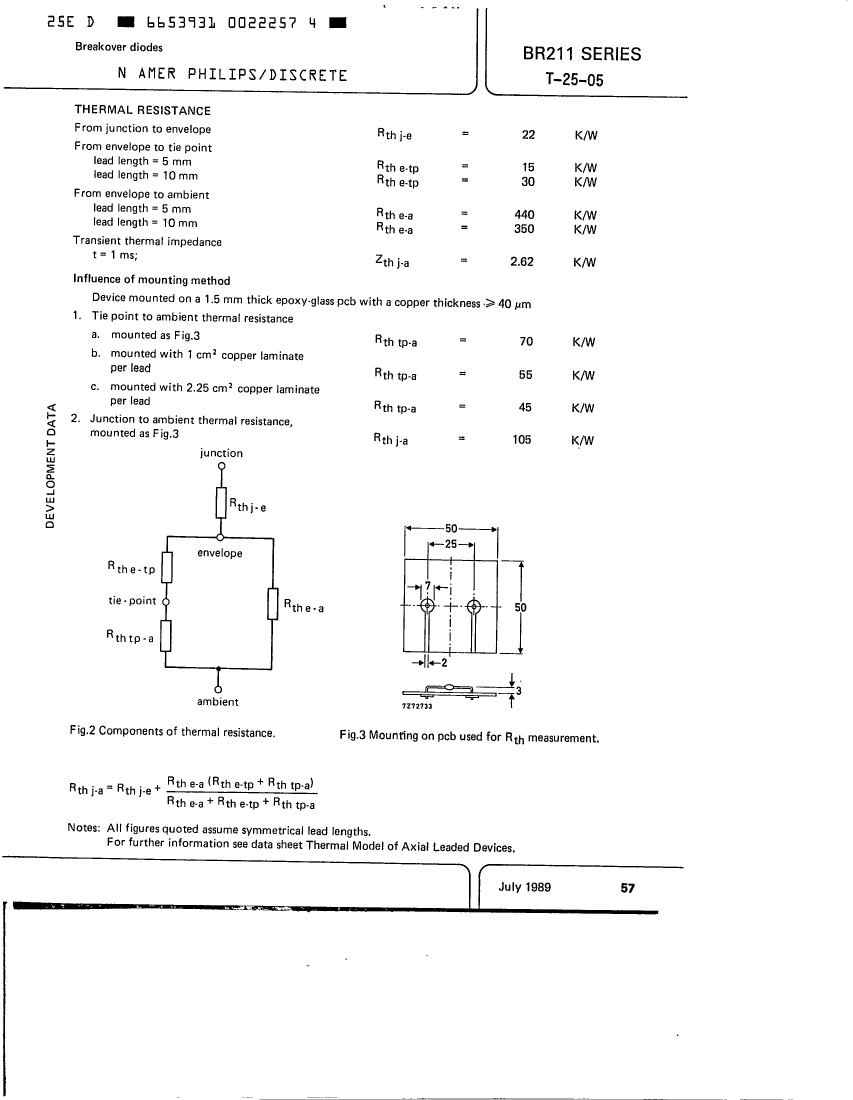

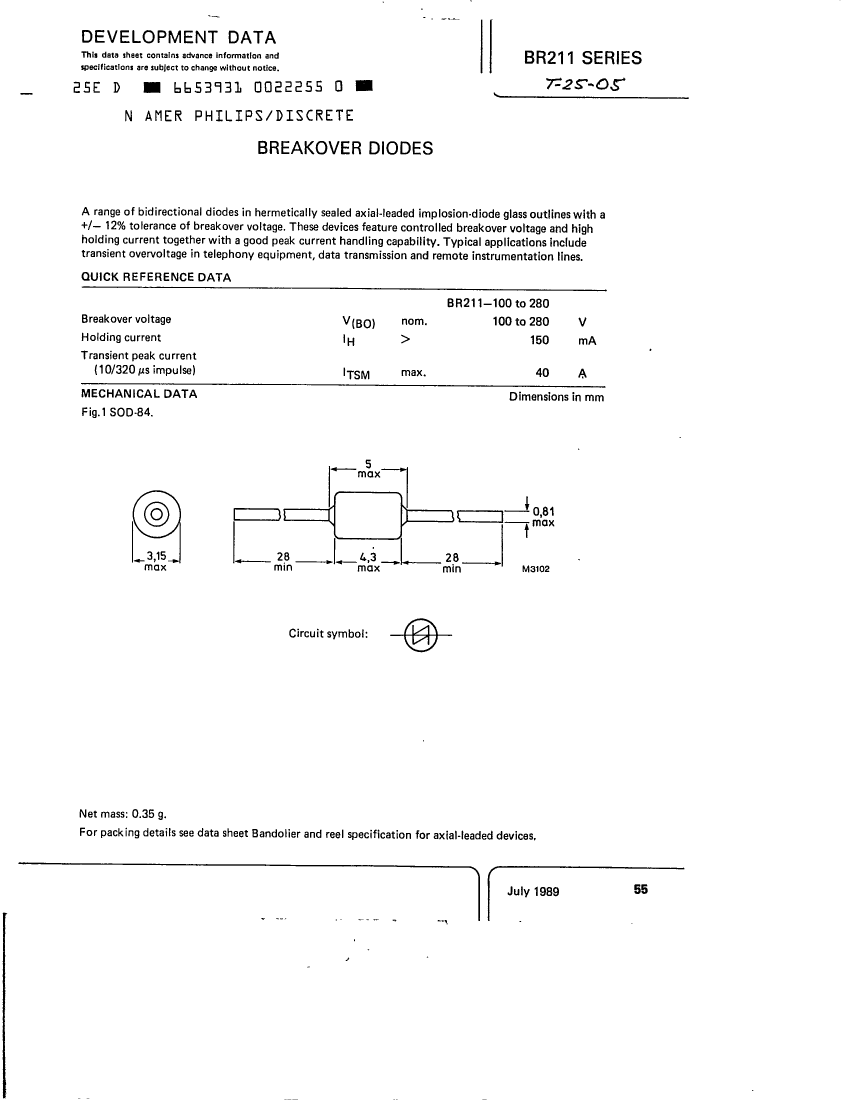

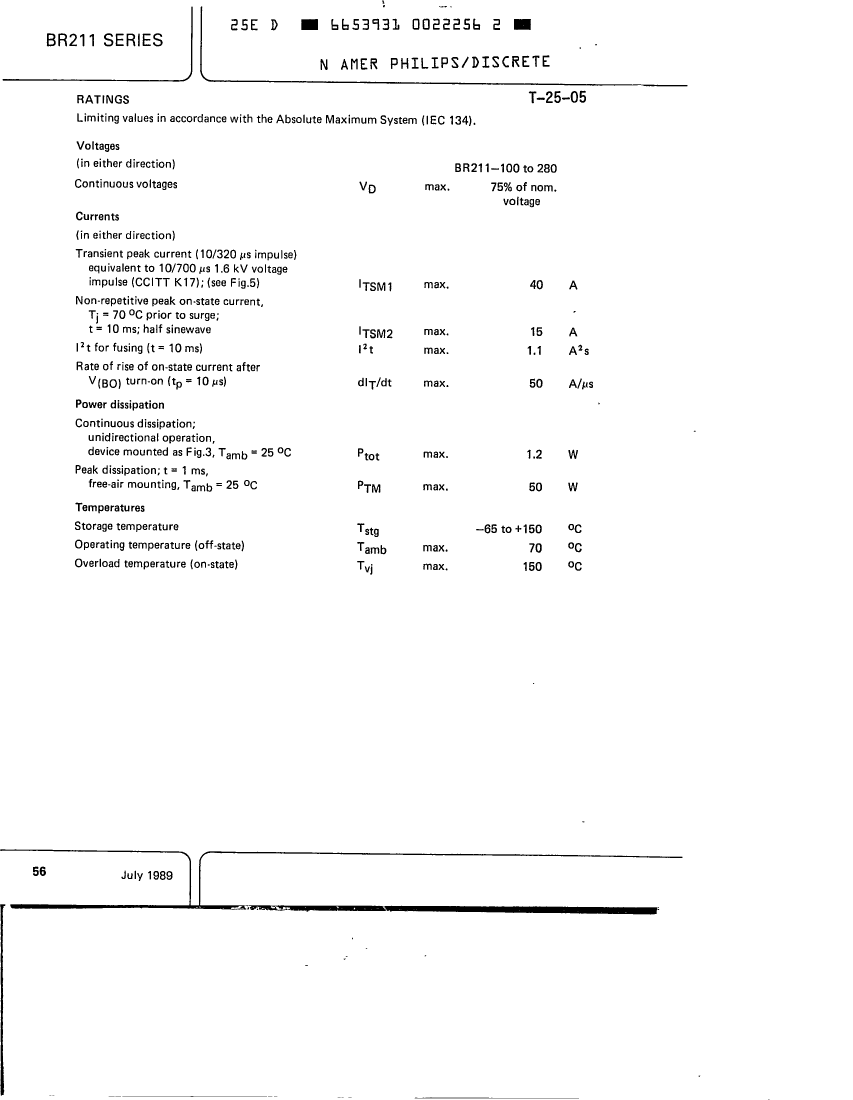

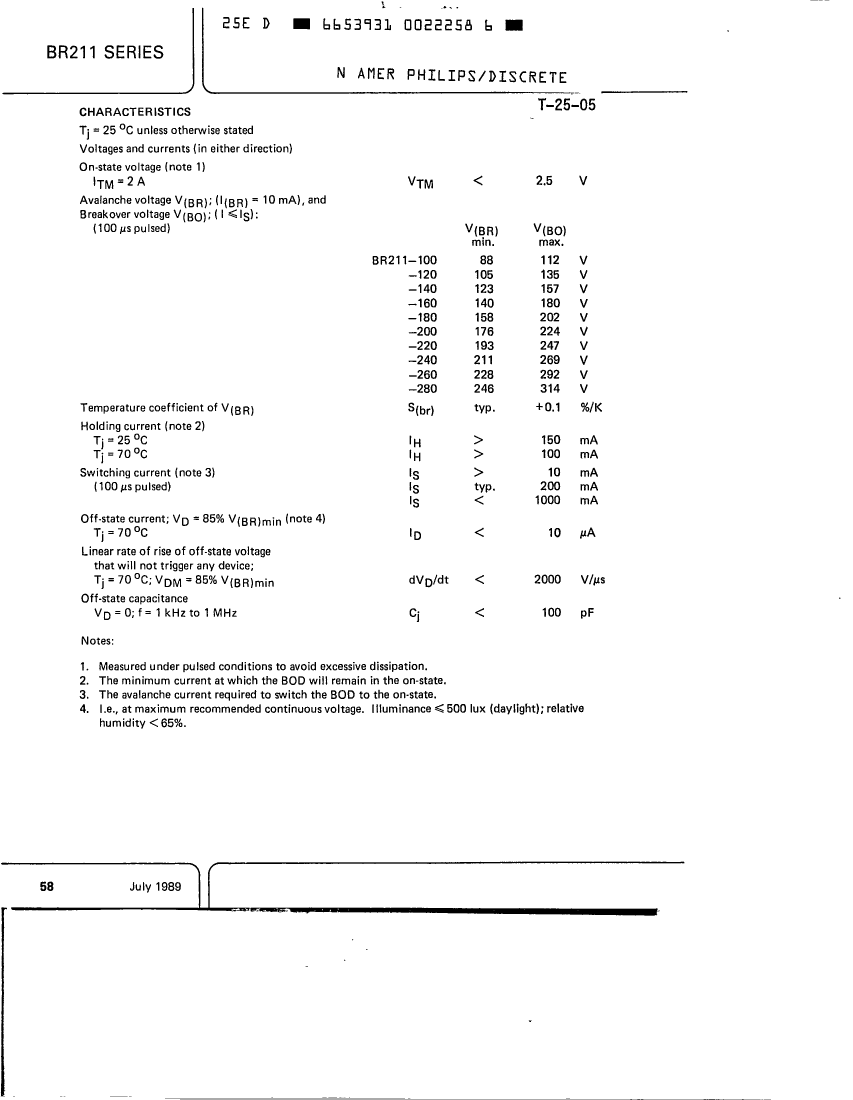

Preview

Download Datasheet

View All

BR211-120 Related Products

	BR211-120	BR211-140	BR211-160	BR211-100	BR211-180	BR211-200	BR211-220	BR211-240	BR211-260	BR211-280
Description	Silicon Surge Protector, 135V V(BO) Max,	Silicon Surge Protector, 157V V(BO) Max,	Silicon Surge Protector, 180V V(BO) Max,	Silicon Surge Protector, 112V V(BO) Max,	Silicon Surge Protector, 202V V(BO) Max,	Silicon Surge Protector, 224V V(BO) Max,	Silicon Surge Protector, 247V V(BO) Max,	Silicon Surge Protector, 269V V(BO) Max,	Silicon Surge Protector, 292V V(BO) Max,	Silicon Surge Protector, 314V V(BO) Max,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum breakover voltage	135 V	157 V	180 V	112 V	202 V	224 V	247 V	269 V	292 V	314 V
Maximum holding current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum on-state voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Repeated peak reverse voltage	105 V	123 V	140 V	88 V	158 V	176 V	193 V	211 V	228 V	246 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR
Maker	North American Philips Discrete Products Div	-	-	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div
