BT136M-500D-T datasheet, PDF - EEWORLD Datasheet

BT136M-500D-T: DescriptionTRIAC, 500 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252; CategoryAnalog mixed-signal IC Trigger device; File Size148KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

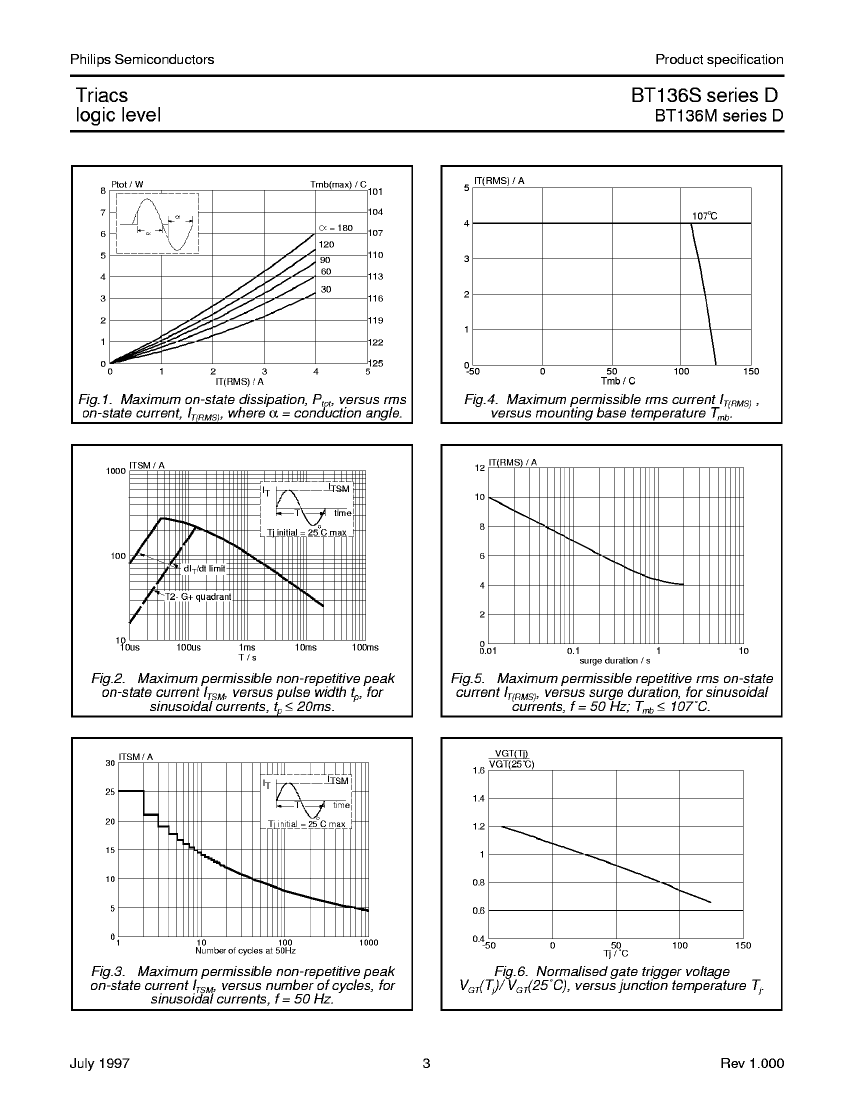

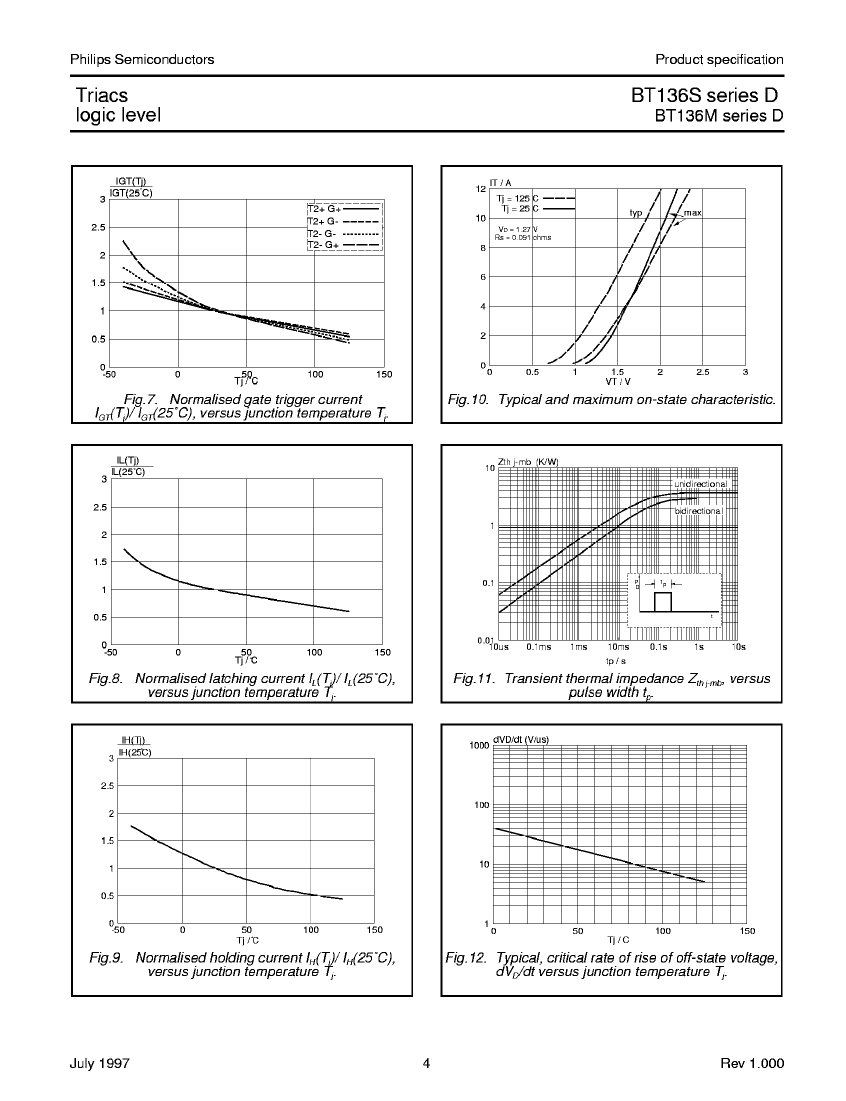

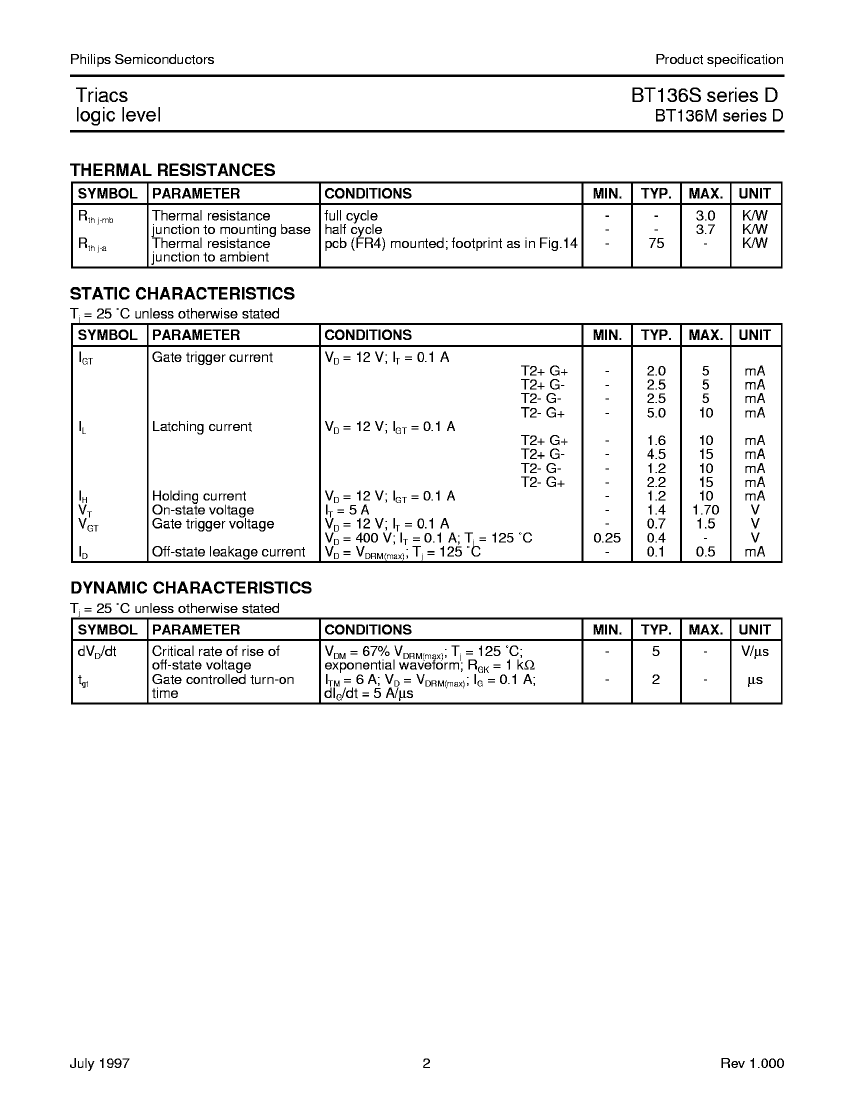

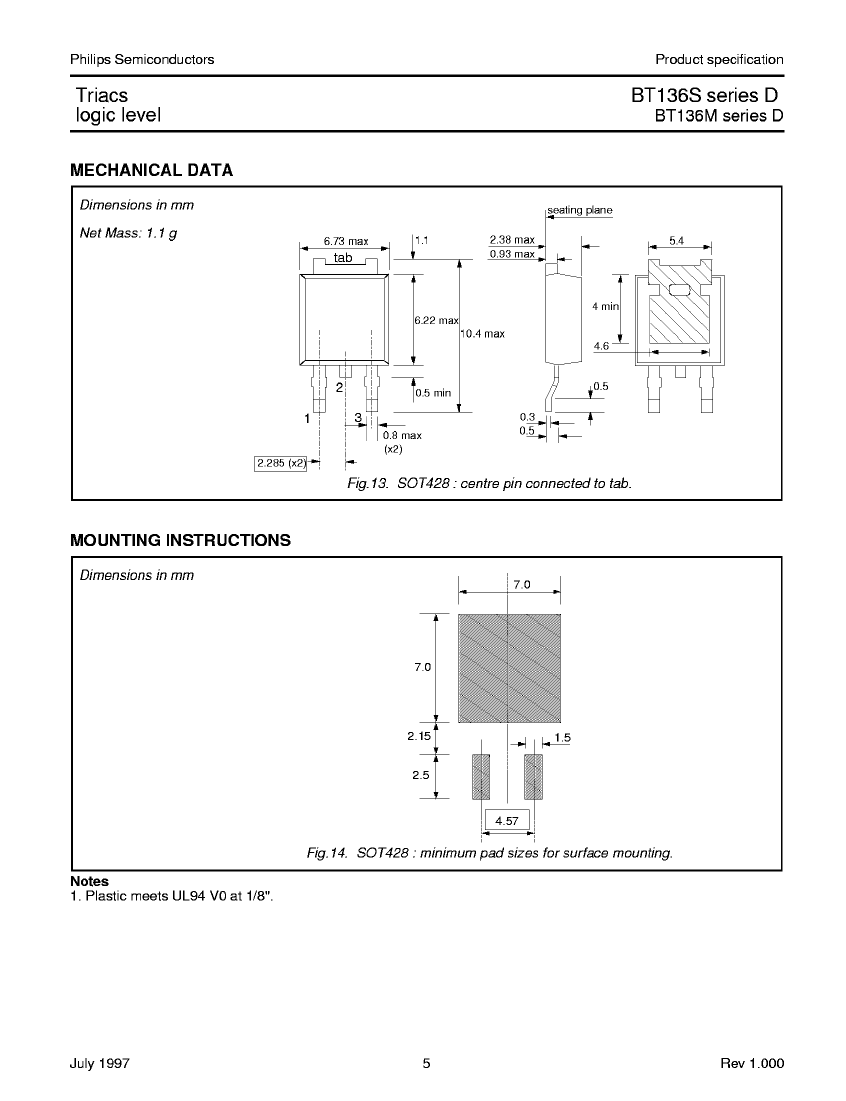

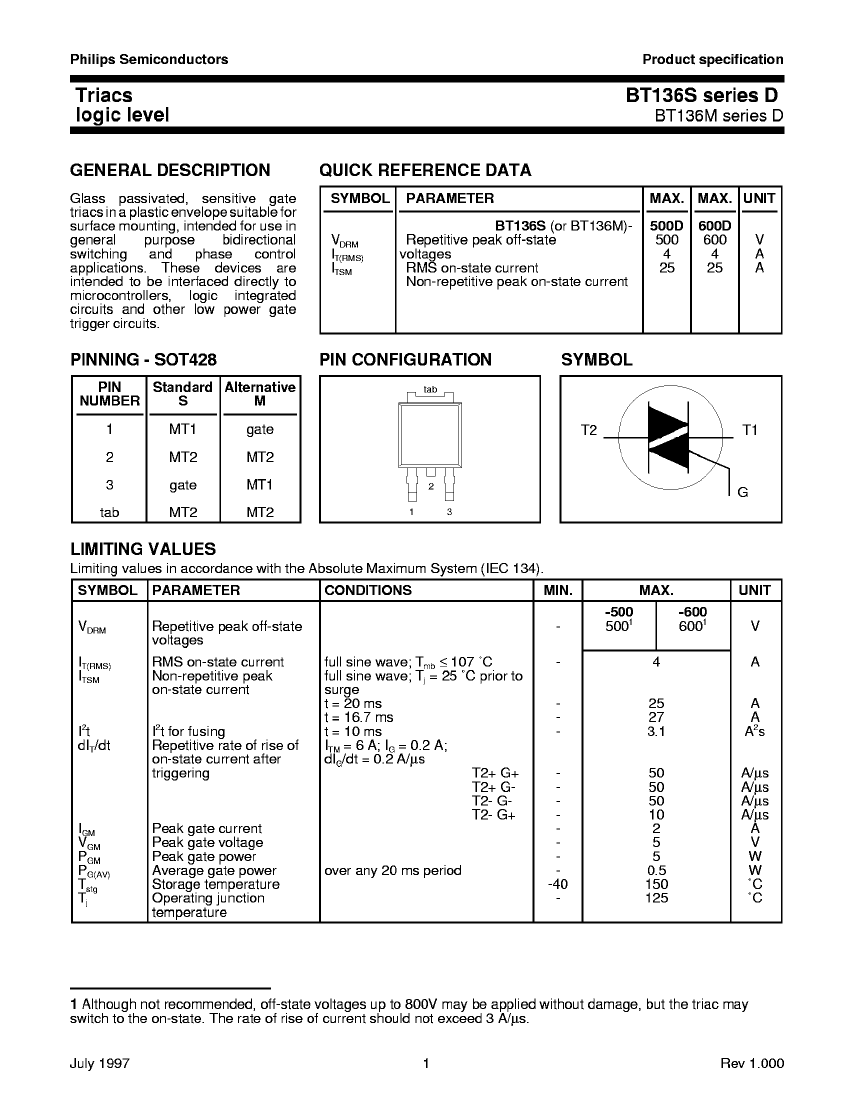

BT136M-500D-T Overview

TRIAC, 500 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
Other features	SENSITIVE GATE
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	10 mA
JEDEC-95 code	TO-252
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum rms on-state current	4 A
Maximum repetitive peak off-state leakage current	500 µA
Off-state repetitive peak voltage	500 V
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

	BT136M-500D-T	BT136S-500D-T	BT136M-600D-T
Description	TRIAC, 500 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252	TRIAC, 500 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252	600V, 4A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252
Maker	NXP	NXP	NXP
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown
Other features	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE
Shell connection	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2
Configuration	SINGLE	SINGLE	SINGLE
Maximum DC gate trigger current	5 mA	5 mA	5 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	10 mA	10 mA	10 mA
JEDEC-95 code	TO-252	TO-252	TO-252
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	4 A	4 A	4 A
Maximum repetitive peak off-state leakage current	500 µA	500 µA	500 µA
Off-state repetitive peak voltage	500 V	500 V	600 V
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
