Fast Recovery Diode Stud
Types M0334S/RX120 to M0334S/RX180

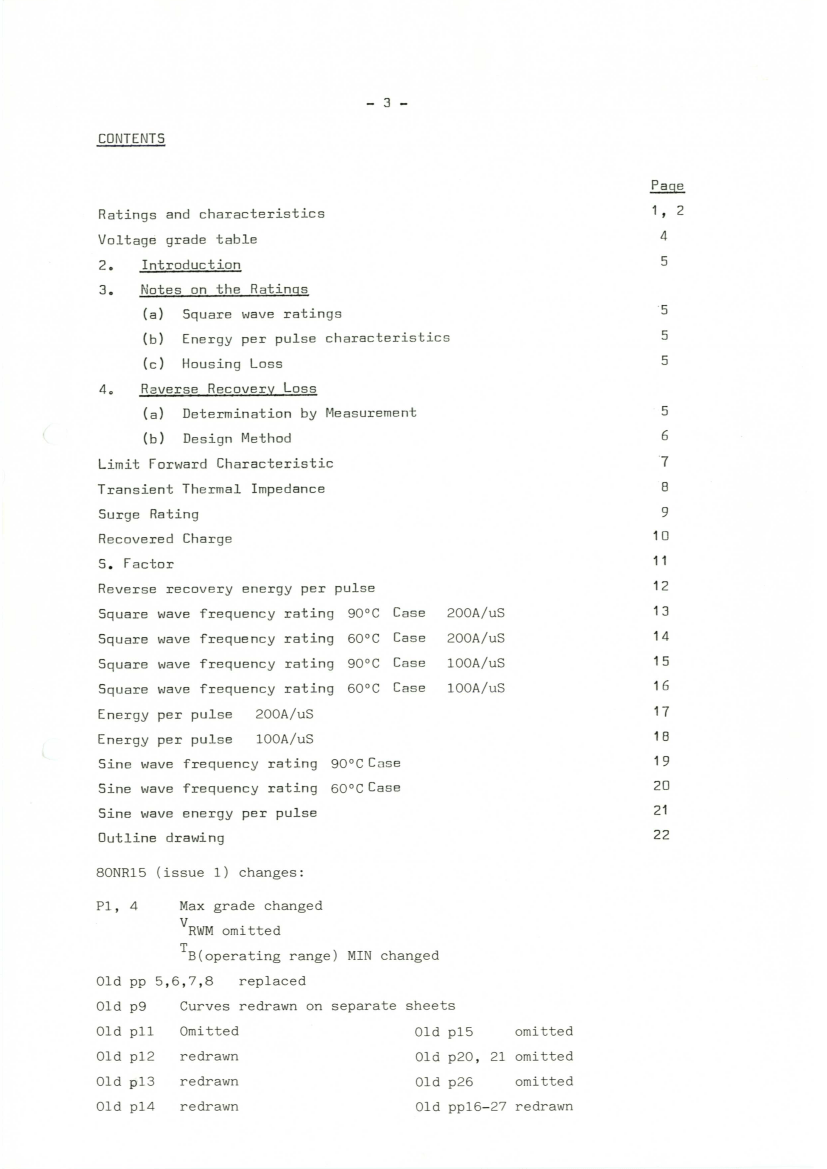

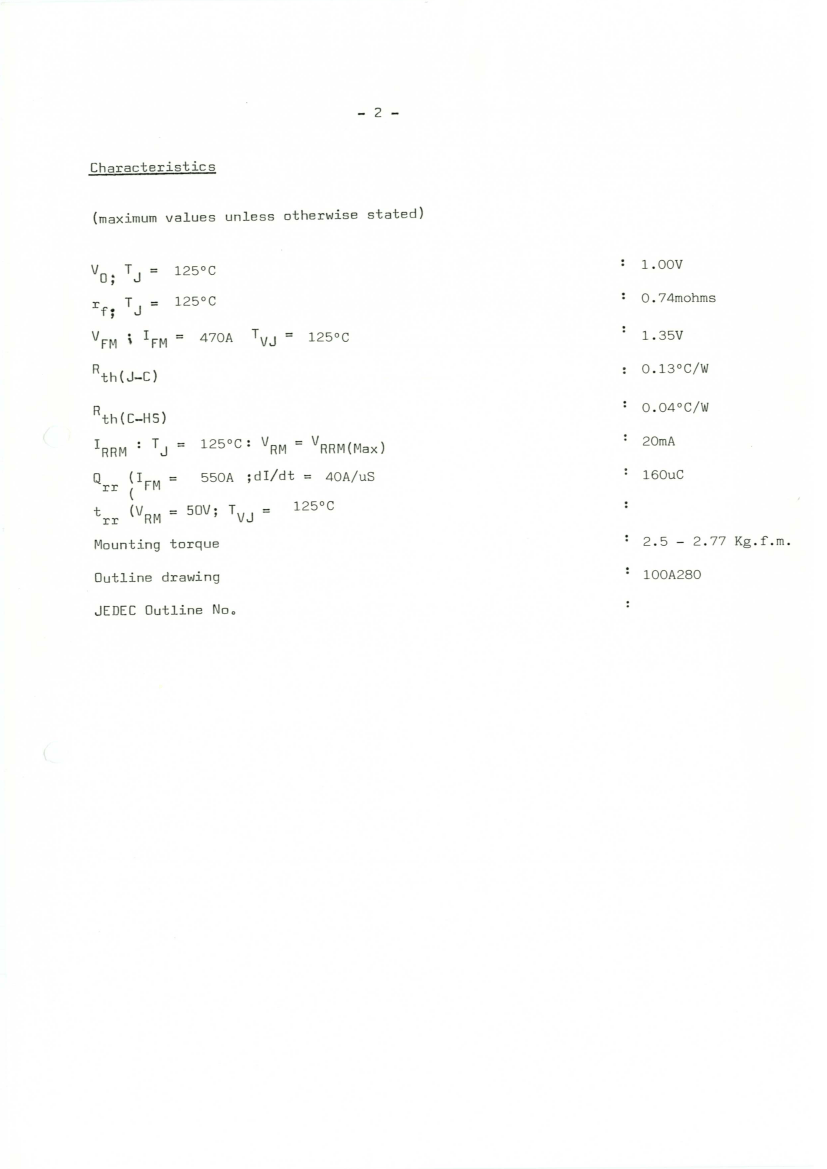

The data sheet on the subsequent pages of this document is a scanned copy of existing
data for this product.

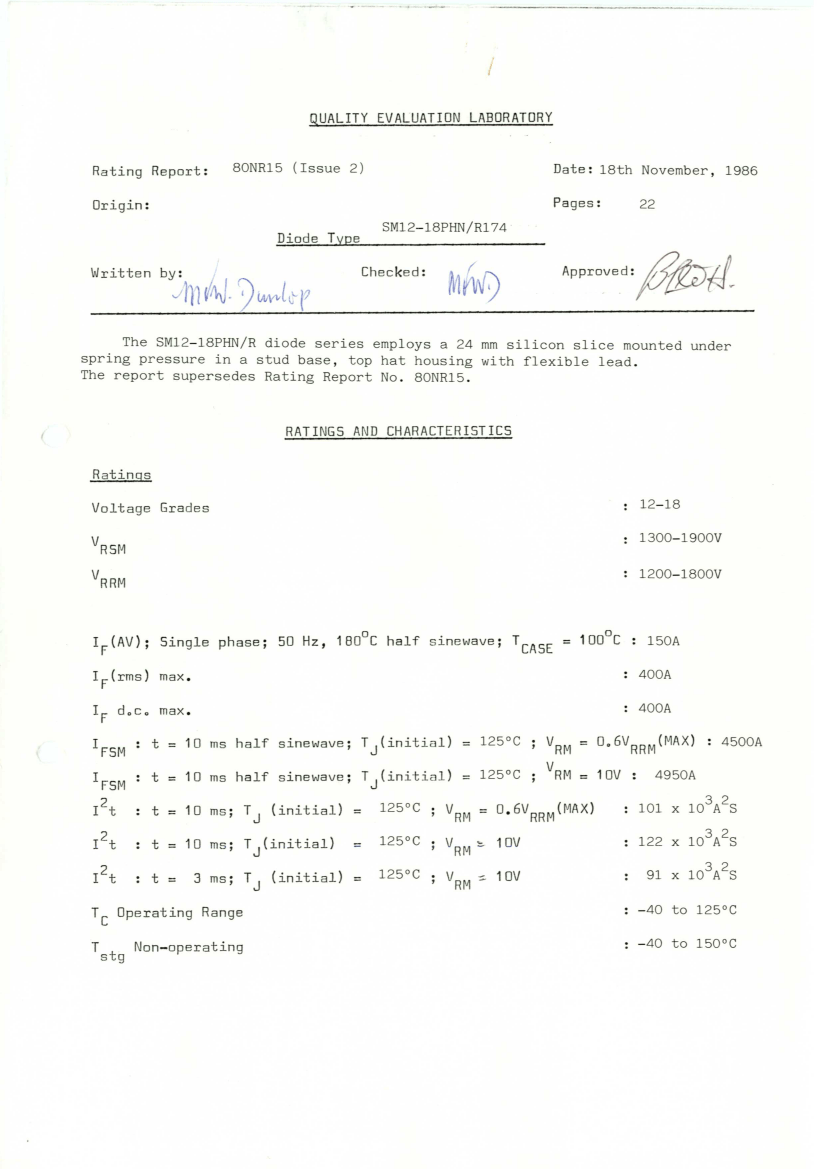

(Rating Report 80NR15 Issue 2)
This data reflects the old part number for this product which is: SM12-18PHN/R174.
This part number must
NOT
be used for ordering purposes – please use the ordering
particulars detailed below.
The limitations of this data are as follows:
Only S/RJ outline drawing (W24) in datasheet
The following links will direct you to the appropriate outline drawings
Outline W22
– ¾” flag top ceramic stud
Outline W24
– ¾” leaded ceramic stud
Where any information on the product matrix page differs from that in the following data,
the product matrix must be considered correct
An electronic data sheet for this product is presently in preparation.
For further information on this product, please contact your local ASM or distributor.
Alternatively, please contact Westcode as detailed below.
Ordering Particulars
M0334
Fixed Type Code
S/RX
S/RC - ¾” flag top ceramic stud
S/RJ - ¾” leaded ceramic stud

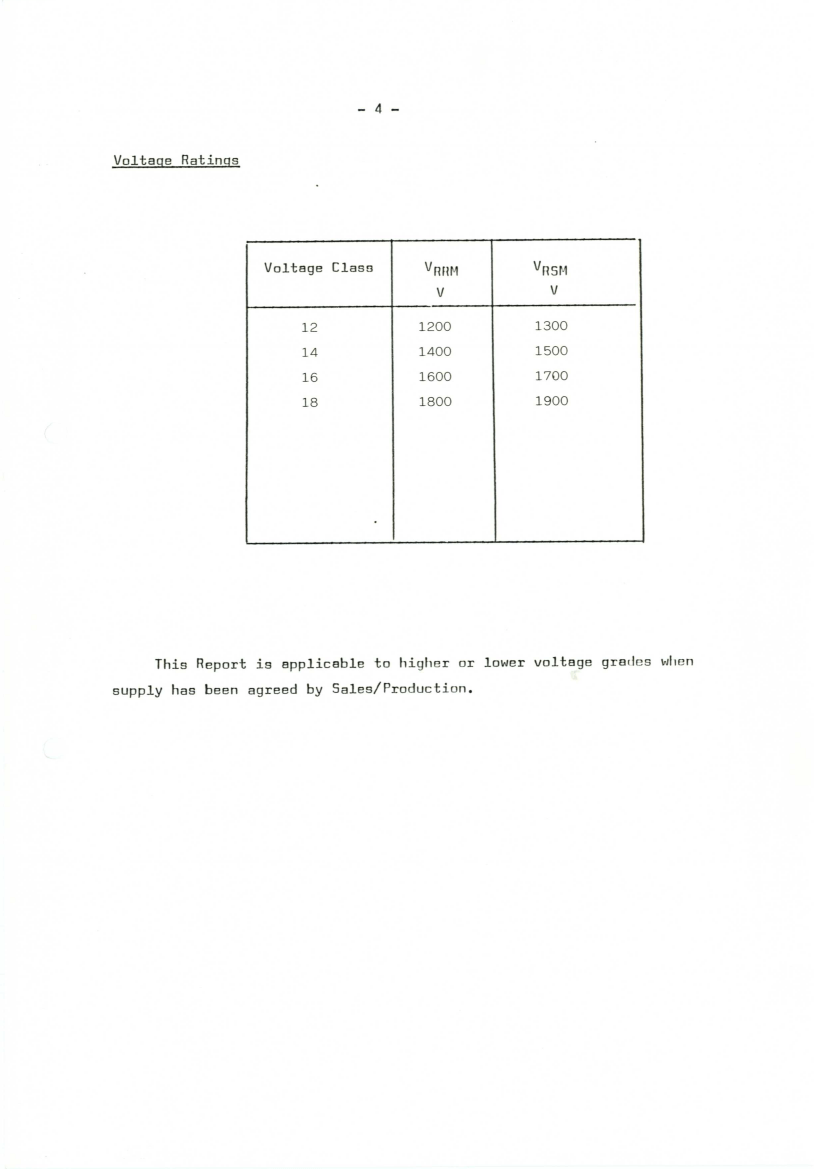

Voltage code
V
RRM
/100
12-18
0
Fixed Code
Typical Order Code: M0334RJ140, Reverse polarity, ¾” leaded ceramic stud, 1400V V
RRM
IXYS Semiconductor GmbH
Edisonstraße 15
D-68623 Lampertheim
Tel: +49 6206 503-0
Fax: +49 6206 503-627
E-mail:
marcom@ixys.de
IXYS Corporation
3540 Bassett Street
Santa Clara CA 95054 USA
Tel: +1 (408) 982 0700
Fax: +1 (408) 496 0670
E-mail:
sales@ixys.net
An
WESTCODE
IXYS
Company
Westcode Semiconductors Ltd
Langley Park Way, Langley Park,
Chippenham, Wiltshire, SN15 1GE.
Tel: +44 (0)1249 444524
Fax: +44 (0)1249 659448
E-mail:
WSL.sales@westcode.com
Westcode Semiconductors Inc
3270 Cherry Avenue
Long Beach CA 90807 USA
Tel: +1 (562) 595 6971
Fax: +1 (562) 595 8182
E-mail:
WSI.sales@westcode.com
©
Westcode Semiconductors Ltd.
www.westcode.com
www.ixys.com
The information contained herein is confidential and is protected by Copyright. The information may not be used or disclosed except with the written
permission of and in the manner permitted by the proprietors Westcode Semiconductors Ltd.
In the interest of product improvement, Westcode reserves the right to change specifications at any time without prior notice.
Devices with a suffix code (2-letter, 3-letter or letter/digit/letter combination) added to their generic code are not necessarily subject to the conditions
and limits contained in this report.
