LSM-10A D3 Models
Single Output, Non-Isolated, 3.3V
IN
, 0.8-2.5V
OUT
10 Amp DC/DC’s in SMT Packages
Features
Typical Unit
Step-down buck regulators with
industry-standard SMT footprint
3.3V input (3.0-3.6V range)
0.8/1/1.2/1.5/1.8/2/2.5V
OUT
@10A
Non-isolated, fixed-frequency,
synchronous-rectifier topology
Tape and reel SMT package
±1% setpoint accuracy
Efficiencies to 94% @ 10 Amps
Noise as low as 30mVp-p
Stable no-load operation
Remote on/off control
Sense pin and output voltage trim
Thermal shutdown
No derating to +70°C, natural convection
UL/IEC/EN60950 certified
EMC compliant
DATEL's LSM D3 Series for SMT (surface-mount) are non-isolated DC/DC
converters that accept a 3.3V input (3.0V to 3.6V input range) and deliver 1V, 1.2V,
1.5V, 1.8V, 2V or 2.5V outputs at 10 Amps. LSM D3 SMT's are designed to take on-
board 3.3V power and convert it, with the highest efficiency in the smallest space, to
any lower voltage required by today's current-hungry DSP's, ASIC's and CPLD's.
The LSM D3's miniature size makes them ideal for true point-of-use/load power
processing. They occupy a mere 0.7 square inches (4.5 cm
2
) and are only 0.34
inches (8.64 mm) high. The SMT package is designed for pick and place including
lead free reflow soldering, and they typically require no additional external compo-
nents.
The LSM's best-in-class power density is achieved with a fully synchronous,
fixed-frequency (300kHz), buck topology that also delivers: high efficiency (94% for
2.5V
OUT
models), low noise (30mVp-p typ.), tight line/load regulation (±0.1%/±0.25%
max.), quick step response (100μsec), stable no-load operation, and no output
reverse conduction.
The fully functional LSM's feature output overcurrent detection, continuous short-
circuit and over-temperature protection, an output-voltage trim function, a remote on/
off control pin (pull low to disable), and a sense pin. High efficiency enables the LSM
D3's to deliver rated output currents of 10 Amps at ambient temperatures to +70°C
with no air flow (natural convection).
If your low-voltage, high-current requirements have made the use of inefficient
linear regulators impractical, take a look at one of DATEL's easy-to-use, low-cost
LSM SMT's (or equivalent LSN SIP's). All devices are UL/IEC/EN60950 certified and
EMC compliant. UL, CB, HALT and EMC reports are available upon request.
+INPUT
(2)
+OUTPUT
(4)
+SENSE
(6)
COMMON
(3)
CURRENT
SENSE
V
CC
ON/OFF
CONTROL
(1)
PWM
CONTROLLER
REFERENCE &
ERROR AMP
V
OUT
TRIM
(5)
COMMON
(3)

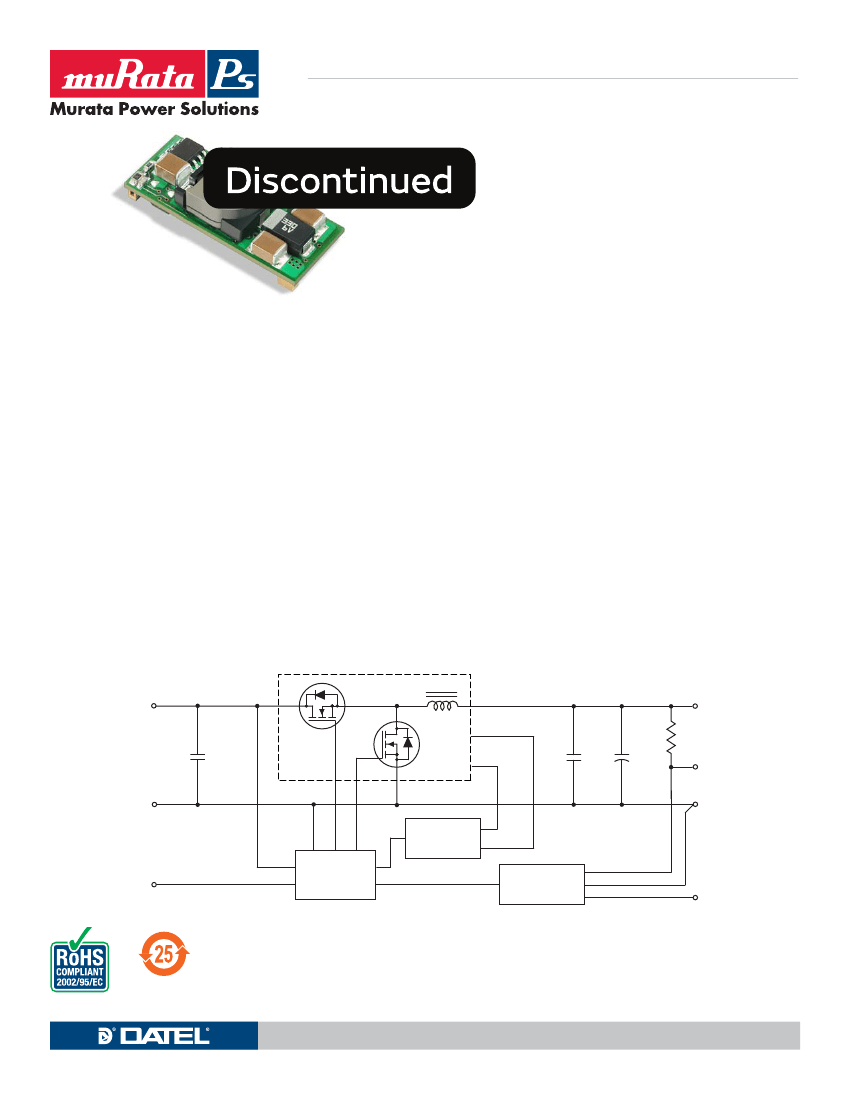

Figure 1. Simplified Schematic
For devices with the sense-pin removed ("B" suffix),
the feedback path is through the +Output pin and not
the +Sense pin.
Typical topology is shown
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_LSM-10A D3.B01 Page 1 of 13
LSM-10A D3 Models
Single Output, Non-Isolated, 3.3V
IN
, 0.8-2.5V
OUT
10 Amp DC/DC’s in SMT Packages
Performance Specifications and Ordering Guide
Output
Model
LSM-0.8/10-D3
LSM-1/10-D3
LSM-1.2/10-D3
LSM-1.5/10-D3
LSM-1.8/10-D3
LSM-2/10-D3
LSM-2.5/10-D3
Input
Regulation (Max.)
Line
Load
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
±0.25%
V
OUT
(Volts)
0.8
1
1.2
1.5
1.8
2
2.5
I
OUT
(Amps)
10
10
10
10
10
10
10
R/N (mVp-p)
Typ.
Max.
30
30
30
30
30
30
30
50
50
50
50
50
50
50
V
IN
Nom.
(Volts)
3.3
3.3
3.3
3.3
3.3
3.3
3.3
Range
(Volts)
3-3.6
3-3.6
3-3.6
3-3.6
3-3.6
3-3.6
3-3.6
I
IN
(mA/A)
70/3.0
70/3.52
70/4.13
70/5.05
70/5.96
70/6.55
70/8.1
Efficiency
Full Load
½ Load
Min.
81%
84%
86%
88%
89.5%
90.5%
91.5%
Typ.
84%
86%
88%
90%
91.5%
92.5%
93.5%
Typ.
85%
90%
91%
92%
93%
94%
95%
Package
(Case,
Pinout)
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
Typical at T
A
= +25°C under nominal line voltage and full-load conditions, unless otherwise
noted. All models are tested and specified with external 22μF tantalum input and output
capacitors. These capacitors are necessary to accommodate our test equipment and may
not be required to achieve specified performance in your applications. See I/O Filtering and
Noise Reduction.
Ripple/Noise (R/N) is tested/specified over a 20MHz bandwidth and may be reduced with
external filtering. See I/O Filtering and Noise Reduction for details.
These devices have no minimum-load requirements and will regulate under no-load conditions.
Regulation specifications describe the output-voltage deviation as the line voltage or load is
varied from its nominal/midpoint value to either extreme.
Nominal line voltage, no-load/full-load conditions.
Contact DATEL for availability.

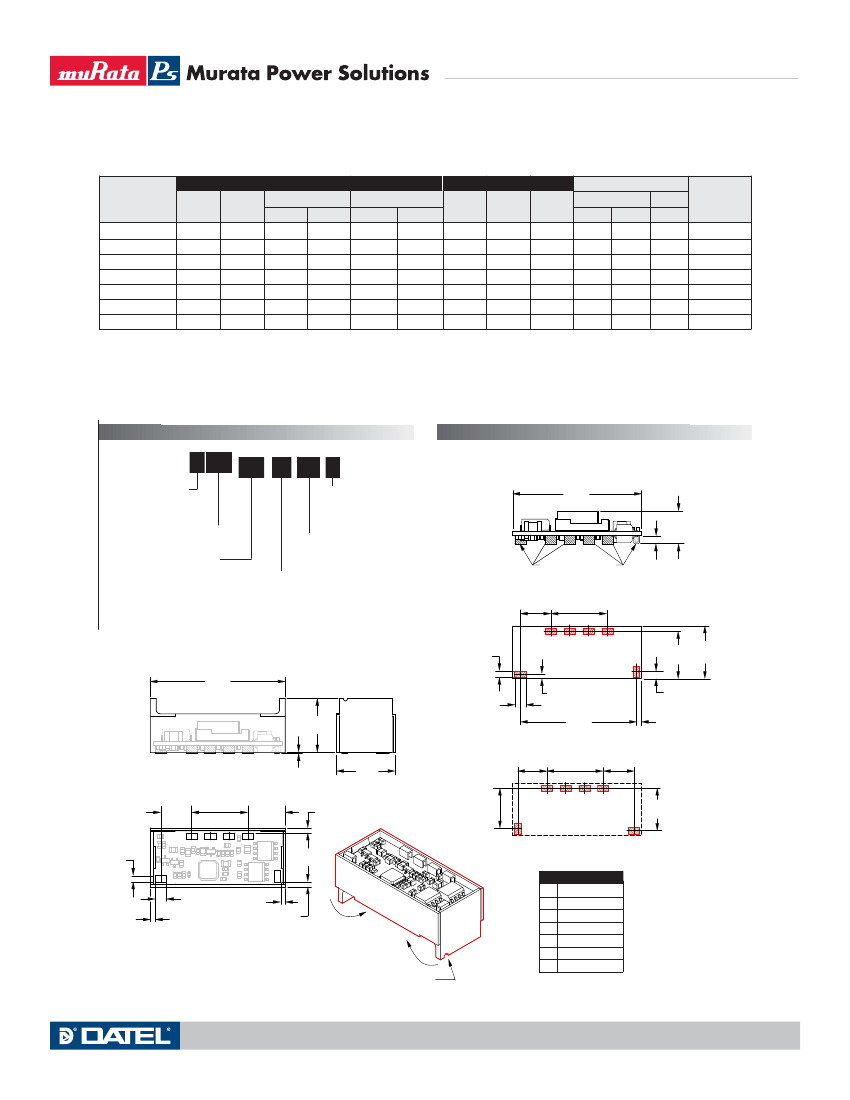

P A R T
N U M B E R
S T R U C T U R E
M E C H A N I C A L
S P E C I F I C A T I O N S
Output
Configuration:
L = Unipolar
Low Voltage
L SM
-
1.8
/
10
-
D3
-
C
RoHS-6 compliant*
Non-Isolated SMT
Nominal Output Voltage:
0.8, 1, 1.2, 1.5, 1.8, 2,
or 2.5 Volts
Input Voltage Range:
D3 = 3.0 to 3.6 Volts
(3.3V nominal)
Maximum Rated Output
Current in Amps
Note: Not all model number
combinations are available.
Contact Murata Power Solutions (DATEL).
Case C45
1.36
(34.54)
0.55
(13.97)
0.310
(7.87)
0.570 (14.48)
3 EQ. SP. @
0.190 (4.83)
0.010
(0.254)
0.60
(15.24)
DIMENSIONS ARE IN INCHES (MM)
0.375
(9.53)
0.052
(1.32)
3
4
5
6
1
0.062
(1.57)
2
0.112 TYP.
(2.84)
0.049
(1.24)
0.047
(1.19)
BOTTOM VIEW
0.052
(1.32)
LSM WITH REMOVEABLE HEAT SHIELD
FOR HIGH TEMPERATURE SOLDER
Refer to the last page for
Tape and Reel information.
CAUTION
PRESS TO REMOVE
THE HEAT SHIELD
AFTER THE SOLDER
PROCESS
NOTCH IN SHELL
INDICATES PIN ONE
Pin
1
2
3
4
5
6
I/O Connections
Function P63
On/Off Control
+Input
Common
+Output
V
OUT
Trim
+Sense
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_LSM-10A D3.B01 Page 2 of 13
