BDW45 datasheet, PDF - EEWORLD Datasheet

BDW45: DescriptionTRANSISTOR,BJT,DARLINGTON,PNP,60V V(BR)CEO,15A I(C),TO-220AB; CategoryDiscrete semiconductor The transistor; File Size414KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

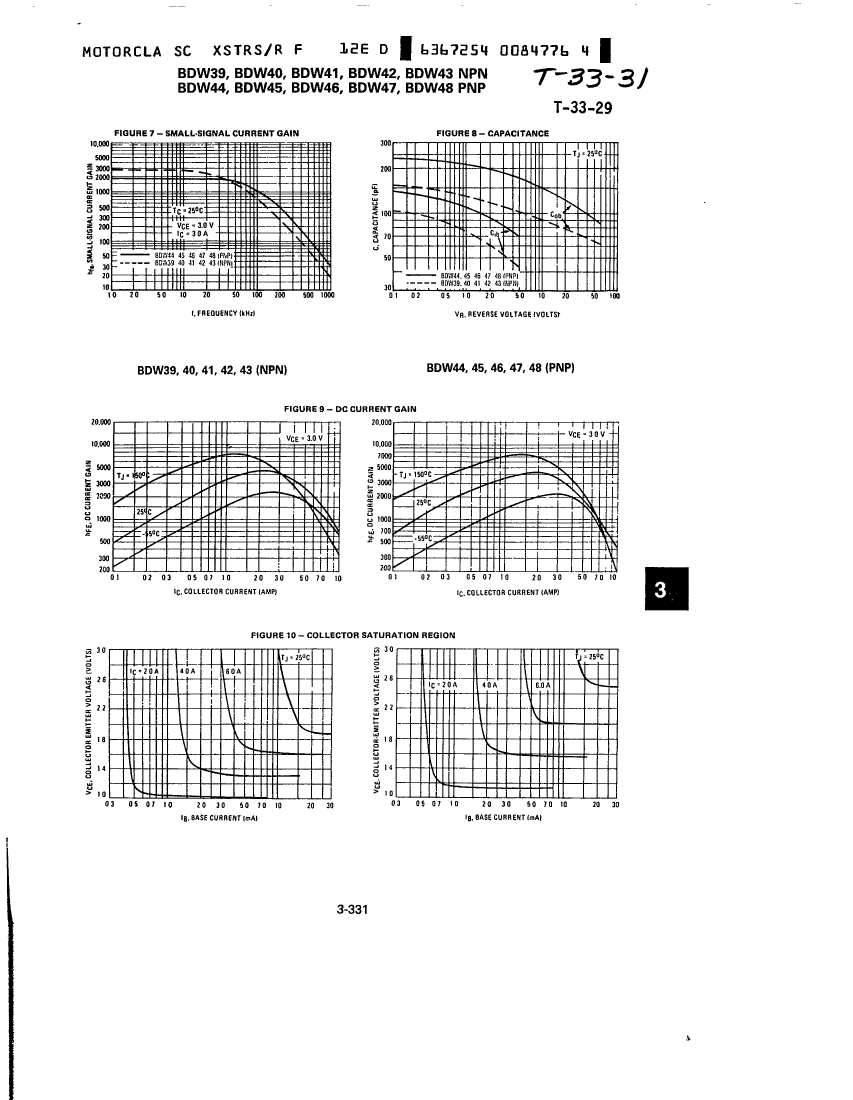

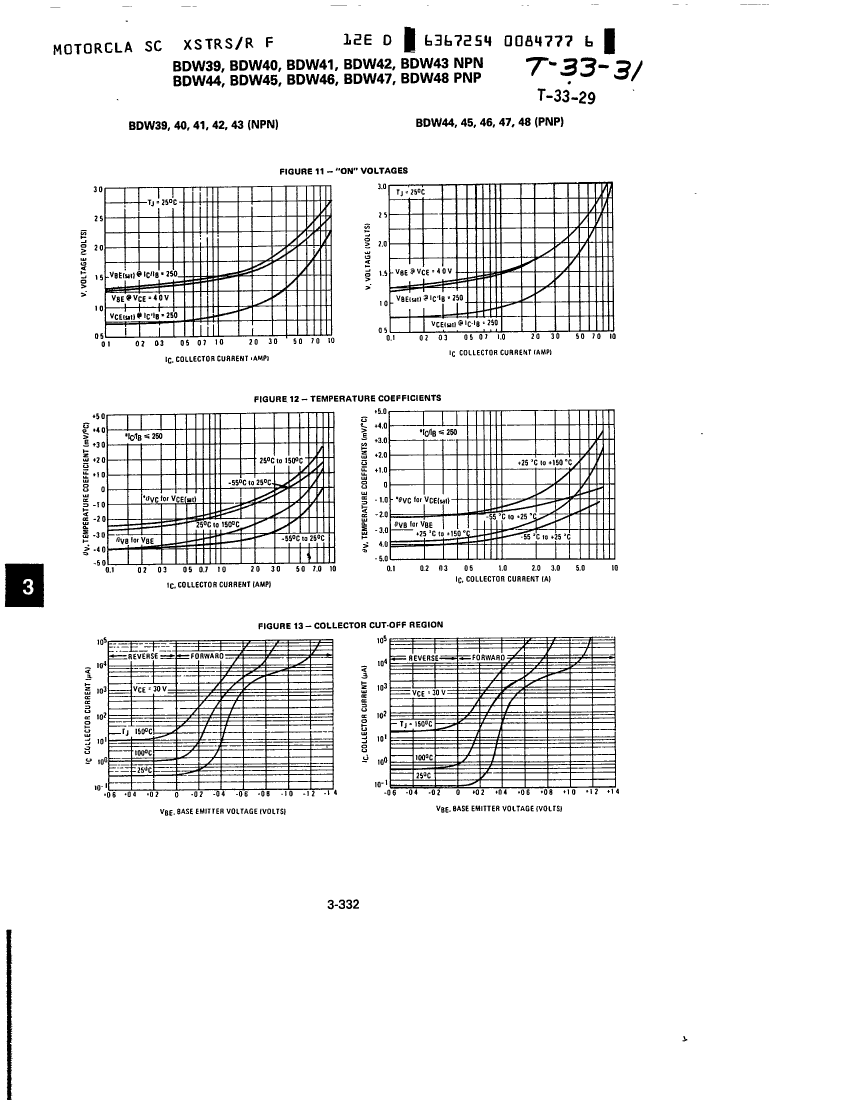

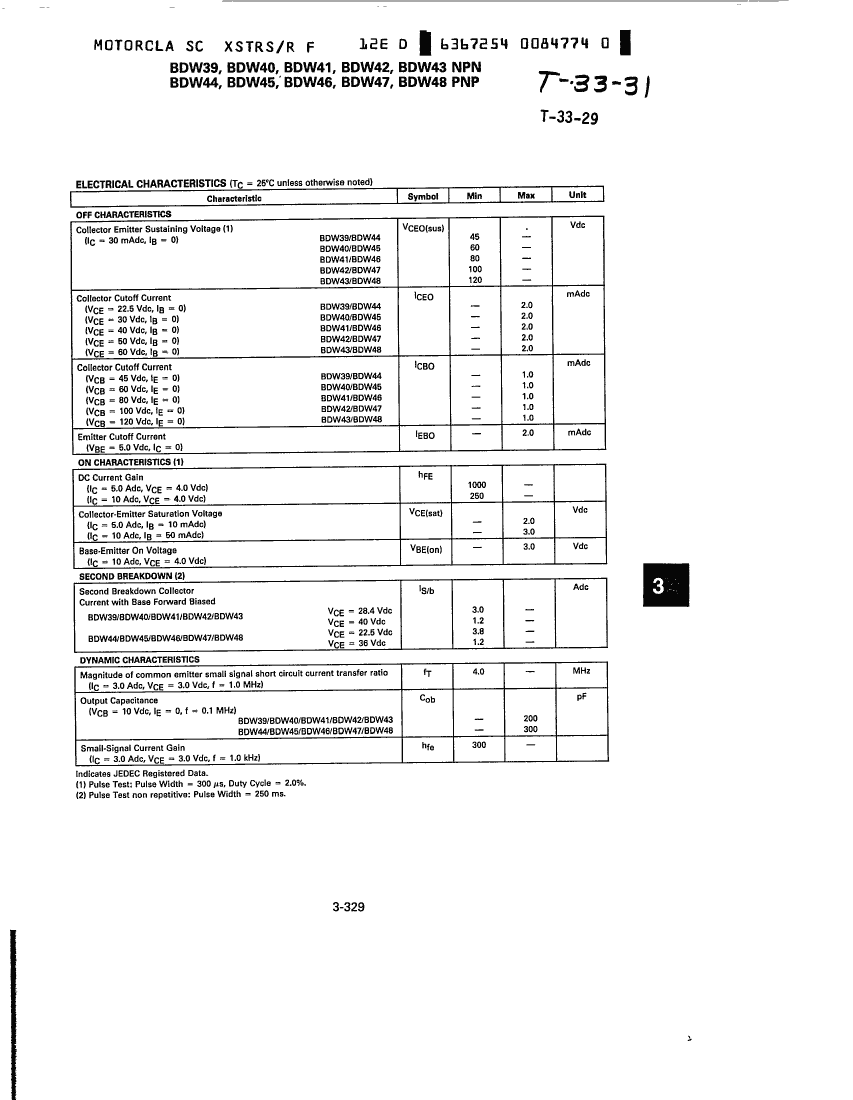

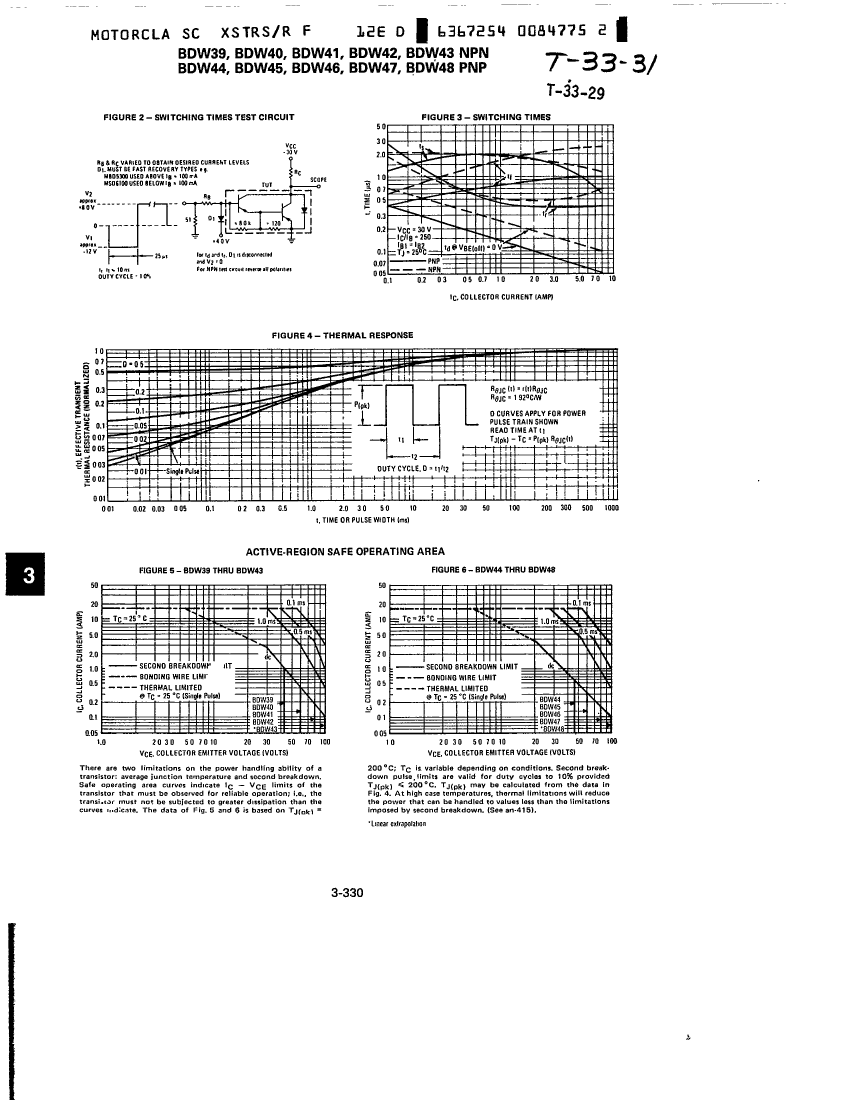

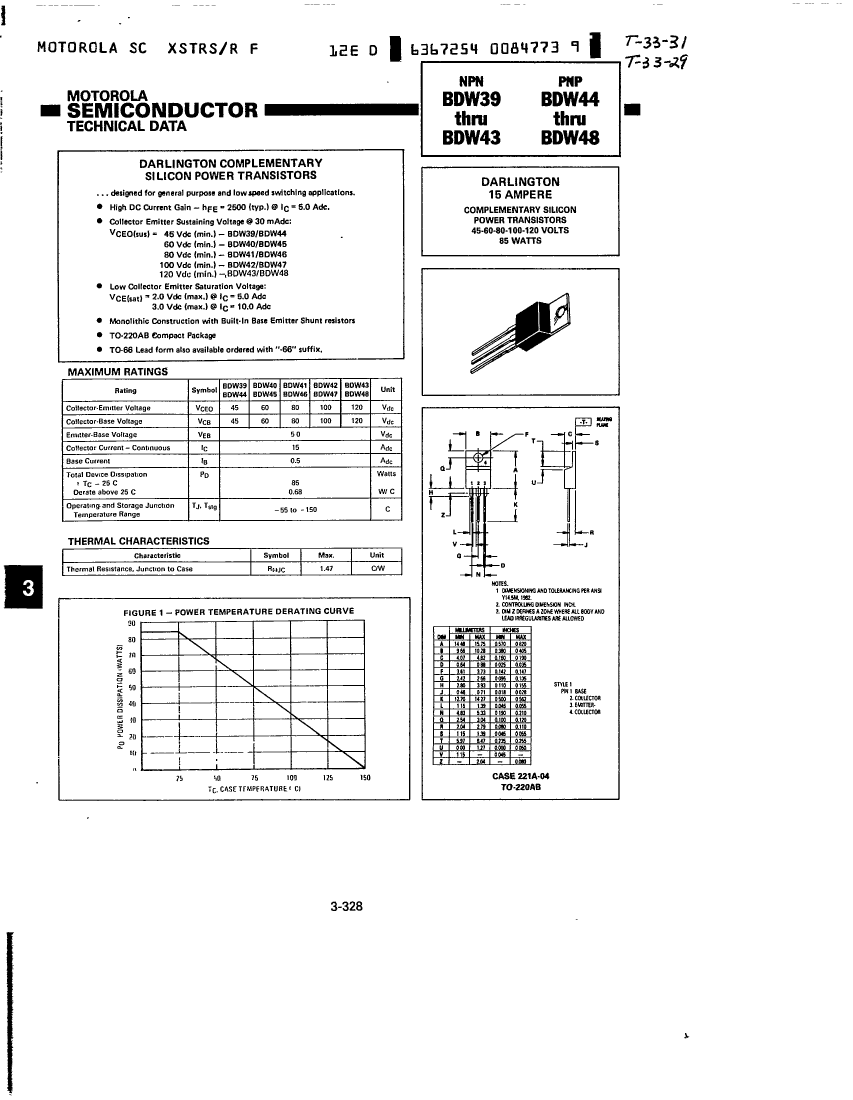

BDW45 Overview

TRANSISTOR,BJT,DARLINGTON,PNP,60V V(BR)CEO,15A I(C),TO-220AB

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	15 A
Configuration	DARLINGTON
Minimum DC current gain (hFE)	1000
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	85 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	4 MHz

	BDW45	BDW40	BDW43	BDW39
Description	TRANSISTOR,BJT,DARLINGTON,PNP,60V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,DARLINGTON,NPN,60V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,DARLINGTON,NPN,120V V(BR)CEO,15A I(C),TO-220AB	TRANSISTOR,BJT,DARLINGTON,NPN,45V V(BR)CEO,15A I(C),TO-220AB
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum collector current (IC)	15 A	15 A	15 A	15 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	1000	1000	1000	1000
JESD-609 code	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	NPN	NPN	NPN
Maximum power dissipation(Abs)	85 W	85 W	85 W	85 W
surface mount	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	4 MHz	4 MHz	4 MHz	4 MHz
