LM2575-15BWMT&R

Description
Switching Regulator, Voltage-mode, 1.3A, 52kHz Switching Freq-Max, PDSO24, 0.300 INCH, SOIC-24
CategoryPower/power management    The power supply circuit
File Size235KB,7 Pages
ManufacturerMicrel ( Microchip )
Websitehttps://www.microchip.com
Download Datasheet Parametric Compare View All

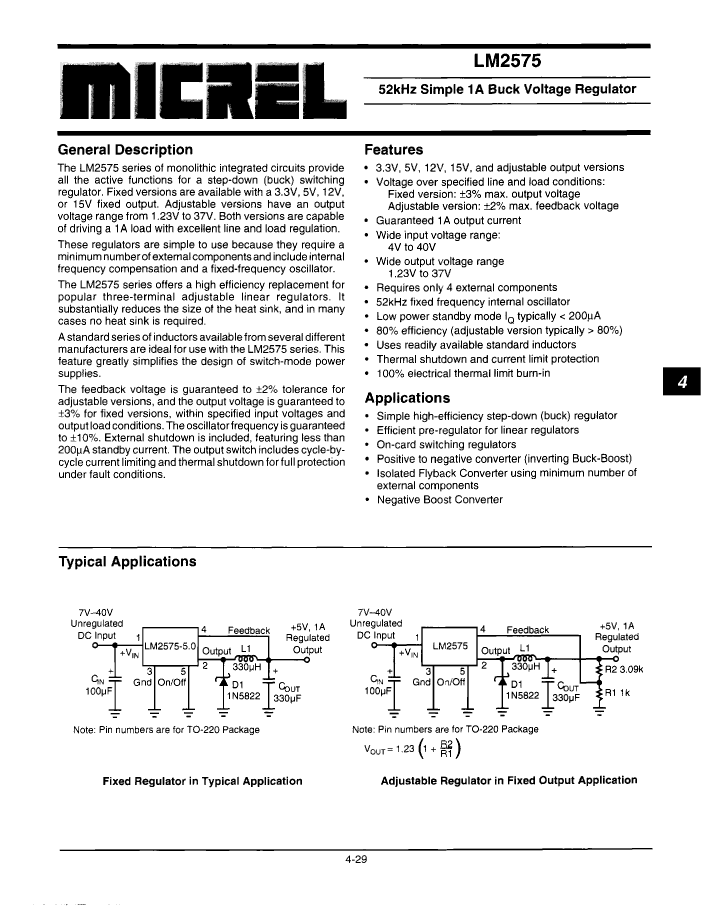

LM2575-15BWMT&R Overview

Switching Regulator, Voltage-mode, 1.3A, 52kHz Switching Freq-Max, PDSO24, 0.300 INCH, SOIC-24

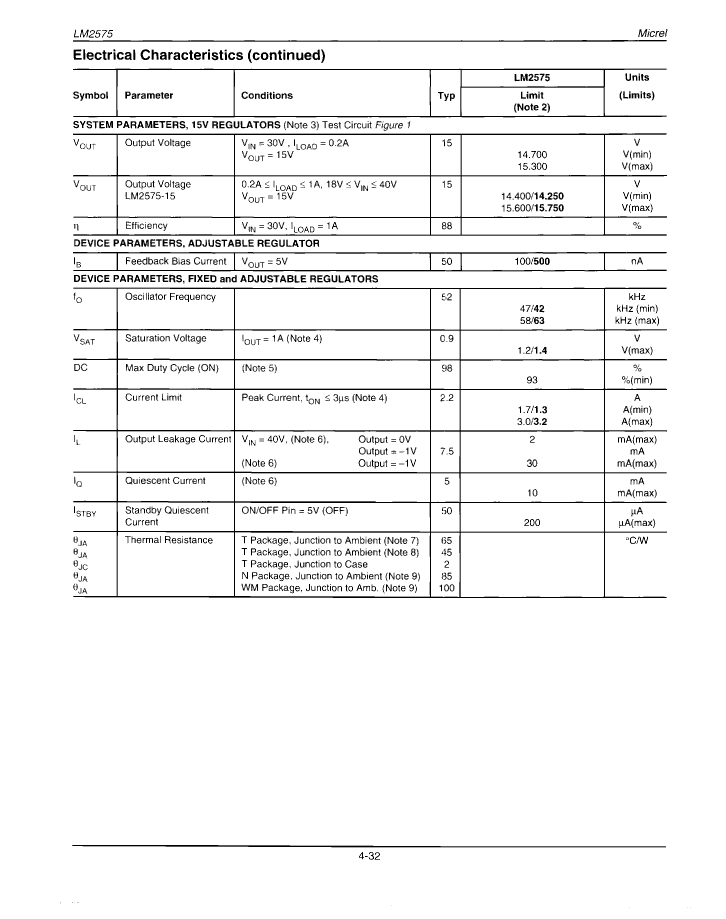

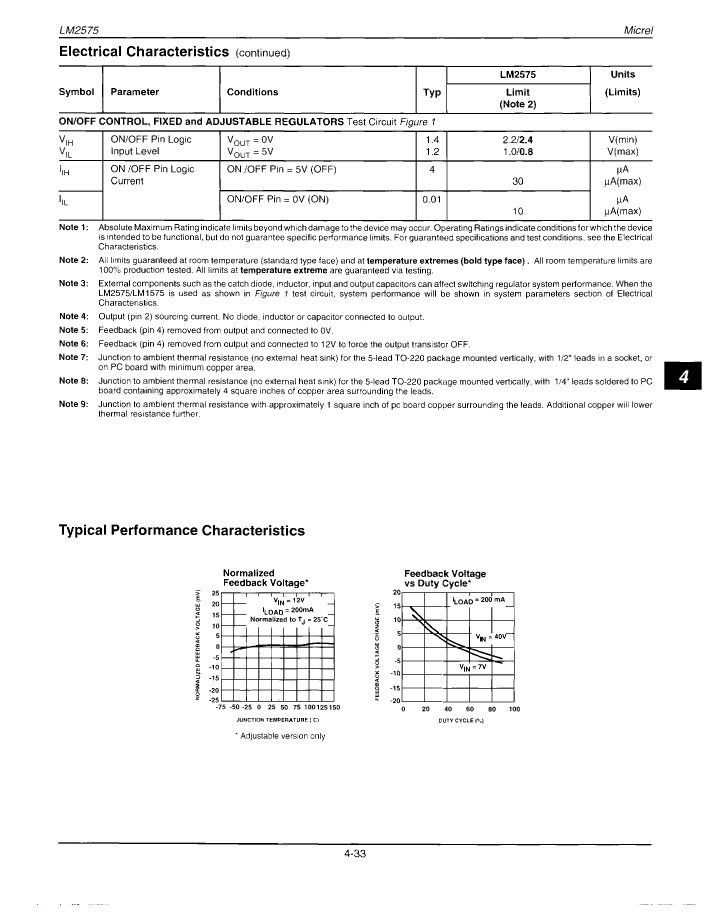

LM2575-15BWMT&R Parametric

Parameter NameAttribute value
MakerMicrel ( Microchip )

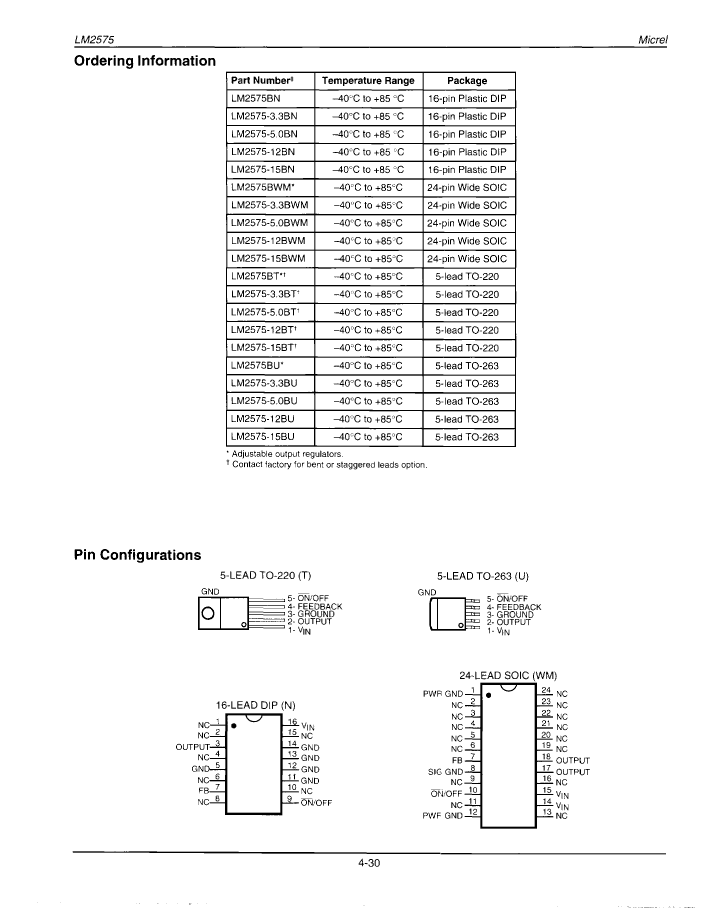

Parts packaging codeSOIC
package instruction0.300 INCH, SOIC-24
Contacts24
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
control modeVOLTAGE-MODE
Control TechnologyPULSE WIDTH MODULATION

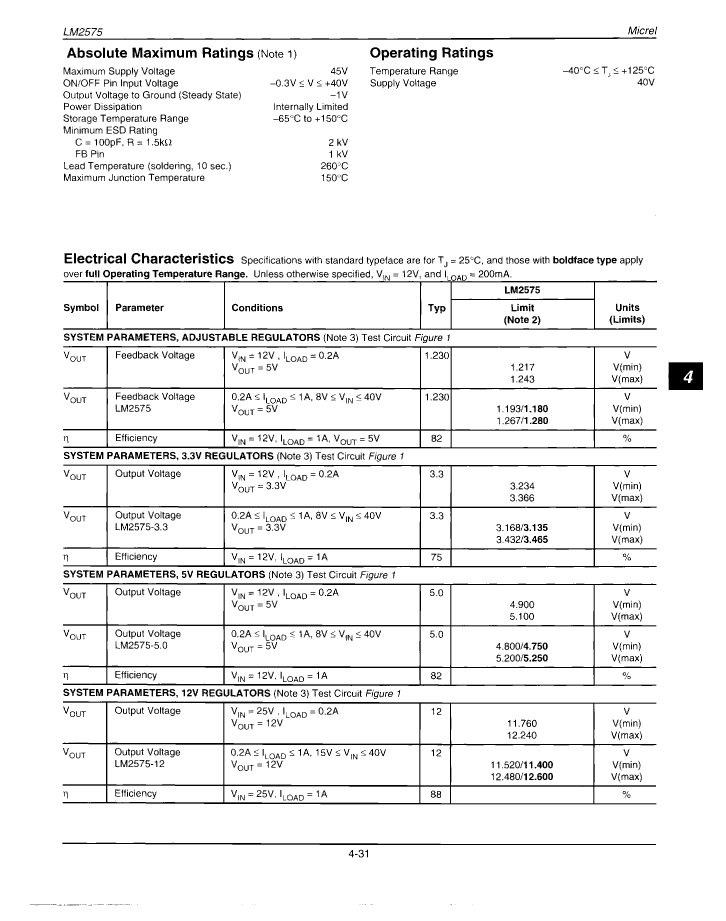

Maximum input voltage40 V
Minimum input voltage18 V
JESD-30 codeR-PDSO-G24
length15.4 mm
Number of functions1
Number of terminals24
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current1.3 A
Nominal output voltage15 V
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Maximum seat height2.65 mm
Maximum supply current (Isup)10 mA
surface mountYES
Switch configurationBUCK
Maximum switching frequency52 kHz
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width7.5 mm

LM2575-15BWMT&R Related Products

LM2575-15BWMT&R LM2575-15BWM
Description Switching Regulator, Voltage-mode, 1.3A, 52kHz Switching Freq-Max, PDSO24, 0.300 INCH, SOIC-24 Switching Regulator, Voltage-mode, 1.3A, 52kHz Switching Freq-Max, BIPolar, PDSO24, 0.300 INCH, SOIC-24
Maker Micrel ( Microchip ) Micrel ( Microchip )
Parts packaging code SOIC SOIC
package instruction 0.300 INCH, SOIC-24 SOP, SOP24,.4
Contacts 24 24
Reach Compliance Code unknown compliant
ECCN code EAR99 EAR99
Analog Integrated Circuits - Other Types SWITCHING REGULATOR SWITCHING REGULATOR
control mode VOLTAGE-MODE VOLTAGE-MODE
Control Technology PULSE WIDTH MODULATION PULSE WIDTH MODULATION
Maximum input voltage 40 V 40 V
Minimum input voltage 18 V 18 V
JESD-30 code R-PDSO-G24 R-PDSO-G24
length 15.4 mm 15.4 mm
Number of functions 1 1
Number of terminals 24 24
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Maximum output current 1.3 A 1.3 A
Nominal output voltage 15 V 15 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified
Maximum seat height 2.65 mm 2.65 mm
Maximum supply current (Isup) 10 mA 10 mA
surface mount YES YES
Switch configuration BUCK BUCK
Maximum switching frequency 52 kHz 52 kHz
Temperature level INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm
Terminal location DUAL DUAL
width 7.5 mm 7.5 mm
