ELED ST Sugar Cube Transmitter Preliminary

Preview

Download Datasheet

View All

ELED ST Sugar Cube Transmitter

Preliminary

SGC-GC-XXB-X-XXST-XX

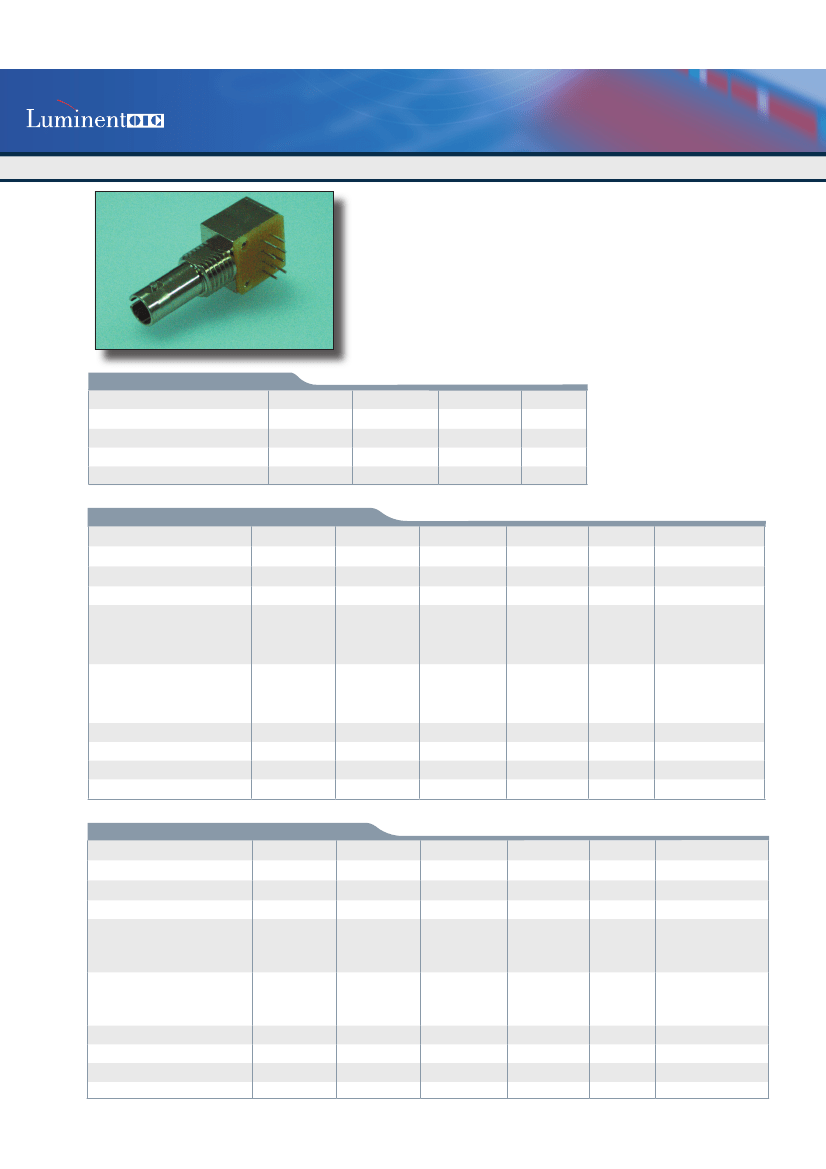

Features

• 1300nm or 1550nm Wavelength

• For Singlmode / Multimode Applications

• High Optical Power

• Low Operating Current

• High Speed

• Low Modal Noise

• 8 Pin Package with ST-A

• High Operating Temperature

• ST-A Type Sugar Cube

• For Data com Measurement Application

• RoHS Compliant available

Absolute Maximum Ratings (Tc=25ºC)

Parameter

Reverse Voltage

Operating Current

Operating Temperature

Storage Temperature

Symbol

opr

stg

Condition

Rating

2.5

150

-20 ~ 70

-40 ~ 85

Unit

ºC

(All optical data refer to a coupled 9/125

m SM & 50/125

m M/M ﬁber)

Optical and Electrical Characteristics 1300nm (Tc=25ºC)

Parameter

Wavelength

Spectral Width

Operating Current

Output Power (SM, 9/125µm)

Output Power(MM, 50/125µm)

Foward Voltage

Rise Time

Fall Time

Output Power Variation

Symbol

∆λ

Min

1260

Typ

1300

1.2

1.5

2.5

Max

1340

100

2.0

Unit

µW

Test Conditions

Iop=80 mA

µW

Iop=80 mA

25ºC to 70ºC

(All optical data refer to a coupled 9/125

m SM & 50/125

m M/M ﬁber)

Optical and Electrical Characteristics 1550nm (Tc=25ºC)

Parameter

Peak Wavelength

Spectral Width(RMS)

Operating Current

Output Power(SM, 9/125µm)

Output Power(MM, 50/125µm)

Foward Voltage

Rise Time

Fall Time

Output Power Variation

LUMINENTOIC.COM

Symbol

∆λ

Min

1510

Typ

1550

Max

1590

100

Unit

µW

Test Conditions

Iop=80 mA

1.2

1.5

2.5

2.0

µW

Iop=80 mA

25ºC to 70ºC

LUMNDS705-SEP2905

rev. A.2

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

ELED ST Sugar Cube Transmitter

Preliminary

SGC-GC-XXB-X-XXST-XX

Ordering Information

SGC-GC-XXB-X-XXST-XX

Family

SGC=Sugar Cube

Application

C=CW

B=+/- 40nm

Tolerance

1=Option 1 (Tx)

2=Option 2 (Tx)

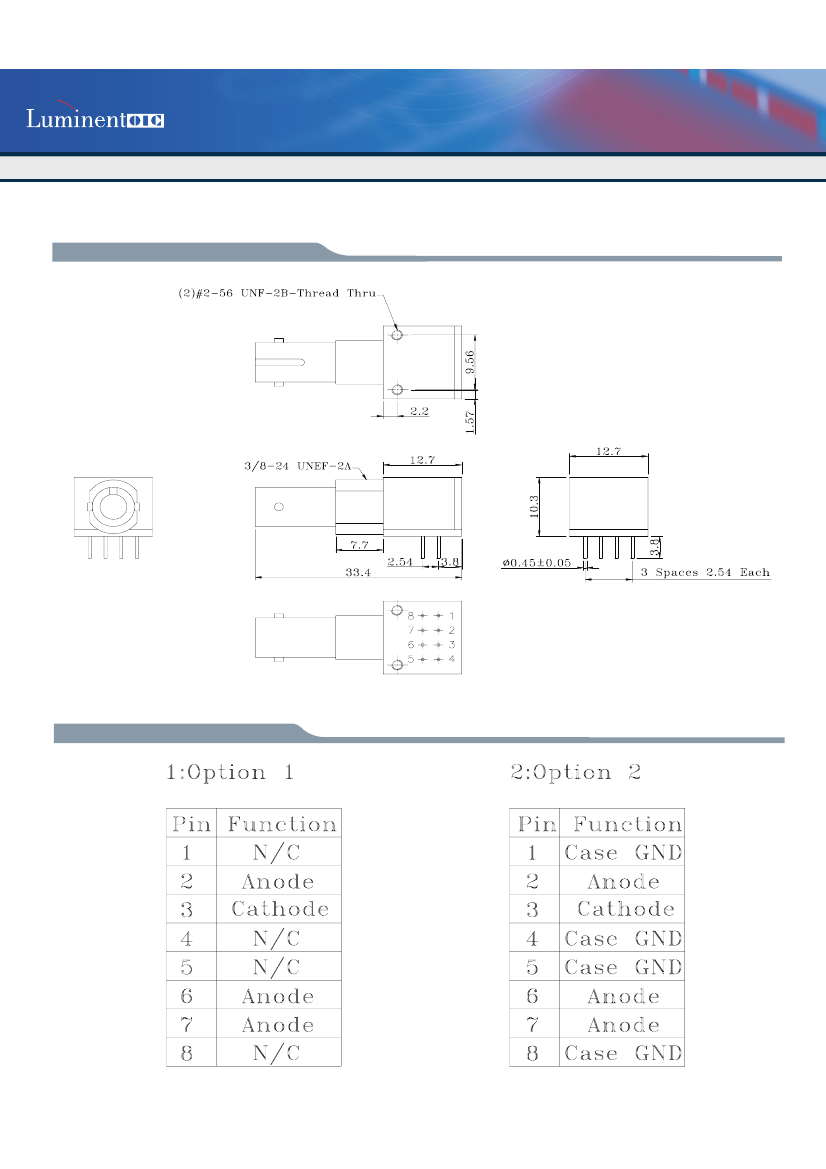

Pinout

ST=ST

Connector

Device

G=ELED (Long)

30:1300nm

55:1550nm

Wavelength

Power

L/M/H

Fiber

S = Singlemode 9/125/900um

M= Multimode 50/125/900um

-/G5/GR

Blank = RoHS non-compliant product

G5 = RoHS 5/6-compliant product (lead exemption)

GR = Full RoHS compliant product (no exemption)

RoHS Compliant

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment

is highly recommended. Follow guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Luminent＇s sole and absolute discretion.

Luminent warrants performance of its products to current specifications only in accordance with the company＇s standard one-year war-

ranty; however, specifications designated as “preliminary＂ are given to describe components only, and Luminent expressly disclaims

any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability, fit-

ness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company＇s Terms and Conditions of

Sale for further warranty information.

Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of pat-

ents, services, or intellectual property described herein. No license, either express or implied, is granted under any patent right,

copyright, or intellectual property right, and Luminent makes no representations or warranties that the product(s) described herein

are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in

implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using

or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any

damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that Luminent is not liable for any

actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this

document. Customer must contact Luminent to obtain the latest version of this publication to verify, before placing any order, that

the information contained herein is current.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS705-SEP2905

rev. A.2
