LW100-02 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LW100-02

Preview

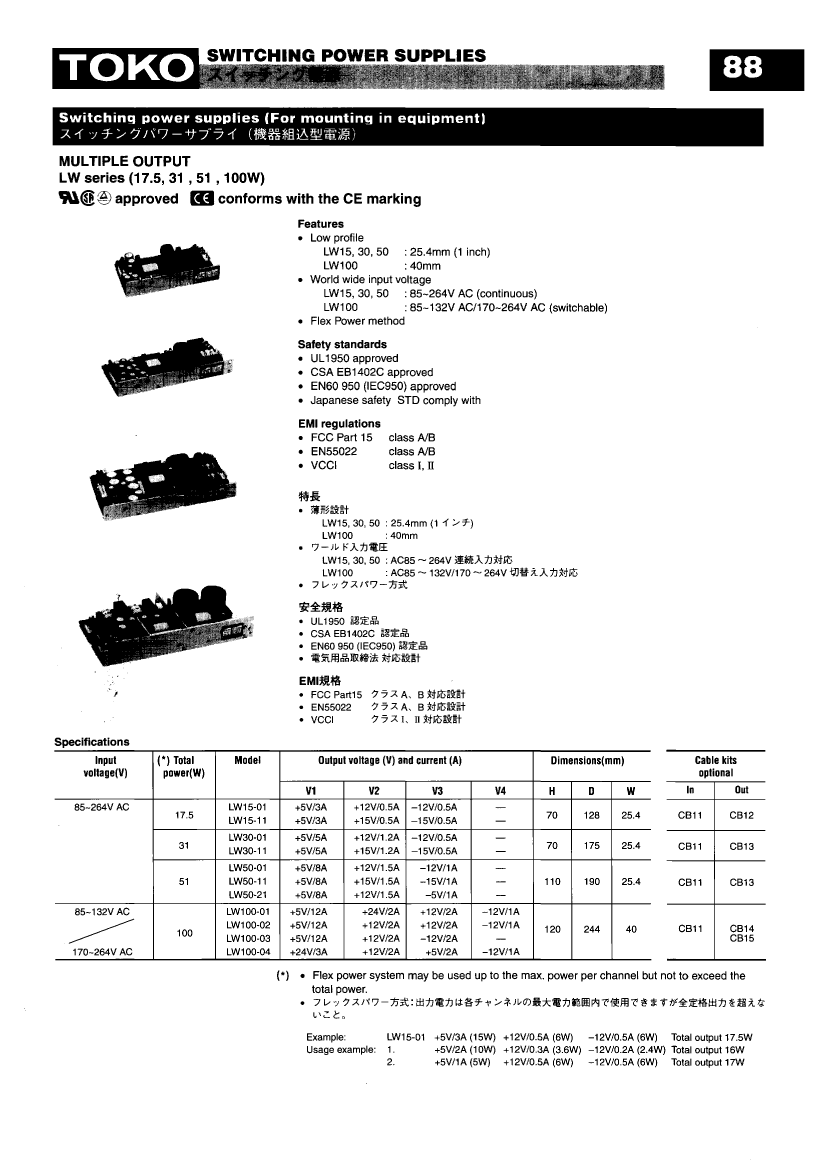

LW100-02: DescriptionAC-DC Regulated Power Supply Module, 4 Output, 100W, 244 X 40 MM, 120 MM HEIGHT, LOW PROFILE, PACKAGE; CategoryPower/power management The power supply circuit; File Size79KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

LW100-02 Overview

AC-DC Regulated Power Supply Module, 4 Output, 100W, 244 X 40 MM, 120 MM HEIGHT, LOW PROFILE, PACKAGE

LW100-02 Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
Parts packaging code	MODULE
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	IT ALSO OPERATES IN 170 TO 264V AC
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	132 V
Minimum input voltage	85 V
JESD-30 code	R-XXMA-X
Number of functions	1
Output times	4
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	100 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

LW100-02 Related Products

	LW100-02	LW30-11	LW100-01	LW100-03	LW15-11	LW50-01	LW50-21	LW30-01	LW15-01
Description	AC-DC Regulated Power Supply Module, 4 Output, 100W, 244 X 40 MM, 120 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 3 Output, 31W, 175 X 25.40 MM, 70 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 4 Output, 100W, 244 X 40 MM, 120 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 3 Output, 100W, 244 X 40 MM, 120 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 3 Output, 17.5W, 128 X 25.40 MM, 70 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 3 Output, 51W, 190 X 25.40 MM, 110 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 3 Output, 51W, 190 X 25.40 MM, 110 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 3 Output, 31W, 175 X 25.40 MM, 70 MM HEIGHT, LOW PROFILE, PACKAGE	AC-DC Regulated Power Supply Module, 3 Output, 17.5W, 128 X 25.40 MM, 70 MM HEIGHT, LOW PROFILE, PACKAGE
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	132 V	264 V	132 V	132 V	264 V	264 V	264 V	264 V	264 V
Minimum input voltage	85 V	85 V	85 V	85 V	85 V	85 V	85 V	85 V	85 V
JESD-30 code	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X
Number of functions	1	1	1	1	1	1	1	1	1
Output times	4	3	4	3	3	3	3	3	3
Nominal output voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum total power output	100 W	31 W	100 W	100 W	17.5 W	51 W	51 W	31 W	17.5 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maker	TOKO, INC.	TOKO, INC.	-	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
