0.56 Inch (14.2mm) 2 Digit
NUMERIC FRAME DISPLAY
AlInGaP Red (630nm) MAN6H10, MAN6H40
AlInGaP Red (642nm) MAN6R10, MAN6R40
AlInGaP Yellow MAN6Y10, MAN6Y40
PACKAGE DIMENSIONS
FEATURES
•Bright Bold Segments
•Common Anode/Cathode
•Low Power Consumption
•Low Current Capability
•Neutral Segments
•Grey Face
•Epoxy Encapsulated
Frame
•High Performance
•High Reliability
APPLICATIONS
NOTES:
•Dimensions are in inches (mm)
•Tolerances are +/- 0.010 (0.25)
unless otherwise stated.
•Appliances
•Automotive
•Instrumentation
•Process Control
MODELS AVAILABLE
Part Number
MAN6H10
MAN6H40
MAN6R10
MAN6R40
MAN6Y10
MAN6Y40
Colour
Description
Special
Low Current Capability
Low Current Capability
Low Current Capability
Low Current Capability
Low Current Capability
Low Current Capability
AlInGaP 630nm Two Digit, RHDP, Common Anode
AlInGaP 630nm Two Digit, RHDP, Common Cathode
AlInGaP 642nm Two Digit, RHDP, Common Anode
AlInGaP 642nm Two Digit, RHDP, Common Cathode
AlInGaP Yellow Two Digit, RHDP, Common Anode
AlInGaP Yellow Two Digit, RHDP, Common Cathode
(For other colour options, contact your local area Sales Manager)
0.56 Inch (14.2mm) 2 Digit
NUMERIC FRAME DISPLAY
ABSOLUTE MAXIMUM RATINGS
(1)
(T
A
= 25
o
C, unless otherwise specified)
Part Number
Parameter
Continuous Forward Current
(each segment)
Peak Forward Current
(F = 10KHz, D/F = 1/10)
Power Dissipation (P
D
)
*Derate Linearly from 25
o
C
Reverse Voltage per Die
Operating and Storage Temperature Range
Lead soldering time (1/16 inch from standoffs)
60
0.36
60
0.36
60
0.36
5 Volts
-40
o
C to +85
o
C
5 seconds @ 230
o
C
mW
mW
100
100
100
mA
MAN6H10
MAN6H40
25
MAN6R10
MAN6R40
25
MAN6Y10
MAN6Y40
25
Units
mA
ELECTRO-OPTICAL CHARACTERISTICS
(1)
(T
A
= 25
o
C, unless otherwise specified)
Part Number
Parameter
Luminous intensity
(2)
(I
V
)
Minimum ( Standard Current)
Typical (Standard Current)
Minimum (Low Current)
Typical (Low Current)
Forward Voltage (V
F
)
Typical (Standard Current)
Maximum (Standard Current)
Typical (Low Current)
Maximum (Low Current)
Peak Wavelength
Dominant Wavelength
Spectral Line 1/2 Width
Reverse B
(3)
.Voltage (V
R
)
2.05
2.40
1.80
2.20
632
624
20
5
2.05
2.40
1.80
2.20
639
631
20
5
2.05
2.40
1.80
2.20
591
585
20
5
Volts I
F
= 10mA
Volts I
F
= 10mA
Volts I
F
= 2mA
Volts I
F
= 2mA
nm
nm
nm
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
6000
7800
510
1000
4000
5800
510
1000
8000
12800
510
1000
ucd
ucd
ucd
ucd
I
F
= 10mA
I
F
= 10mA
I
F
= 2mA
I
F
= 2mA
MAN6H10 MAN6R10 MAN6Y10
MAN6H40 MAN6R40 MAN6Y40
Units Test Condition
Volts I
R
= 100uA
NOTES:
(1) Data per individual LED element
(2) Luminous intensity (ucd) = average light output per segment
(3) B = breakdown
0.56 Inch (14.2mm) 2 Digit
NUMERIC FRAME DISPLAY

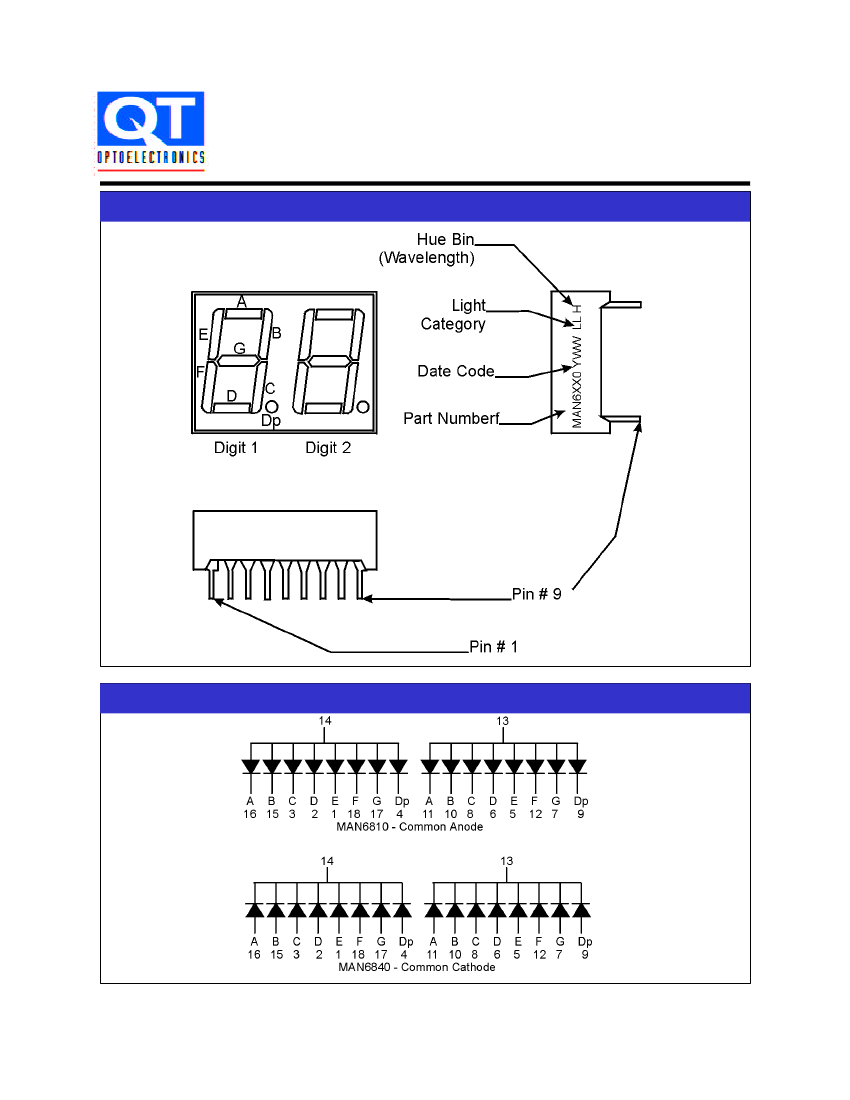

PIN ORIENTATION, SEGMENT IDENTIFICATION, AND PRODUCT MARKING
SCHEMATICS
0.56 Inch (14.2mm) 2 Digit
NUMERIC FRAME DISPLAY

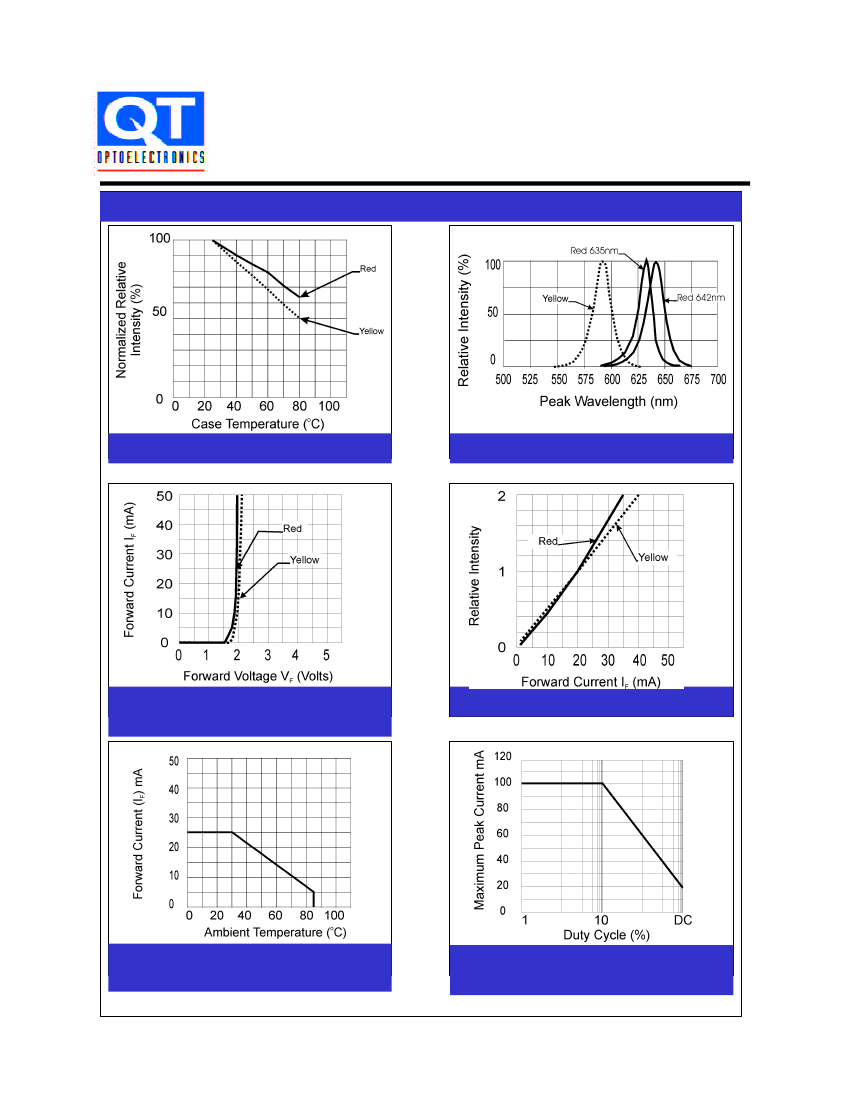

GRAPHICAL DATA AlInGaP 630nm (T
A
= 25
o
C, unless otherwise specified)
Relative Intensity vs Case Temp.
Spectral Response
Forward Current vs Forward
Voltage
Luminous Intensity vs Duty Cycle
Maximum Forward Current vs
Ambient Temperature
Maximum Peak Current vs Duty
Cycle
