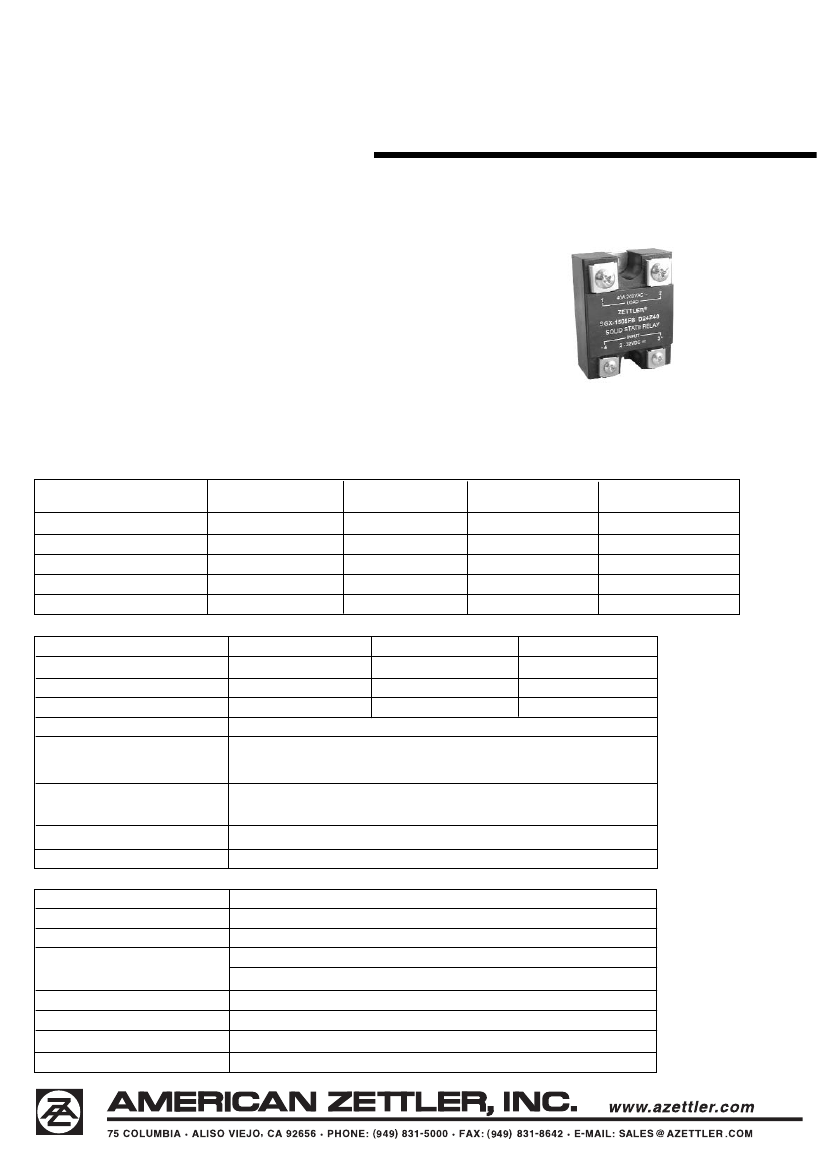

SGX-1505FB
“HOCKEY PUCK”
SOLID STATE RELAY
10 THRU 40 AMPS
48 TO 380 VRMS
FEATURES
•
Photo isolation
•
Up to 800V blocking voltage
•
Both “Zero Voltage” and phase controllable
“Random” Switching versions
•
High surge capability
•
Built-in snubber
•
UL, CUR file E43203
•
Triac Output Circuitry
INPUT
Type
Control Voltage Range
Turn On Voltage
Turn Off Voltage
Max. Input Current
Max. Reverse Voltage
DC Input
3 to 32 VDC
3 VDC Max
1 VDC Min.
25 mA
-32 VDC
24 VAC
19.2 to 28.8 VAC
19.2 VAC Max.
2 VAC Min.
15 mA
-
110 VAC
85 to 132 VAC
85 VAC Max.
10 VAC Min.
15 mA
-
220 VAC
175 to 264 VAC
175 VAC Max.
10 VAC Min.
15 mA
-
OUTPUT
Type
Output Voltage Range
Blocking Voltage
Max. Leakage Current (off)
Max. Voltage Drop (at rated current)
Max. Turn-On Time
240
48 to 264 VAC
600 Vpk
5 mA
380
48 to 380 VAC
800 Vpk
5 mA
1.5 VRMS
Random Turn On (DC input): 1 ms
Zero Cross Turn On (DC input): 1/2 cycles + 1 ms
AC Input: 20 ms
DC Input: 1/2 cycle + 1 ms
AC Input: 40 ms
200 V/us
0.5
480
48 to 530 VAC
1200 Vpk
5 mA
Max. Turn-Off Time
Min. Off-State (dv/dt)
Min. Power Factor
GENERAL
Dielectric Strength
Insulation Resistance
Max. Capacitance (in/out)
Ambient Temperature
4000 Vrms min. (at 50/60 Hz, 1 min.)
1000 Min. (at 500 VDC)
8 pf
Operating: -30°C (-22°F) to 80°C (176°F)
Storage: -30°C (122°F) to 100°C (212°F)
Panel Mount
Termination
Weight
Screw
88g
1/13/06W
SGX-1505FB
RELAY ORDERING DATA
SGX-1505FB
MODEL
D
INPUT
VOLTAGE
D:
3 TO 32 Vdc
24A:
24 Vac*
110A:
110 Vac*
220A:
220 Vac*
240
OPERATING
VOLTAGE RANGE
240:48
TO 264 Vac
380:
48 to 380 Vac
A
LOAD TYPE
A:
AC LOAD
40
LOAD
CURRENT
10:
15:
20:
25:
40:
10A
15A
20A
25A
40A
Z
ZERO CROSS
OR RANDOM
Z:
Zero cross
turn on
P:
Random
turn on
L
LED
INDICATOR
NIL:
no LED
L:
with LED
(not for AC
input type)
*UL pending

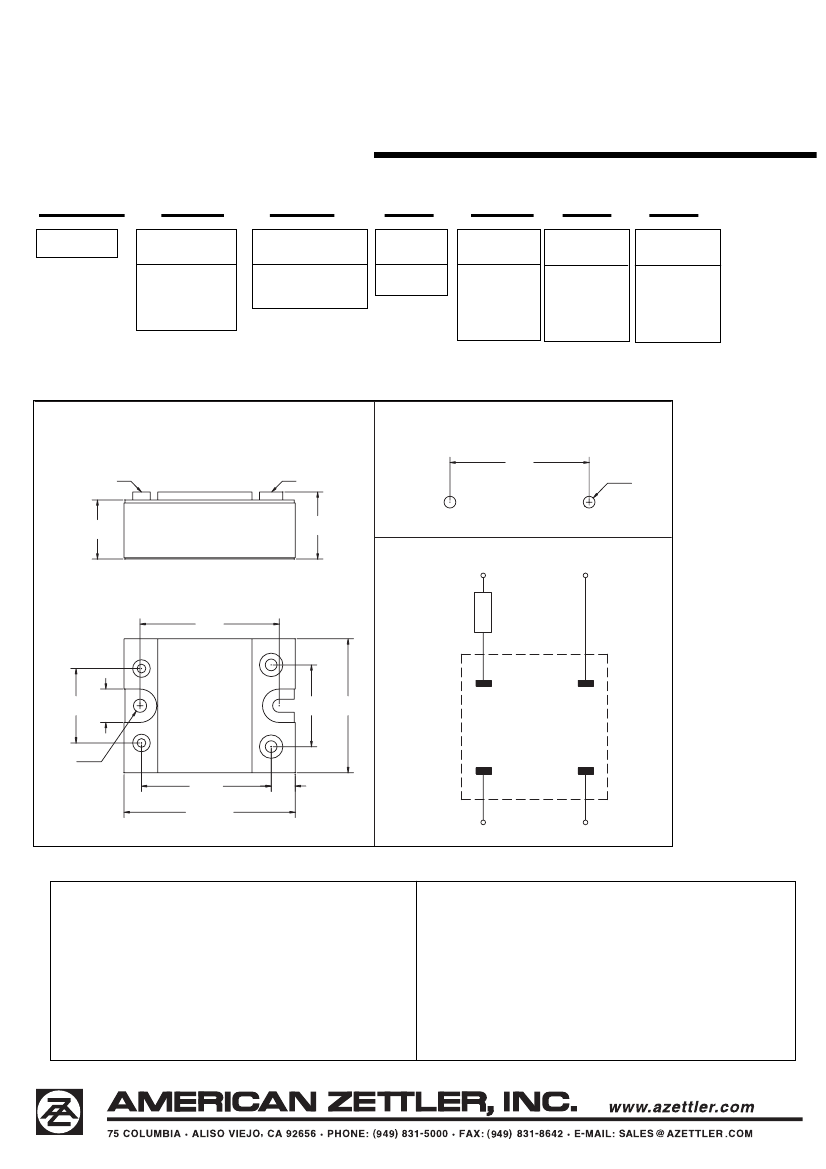

MECHANICAL DATA
Outline Dimensions
2-M.118
[M3.0]
2-M.157
[M4.0]
1.870
[47.5]
2-M.157
[M4.0]
.795Max
[20.2]
.902Max
[22.9]
Wiring Diagram
Load power supply
Load
1.870
[47.5]
4
1.00
[25.4]
.449
[11.4]
1
1.098
[27.9]
1.799 Max
[45.7]
1
LOAD
2
3
2-Ø.177
[Ø4.5]
1.743
[44.26]
2.299 Max
[58.4]
2
-4
.323
[8.2]
INPUT
3+
input control signal
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
INSTALLATION
1.
When mounting the relays side by side, provide a space equiva-
lent to the width of a single SSR between two adjacent SSRs.
Otherwise, reduce the load current flow to 1/2 to 1/3 of the rated
current.
When mounting relays on heat sink surface, first apply a heat
conductive grease to the metal back surface of the SSR. Press
the SSR firmly onto the heat sink to ensure a good seal. Screw
the SSR down to the heat sink.
Next, wire the screw terminals and securely tighten the screws.
PRECAUTIONS
1.
Before connecting a load that generates a high surge current,
such as a lamp load to the SSR, make sure that the SSR can
withstand the surge current of the load.
The product data sheet shows the non-repetitive peak value of
the surge current that flows through the SSR. Normally, use 1/2
of the non-repetitive peak surge current as the standard value. If
a surge current exceeding that value is expected, connect a
quick-blowing fuse to protect the SSR.
2.
2.
3.

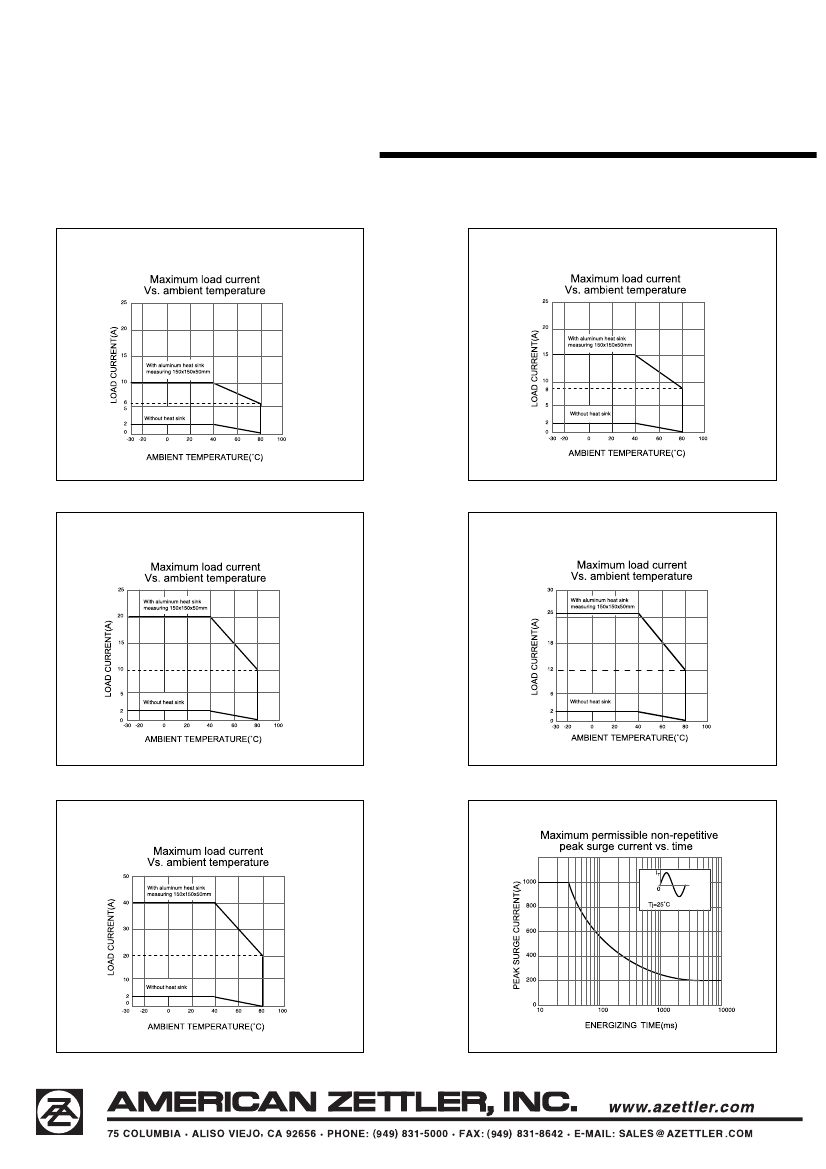

1/13/06W
