L-7676CSEC-G-04 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-7676CSEC-G-04

L-7676CSEC-G-04: DescriptionT-1 SINGLE COLOR LED, HYPER ORANGE, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size62KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-7676CSEC-G-04 Overview

T-1 SINGLE COLOR LED, HYPER ORANGE, 3mm,

L-7676CSEC-G-04 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
color	HYPER ORANGE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	3500.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4 mm
method of packing	BULK
peak wavelength	630 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
perspective	70 deg

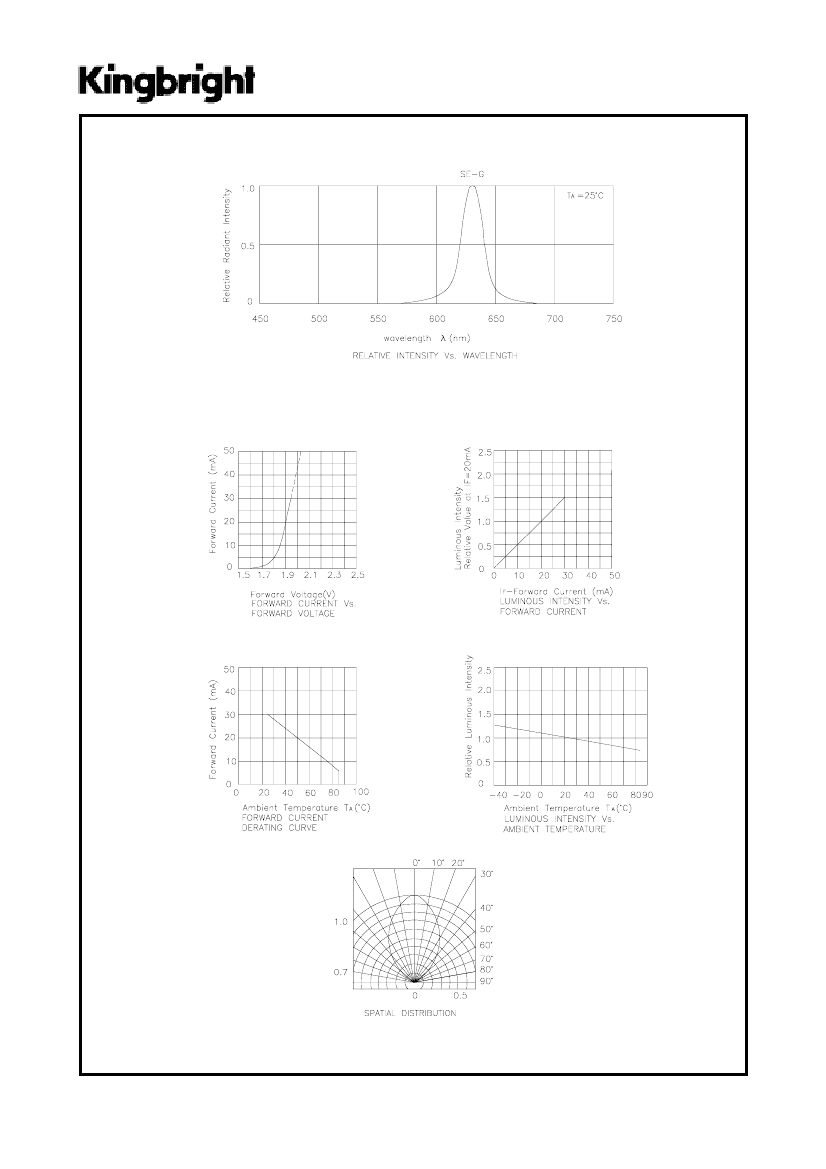

Preview

Download Datasheet

View All

7.6mmX7.6mm SUPER FLUX LED LAMP

L-7676CSEC-G-04

HYPER ORANGE

Features

SUPER FLUX OUTPUT.

DESIGN FOR HIGH CURRENT OPERATION.

OUTSTANDING MATERIAL EFFICIENCY.

RELIABLE AND RUGGED.

Description

The Hyper Orange source color devices are made

with DH InGaAlP on GaAs substrate Light Emitting

Diode.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: DSAD0410

APPROVED : J. Lu

REV NO: V.1

CHECKED :Allen Liu

DATE:FEB/25/2003

DRAWN: X.T.HU

PAGE: 1 OF 3
