L-103EDT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-103EDT

L-103EDT: DescriptionSINGLE COLOR LED, HIGH EFFICIENCY RED, 5mm, 5 X 2 MM, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size67KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-103EDT Overview

SINGLE COLOR LED, HIGH EFFICIENCY RED, 5mm, 5 X 2 MM, ROHS COMPLIANT PACKAGE-2

L-103EDT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	5 X 2 MM, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	HIGH EFFICIENCY RED
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
Lens type	DIFFUSED ORANGE
Nominal luminous intensity	5.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7 mm
method of packing	BULK
peak wavelength	627 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	110 deg

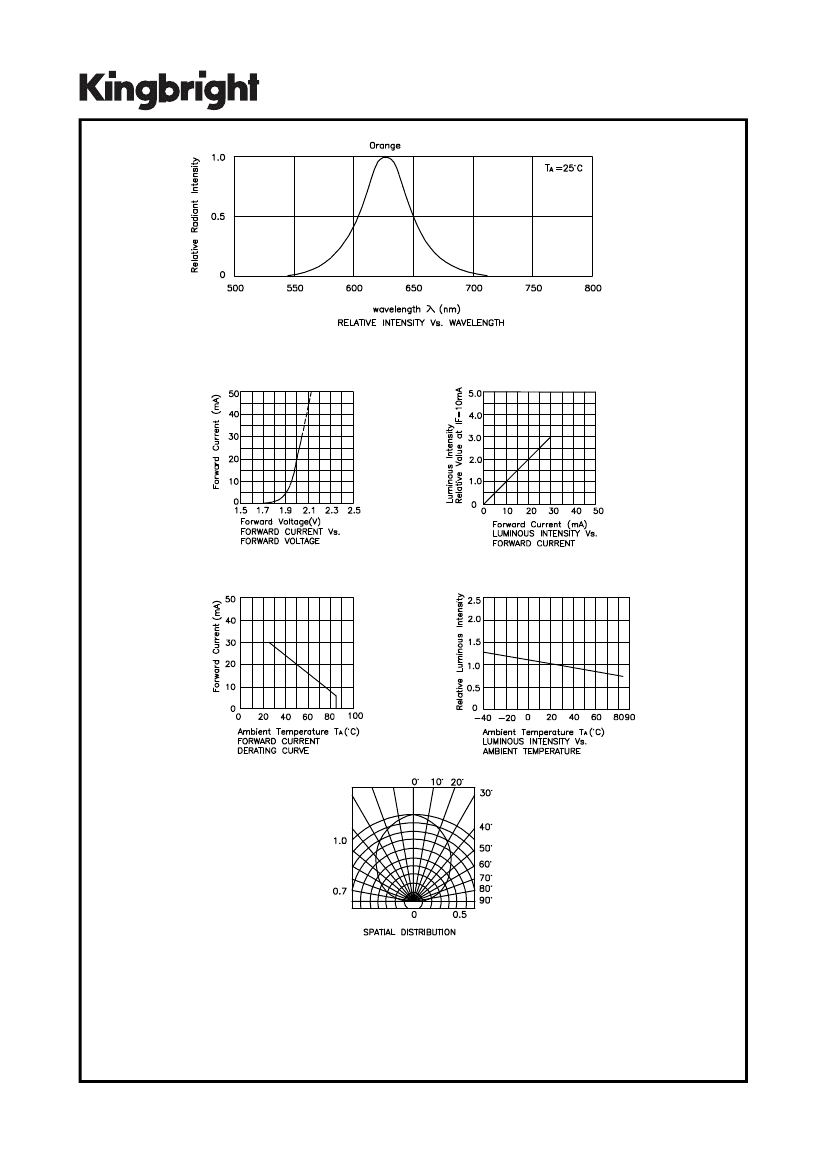

Preview

Download Datasheet

View All

2mmx5mm RECTANGULAR SOLID LAMP

L-103EDT

ORANGE

Features

Description

The Orange source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Orange Light

Emitting Diode.

LOW POWER CONSUMPTION.

RELIABLE AND RUGGED.

EXCELLENT UNIFORMITY OF LIGHT OUTPUT.

SUITABLE FOR LEVEL INDICATOR.

LONG LIFE - SOLID STATE RELIABILITY.

RoHS COMPLIANT.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAE2440

APPROVED: J. Lu

REV NO: V.4

CHECKED: Allen Liu

DATE:MAR/20/2005

DRAWN: H.Q.YUAN

PAGE: 1 OF 3
