74F583PCQR datasheet, PDF - EEWORLD Datasheet

74F583PCQR: DescriptionAdder/Subtractor, F/FAST Series, 4-Bit, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size206KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

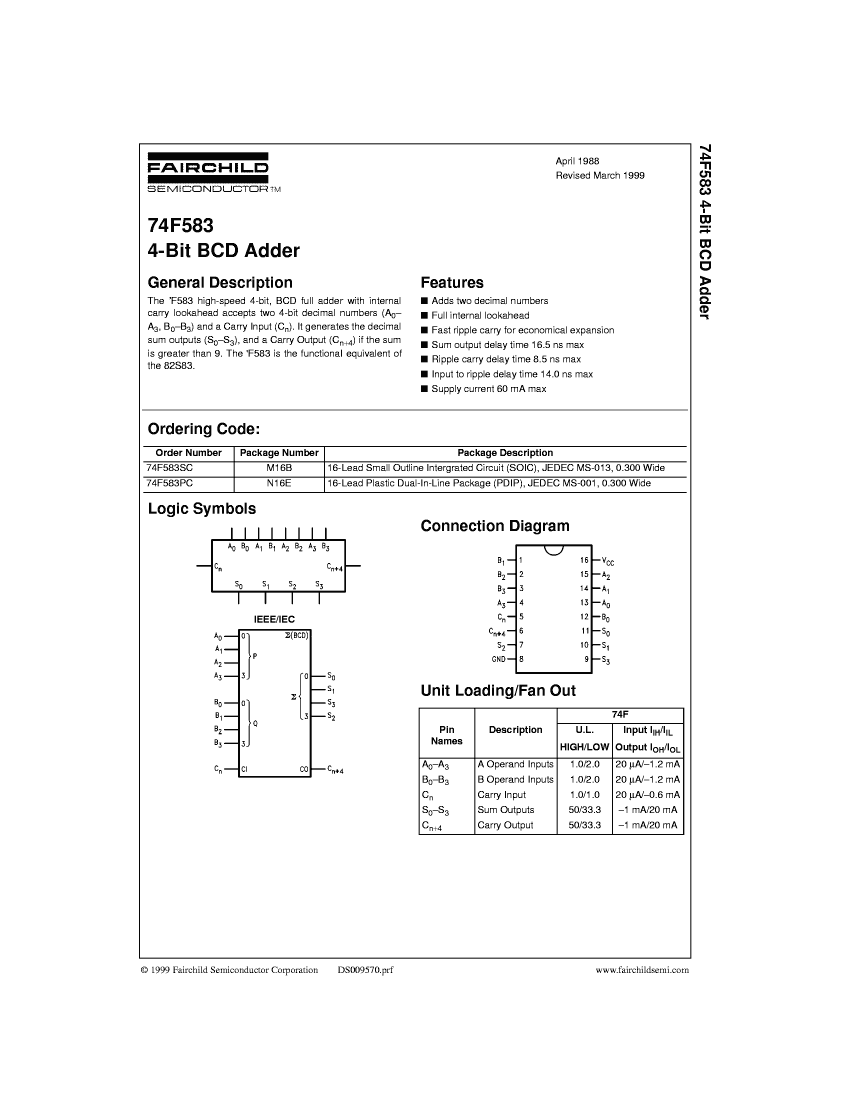

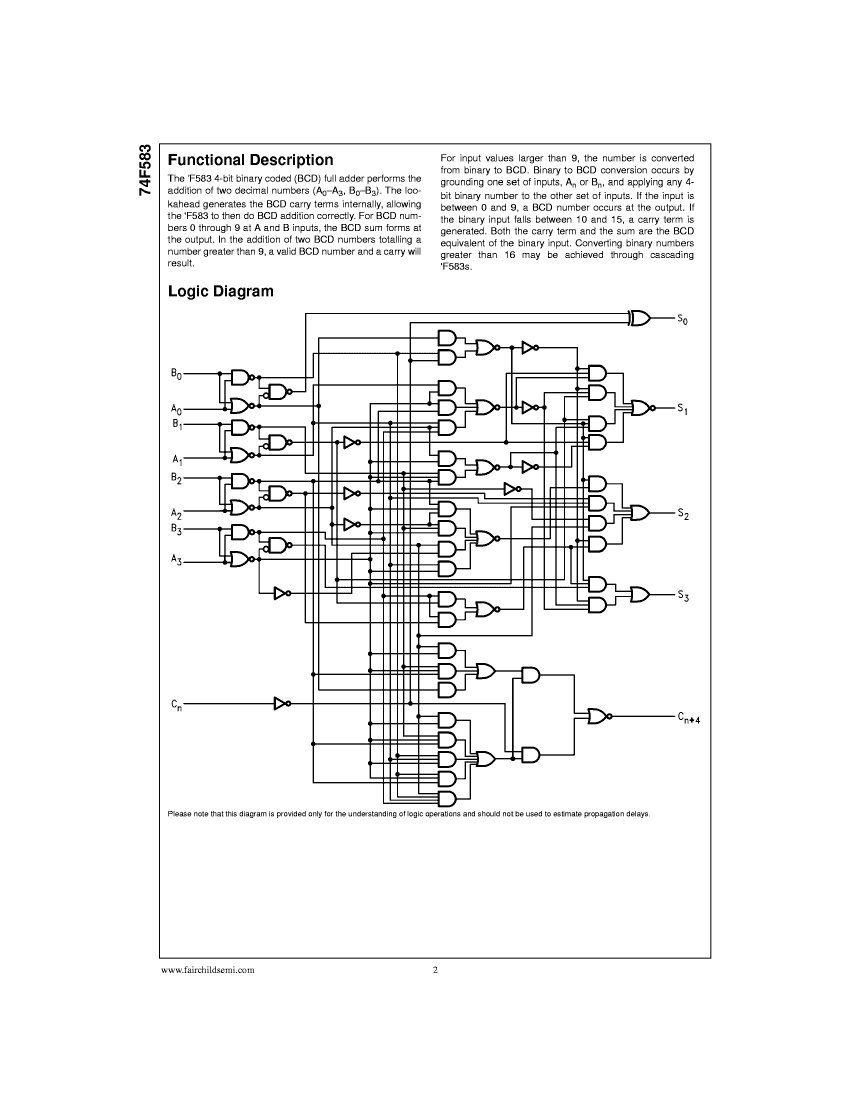

74F583PCQR Overview

Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDIP16, PLASTIC, DIP-16

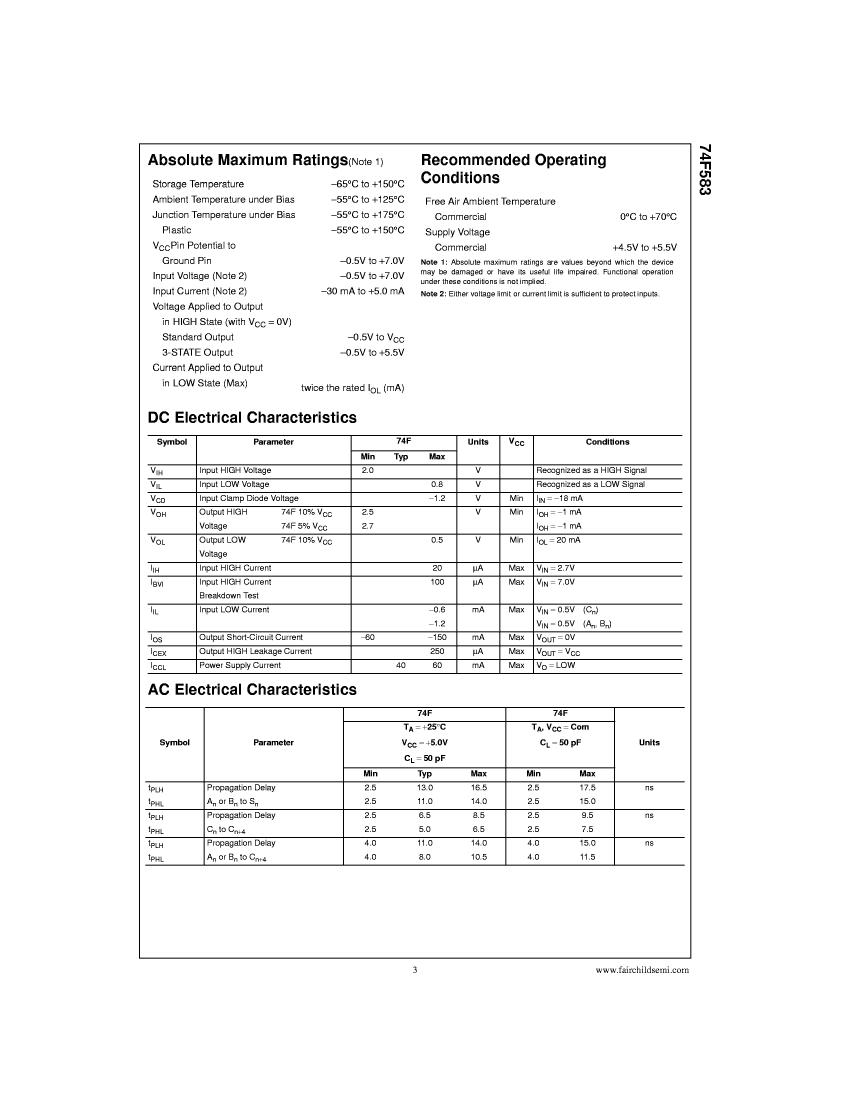

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	BCD ADDER; PERMITS RIPPLE CARRY CASCADING
series	F/FAST
JESD-30 code	R-PDIP-T16

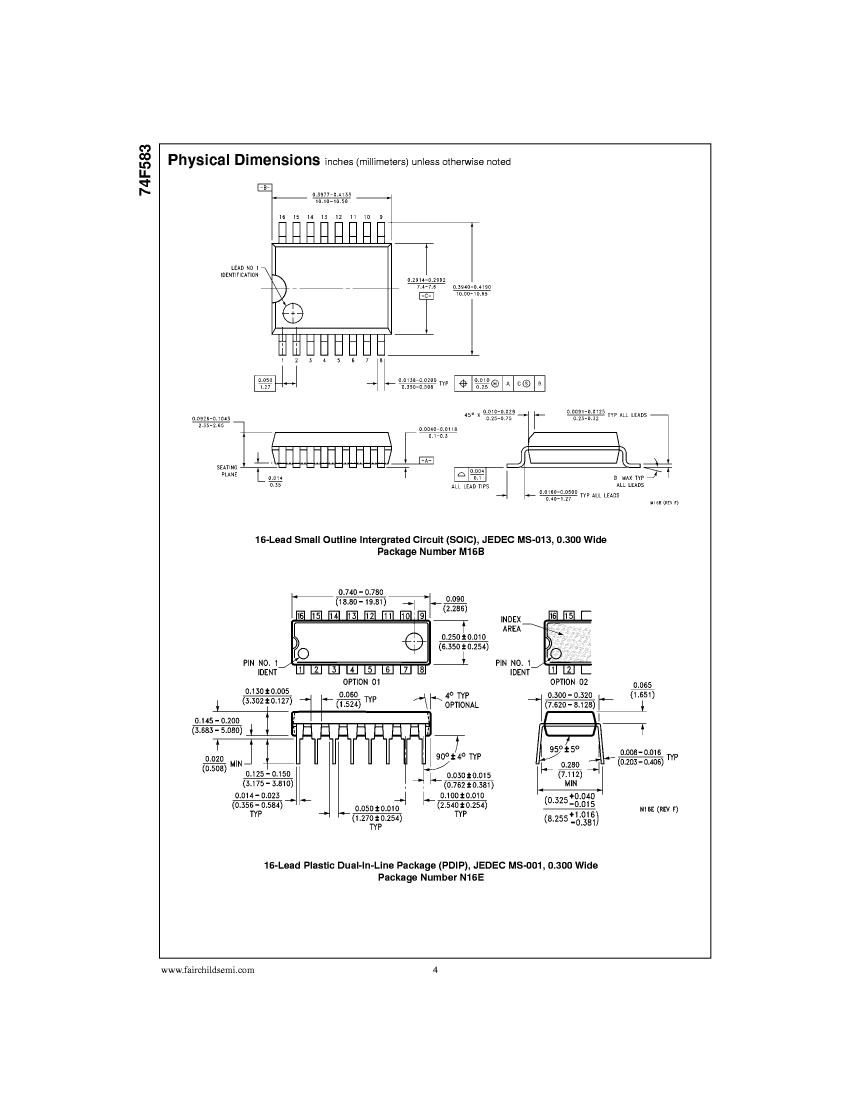

length	19.18 mm
Logic integrated circuit type	ADDER/SUBTRACTOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	15 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	74F583PCQR	74F583DC	74F583QC
Description	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PDIP16, PLASTIC, DIP-16	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, CDIP16, CERAMIC, DIP-16	Adder/Subtractor, F/FAST Series, 4-Bit, TTL, PQCC20, PLASTIC, LCC-20
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	QCCJ,
Reach Compliance Code	unknown	unknown	unknown
Other features	BCD ADDER; PERMITS RIPPLE CARRY CASCADING	BCD ADDER; PERMITS RIPPLE CARRY CASCADING	BCD ADDER; PERMITS RIPPLE CARRY CASCADING
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDIP-T16	R-GDIP-T16	S-PQCC-J20
length	19.18 mm	19.43 mm	8.9662 mm
Logic integrated circuit type	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR	ADDER/SUBTRACTOR
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	16	16	20
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER
propagation delay (tpd)	15 ns	15 ns	15 ns
Maximum seat height	5.08 mm	5.08 mm	4.57 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
width	7.62 mm	7.62 mm	8.9662 mm
Base Number Matches	-	1	1
