LCBD11W: DescriptionSingle Color LED, Blue, Water Clear, T-1, 3mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size194KB，3 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

LCBD11W Overview

Single Color LED, Blue, Water Clear, T-1, 3mm, ROHS COMPLIANT PACKAGE-2

LCBD11W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	1990.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.6 mm
method of packing	TAPE AND REEL
peak wavelength	468 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	20 deg

Preview

Download Datasheet

View All

Part Number: LCBD11W

www.SunLED.com

T-1 (3mm) SOLID STATE LAMP

Features

●

Radial / Through hole package

●

Reliable & robust

●

Low power consumption

●

Available on tape and reel

●

RoHS Compliant

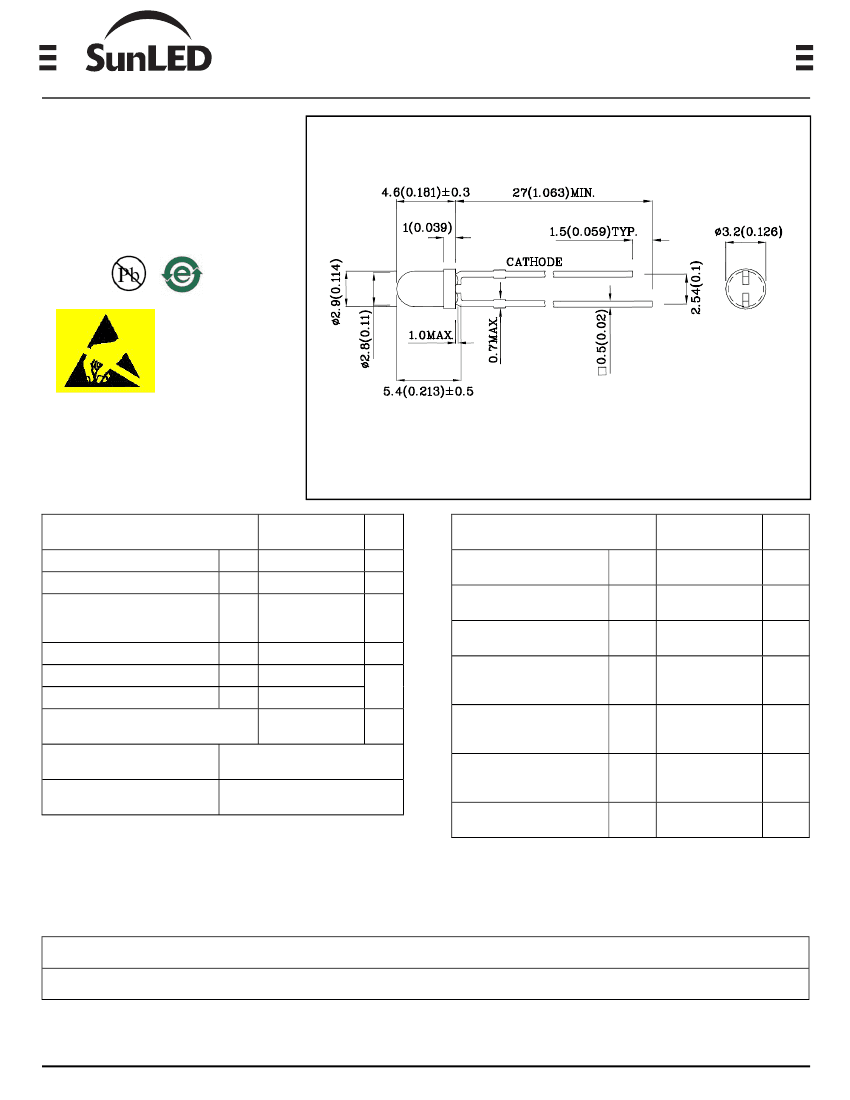

Package Schematics

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

ATTENTION

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Specifications are subject to change without notice.

Absolute Maximum Ratings

(T

A

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Electrostatic Discharge Threshold

(HBM)

Lead Solder Temperature

[2mm Below Package Base]

Lead Solder Temperature

[5mm Below Package Base]

V

R

I

F

i

FS

P

D

T

A

Tstg

CBD

(InGaN)

5

30

150

120

-40 ~ +85

250

260°C For 3 Seconds

260°C For 5 Seconds

Operating Characteristics

(T

A

=25°C)

Forward Voltage (Typ.)

(I

F

=20mA)

Forward Voltage (Max.)

(I

F

=20mA)

Reverse Current (Max.)

(V

R

=5V)

Wavelength of Peak

Emission (Typ.)

(I

F

=20mA)

Wavelength of Dominant

Emission (Typ.)

(I

F

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

(I

F

=20mA)

Capacitance (Typ.)

(V

F

=0V, f=1MHz)

V

F

V

F

I

R

CBD

(InGaN)

3.3

4

50

Unit

V

mA

mW

°C

V

Unit

V

uA

λP

468

nm

λD

470

nm

△λ

25

nm

C

100

pF

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(I

F

=20mA)

mcd

min.

typ.

1990

Wavelength

nm

λP

Viewing

Angle

2θ 1/2

LCBD11W

Blue

InGaN

Water Clear

1400

468

20°

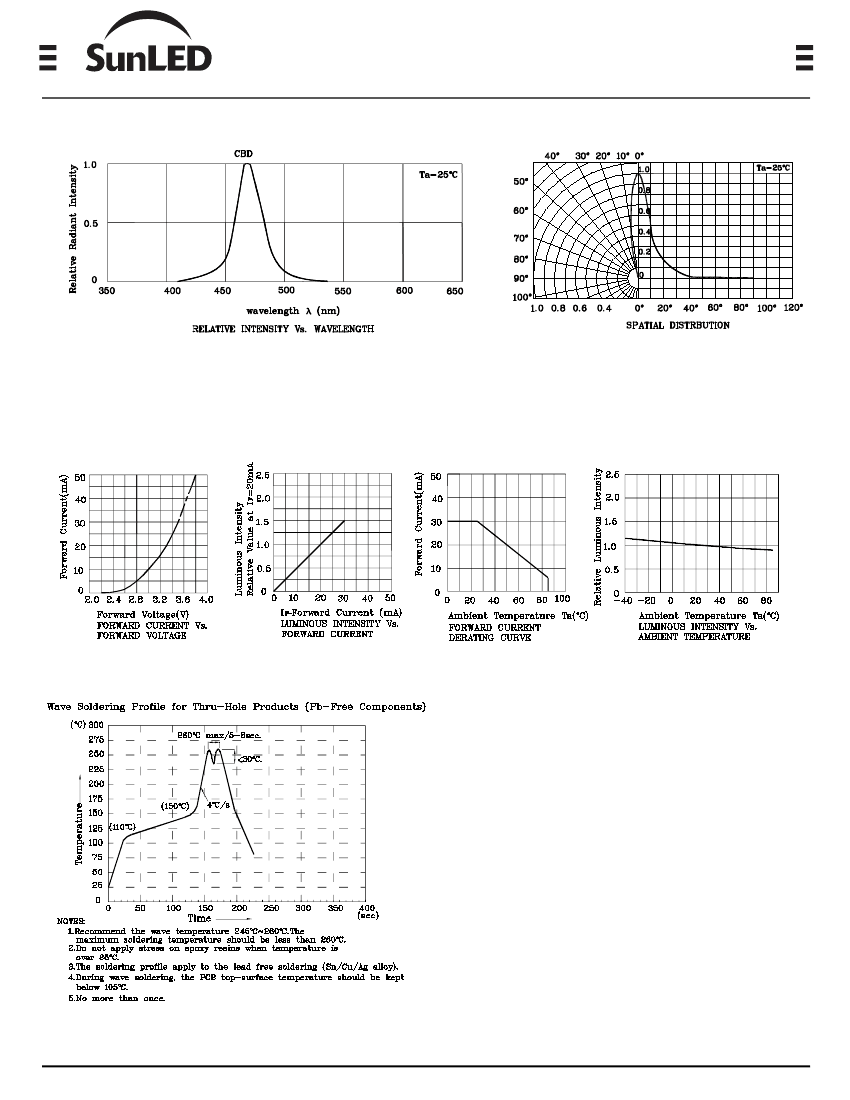

Apr 09,2011

SDSA7824

V2

Layout: Maggie L.
