BUK9830-30,115 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BUK9830-30,115

BUK9830-30,115: Description5.9A, 30V, 0.03ohm, N-CHANNEL, Si, POWER, MOSFET; CategoryDiscrete semiconductor The transistor; File Size299KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BUK9830-30,115 Overview

5.9A, 30V, 0.03ohm, N-CHANNEL, Si, POWER, MOSFET

BUK9830-30,115 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE, ESD PROTECTION
Avalanche Energy Efficiency Rating (Eas)	60 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V
Maximum drain current (ID)	5.9 A
Maximum drain-source on-resistance	0.03 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	23.6 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON

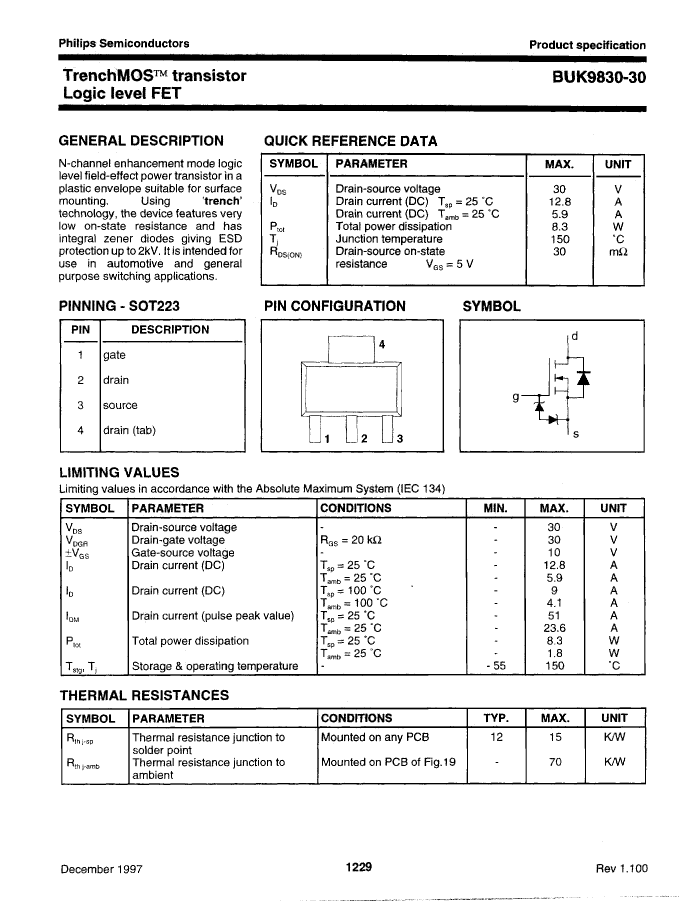

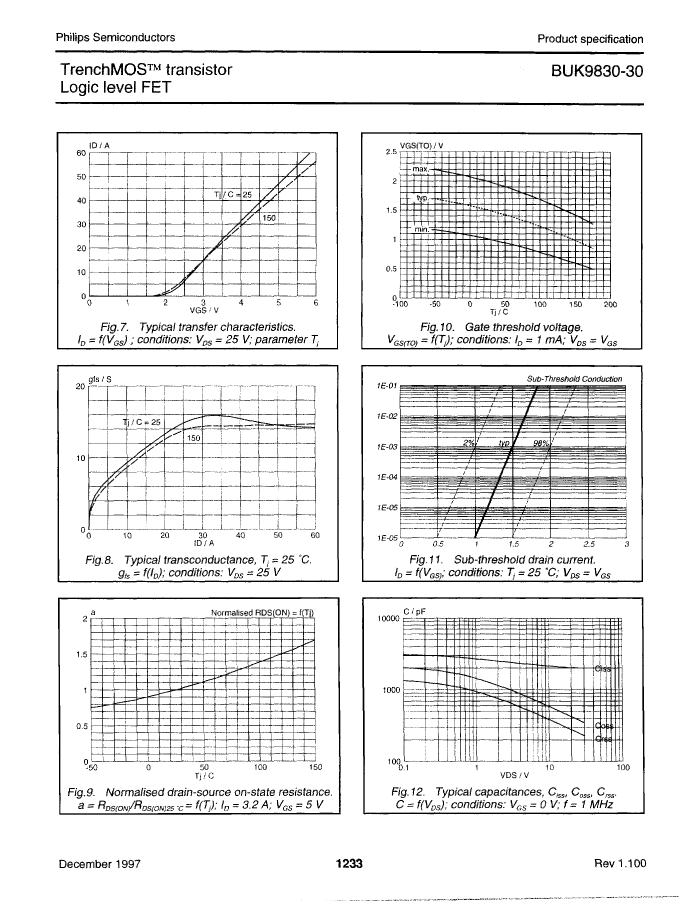

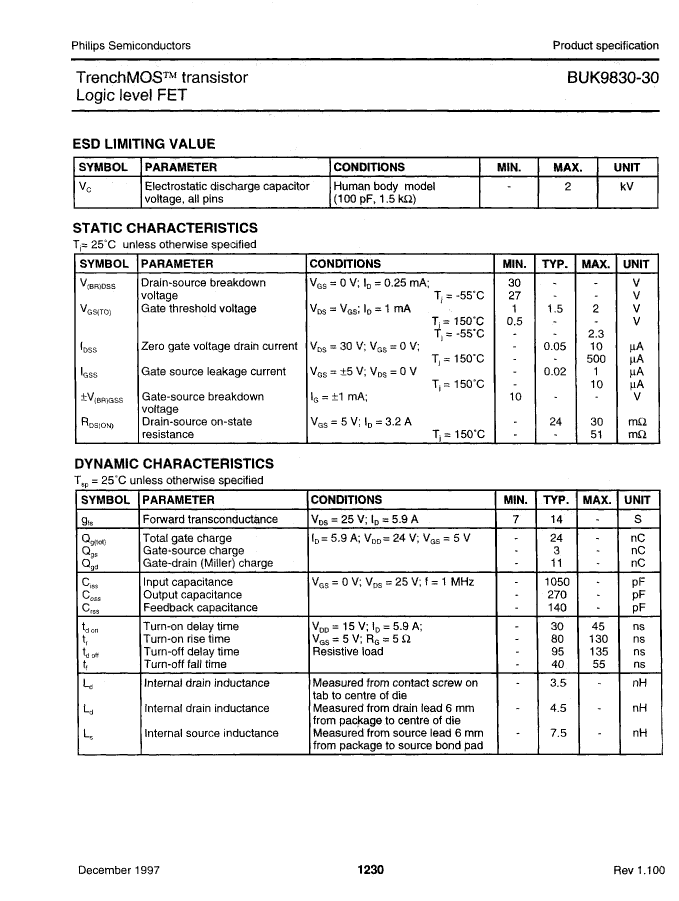

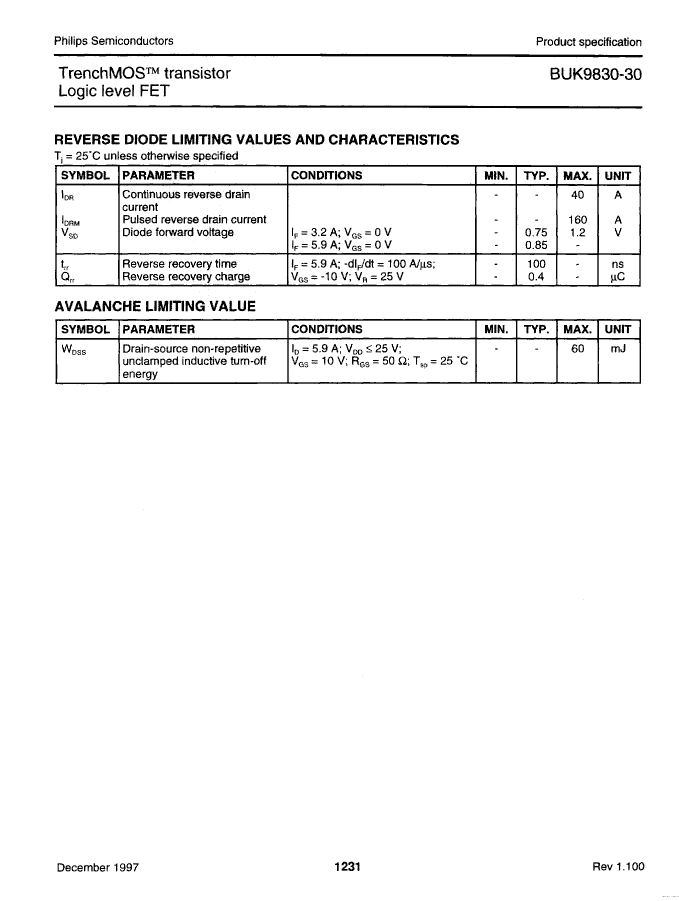

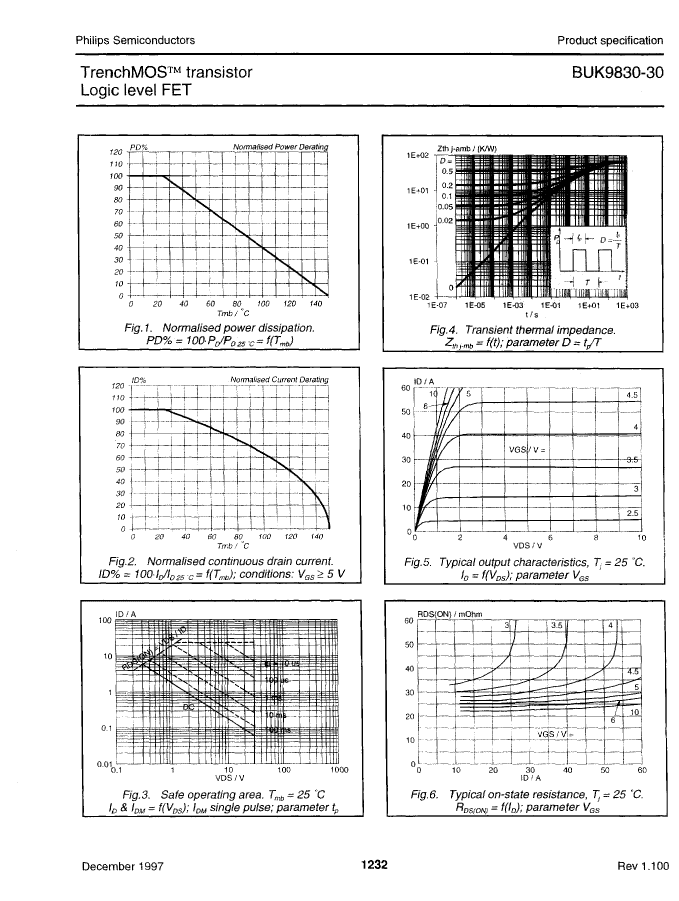

Preview

Download Datasheet

View All

BUK9830-30,115 Related Products

	BUK9830-30,115	BUK9830-30115	BUK9830-30135
Description	5.9A, 30V, 0.03ohm, N-CHANNEL, Si, POWER, MOSFET	TRANSISTOR 5.9 A, 30 V, 0.03 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power	TRANSISTOR 5.9 A, 30 V, 0.03 ohm, N-CHANNEL, Si, POWER, MOSFET, FET General Purpose Power
Maker	NXP	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	LOGIC LEVEL COMPATIBLE, ESD PROTECTION	LOGIC LEVEL COMPATIBLE, ESD PROTECTION	LOGIC LEVEL COMPATIBLE, ESD PROTECTION
Avalanche Energy Efficiency Rating (Eas)	60 mJ	60 mJ	60 mJ
Shell connection	DRAIN	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	30 V	30 V	30 V
Maximum drain current (ID)	5.9 A	5.9 A	5.9 A
Maximum drain-source on-resistance	0.03 Ω	0.03 Ω	0.03 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1
Number of terminals	4	4	4
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	23.6 A	23.6 A	23.6 A
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
