Production specification
PNP General Purpose Amplifier
FEATURES
High collector current.
High current gain.
Low collector-emitter stauration voltage.
Complementary types:BC818.
BC808-16/-25/-40
Pb
Lead-free
SOT-23
ORDERING INFORMATION
Type No.
BC808-16
BC808-25
BC808-40
Marking
5E
5F
5G
Package Code
SOT-23
SOT-23
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
P
D
R
θjA
T
j,
T
stg
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Peak collector current
Base current
Peak base current
Total Device Dissipation
Thermal Resistance Junction to Ambient
Junction and Storage Temperature
Value
-30
-25
-5
-500
-1
-100
-200
330
417
-55 to +150
Unit
V
V
V
mA
A
mA
mA
mW
℃/W
℃
C180
Rev.A
www.gmesemi.com
1
Production specification
PNP General Purpose Amplifier
ELECTRICAL CHARACTERISTICS
@ Ta=25℃
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
808-16
808-25
808-40
808-16
808-25
808-40
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
Test conditions
I
C
=-10μA I
E
=0
I
C
=-10mA I
B
=0
I
E
=-10μA I
C
=0
V
CB
=-25V I
E
=0
V
CE
=-4V I
C
=0
BC808-16/-25/-40
unless otherwise specified
MIN
-30
-25
-5
-0.1
-0.1
100
160
250
60
100
170
-0.7
-1.2
10
200
V
V
pF
MHz
250
400
630
MAX
UNIT
V
V
V
μA
μA
V
CE
=-1V I
C
=-100mA
DC current gain
h
FE
V
CE
=-1V I
C
=-300mA
Collector-emitter saturation voltage
Base-emitter saturation voltage
Output capacitance
Transition frequency
V
CE(sat)
V
BE(sat)
C
obo
f
T
I
C
=-500mA I
B
=-50mA
I
C
=-500mA I
B
=-50mA
V
CB
=-10V,f=1.0MHz
V
CE
=-5V,I
C
=-50mA
f=100MHz

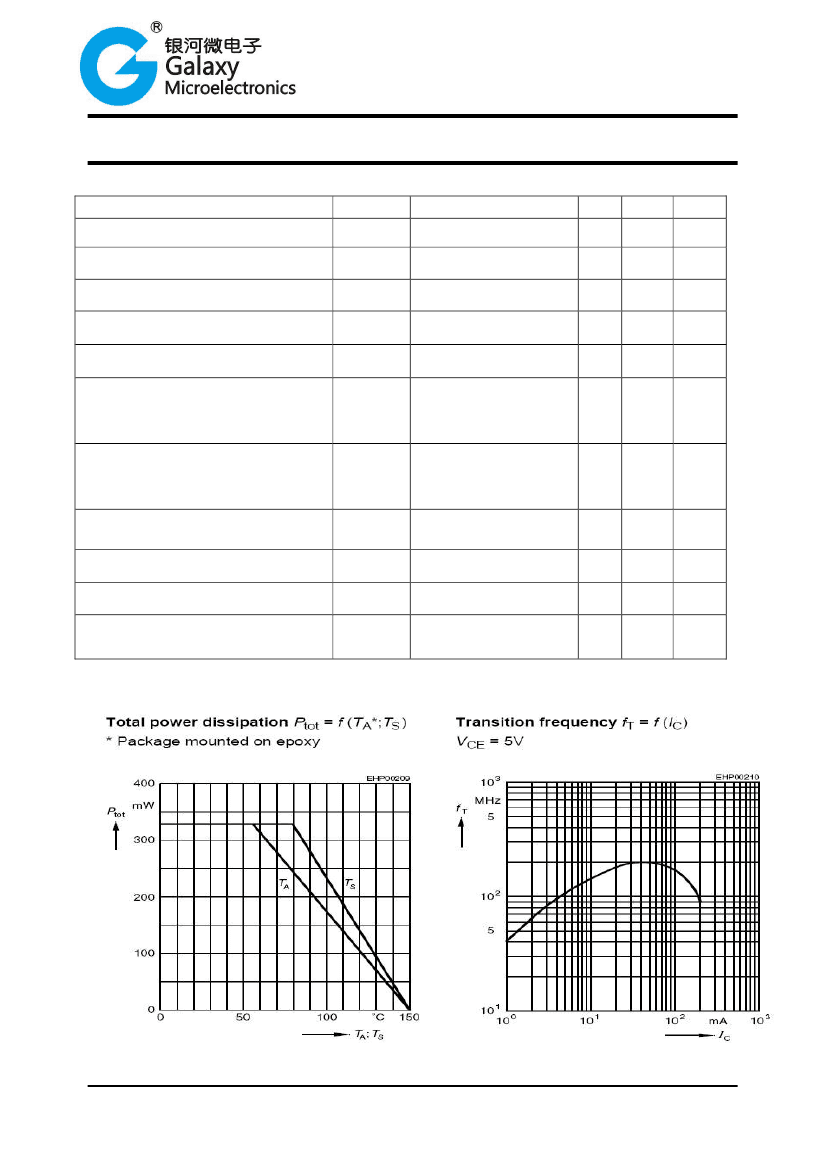

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
C180
Rev.A
www.gmesemi.com
2
Production specification
PNP General Purpose Amplifier
PACKAGE OUTLINE
Plastic surface mounted package
A
BC808-16/-25/-40
SOT-23
SOT-23
Dim
E
Min
2.70
1.10
Max
3.10
1.50
A
B
C
D
K
B
1.0 Typical
0.4 Typical
0.35
1.80
0.02
0.48
2.00
0.1
D
G
J
E
G
H
J
0.1 Typical
2.20
2.60
H
C
K
All Dimensions in mm
SOLDERING FOOTPRINT
0.95
0.95
2.00
0.90
0.80
Unit : mm
PACKAGE INFORMATION
Device
BC808-16/-25/-40
Package
SOT-23
Shipping
3000/Tape&Reel
C180
Rev.A
www.gmesemi.com
3
