LG5380-JM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LG5380-JM

LG5380-JM: DescriptionSingle Color LED, Green, Diffused, 5mm; CategoryLED optoelectronic/LED photoelectric; File Size43KB，1 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LG5380-JM Overview

Single Color LED, Green, Diffused, 5mm

LG5380-JM Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
color	GREEN
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	DIFFUSED
Nominal luminous intensity	11.25 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6.6 mm
method of packing	TAPE AND REEL
peak wavelength	565 nm
shape	ROUND
size	5 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	140 deg

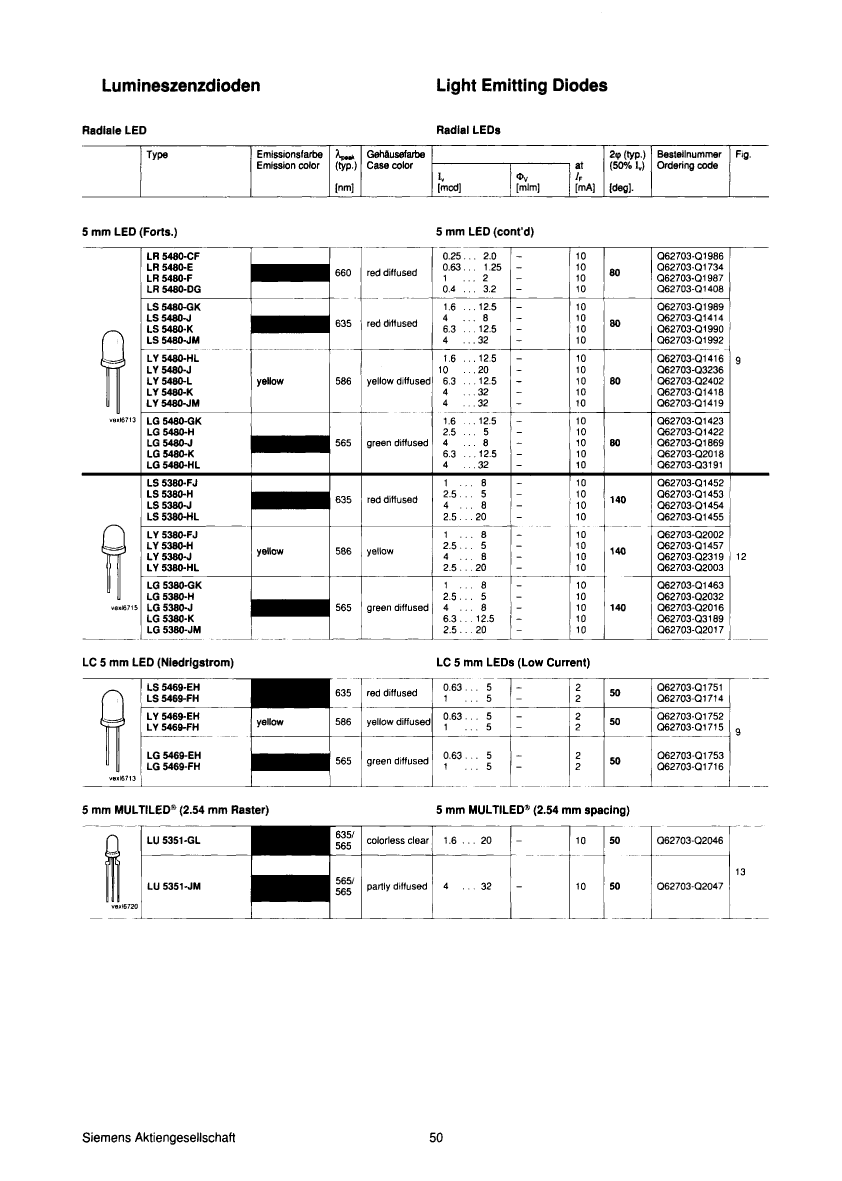

Preview

Download Datasheet

View All

LG5380-JM Related Products

	LG5380-JM	LG5469-FH	LY5469-FH	LS5469-FH	LY5380-FJ
Description	Single Color LED, Green, Diffused, 5mm	Single Color LED, Green, Diffused, T-1 3/4, 5mm	Single Color LED, Yellow, Diffused, T-1 3/4, 5mm	Single Color LED, Super Red, Red Diffused, T-1 3/4, 5mm	Single Color LED, Yellow, T-1 3/4, 5mm
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
color	GREEN	GREEN	YELLOW	SUPER RED	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.0075 A	0.0075 A	0.0075 A	0.04 A
Nominal luminous intensity	11.25 mcd	3 mcd	3 mcd	3 mcd	4.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	6.6 mm	7.65 mm	7.65 mm	7.65 mm	6.6 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	565 nm	565 nm	586 nm	635 nm	586 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	140 deg	50 deg	50 deg	50 deg	140 deg
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	RED DIFFUSED	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	-
Other features	-	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
JESD-609 code	-	e0	e0	e0	-
T code	-	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
