BJ159-23 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BJ159-23

BJ159-23: DescriptionRF Connector, 1 Contact(s), Female, Jack,; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

BJ159-23 Overview

RF Connector, 1 Contact(s), Female, Jack,

BJ159-23 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
subject depth	0.59 inch
Body diameter	0.562 inch
Body/casing type	JACK
Contact point gender	FEMALE
Contact style	COAX
Dielectric withstand voltage	1700VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
Manufacturer's serial number	BJ159
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	0.5 GHz
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Total number of contacts	1

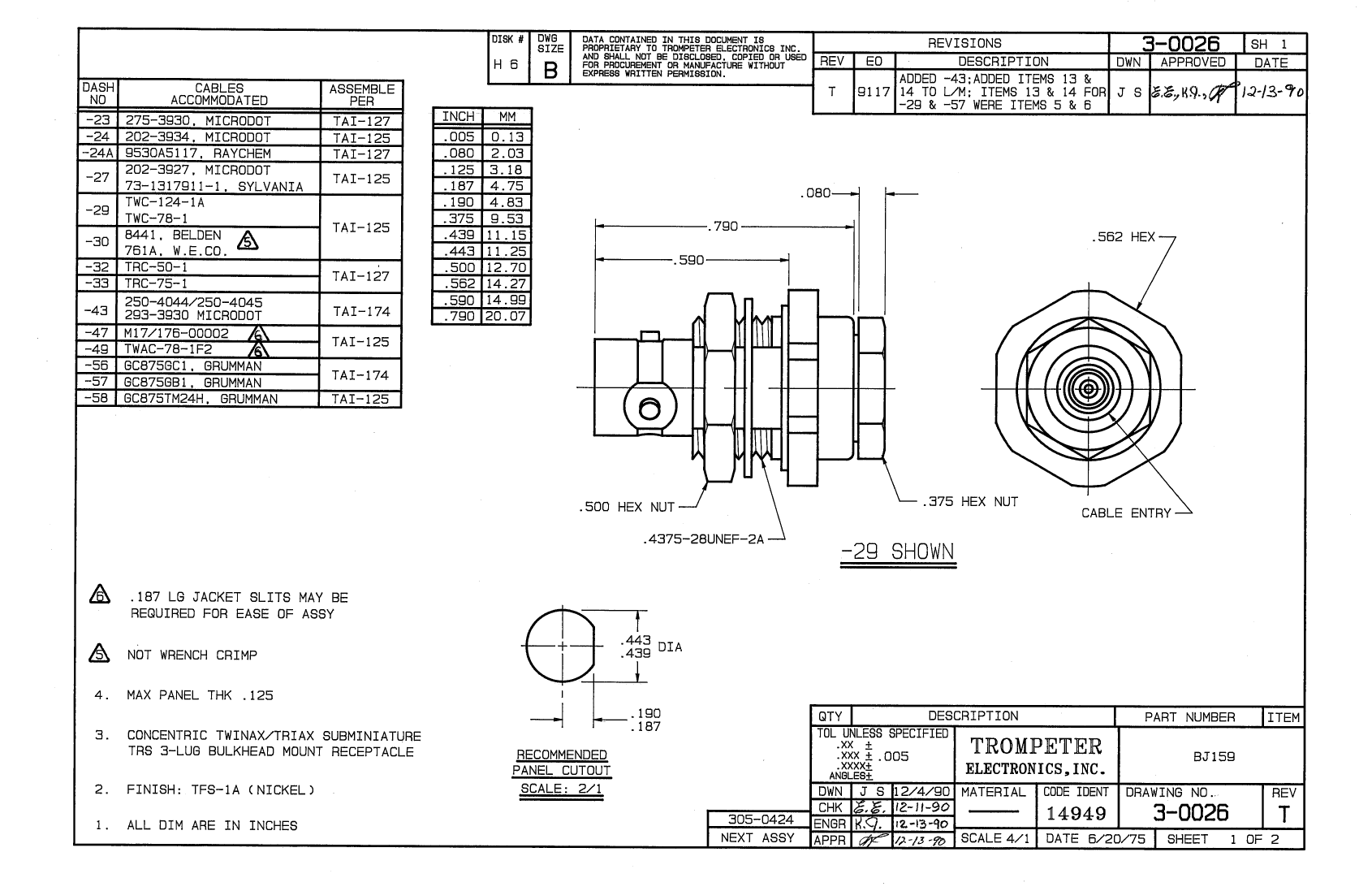

Preview

Download Datasheet

View All

BJ159-23 Related Products

	BJ159-23	BJ159-30	BJ159-49	BJ159-32	BJ159-33	BJ159-24A	BJ159-27	BJ159-43
Description	RF Connector, 1 Contact(s), Female, Jack,	RF Connector, 1 Contact(s), Female, Jack,	RF Connector, 1 Contact(s), Female, Jack,	RF Connector, 1 Contact(s), Female, Jack,	RF Connector, 1 Contact(s), Female, Jack,	RF Connector, 1 Contact(s), Female, Jack,	RF Connector, 1 Contact(s), Female, Jack,	RF Connector, 1 Contact(s), Female, Jack,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
subject depth	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch	0.59 inch
Body diameter	0.562 inch	0.562 inch	0.562 inch	0.562 inch	0.562 inch	0.562 inch	0.562 inch	0.562 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX
Dielectric withstand voltage	1700VAC V	1700VAC V	1700VAC V	1700VAC V	1700VAC V	1700VAC V	1700VAC V	1700VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	BJ159	BJ159	BJ159	BJ159	BJ159	BJ159	BJ159	BJ159
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of ports	1	1	1	1	1	1	1	1
Maximum operating frequency	0.5 GHz	0.5 GHz	0.5 GHz	0.5 GHz	0.5 GHz	0.5 GHz	0.5 GHz	0.5 GHz
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Total number of contacts	1	1	1	1	1	1	1	1
