SHB-1M3216-601 Overview

Multilayer Chip Ferrite Beads

Multilayer Chip Ferrite Beads
——SHB-3216
Features
1. Effective in suppressing noise at high frequencies.
2. Suited for preventing the abnormal oscillation from high frequency amplifying circuits.
3. Excellent solder heat resistance for soldering.
4. High reliability in the circuits of high current.
5. Lead Free (RoHS Compliance).
PAGE
1/4
Applications
1. Noise suppression in digital equipments.
2. Computers and peripheral devices, VCR and camera.
3. Noise suppression in automotive electronic equipment, car stereo, car engine controller.
4. Noise suppression for OA electronic instruments.
Ordering Information
SHB -
(1)
1
M
(2)
3216
(3)
-
102
(4)
J
(5)
T
(6)
(4) Impedance (at 100MHz)
First two digits are impedance values.
Last digit is the number of zeros
(5) Termination
J : Nickel barrier
(1) Series
SHB : For Signal line
(2) Material & Design
S : For high speed
M : For high impedance type
T : For Low speed
(3) Dimension
First two digits : length (㎜)
Last two digits : width (㎜)
(6) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])
Shape and Dimensions
Unit : mm [inches]
Type
L
W
T
C
3.2±0.20
1.6±0.20
1.3±0.20
0.50±0.30
SHB-1□3216-
〔.126±.008〕 〔.063±.008〕 〔.051±.008〕 〔.020±.012〕
T
W
C₁
L

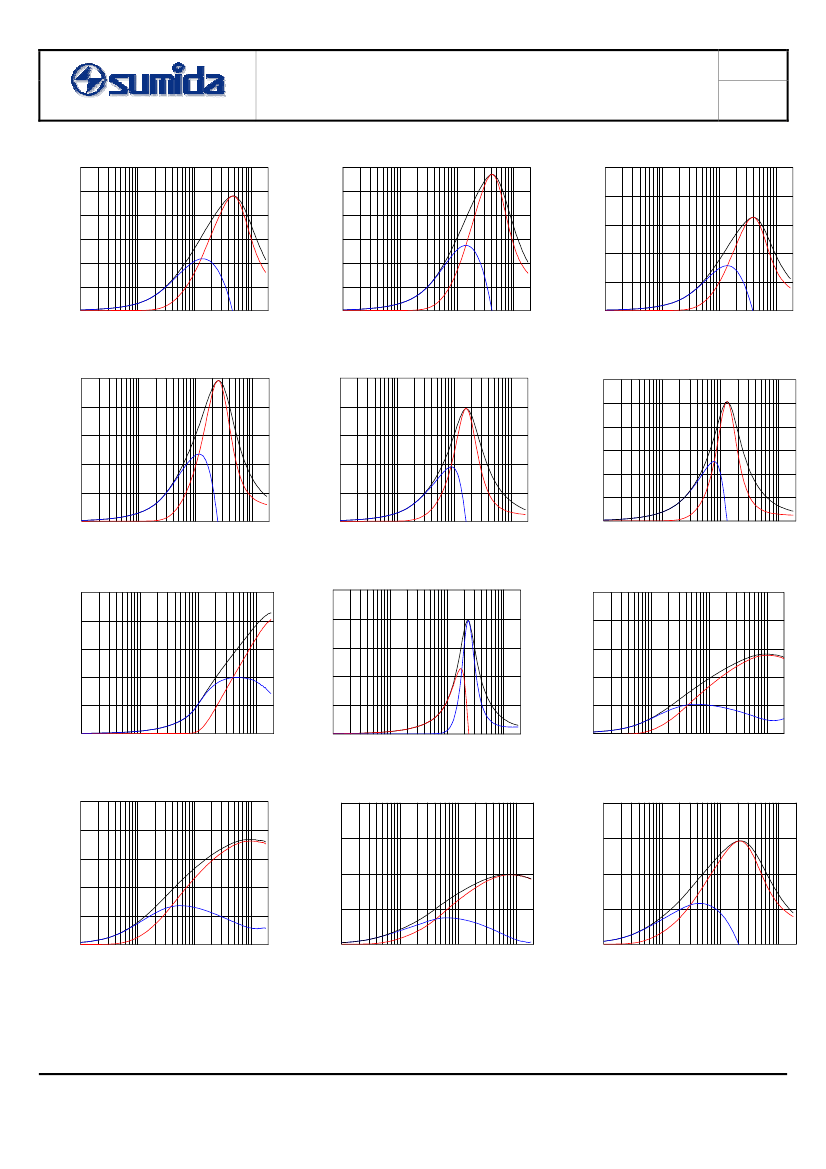

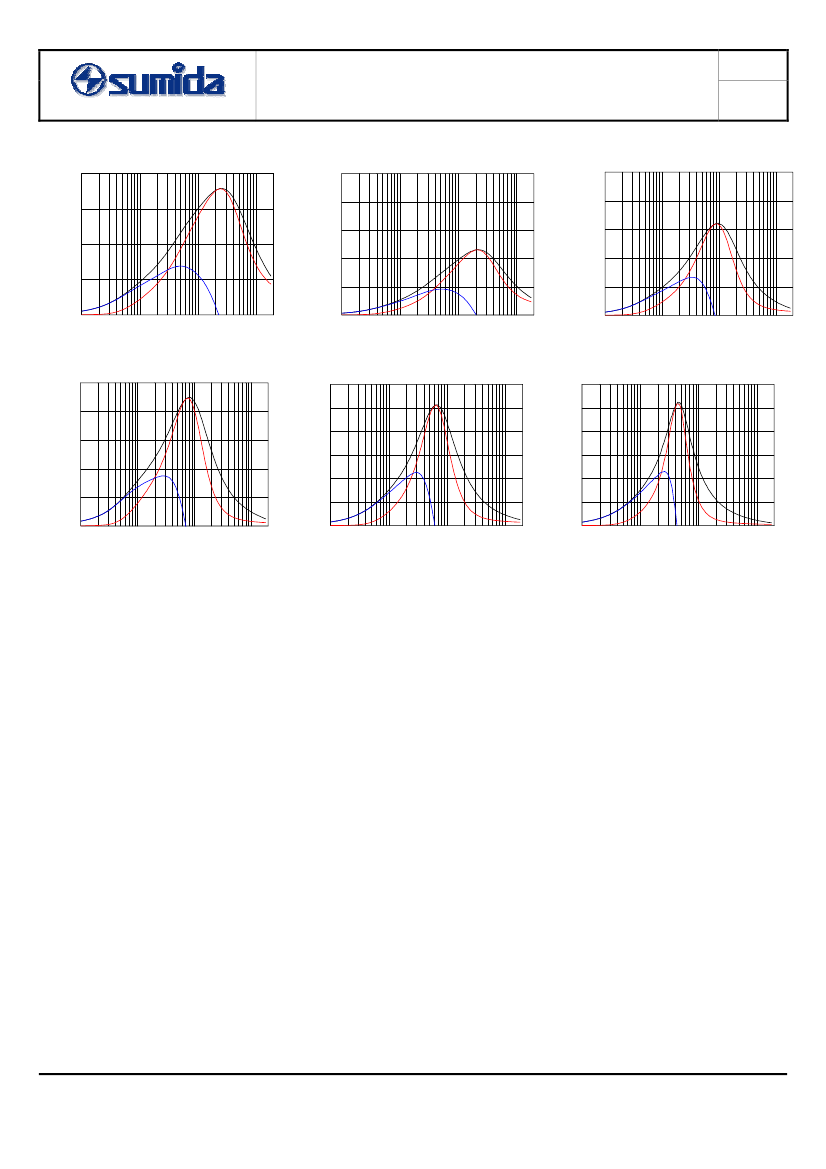

*All specifications are subject to change without notice.
