Multilayer Chip Ferrite Beads Array
——SHB-4-2010
Features
1. Availing in a wide range of impedance values.
2. Providing excellent EMI suppression characteristics for various types of noise.
3. 4Lines achieved with a single chip, very usefully adopted in high density circuit design.
4. Heat generation and crosstalk between adjacent circuits are at minimum.
5. Excellent solderability.
6. Lead Free (RoHS Compliance)
PAGE
1/3
Applications
1. Waveform correction in personal computers, electric equipment, communication equipment, OA equipment,
2. Provides radiated noise countermeasures in interfaces and harness connecting parts.
3. Prevents noise intrusion in video, LCD module, etc
4. Parallel signal line.
Ordering Information
SHB -
(1)
4
(2)
M
(3)
- 2010
(4)
□
(5)
-
121
(6)
J
(7)
T
(8)
(4) Thickness
A : 0.9㎜ max
B : 0.7㎜ max
(6) Impedance (at 100㎒)
First two digits are impedance values.
Last digit is the number of zeros.
(7) Termination
J : Nickel barrier
(8) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])
(1) Series
SHB : For signal line
(2) Type
4 : 4 Array
(3) Material & Design
S
: For high speed
M : For high impedance type
T : For Low speed
(4) Dimensions
First two digits : length(㎜)
Last two digits : width(㎜)
Shape and Dimensions
·
4 Array
C© ü
unit : mm〔inches〕
T
W
D
L
C© û
M
Type
SHB-4□2010- B
L
2.00±0.15
W
1.00±0.15
T
0.60±0.1
C1
0.25±0.15
[.020±.006]
C2
0.3 max
[.012 max]
D
0.50±0.10
[.020±.004]
M
0.2 max
[.008 max]
[.079±.006] [.063±.008] [.031±.004]
*All specifications are subject to change without notice.
Multilayer Chip Ferrite Beads Array
——SHB-4-2010

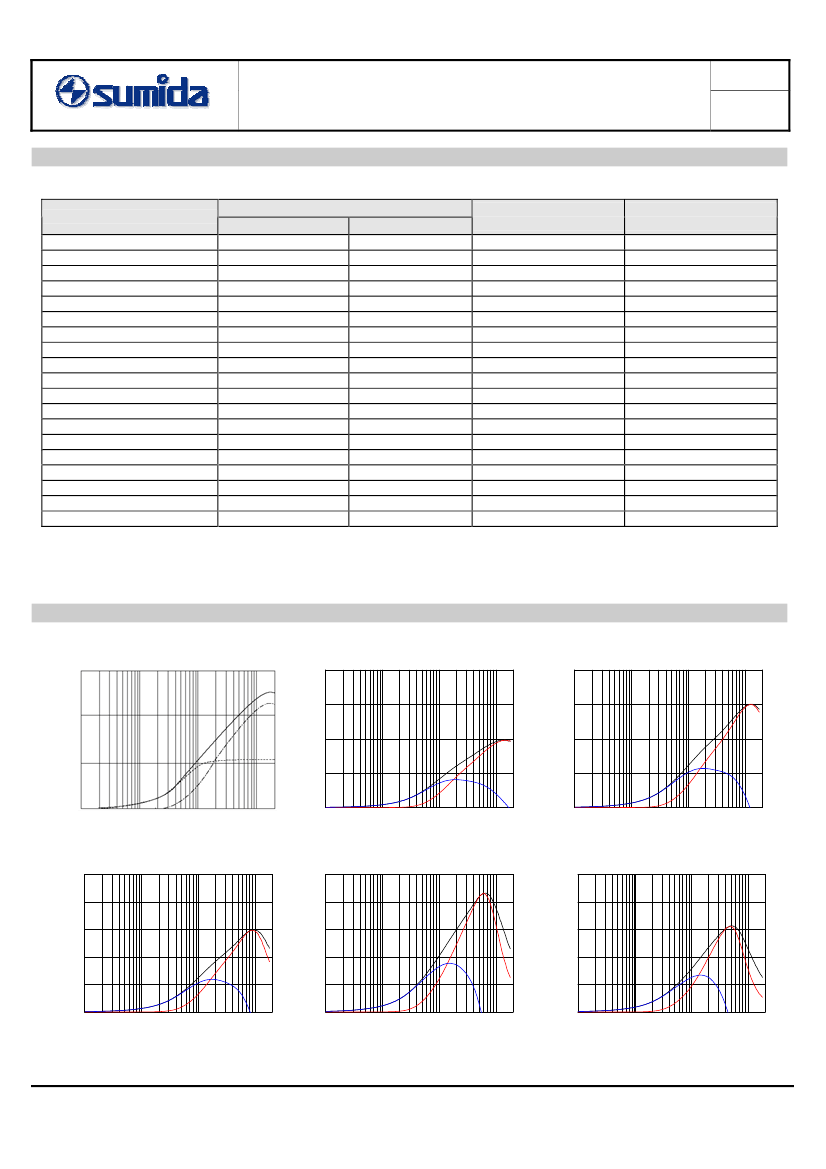

Electrical Parameters
lZl
typ.
10
40
60
80
120
200
300
10
40
60
80
120
200
300
1000
10
30
60
100
at 100㎒(Ω)
min.
7.5
30
45
60
90
150
225
7.5
30
45
60
90
150
225
700
7.5
23
45
75
DC Resistance
(Ω) max.
0.10
0.15
0.30
0.30
0.40
0.60
0.80
0.10
0.15
0.30
0.30
0.40
0.60
0.80
1.30
0.20
0.30
0.40
0.50
PAGE
2/3
Part No.
SHB-4M2010□-100□□
SHB-4M2010□-400□□
SHB-4M2010□-600□□
SHB-4M2010□-800□□
SHB-4M2010□-121□□
SHB-4M2010□-201□□
SHB-4M2010□-301□□
SHB-4T2010□-100□□
SHB-4T2010□-400□□
SHB-4T2010□-600□□
SHB-4T2010□-800□□
SHB-4T2010□-121□□
SHB-4T2010□-201□□
SHB-4T2010□-301□□
SHB-4T2010□-102□□
SHB-4S2010□-100□□
SHB-4S2010□-300□□
SHB-4S2010□-600□□
SHB-4S2010□-101□□
Rated current
(mA) max
200
200
200
200
150
100
50
200
200
200
200
150
100
50
50
200
200
150
150
※
Parts with other electrical characteristics available upon request.
※
Test equipment : HP4291A + HP16192A

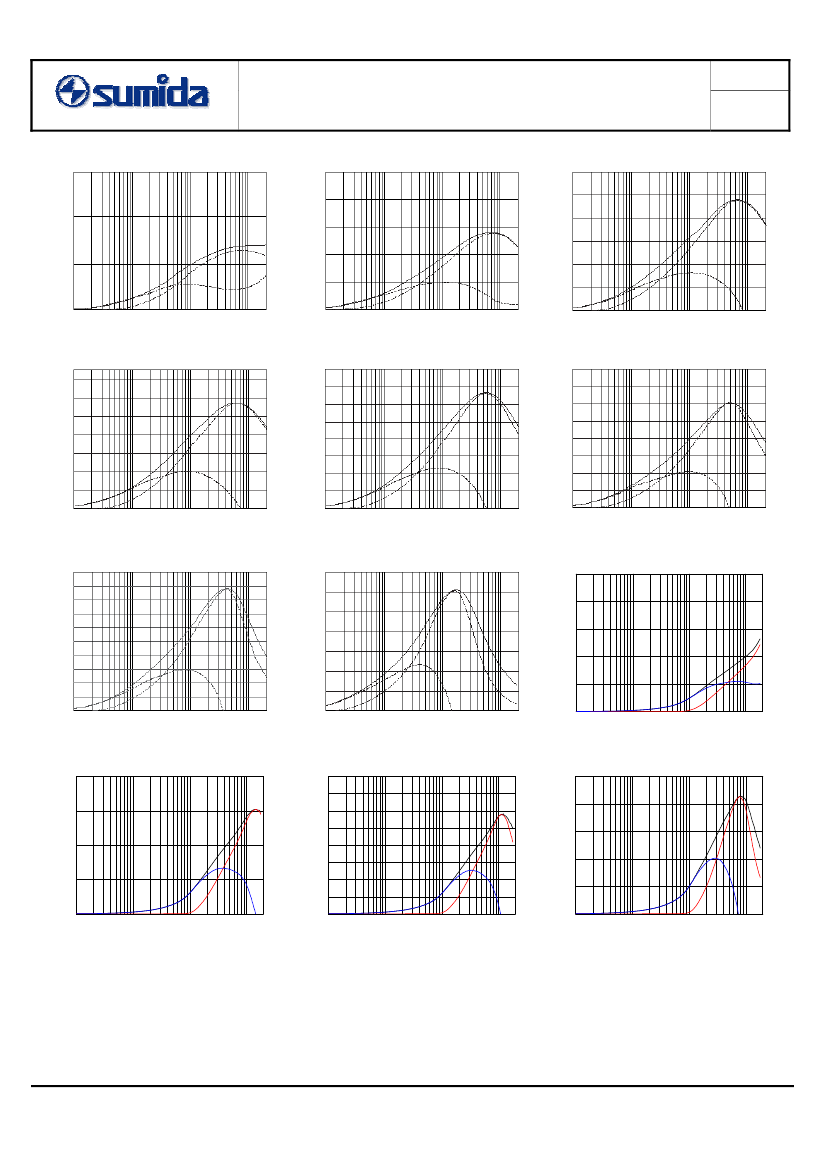

Electrical Characteristic Curves
SHB-4M2010B-100J
30
200
HB-4M2010B-400J
SHB-4M2010B-400J
200
SHB-4M2010B-600J
HB-4M2010B-600J
150
150
Impedance [
Ω
]
Impedance[Ω]
Impedance [
Ω
]
20
Z
R
10
100
100
Z
R
X
Z
50
R
X
50
X
0
1M
10M
100M
1G
0
1M
10M
100M
1G
0
1M
10M
100M
1G
Frequency [Hz]
Frequency [Hz]
Frequency [Hz]
HB-4M2010B-121J
SHB-4M2010B-121J
500
500
HB-4M2010B-201J
SHB-4M2010B-201J
1000
HB-4M2010B-301J
SHB-4M2010B-301J
400
400
800
Impedance [
Ω
]
Impedance [
Ω
]
300
300
Impedance [
Ω
]
Z
R
200
600
Z
R
X
200
Z
R
400
X
100
200
100
X
10M
100M
1G
0
1M
0
1M
10M
100M
1G
0
1M
10M
100M
1G
Frequency [Hz]
Frequency [Hz]
Frequency [Hz]
*All specifications are subject to change without notice.
