Datasheet> All Categories > Discrete semiconductor> diode> SHB40UF

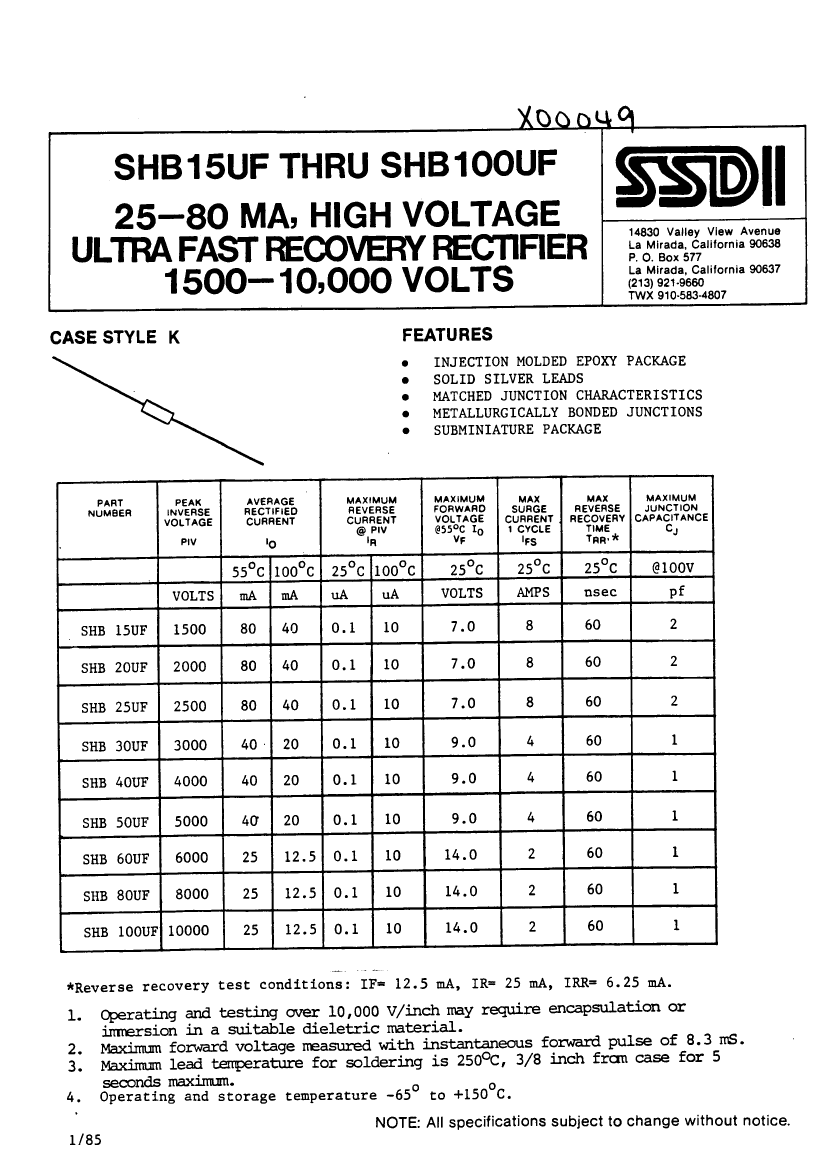

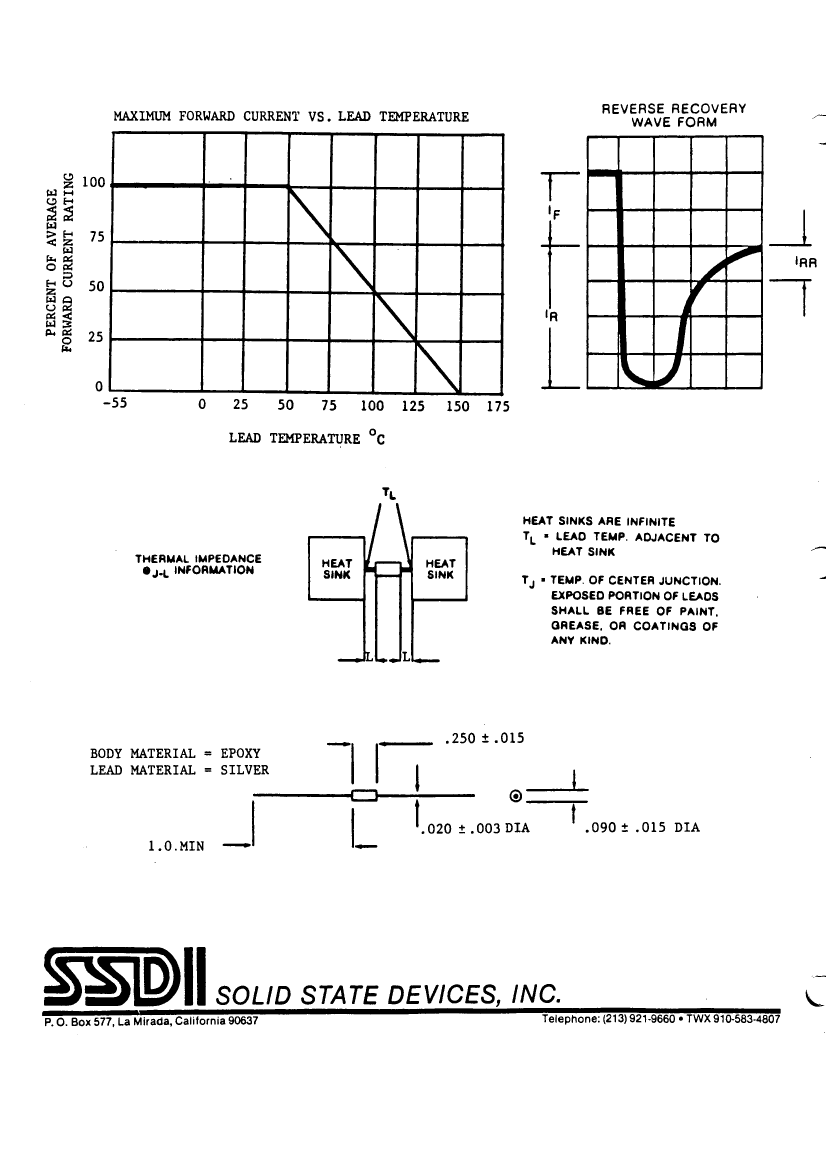

Preview

SHB40UF: Description0.04 A, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size143KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SHB40UF Overview

0.04 A, SILICON, SIGNAL DIODE

SHB40UF Parametric

Parameter Name	Attribute value
Maker	SSDI
package instruction	O-PALF-W2
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	9 V
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	0.04 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	4000 V
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

SHB40UF Related Products

	SHB40UF	SHB15UF	SHB20UF	SHB30UF	SHB25UF	SHB100UF	SHB50UF	SHB60UF	SHB80UF
Description	0.04 A, SILICON, SIGNAL DIODE	0.08 A, SILICON, SIGNAL DIODE	0.08 A, SILICON, SIGNAL DIODE	0.04 A, SILICON, SIGNAL DIODE	0.08 A, SILICON, SIGNAL DIODE	0.025 A, SILICON, SIGNAL DIODE	0.04 A, SILICON, SIGNAL DIODE	0.025 A, SILICON, SIGNAL DIODE	0.025 A, SILICON, SIGNAL DIODE
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	9 V	7 V	7 V	9 V	7 V	14 V	9 V	14 V	14 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.04 A	0.08 A	0.08 A	0.04 A	0.08 A	0.025 A	0.04 A	0.025 A	0.025 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	4000 V	1500 V	2000 V	3000 V	2500 V	10000 V	5000 V	6000 V	8000 V
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	-	1	1	-	-	-	1	1	1
