AIC1733
500mA, Low Dropout Linear Regulator
with Shutdown
FEATURES
Active Low Shutdown Control.
Very Low Quiescent Current.
Very Low Dropout Voltage of 650mV at 500mA
Output Current (3.0V Output Version)
1.3V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V Output
Voltage.
Short Circuit and Thermal Protection.
±2%
Output Tolerance.
Miniature Package: SOT-23-5, TO-252-5,
SOT-89-5
DESCRIPTION
AIC1733 is a 500mA low noise, low dropout
linear regulator, and is housed in small SOT-23-5
package. The device is in the “ON” state when
the
SHDN
pin is set to logic high level. An
internal P-MOSFET pass transistor is used to
achieve 650mV low dropout voltage at 500mA
load current. It offers high precision output
voltage of
±2%.
The quality of low quiescent
current and low dropout voltage makes this
device ideal for battery power applications. The
internal reverse bias protection eliminates the
requirement for a reverse voltage protection
diode. The high ripple rejection and low noise of
AIC1733 provide enhanced performance for
critical applications. The noise bypass pin can be
connected an external capacitor to reduce the
output noise level.
APPLICATIONS
PDA
DSC
Notebook
Pagers
Personal Communication Equipment
Cordless Telephones
Portable Instrumentation
Portable Consumer Equipment
Battery Powered Systems
TYPICAL APPLICATION CIRCUIT
V
IN
C
IN
1μF
GND
VIN
+
VOUT
+
V
OUT
C
OUT
4.7μF
(Note1)
SHDN
SHDN
BP
C
BP
AIC1733
0.1μF
Low Noise Low Dropout Linear Regulator
Analog Integrations Corporation
Si-Soft Research Center
3A1, No.1, Li-Hsin Rd. I , Science Park , Hsinchu 300, Taiwan , R.O.C.
TEL: 886-3-5772500
FAX: 886-3-5772510
www.analog.com.tw
DS-1733G-02
20090928
1
AIC1733
ORDERING INFORMATION
AIC1733-XXXXXX
PACKING TYPE
TR: TAPE & REEL
BG: BAG
PACKAGE TYPE
X5: SOT-89-5
V: SOT-23-5
E5: TO-252-5
P: LEAD FREE COMMERCIAL
G: GREEN PACKAGE
(TO-252-5 is NOT available in
GREEN PACKAGE)
OUTPUT VOLTAGE
28: 2.8V
13: 1.3V
30: 3.0V
15: 1.5V
33: 3.3V
18: 1.8V
25: 2.5V
(Of a unit of 0.1V within the voltage range from 1.3V to
3.3V, additional voltage versions for this product line may
be available on demand with prior consultation with AIC.)
Example: AIC1733-18PX5TR
1.8V Version, in SOT-89-5 Lead Free
Package & Tape & Reel Packing Type
AIC1733-18PVTR
1.8V Version, in SOT-23-5 Lead Free
Package & Tape & Reel Packing Type
PIN CONFIGURATION
SOT-23-5
TOP VIEW
1: VIN
2: GND
3: SHDN
4: BP
5: VOUT
5
4
1
2
3
SOT-89-5
TOP VIEW
1: VIN
2: GND
3: SHDN
4: BP
5: VOUT
5
4
1
2
3
TO-252-5
TOP VIEW
1: SHDN
2: VIN
3: GND
4: VOUT
5: N/C
123 45
•
SOT-89-5 Marking
Part No.
AIC1733-13CX5
AIC1733-15CX5
AIC1733-18CX5
AIC1733-25CX5
AIC1733-28CX5
AIC1733-30CX5
AIC1733-33CX5
Part No.
AIC1733-13CV
AIC1733-15CV
AIC1733-18CV
AIC1733-25CV
AIC1733-28CV
AIC1733-30CV
AIC1733-33CV
•
SOT-23-5 Marking
Marking
EI13
EI15
EI18
EI25
EI28
EI30
EI33
Marking
EE13
EE15
EE18
EE25
EE28
EE30
EE33
Part No.
AIC1733-13PX5
AIC1733-15PX5
AIC1733-18PX5
AIC1733-25PX5
AIC1733-28PX5
AIC1733-30PX5
AIC1733-33PX5
Part No.
AIC1733-13PV
AIC1733-15PV
AIC1733-18PV
AIC1733-25PV
AIC1733-28PV
AIC1733-30PV
AIC1733-33PV
Marking
EI13P
EI15P
EI18P
EI25P
EI28P
EI30P
EI33P
Marking
EE13P
EE15P
EE18P
EE25P
EE28P
EE30P
EE33P
Part No.
AIC1733-13GX5
AIC1733-15GX5
AIC1733-18GX5
AIC1733-25GX5
AIC1733-28GX5
AIC1733-30GX5
AIC1733-33GX5
Part No.
AIC1733-13GV
AIC1733-15GV
AIC1733-18GV
AIC1733-25GV
AIC1733-28GV
AIC1733-30GV
AIC1733-33GV
Marking
EI13G
EI15G
EI18G
EI25G
EI28G
EI30G
EI33G
Marking
EE13G
EE15G
EE18G
EE25G
EE28G
EE30G
EE33G
2
AIC1733
ABSOLUTE MAXIMUM RATINGS
Supply Voltage
.................………………………………..…………………....................12V
..………………………………………………………..............8V
.…………………………….………………………..............5V
.………………………………………………….....-40ºC~85ºC
125°C
................…………………………………….........-65ºC~150ºC
260°C
SOT-23-5…....………..………..………….130°C /W
TO-252-5…..……..…..…………………..12.5°C /W
SOT-89-5…..……..…..……………………..30°C /W
Thermal Resistance Junction to Ambient
SOT-23-5…....……..……………..………..220°C /W
TO-252-5…....………….…..……..……….100°C /W
SOT-89-5…....……………...……..……….160°C /W
(Assume no ambient airflow, no heatsink)
Shutdown Terminal Voltage
Noise Bypass Terminal Voltage
Operating Temperature Range
Maximum Junction Temperature
Storage Temperature Range
Lead Temperature (Soldering, 10 sec)
Thermal Resistance (Junction to Case)
Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.
TEST CIRCUIT
Refer to TYPICAL APPLICATION CIRCUIT.
3
AIC1733
ELECTRICAL CHARACTERISTICS
(C
IN
=1μF, C
OUT
=4.7μF, T
J
=25°C, unless otherwise specified) (Note2)
PARAMETER
Quiescent Current
Standby Current
GND Pin Current
Continuous Output Current
Output Current Limit
Output Voltage Tolerance
Temperature Coefficient
Line Regulation
Load Regulation
V
IN
= V
OUT(TYP)
+ 1V to 7V
V
IN
= V
OUT
+ 1.2V (Vout≥ 2.5V)
V
IN
= V
OUT
+ 1.8V (Vout≤ 2.4V)
I
OUT
= 0.1~500mA
3.0V≤V
OUT
≤3.3V
2.5V≤V
OUT
≤2.9V
I
L
=500mA 2.0V≤V
OUT
≤2.4V
1.3V≤V
OUT
≤1.9V
TEST CONDITIONS
I
OUT
= 0mA, V
IN
= 3.6~7V
V
IN
= 3.6~7V, output OFF
I
OUT
= 0.1~500mA
V
IN
= 5V
V
IN
= 5V, V
OUT
= 0V
V
IN
= 5V, no load
SYMBOL MIN.
I
Q
I
STBY
I
GND
I
OUT
I
IL
V
OUT
TC
ΔV
LIR
ΔV
LOR
500
-2
50
3
20
650
780
1100
1400
1.23
0.46
600
2
150
10
40
1050
1180
1500
1800
30
TYP.
40
MAX.
55
0.1
50
500
UNIT
μA
μA
μA
mA
mA
%
ppm/ºC
mV
mV
Dropout Voltage
V
DROP
mV
Noise Bypass Terminal Voltage
Output Noise
C
BP
= 0.1μF, f = 1KHz,V
IN
= 5V
f = 1KHz, Ripple = 0.5V
P-P
,
C
BP
= 0.1μF
V
REF
Δn
V
μ
V
Hz
dB
0.1
μA
V
0.6
V
μS
ºC
Ripple Rejection
Shutdown Pin Current
Shutdown Pin Voltage (ON)
Shutdown Pin Voltage (OFF)
Shutdown Exit Delay Time
Thermal Shutdown Temperature
RR
I
SHDN
55
Output ON
Output OFF
C
BP
= 0.1μF, C
OUT
= 1μF,
I
OUT
=30mA
V
SHDN
(ON)
V
SHDN
(OFF)
Δt
T
SD
1.6
300
155
Note 1:
To avoid output oscillation, aluminum electrolytic output capacitor is recommended and ceramic
capacitor is not suggested.
Note 2:
Specifications are production tested at T
A
=25°C. Specifications over the -40°C to 85°C operating
temperature range are assured by design, characterization and correlation with Statistical Quality
Controls (SQC).
4
AIC1733

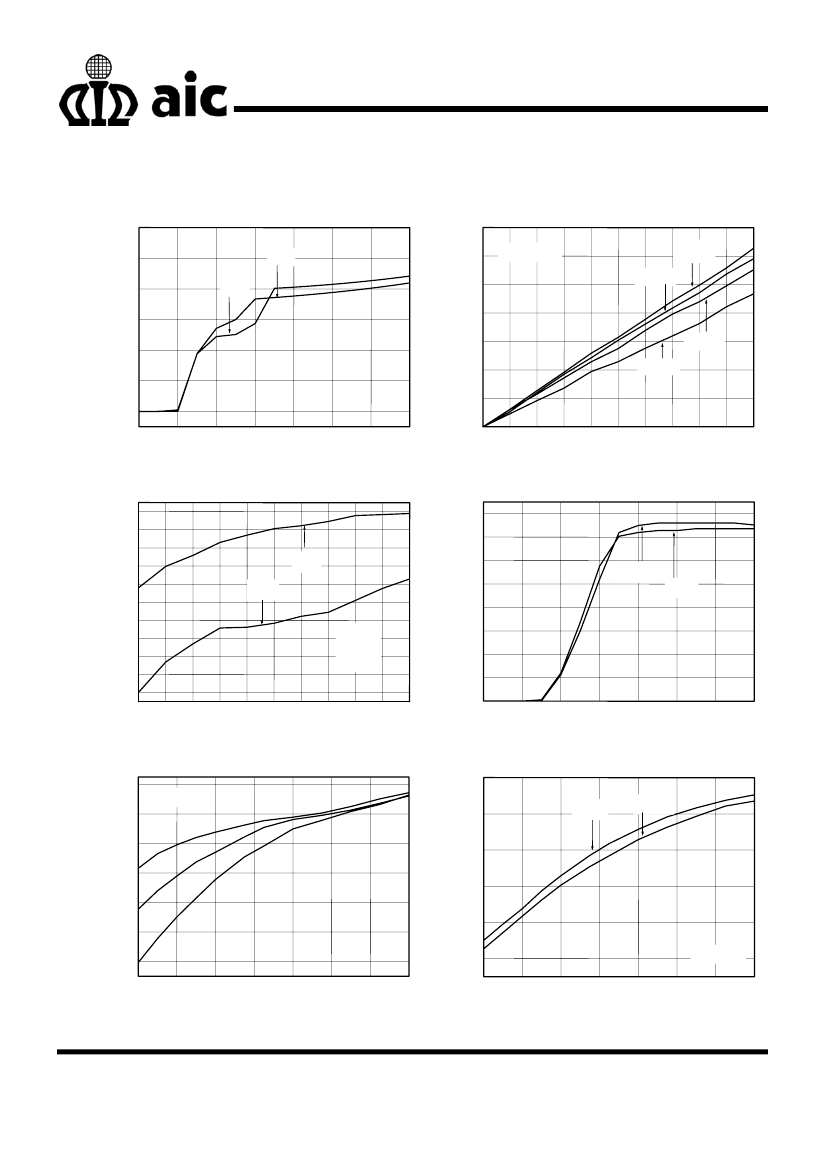

TYPICAL PERFORMANCE CHARACTERISTICS
60
50
700
1.5V
3.3V
600
500
AIC1733-33
T
A
=50°C
T
A
=80°C
Quiescent current (μA)
40
30
20
10
V
DROP
(mV)
400
300
200
100
T
A
=20°C
T
A
=-40°C
0
0
1
2
3
4
5
6
7
0
0
50
100
150
200
250
300
350
400
450
500
V
IN
(V)
Fig. 1 Quiescent Current vs. V
IN
I
LOAD
(mA)
Fig. 2 V
DROP
vs. I
LOAD
44.0
43.5
800
Ground Current (μA)
43.0
42.5
42.0
41.5
41.0
40.5
40.0
39.5
39.0
0
50
100
150
200
250
300
350
400
450
500
3.3V
1.5V
Short Circuit Current (mA)
700
600
500
400
300
200
100
0
0
1
2
3
4
5
6
7
3.3V
1.5V
V
IN
=5V
T=25°C
I
LOAD
(V)
Fig. 3 Ground Current vs. I
LOAD
46
Input Voltage(V)
Fig. 4 Input Voltage vs. Short Circuit Current
45
AIC1733-33
43
42
41
40
39
500mA
Quiescent Current ((μA)
44
44
1.5V
3.3V
Ground Current (μA)
42
300mA
40
38
150mA
-40
-20
0
20
40
60
80
100
36
-40
-20
0
20
40
60
V
IN
=
5V
80
100
Temperature (°C)
Fig. 5 Ground Current vs. Temperature
Temperature (°C)
Fig. 6 Quiescent vs. Temperature
5
