BF844RLRM: DescriptionTRANSISTOR 300 mA, 400 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, TO-226AA, 3 PIN, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size345KB，24 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

BF844RLRM Overview

TRANSISTOR 300 mA, 400 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, TO-226AA, 3 PIN, BIP General Purpose Small Signal

BF844RLRM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.3 A
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	225
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	10000 ns
Maximum opening time (tons)	600 ns

Preview

Download Datasheet

View All

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

High Voltage Transistor

NPN Silicon

COLLECTOR

BASE

EMITTER

BF844

MAXIMUM RATINGS

Rating

Collector – Emitter Voltage

Collector – Base Voltage

Emitter – Base Voltage

Collector Current — Continuous

Total Device Dissipation @ TA = 25°C

Derate above 25°C

Total Device Dissipation @ TC = 25°C

Derate above 25°C

Operating and Storage Junction

Temperature Range

Symbol

VCEO

VCBO

VEBO

TJ, Tstg

Value

400

450

6.0

300

625

5.0

1.5

– 55 to +150

Unit

Vdc

mAdc

mW/°C

Watt

mW/°C

°C

CASE 29–04, STYLE 1

TO–92 (TO–226AA)

THERMAL CHARACTERISTICS

Characteristic

Thermal Resistance, Junction to Ambient

Thermal Resistance, Junction to Case

Symbol

Max

200

83.3

Unit

°C/W

ELECTRICAL CHARACTERISTICS

(TA = 25°C unless otherwise noted)

Characteristic

Symbol

Min

Max

Unit

OFF CHARACTERISTICS

Collector – Emitter Breakdown Voltage(1)

(IC = 1.0 mAdc, IB = 0)

Collector – Emitter Breakdown Voltage

(IC = 100

µAdc,

VBE = 0)

Collector – Base Breakdown Voltage

(IC = 100

Adc, IE = 0)

Emitter – Base Breakdown Voltage

(IE = 10

Adc, IC = 0)

Collector Cutoff Current

(VCB = 400 Vdc, IE = 0)

Collector Cutoff Current

(VCE = 400 Vdc, VBE = 0)

Emitter Cutoff Current

(VEB = 4.0 Vdc, IC = 0)

1. Pulse Test: Pulse Width

V(BR)CEO

V(BR)CES

V(BR)CBO

V(BR)EBO

ICBO

ICES

IEBO

400

450

6.0

—

0.1

500

0.1

Vdc

µAdc

nAdc

µAdc

300

s, Duty Cycle

2.0%.

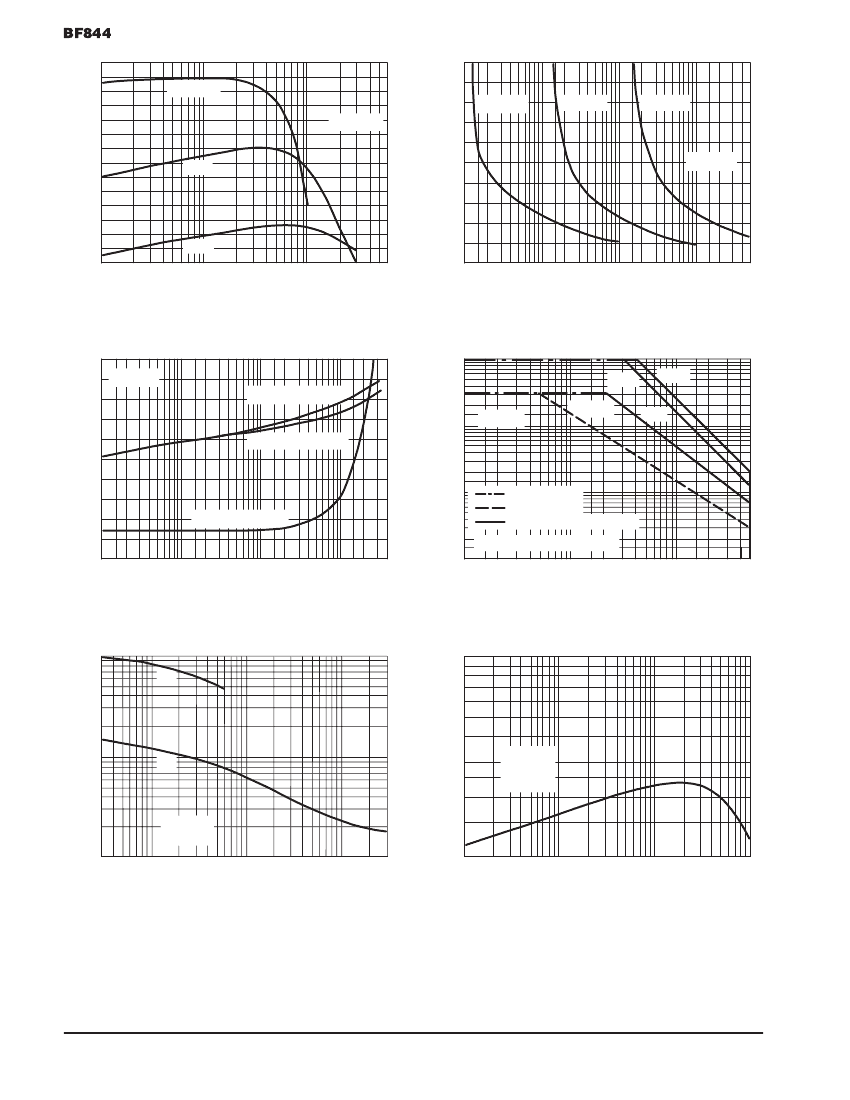

2–258

Motorola Small–Signal Transistors, FETs and Diodes Device Data

EMBOSSED TAPE AND REEL

SOT-23, SC-59, SC-70/SOT-323, SC–90/SOT–416, SOT-223 and SO-16 packages are available only in

Tape and Reel.

Use the appropriate suffix indicated below to order any of the SOT-23, SC-59,

SC-70/SOT-323, SOT-223 and SO-16 packages. (See Section 6 on Packaging for additional information).

SOT-23:

available in 8 mm Tape and Reel

Use the device title (which already includes the “T1” suffix) to order the 7 inch/3000 unit reel.

Replace the “T1” suffix in the device title with a “T3” suffix to order the 13 inch/10,000 unit reel.

available in 8 mm Tape and Reel

Use the device title (which already includes the “T1” suffix) to order the 7 inch/3000 unit reel.

Replace the “T1” suffix in the device title with a “T3” suffix to order the 13 inch/10,000 unit reel.

available in 8 mm Tape and Reel

Use the device title (which already includes the “T1” suffix) to order the 7 inch/3000 unit reel.

Replace the “T1” suffix in the device title with a “T3” suffix to order the 13 inch/10,000 unit reel.

available in 12 mm Tape and Reel

Use the device title (which already includes the “T1” suffix) to order the 7 inch/1000 unit reel.

Replace the “T1” suffix in the device title with a “T3” suffix to order the 13 inch/4000 unit reel.

available in 16 mm Tape and Reel

Add an “R1” suffix to the device title to order the 7 inch/500 unit reel.

Add an “R2” suffix to the device title to order the 13 inch/2500 unit reel.

SC-59:

SC-70/

SOT-323:

SOT-223:

SO-16:

RADIAL TAPE IN FAN FOLD BOX OR REEL

TO-92 packages are available in both bulk shipments and in Radial Tape in Fan Fold Boxes or Reels.

Fan Fold Boxes and Radial Tape Reel are the best methods for capturing devices for automatic insertion in

printed circuit boards.

TO-92:

available in Fan Fold Box

Add an “RLR” suffix and the appropriate Style code* to the device title to order the Fan Fold box.

available in 365 mm Radial Tape Reel

Add an “RLR” suffix and the appropriate Style code* to the device title to order the Radial Tape

Reel.

*Refer to Section 6 on Packaging for Style code characters and additional information on ordering

*requirements.

DEVICE MARKINGS/DATE CODE CHARACTERS

SOT-23, SC-59, SC-70/SOT-323, and the SC–90/SOT–416 packages have a device marking and a date

code etched on the device.

The generic example below depicts both the device marking and a representa-

tion of the date code that appears on the SC-70/SOT-323, SC-59 and SOT-23 packages.

ABC

The “D” represents a smaller alpha digit Date Code. The Date Code indicates the actual month in which the

part was manufactured.

2–2

Motorola Small–Signal Transistors, FETs and Diodes Device Data
