Multilayer Chip Ferrite Beads
——SHH-2012
Features
1. Effective in suppressing noise at high frequencies.
2. Suited for preventing the abnormal oscillation from high frequency amplifying circuits.
3. Excellent solder heat resistance for soldering.
4. High reliability in the circuits of high current.
5. Lead Free (RoHS Compliance)
PAGE
1/4
Applications
1. Noise suppression in digital equipments.
2. Computers and peripheral devices, VCR and camera.
3. Noise suppression in automotive electronic equipment, car stereo, car engine controller.
4. Noise suppression for OA electronic instruments.
Ordering Information
SHH -
(1)
1
M
(2)
2012
(3)
-
121
(4)
J
(5)
T
(6)
(4) Impedance (at 100MHz)
First two digits are impedance values.
Last digit is the number of zeros
(5) Termination
J : Nickel barrier
(6) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])
(1) Series
SHH : For high current(~3.0A)
(2) Material & Design
S : For high speed
M : For high impedance type
T : For Low speed
(3) Dimension
First two digits : length (㎜)
Last two digits : width (㎜)
Shape and Dimensions
Unit : mm [inches]
Type
T
W
L
2.0±0.20
W
1.25±0.20
T
0.8±0.15
(.049±.008)
C
0.50±0.30
〔.020±.012〕
SHH-1□2012-
〔.079±.008〕 〔.049±.008〕
C© û
L
*All specifications are subject to change without notice.
Multilayer Chip Ferrite Beads
——SHH-2012

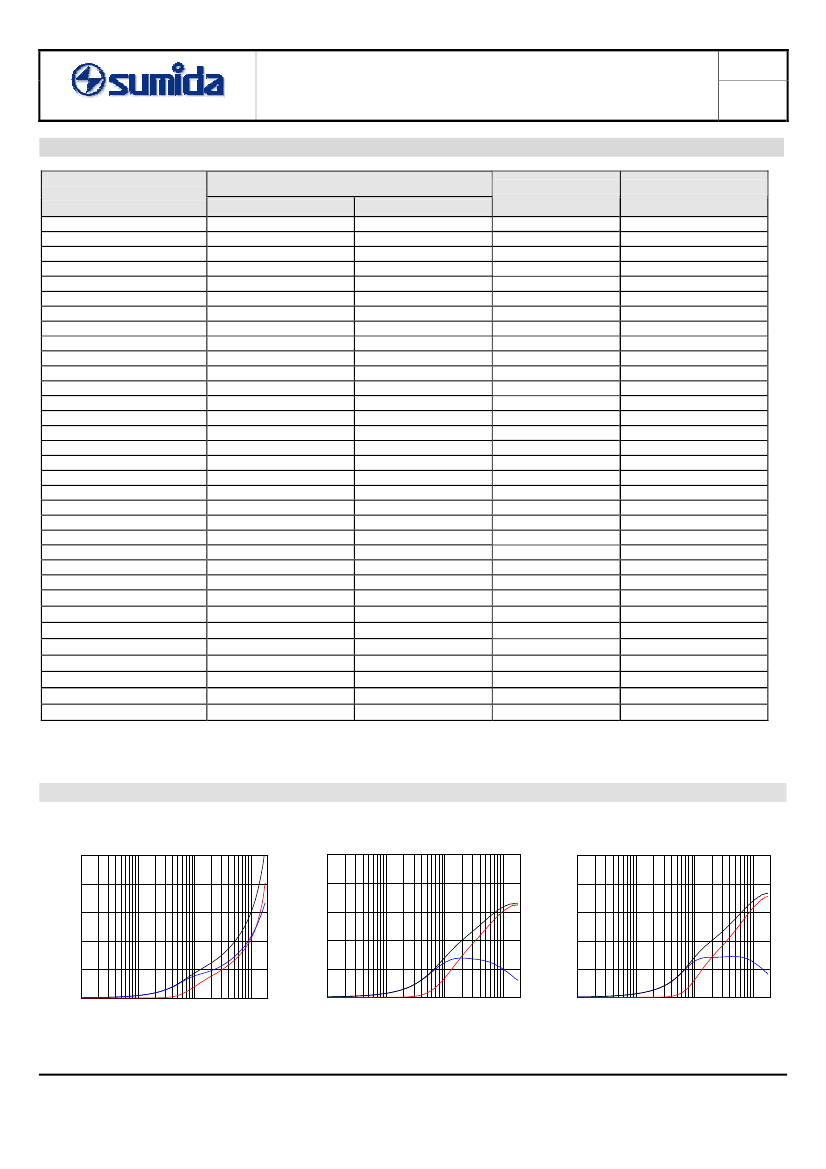

Electrical Parameters
Part No.
Typ.
SHH-1M2012-150□□
SHH-1M2012-260□□
SHH-1M2012-300□□
SHH-1M2012-320□□
SHH-1M2012-600□□
SHH-1M2012-800□□
SHH-1M2012-121□□
SHH-1M2012-151□□
SHH-1M2012-221□□
SHH-1M2012-301□□
SHH-1M2012-451□□
SHH-1M2012-601□□
SHH-1M2012-102□□
SHH-1S2012-5R0□□
SHH-1S2012-8R0□□
SHH-1S2012-400□□
SHH-1S2012-800□□
SHH-1S2012-121□□
SHH-1S2012-221□□
SHH-1S2012-251□□
SHH-1T2012-260□□
SHH-1T2012-400□□
SHH-1T2012-600□□
SHH-1T2012-800□□
SHH-1T2012-121□□
SHH-1T2012-151□□
SHH-1T2012-221□□
SHH-1T2012-251□□
SHH-1T2012-301□□
SHH-1T2012-331□□
SHH-1T2012-401□□
SHH-1T2012-601□□
SHH-1T2012-102□□
15
26
30
32
60
80
120
150
220
300
450
600
1000
5.0
8.0
40
80
120
220
250
26
40
60
80
120
150
220
250
300
330
400
600
1000 (at 60MHz)
lZl at 100MHz(
Ω)
min.
12
20
23
24
45
60
90
115
165
225
338
450
750
3.5
6.0
30
60
90
165
190
20
30
45
60
90
115
165
190
225
250
300
450
750
DC Resistance
(Ω) max.
0.02
0.02
0.02
0.03
0.03
0.08
0.05
0.10
0.05
0.07
0.20
0.10
0.30
0.05
0.03
0.10
0.15
0.20
0.20
0.30
0.03
0.05
0.06
0.08
0.03
0.08
0.12
0.05
0.15
0.15
0.15
0.25
0.30
Rated current
(mA) max.
2500
3000
2500
2500
3800
1500
2500
1500
2200
2000
1000
2000
800
3000
3000
1800
1500
900
900
1000
3500
2000
1500
1000
3000
1000
1000
2800
800
800
800
600
600
PAGE
2/4
※
Parts with other electrical characteristics available upon request.
※
Test equipment : HP4291 + HP16192A

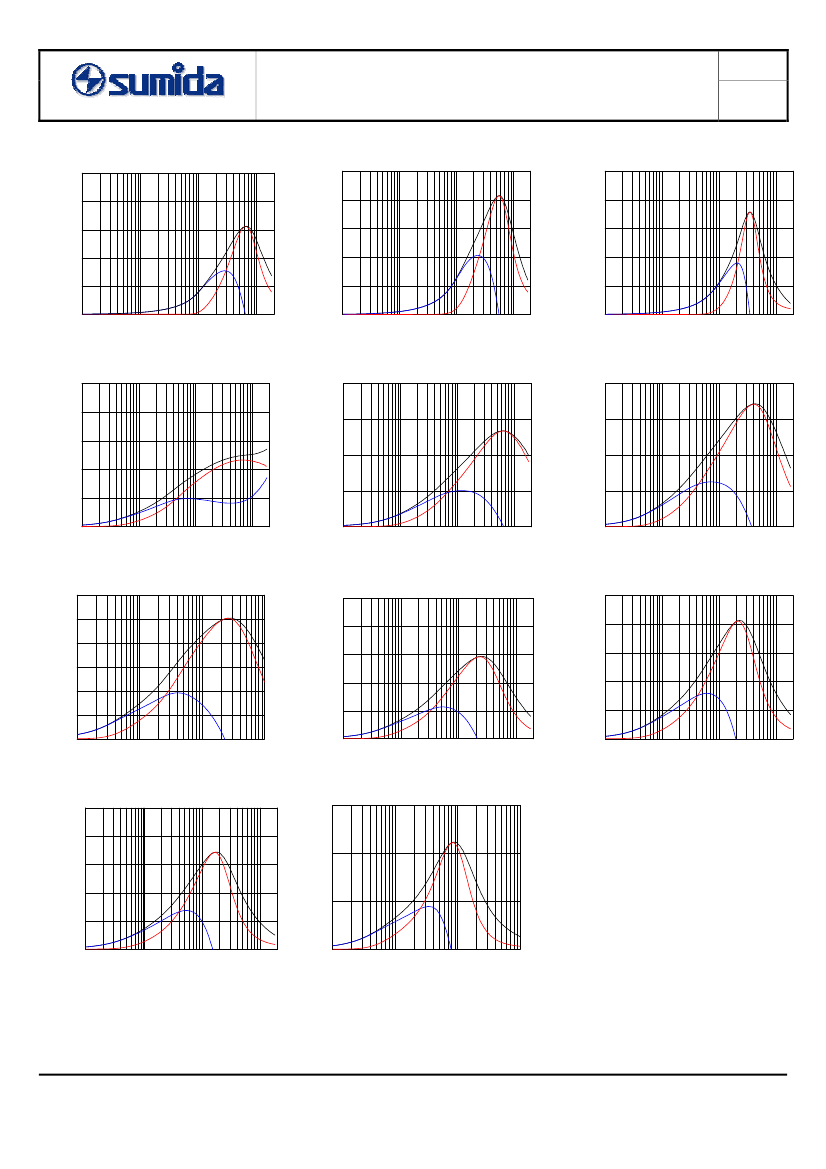

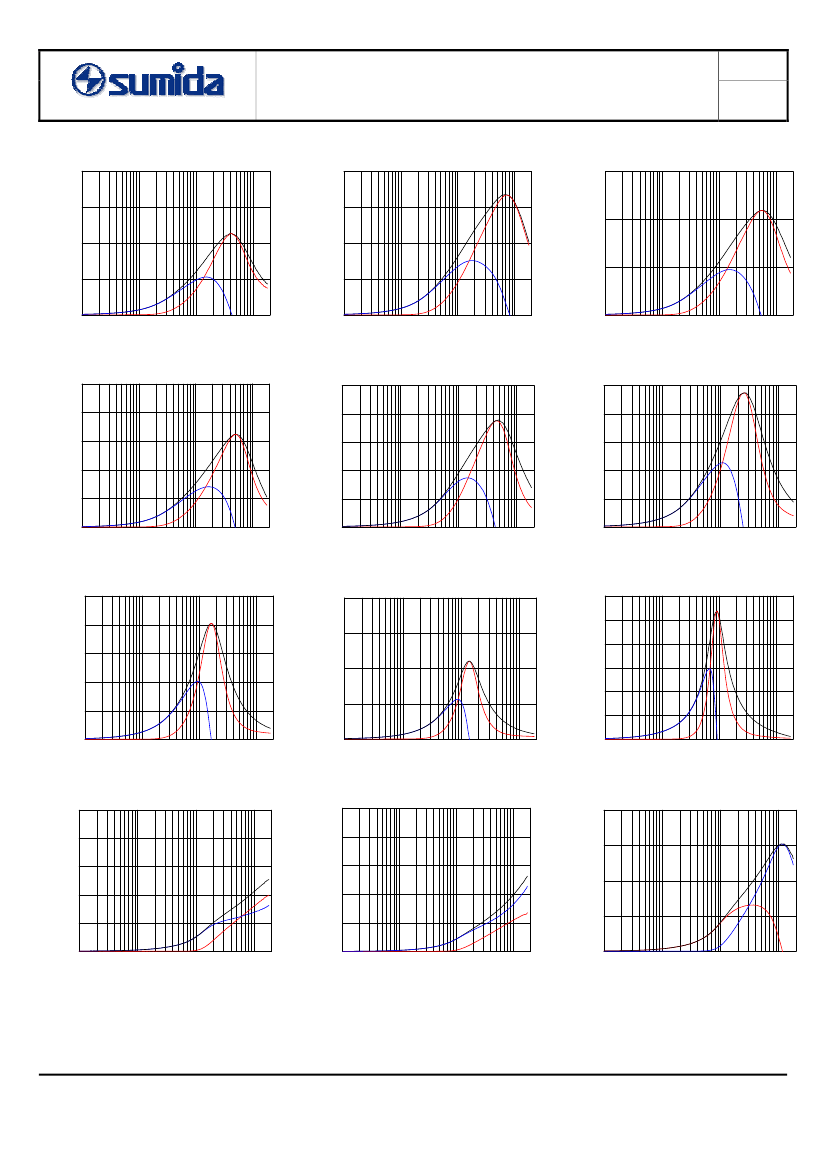

Electrical Characteristic Curves
S
HH-1M2012-150J
100
S
HH-1M2012-260J
100
100
S
HH-1M2012-320J
80
80
80
Impedance [
Ω
]
Impedance [
Ω
]
Impedance [
Ω
]
60
60
Z
R
X
60
Z
Z
40
40
40
R
20
R
X
X
20
20
0
1M
10M
100M
1G
0
1M
10M
100M
1G
0
1M
10M
100M
1G
Frequency [Hz]
Frequency [Hz]
Frequency [Hz]
