Multilayer Chip Ferrite Beads
——SHH-3216
Features
1. Effective in suppressing noise at high frequencies.
2. Suited for preventing the abnormal oscillation from high frequency amplifying circuits.
3. Excellent solder heat resistance for soldering.
4. High reliability in the circuits of high current.
5. Lead Free (RoHS Compliance)
PAGE
1/4
Applications
1. Noise suppression in digital equipments.
2. Computers and peripheral devices, VCR and camera.
3. Noise suppression in automotive electronic equipment, car stereo, car engine controller.
4. Noise suppression for OA electronic instruments.
Ordering Information
SHH -
(1)
1
M
(2)
3216
(3)
-
102
(4)
J
(5)
T
(6)
(4) Impedance (at 100MHz)
First two digits are impedance values.
Last digit is the number of zeros
(5) Termination
J : Nickel barrier
(6) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])
(1) Series
SHH : For high current(~3.0A)
(2) Material & Design
S : For high speed
M : For high impedance type
T : For Low speed
(3) Dimension
First two digits : length (㎜)
Last two digits : width (㎜)
Shape and Dimensions
Unit : mm [inches]
Type
T
W
L
3.2±0.20
W
1.6±0.20
T
1.3±0.20
C
0.50±0.30
SHH-1□3216-
〔.126±.008〕 〔.063±.008〕 〔.051±.008〕 〔.020±.012〕
C© û
L
*All specifications are subject to change without notice.
Multilayer Chip Ferrite Beads
——SHH-3216

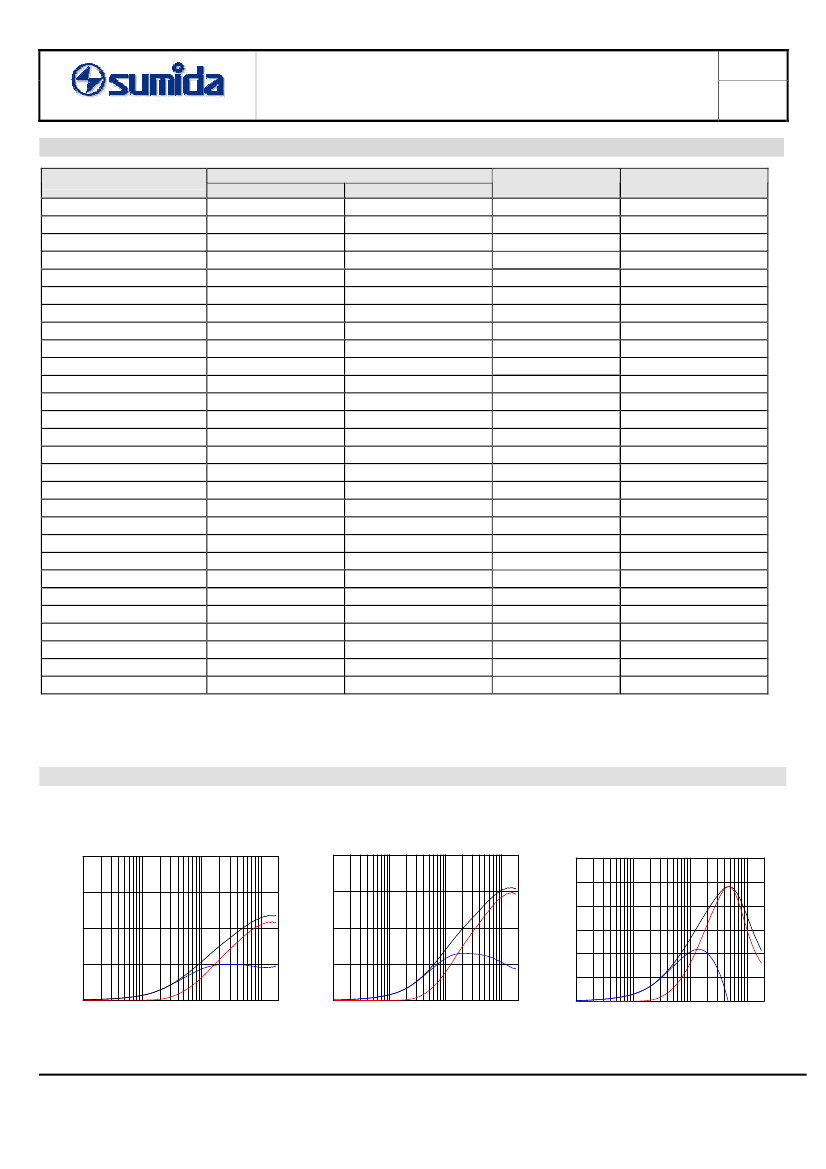

Electrical Parameters
Part No.
SHH-1M3216-500□□
SHH-1M3216-700□□
SHH-1M3216-900□□
SHH-1M3216-101□□
SHH-1M3216-121□□
SHH-1M3216-151□□
SHH-1M3216-201□□
SHH-1M3216-301□□
SHH-1M3216-501□□
SHH-1M3216-601□□
SHH-1M3216-102□□
SHH-1S3216-100□□
SHH-1S3216-200□□
SHH-1S3216-800□□
SHH-1S3216-251□□
SHH-1T3216-260□□
SHH-1T3216-350□□
SHH-1T3216-500□□
SHH-1T3216-700□□
SHH-1T3216-800□□
SHH-1T3216-121□□
SHH-1T3216-151□□
SHH-1T3216-201□□
SHH-1T3216-601□□
SHH-1T3216-801□□
SHH-1T3216-102□□
SHH-1T3216-122□□
SHH-1T3216-202□□
lZl at 100MHz(
Ω)
Typ.
50
70
90
100
120
150
200
300
500
600
1000
10
20
80
250
26
35
50
70
80
120
150
200
600
800
1000 (at 60MHz)
1200 (at 50MHz)
2000 (at 30MHz)
min.
37
52
68
75
90
115
150
225
375
450
750
7.5
15
60
190
20
26
37
52
60
90
115
150
450
600
750
900
1500
DC Resistance
(Ω) max.
0.02
0.02
0.02
0.03
0.03
0.05
0.08
0.09
0.06
0.06
0.25
0.05
0.10
0.25
0.30
0.03
0.03
0.04
0.05
0.05
0.10
0.10
0.15
0.30
0.30
0.30
0.40
0.40
Rated current
(mA) max.
4000
4000
4000
4000
4000
2000
2000
2000
3000
3000
1000
3000
3000
2000
2000
4000
4000
3000
2500
2500
2000
2000
1800
1000
1000
1000
1000
1000
PAGE
2/4
※
Parts with other electrical characteristics available upon request.
※
Test equipment : HP4291 + HP16192A

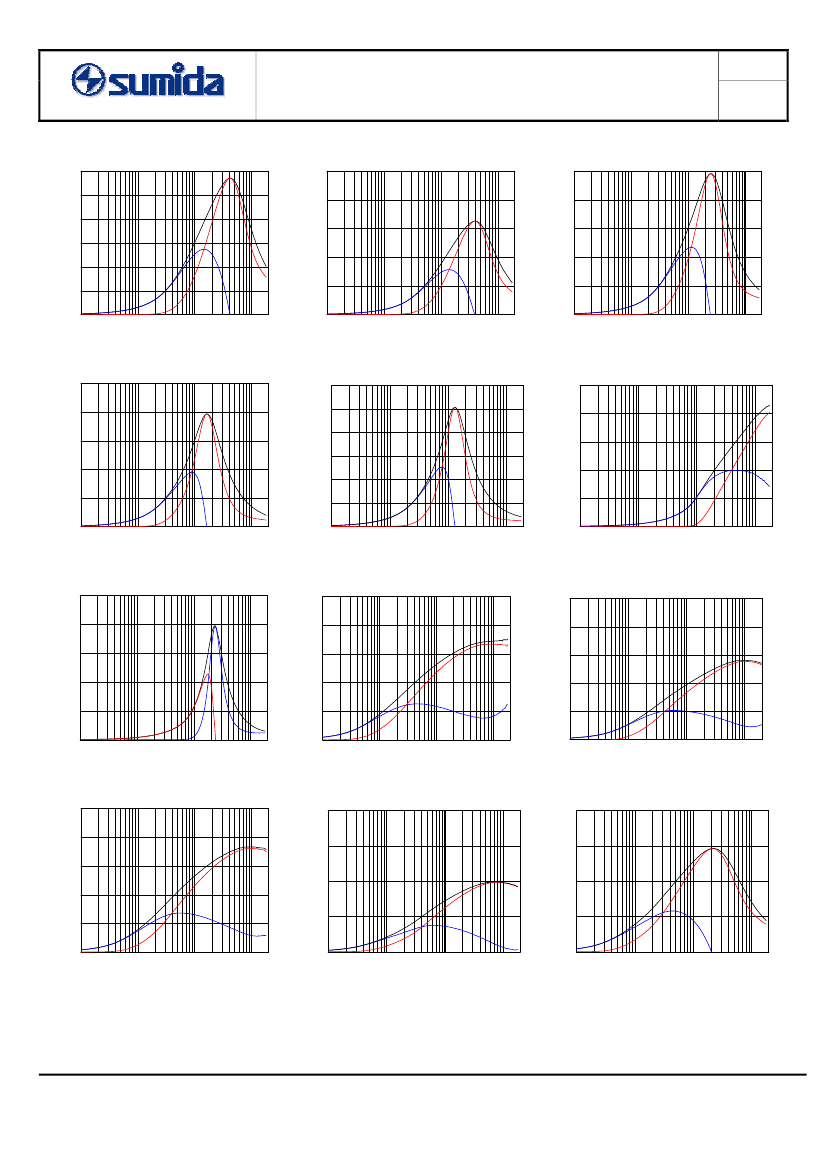

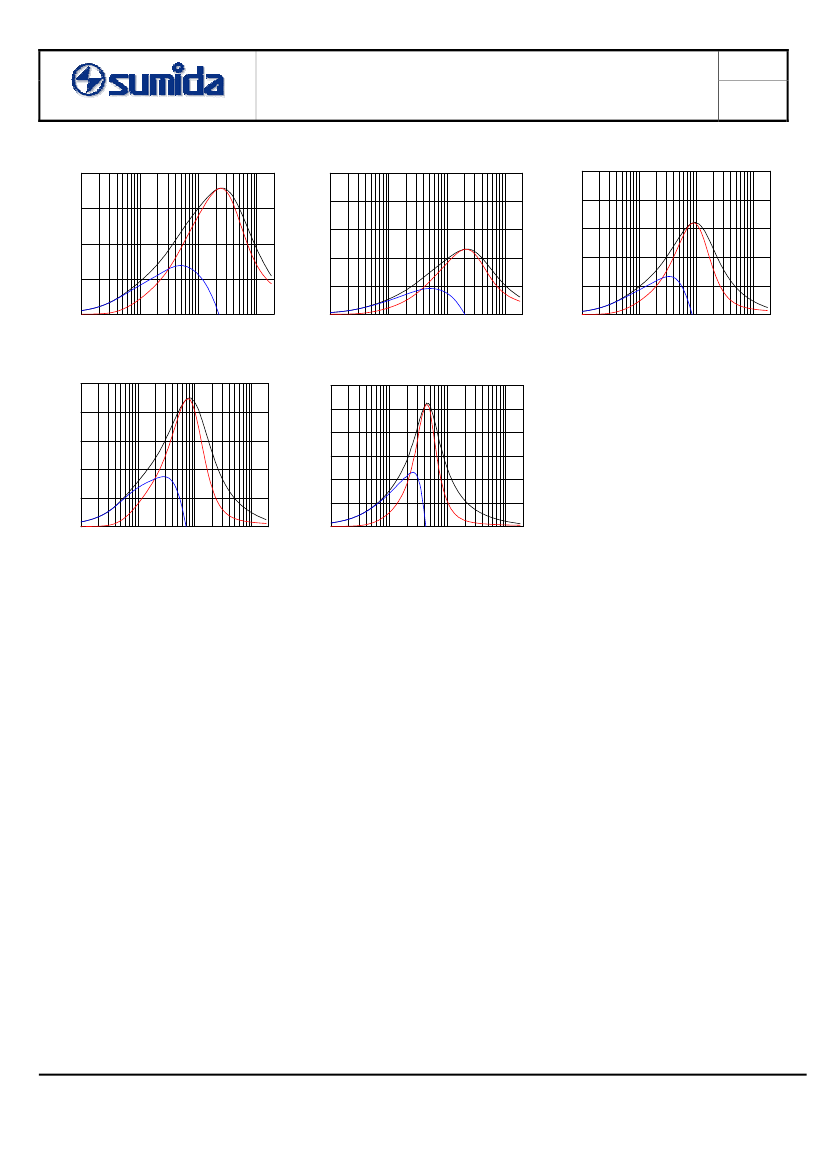

Electrical Characteristic Curves
S
HH-1M3216-500J
200
200
S
HH-1M3216-700J
300
S
HH-1M3216-121J
250
150
150
Impedance [
Ω
]
Impedance [
Ω
]
100
Z
R
100
Z
R
Impedance [
Ω
]
200
Z
R
150
50
X
50
X
100
X
50
0
1M
10M
100M
1G
0
1M
10M
100M
1G
0
1M
10M
100M
1G
Frequency [Hz]
Frequency [Hz]
Frequency [Hz]
*All specifications are subject to change without notice.
