TK73222MC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TK73222MC

TK73222MC: DescriptionFixed Positive LDO Regulator, 2.2V, PDSO8, SOT-23L, 8 PIN; CategoryPower/power management The power supply circuit; File Size412KB，16 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

TK73222MC Overview

Fixed Positive LDO Regulator, 2.2V, PDSO8, SOT-23L, 8 PIN

TK73222MC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TOKO, INC.
package instruction	LSSOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	8.2 V
Minimum input voltage	3.2 V
JESD-30 code	R-PDSO-G8
length	3.4 mm
Number of functions	1
Number of terminals	8
Working temperatureTJ-Max	150 °C
Maximum output voltage 1	2.26 V
Minimum output voltage 1	2.14 V
Nominal output voltage 1	2.2 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.4 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	2.2 mm

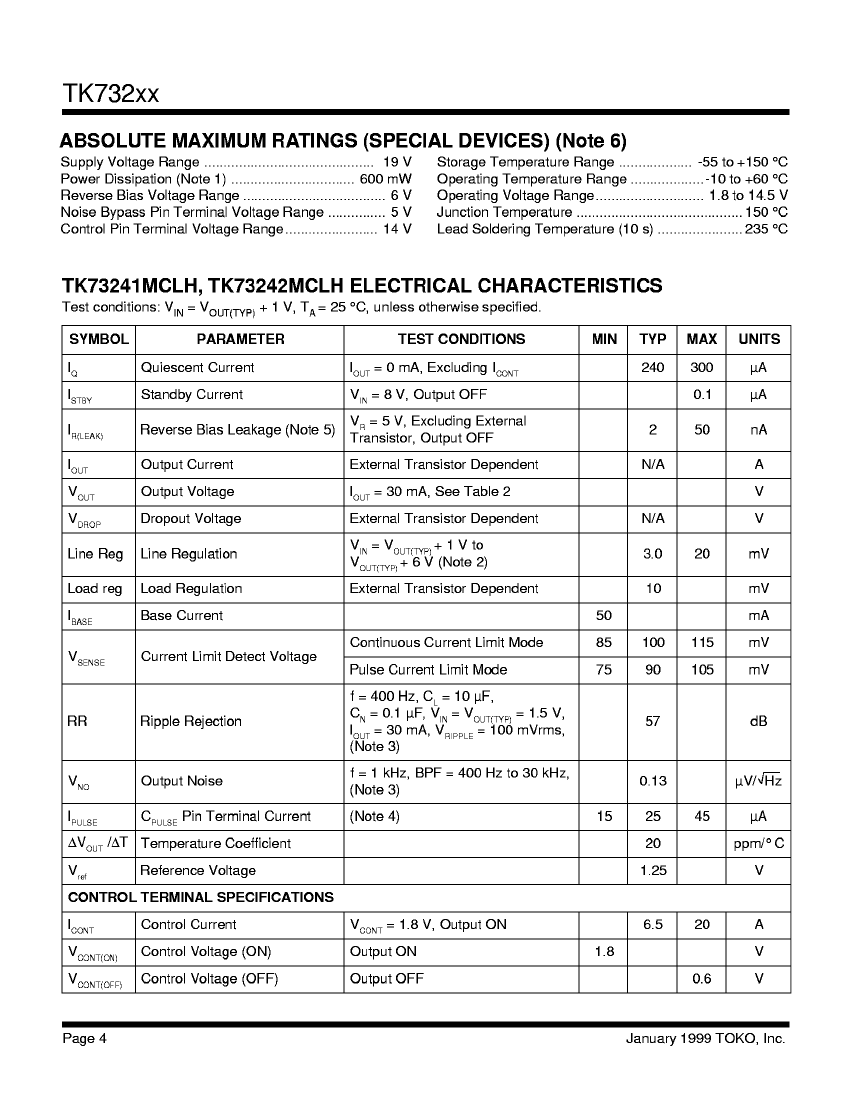

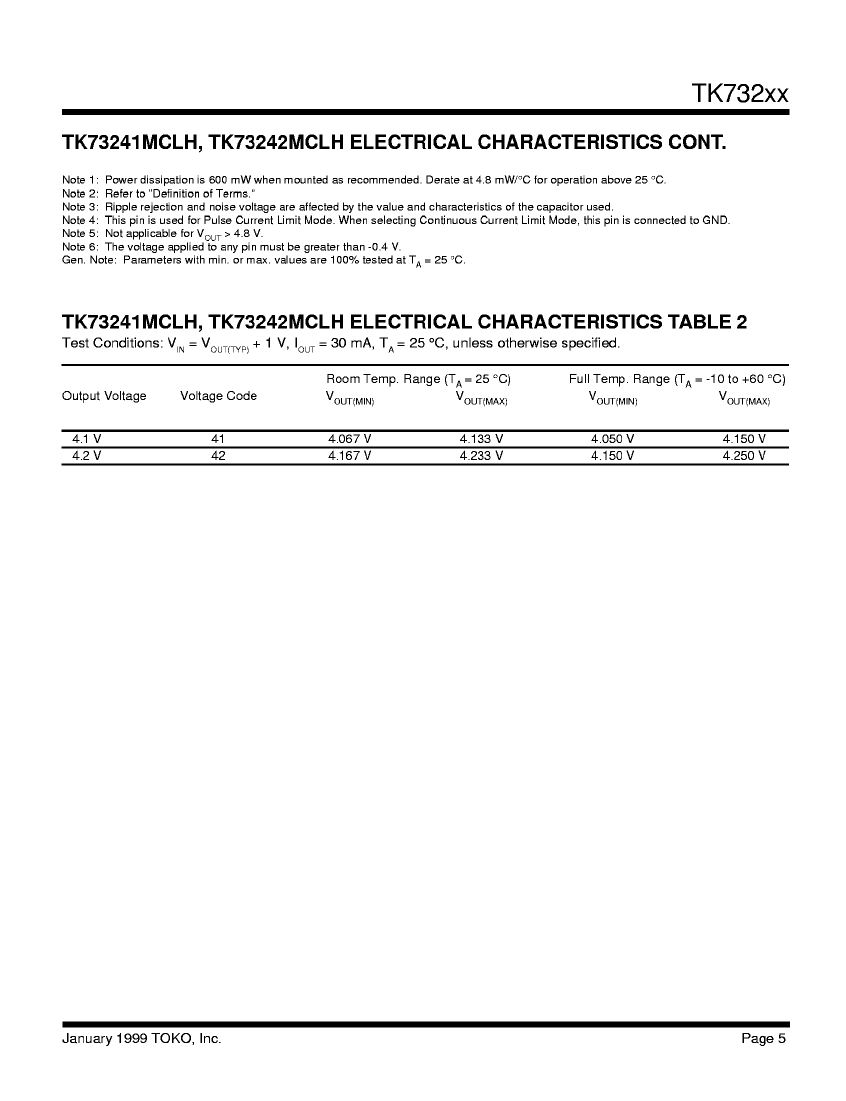

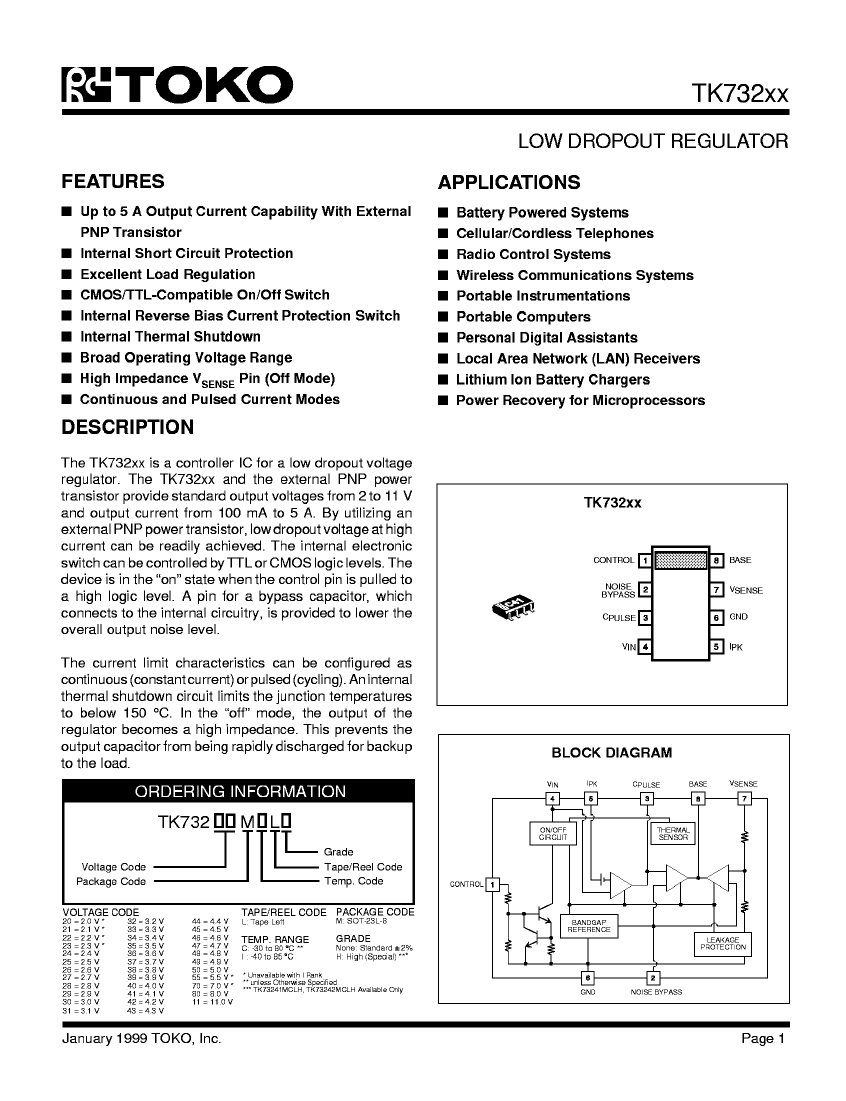

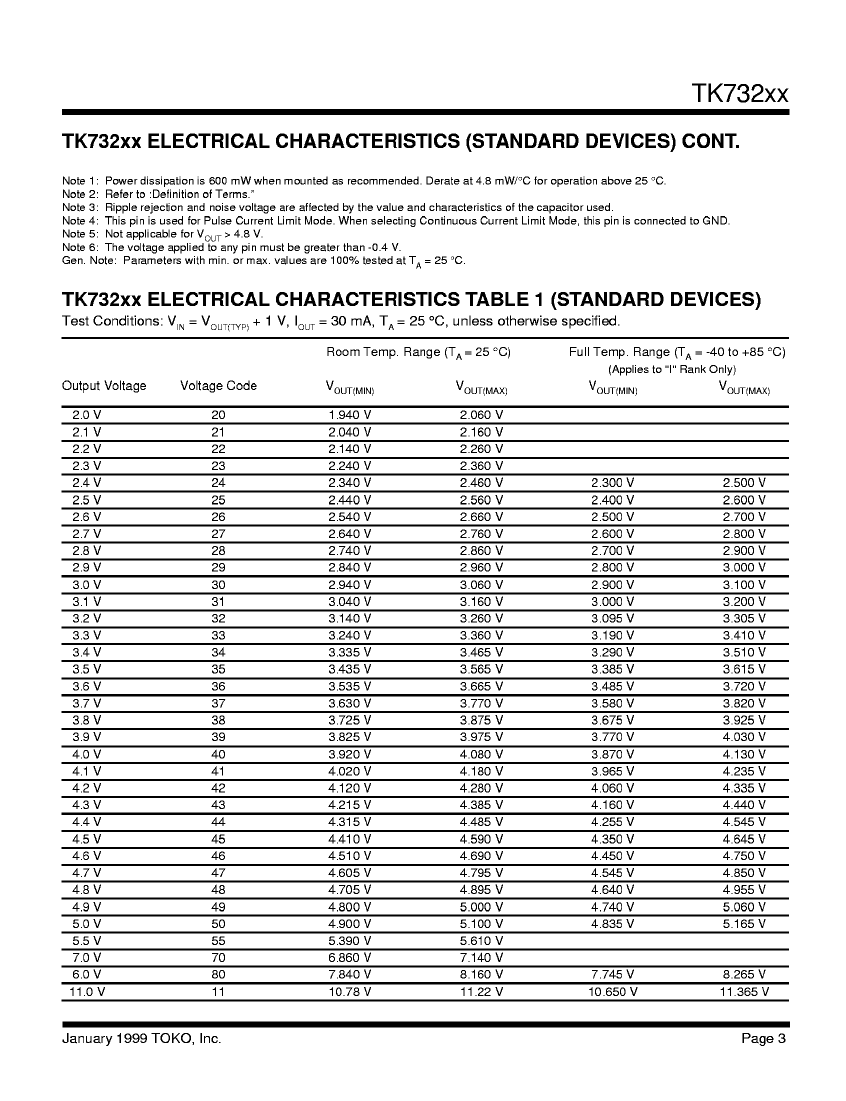

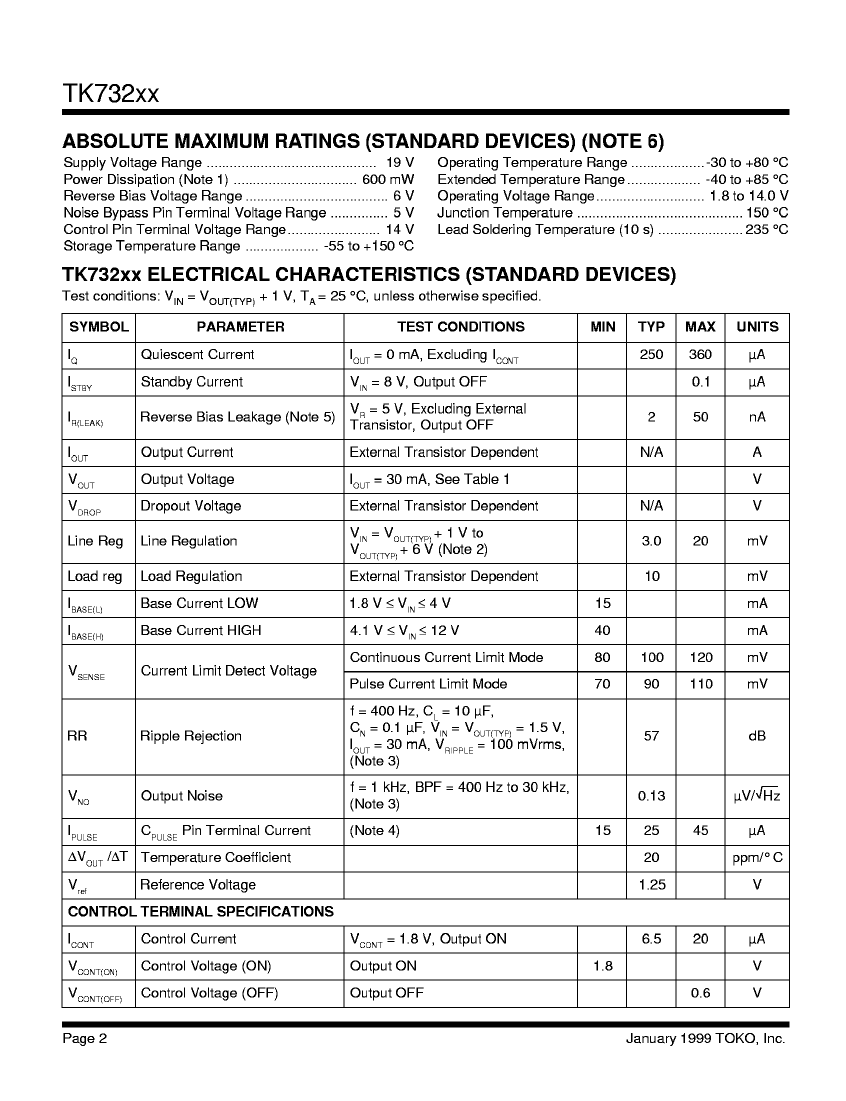

Preview

Download Datasheet

View All

TK73222MC Related Products

	TK73222MC	TK73221MC	TK73223MC	TK73220MC
Description	Fixed Positive LDO Regulator, 2.2V, PDSO8, SOT-23L, 8 PIN	Fixed Positive LDO Regulator, 2.1V, PDSO8, SOT-23L, 8 PIN	Fixed Positive LDO Regulator, 2.3V, PDSO8, SOT-23L, 8 PIN	Fixed Positive LDO Regulator, 2V, PDSO8, SOT-23L, 8 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
package instruction	LSSOP,	LSSOP,	LSSOP,	LSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	8.2 V	8.1 V	8.3 V	8 V
Minimum input voltage	3.2 V	3.1 V	3.3 V	3 V
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	3.4 mm	3.4 mm	3.4 mm	3.4 mm
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C
Maximum output voltage 1	2.26 V	2.16 V	2.36 V	2.06 V
Minimum output voltage 1	2.14 V	2.04 V	2.24 V	1.94 V
Nominal output voltage 1	2.2 V	2.1 V	2.3 V	2 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.4 mm	1.4 mm	1.4 mm	1.4 mm
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	2.2 mm	2.2 mm	2.2 mm	2.2 mm
