DS1386-8-12 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS1386-8-12

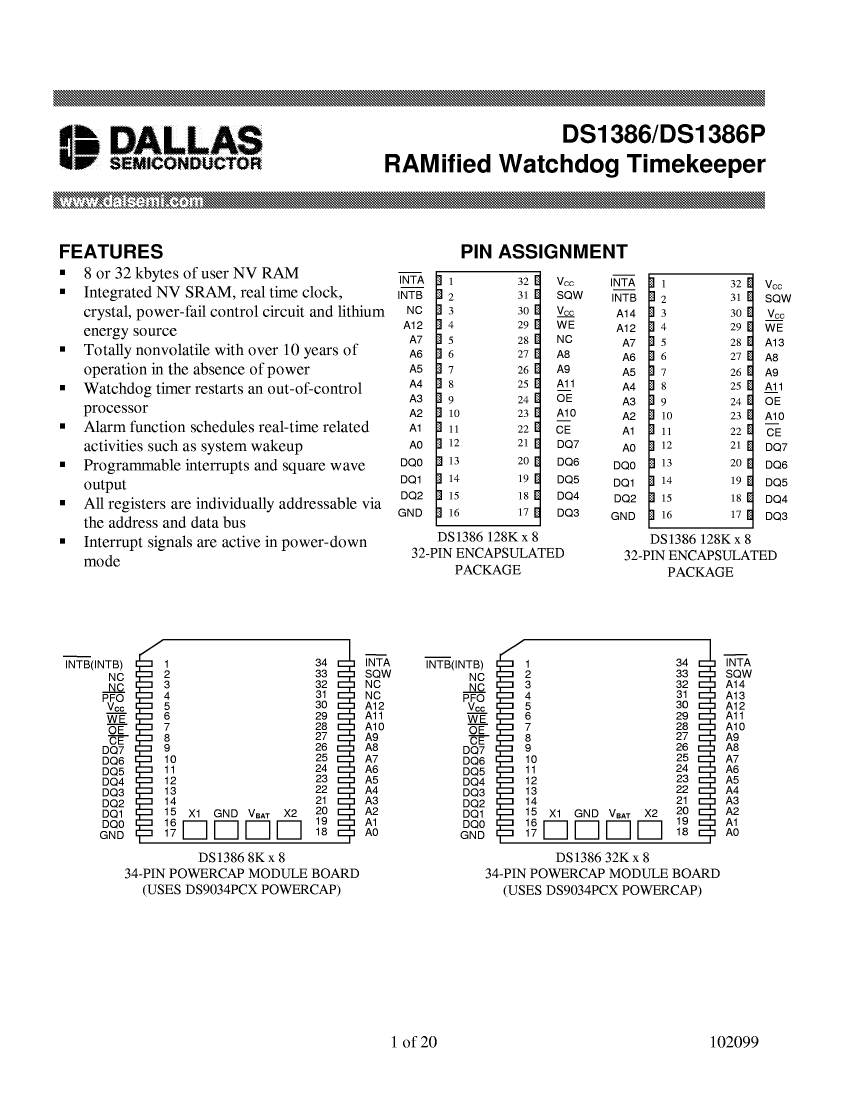

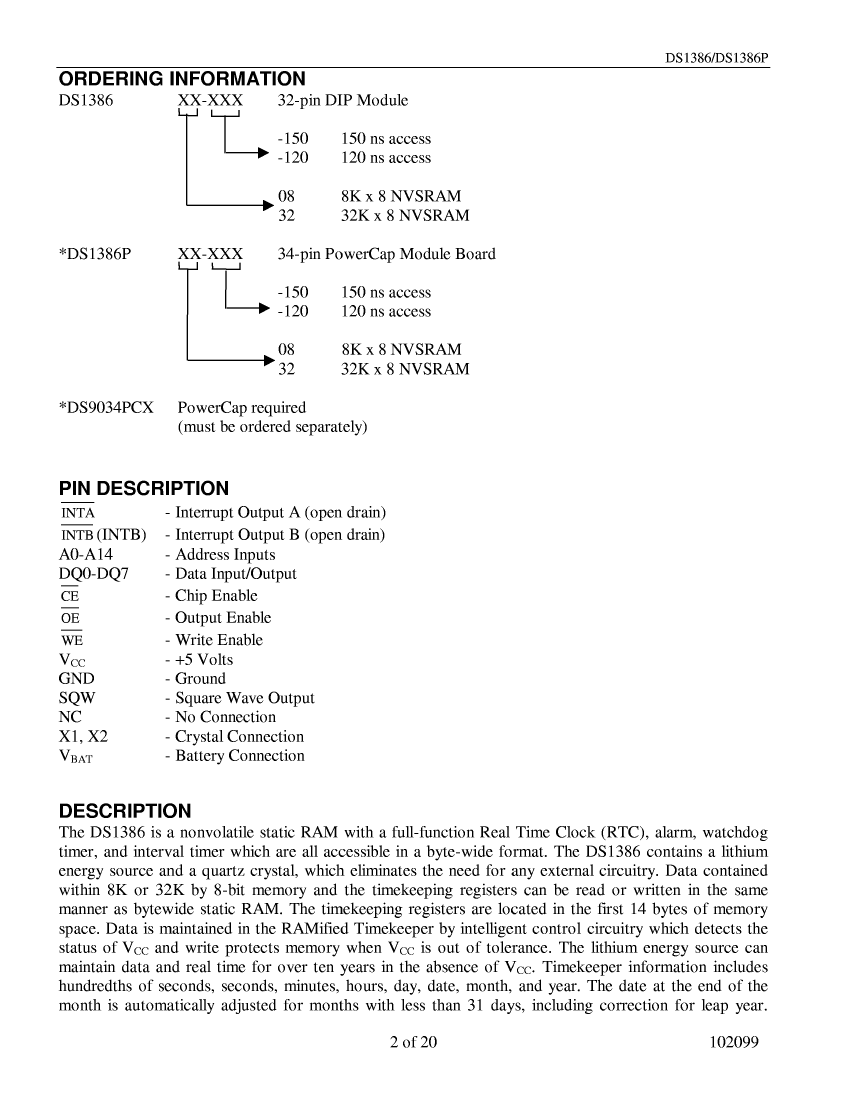

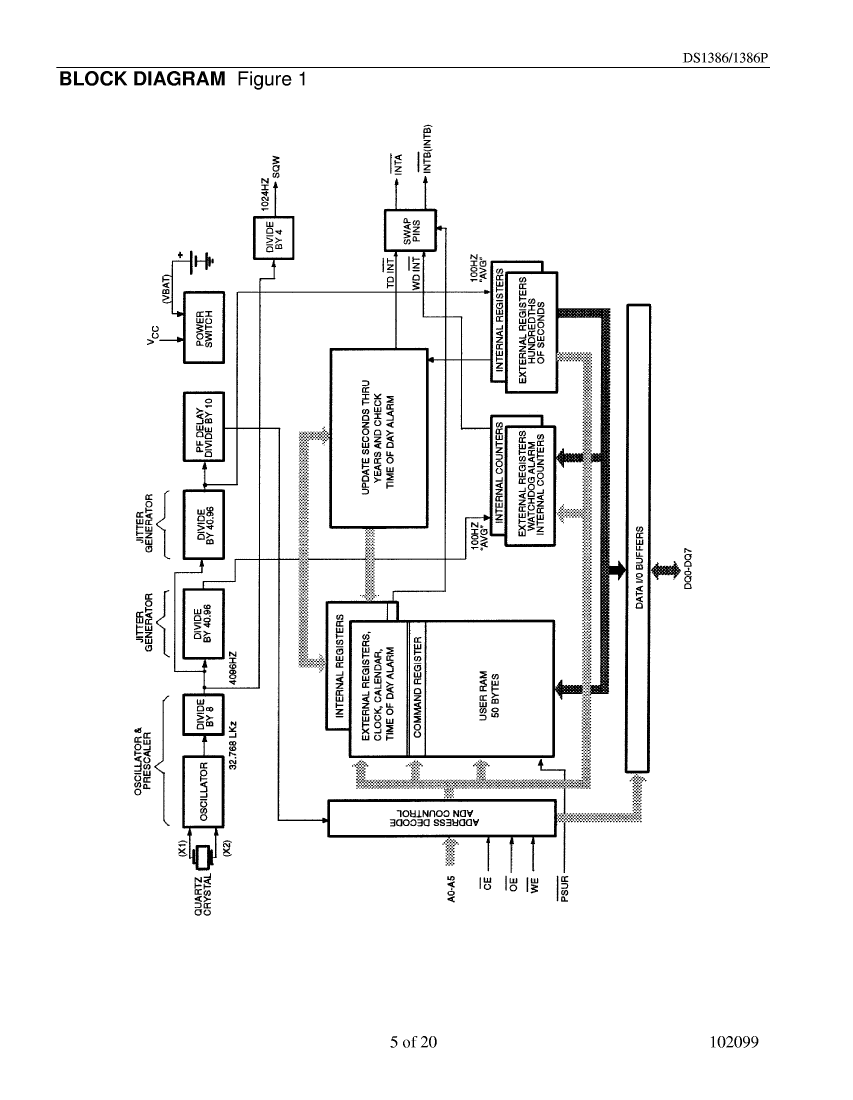

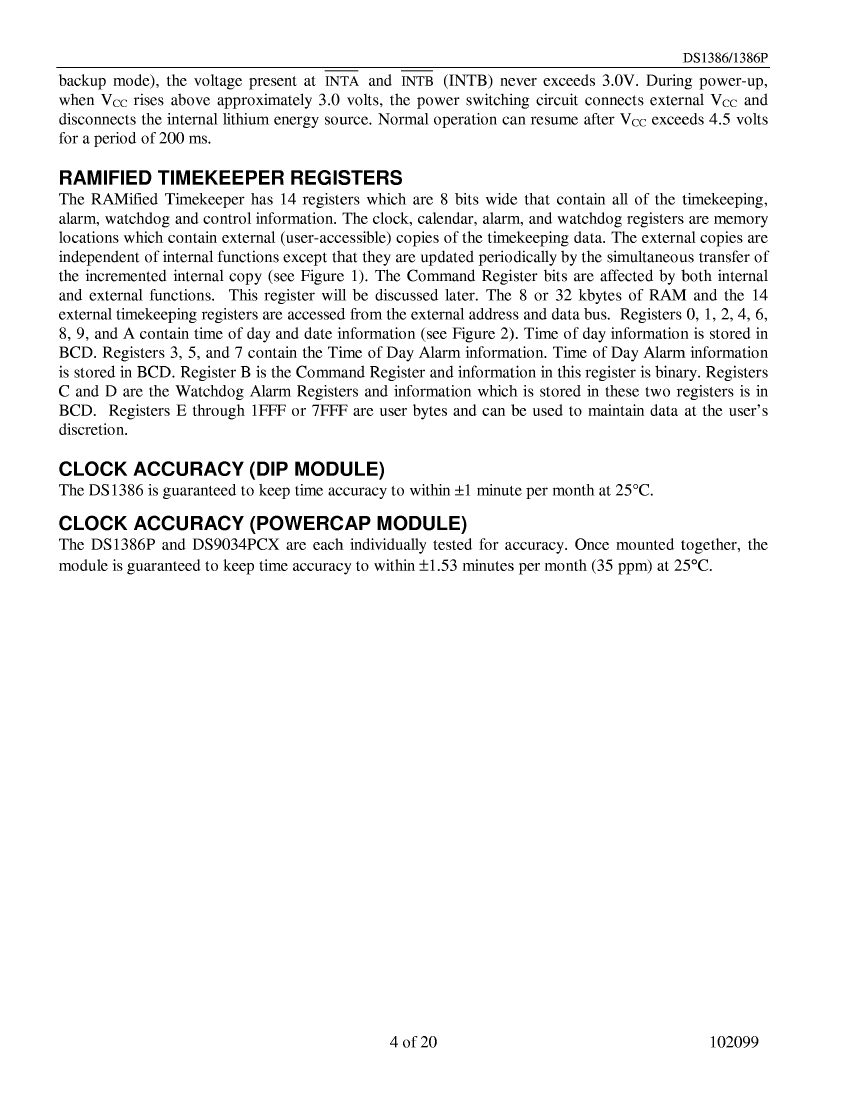

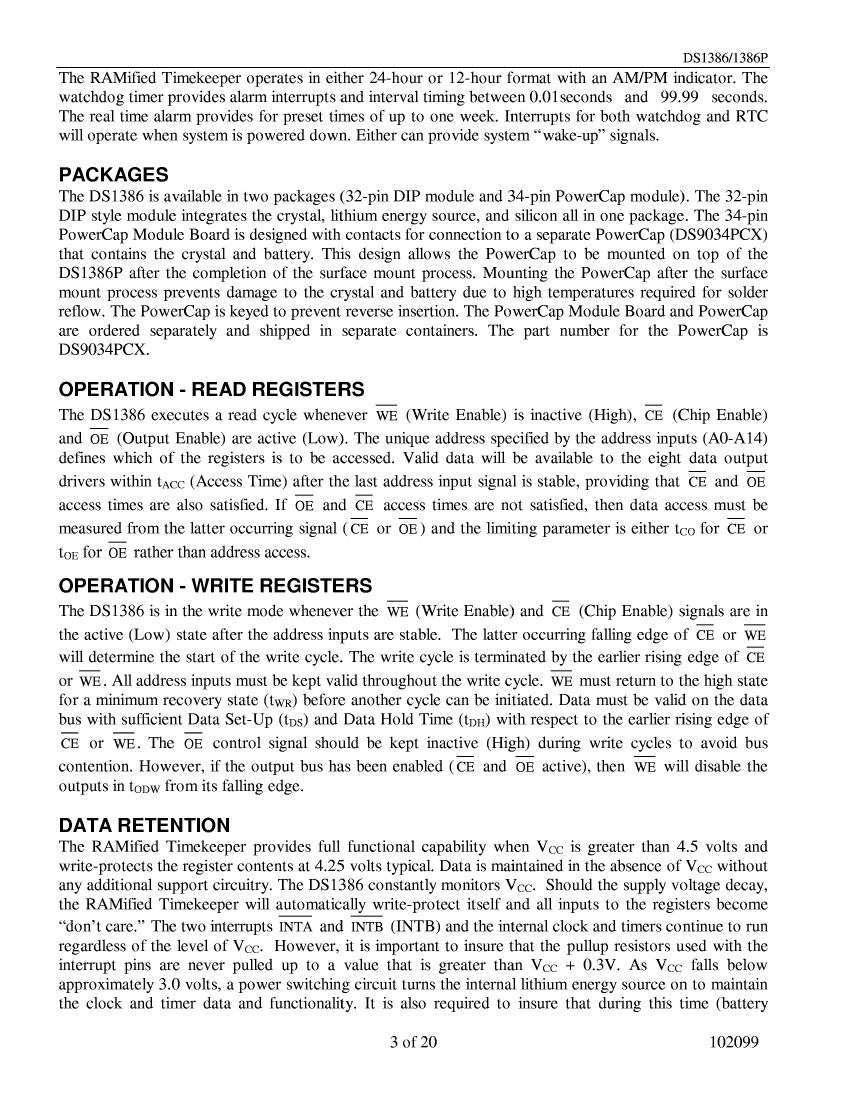

Preview

DS1386-8-12: DescriptionTimer or RTC, Non-Volatile, CMOS, PDIP32,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，20 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS1386-8-12 Overview

Timer or RTC, Non-Volatile, CMOS, PDIP32,

DS1386-8-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Reach Compliance Code	not_compliant
Information access methods	PARALLEL
interrupt capability	Y
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
shortest time	1/100 SECOND
Volatile	NO

Preview

Download Datasheet

View All

DS1386-8-12 Related Products

	DS1386-8-12	DS1386-08-150	DS1386-32-12	DS1386-32-150	DS1386-8-15
Description	Timer or RTC, Non-Volatile, CMOS, PDIP32,	Timer or RTC, Non-Volatile, CMOS, PDIP32,	Timer or RTC, Non-Volatile, PDIP32,	Timer or RTC, Non-Volatile, PDIP32	Timer or RTC, Non-Volatile, CMOS, PDIP32,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Information access methods	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
interrupt capability	Y	Y	Y	Y	Y
JESD-30 code	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32
JESD-609 code	e0	e0	e0	e0	e0
Number of terminals	32	32	32	32	32
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
shortest time	1/100 SECOND	1/100 SECOND	1/100 SECOND	1/100 SECOND	1/100 SECOND
Volatile	NO	NO	NO	NO	NO
technology	CMOS	CMOS	-	-	CMOS
Base Number Matches	-	1	1	1	-
