MAAM-009100
Broadband CATV Amplifier
50 - 1000 MHz
Features
•
•
•
•
•
•
•
75
Ω
Input / Output Match
-63 dBc CTB
3.0 dB Noise Figure
15 dB Gain
Lead-Free SOT-89 Package
Halogen-Free “Green” Mold Compound
RoHS* Compliant and 260°C Reflow Compatible
M/A-COM Products
Rev. V1
Functional Schematic
Description
M/A-COM’s MAAM-009100 CATV amplifier is a
GaAs MMIC which exhibits low distortion in a
lead-free miniature surface mount plastic package.
The MAAM-009100 employs a monolithic single
stage design featuring a convenient 75
Ω
input/
output impedance that minimizes the number of
external components required.
The MAAM-009100 provides low noise and high
linearity. It is ideally suited for set top boxes, home
gateways, FTTX, Drop Amplifiers, and other
broadband internet based appliances.
The MAAM-009100 is fabricated using M/A-COM’s
pHEMT process to realize low noise and low
distortion. The process features full passivation for
robust performance and reliability.
Pin Configuration
Pin No.
1
2
3
Pin Name
RF
IN
GND
RF
OUT
Description
RF Input
Ground
RF Output / Drain Supply
Absolute Maximum Ratings
3,4,5
Parameter
RF Input Power
Absolute Maximum
10 dBm
10.0 volts
-20°C to +85°C
+150°C
-65°C to +150°C
Ordering Information
1,2
Part Number
MAAM-009100-000000
MAAM-009100-TR1000
MAAM-009100-TR3000
MAAM-009100-001SMB
Package
Bulk Packaging
1000 piece reel
3000 piece reel
Sample Test Board
Voltage
Operating Temperature
Junction Temperature
6
Storage Temperature
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
3. Exceeding any one or combination of these limits may cause
permanent damage to this device.
4. M/A-COM does not recommend sustained operation near these
survivability limits.
5. These operating conditions will ensure MTTF > 1 x 10
6
hours.
6. Junction Temperature (T
J
) = T
C
+
Өjc
* (V * I)
Typical thermal resistance (Өjc) = 75° C/W.
a) For T
C
= 25°C,
T
J
= 66°C @ 5 V, 110 mA
b) For T
C
= 85°C,
T
J
= 123°C @ 5 V, 100 mA
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
Visit www.macom.com for additional data sheets and product information.
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s) or
volume is not guaranteed.
information contained herein without notice.
MAAM-009100
Broadband CATV Amplifier
50 - 1000 MHz
Parameter
Gain
Gain Flatness
Noise Figure
Input Return Loss
Output Return Loss
Output IP2
Output IP3
Composite Triple Beat, CTB
Composite Second Order, CSO
P1dB
I
DD
6 MHz Spacing, +5 dBm output per tone
6 MHz Spacing, +5 dBm output per tone
132 channels, +30 dBmV / output per channel
132 channels, +30 dBmV / output per channel
400 MHz
5 Volts
Test Conditions
50 MHz
1 GHz
Units
dB
dB
dB
dB
dB
dBm
dBm
dBc
dBc
dBm
mA
M/A-COM Products
Rev. V1
Electrical Specifications: T
A
= 25°C, Freq: 50 - 1000 MHz, V
DD
= 5 Volts, Z
0
= 75
Ω
Min.
14
13.2
—
—
—
—
—
—
—
—
—
—
Typ.
14.8
13.8
1.0
3.0
16
20
60
34
-63
-63
18
105
Max.
16
15.2
—
4.0
—
—
—
—
—
—
—
130

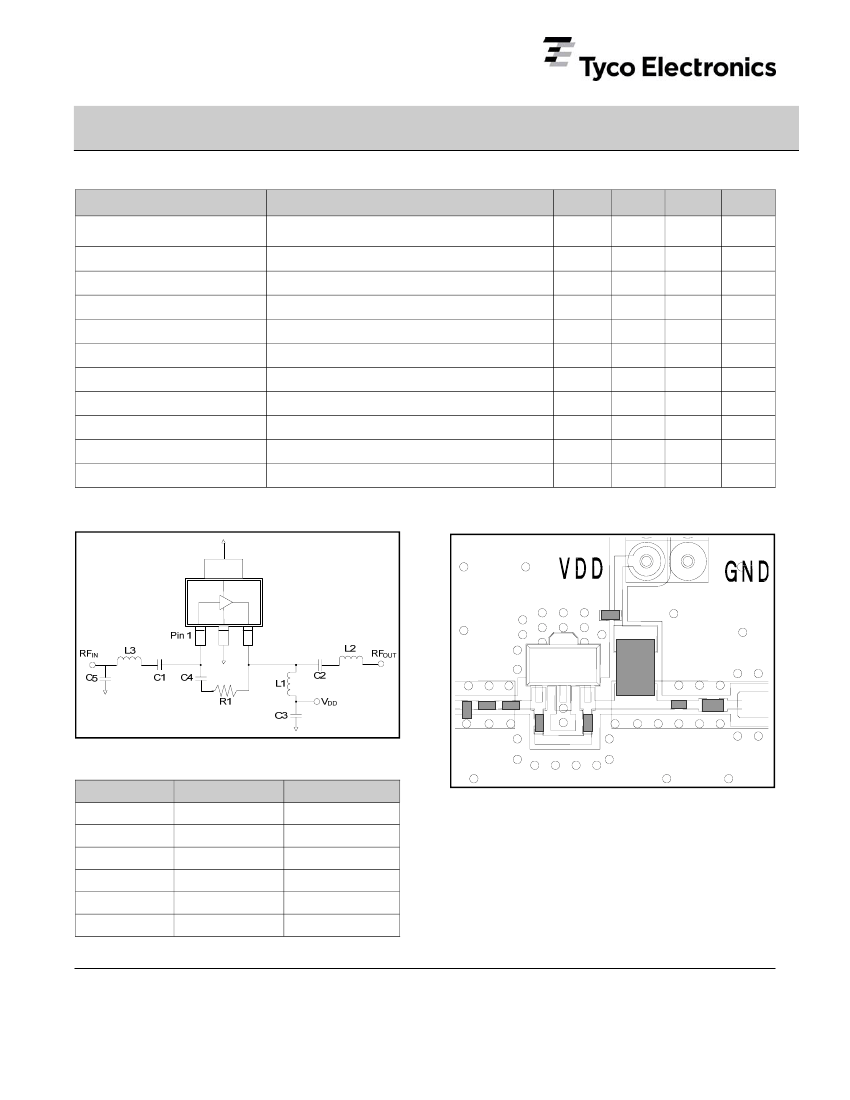

Schematic Including Off-Chip Components
Recommended Board Layout
C3
L1
L3 C1
C2
L2
Off-Chip Component Values
Component
C1,C2,C3,C4
C5
L1
7
L2
L3
R1
2
C5
Package
0402
0402
1210
0402
0402
0402
C4
R1
Value
0.01 µF
0.8 pF
1 µH
4.7 nH
6.8 nH
523
Ω
7. L1 supplied from EPCOS, part number B82422A1102K100
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
Visit www.macom.com for additional data sheets and product information.
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s) or
volume is not guaranteed.
information contained herein without notice.
MAAM-009100
Broadband CATV Amplifier
50 - 1000 MHz

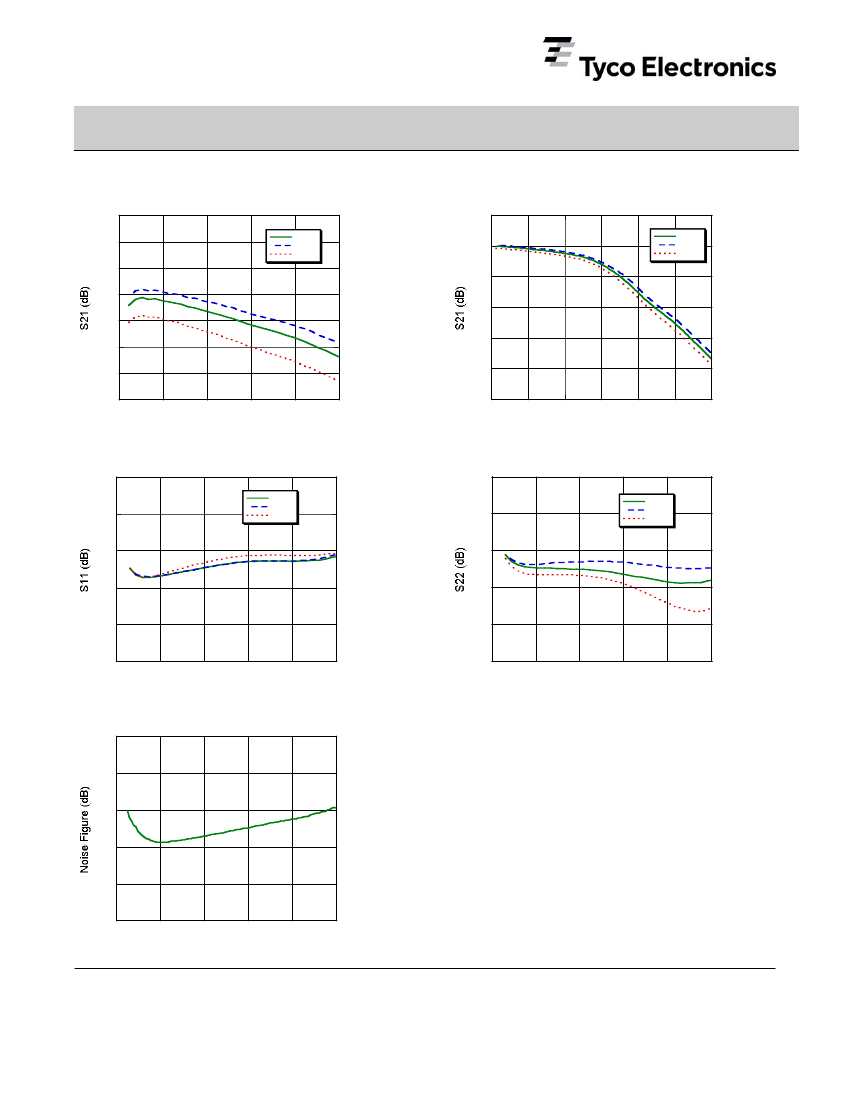

Typical Performance Curves
Gain vs. Frequency over Temperature to 1 GHz
16.5
16.0
15.5
15.0
5
+25°C
-20°C
+85°C
M/A-COM Products
Rev. V1
Gain vs. Frequency over Temperature to 3 GHz
20
15
10
+25°C
-20°C
+85°C
14.5
14.0
13.5
13.0
0
-5
-10
0
200
400
600
800
1000
0
500
1000
1500
2000
2500
3000
Frequency (MHz)
Frequency (MHz)
Input Return Loss vs. Frequency over Temperature
0
+25°C
-20°C
+85°C
Output Return Loss vs. Frequency over Temperature
0
+25°C
-20°C
+85°C
-8
-8
-16
-16
-24
-24
-32
-32
-40
0
200
400
600
800
1000
-40
0
200
400
600
800
1000
Frequency (MHz)
Frequency (MHz)
Noise Figure vs. Frequency
5
4
3
2
1
0
0
200
400
600
800
1000
Frequency (MHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
Visit www.macom.com for additional data sheets and product information.
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s) or
volume is not guaranteed.
information contained herein without notice.
MAAM-009100
Broadband CATV Amplifier
50 - 1000 MHz
Lead Free

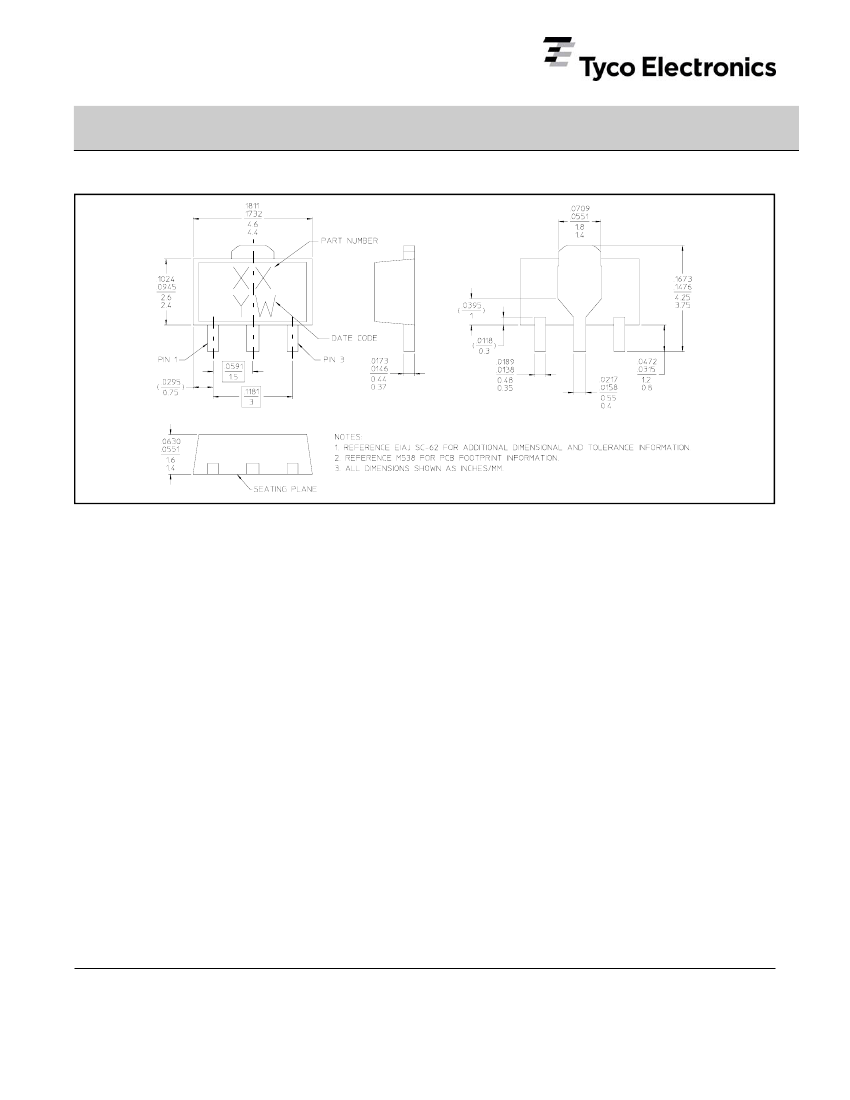

SOT-89 Plastic Package
†
M/A-COM Products
Rev. V1
†
Reference Application Note M538 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
Plating is 100% matte tin over copper.
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
Visit www.macom.com for additional data sheets and product information.
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s) or
volume is not guaranteed.
information contained herein without notice.
