CERAMIC SMD CRYSTAL CLOCK OSCILLATOR
ABNM SERIES
FEATURES:
• Low Jitter (<20pS P-P typ.)
• Low Phase Noise ( <0.5pS typ, 12kHz to 20MHz )
• Low Power ( 2.5V to 3.3V )
• CMOS, LVPECL or LVDS output
RoHS
Compliant
7.0 x 5.0 x 1.8mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• SONET, PCI Express, SERDES, Video
• Anywhere Low Jitter is required
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range
Operating Temperature
Storage Temperature
Overall Frequency Stability
Supply Voltage (Vdd)
Jitter (12KHz-20MHz)
Period Jitter
Phase Noise (77.76MHz)
Tri-State Function
Optional PECL OE
PECL
Supply Current (I
DD
)
Symmetry (Duty Cycle)
Output Logic High
Output Logic Low
Rise time
LVDS
Supply Current (I
DD
)
Output Clock Duty Cycle @ 1.25V
Output Differential Voltage (V
OD
)
VDD Magnitude Change (∆V
OD
)
Output High Voltage
Output Low Voltage
Offset Voltage [R
L
= 100Ω]
Offset Magnitude Voltage[RL = 100Ω]
Power-off Leakage (I
OXD
) [Vout=VDD or GND, VDD=0V]
Differential Clock Rise Time (t
r
) [R
L
=100Ω, CL=10pF]
Differential Clock Fall Time (t
f
) [R
L
=100Ω, CL=10pF]
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
9.5MHz to 130MHz
0°C to + 70°C (see options)
-55°C to +125°C
± 50 ppm max. (see options)
2.25V to 3.63V
RMS phase jitter = 0.5pS typ,<1ps max.
< 30pS peak to peak typ., 40pS max.
-75 dBc/Hz @ 10Hz; -95 dBc/Hz @ 100Hz; -125 dBc/Hz @ 1kHz
-143 dBc/Hz @ 10kHz; -145 dBc/Hz @ 100kHz
"1" (VIH > 0.7* Vdd) or open: Oscillation; "0" (VIL < 0.3* Vdd): No oscillation/Hi Z
"0" (Vih < 0.3* Vdd ) or Open: Oscillation; "1" (VIH > 0.7* Vdd): No Oscillation/Hi Z
100mA max
45% min, 50% typical, 55% max.
V
DD
-1.025V min, V
DD
-0.880V max.
V
DD
-1.810V min, V
DD
-1.620V max.
850pS max, 500pS typ.
80mA max
45% min, 50% typical, 55% max
247mV min, 355mV typical, 454mV max
-50mV min, 50mV max
V
OH
= 1.6V max, 1.4V typical
V
OL
= 0.9V min, 1.1V typical
V
OS
= 1.125V min, 1.2V typical, 1.375V max
∆V
OS
= 0mV min, 3mV typical, 25mV max
±10µA max, ±1µA typical
0.2ns min, 0.7ns typical, 1.0ns max
0.2ns min, 0.7ns typical, 1.0ns max
Revised: 11.09.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
CERAMIC SMD CRYSTAL CLOCK OSCILLATOR
ABNM SERIES
STANDARD SPECIFICATIONS (cont’d):
CMOS
Supply Current (I
DD
)
Output Clock Duty Cycle @ 50% V
DD
Output High Voltage (V
OH
) [I
OH
=8.5mA]
Output Low Voltage (V
OL
) [I
OL
=8.5mA]
Output Drive Current - Standard Drive (I
OSD
) [V
OL
=0.4V, V
OH
=2.4V]
Output Drive Current - High Drive (I
OSD
) [V
OL
=0.4V, V
OH
=2.4V]
Output Clock Rise/Fall Time - Standard Drive [10%~90% VDD with 15pF load]
Output Clock Rise/Fall Time - High Drive [10%~90% VDD with 10pF load]
Output Clock Duty Cycle [ Measured @ 50% VDD]
40mA max
45% min, 50% typical, 55% max
2.4V max
0.4V max
10mA Min
30mA Min
2.4nS typical
1.2nS typical
45% min, 50% typical, 55% max
7.0 x 5.0 x 1.8mm
| | | | | | | | | | | | | | |
OPTIONS AND PART IDENTIFICATION
(Left blank if standard)
ABNM-Frequency- - - -
Freq. Stability
R
±25ppm
K
±30ppm
H
±35ppm
Output
P
PECL
P1
PECL1
V
LVDS
C
CMOS
CH
CMOS
High Drive
Operating Temperture Options
-10°C to +60°C
D
E
-20°C to +70°C
F
-30°C to +70°C
N
-30°C to +85°C
L
-40°C to +85°C
Packaging
T
Tape and Reel
(1000pcs)
PIN ASSIGNMENTS
PIN #
Name
1
Tri-state
2
NC
3
GND
4
Q
5
Q
V
DD
6
DESCRIPTION
Tristate
No Connect
Ground
PECL, LVDS, or CMOS Output.
Complimentary PECL,LVDS, or NC.
VDD Connection.
TRI-STATE PIN OPERATION:
OUTPUT TYPE OPTION
P
P1
V,C & CH
PECL
PECL1
LVDS,CMOS,
CMOS High Drive
PIN 1 logic level*
0 (Default)
1
1
0
0
1(Default)
Output
State
Enabled
Tri-state
Enabled
Tri-state
Tri-state
Enabled
*Connect to VDD for logic level "1", connect to ground for logic level "0".
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 11.09.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
CERAMIC SMD CRYSTAL CLOCK OSCILLATOR
ABNM SERIES

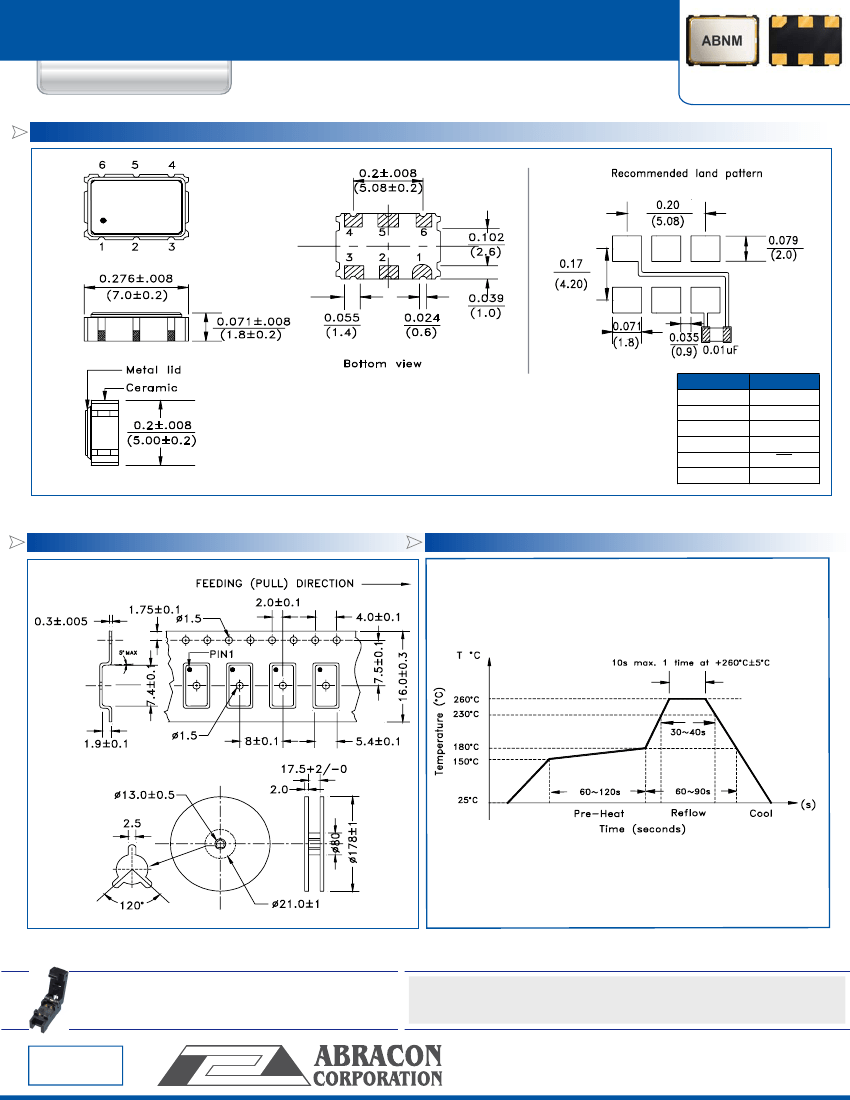

OUTLINE DRAWING:
7.0 x 5.0 x 1.8mm
| | | | | | | | | | | | | | |
Note:
Recommend using
PIN #
an approximately 0.01uF
bypass capacitor between
PIN 3 and 6.
Dimensions: inches (mm)
1
2
3
4
5
6
Function
Tri-state
NC
GND
Q
Q
V
DD
TAPE & REEL:
T = Tape and reel 1,000pcs/reel
REFLOW PROFILE:
Dimensions:
mm
Need a test socket for the ABNM Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
NOTE:
Abracon manufactured products are intended for general commercial and
industrial use. For applications requiring high reliability and/or presenting extreme
operating environment, written consent & authorization from Abracon is required.
Revised: 11.09.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
