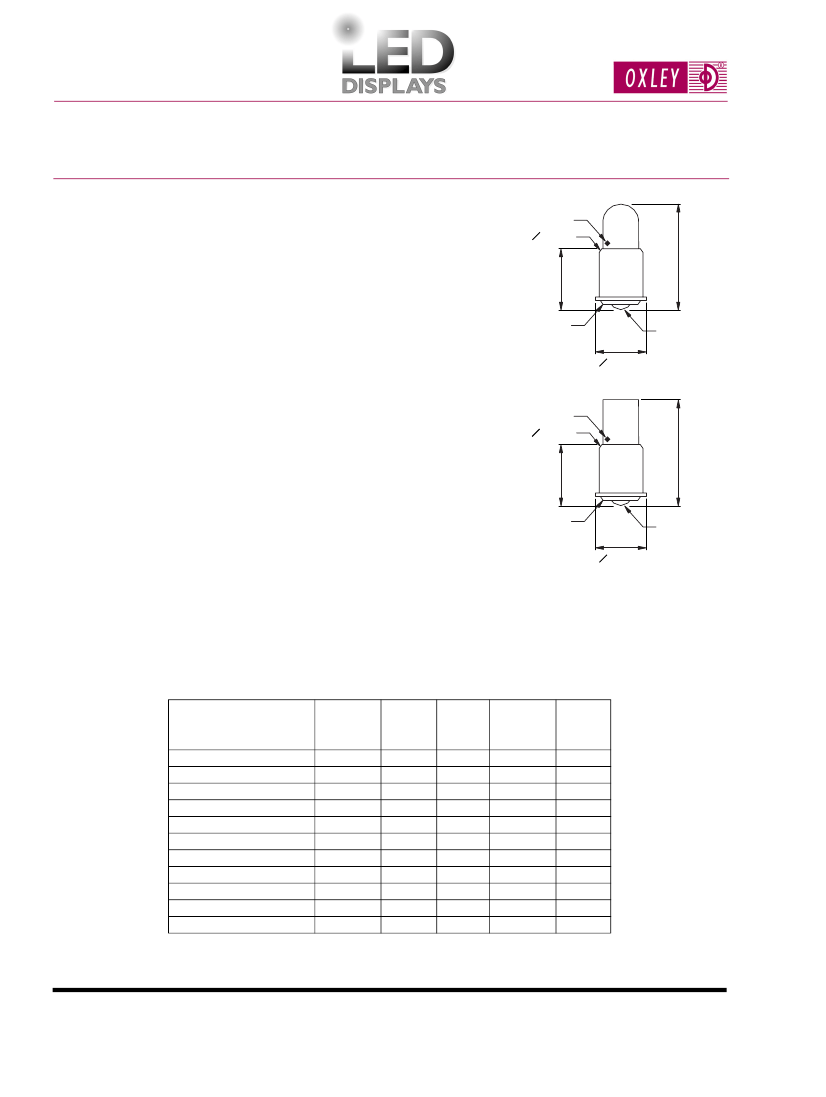

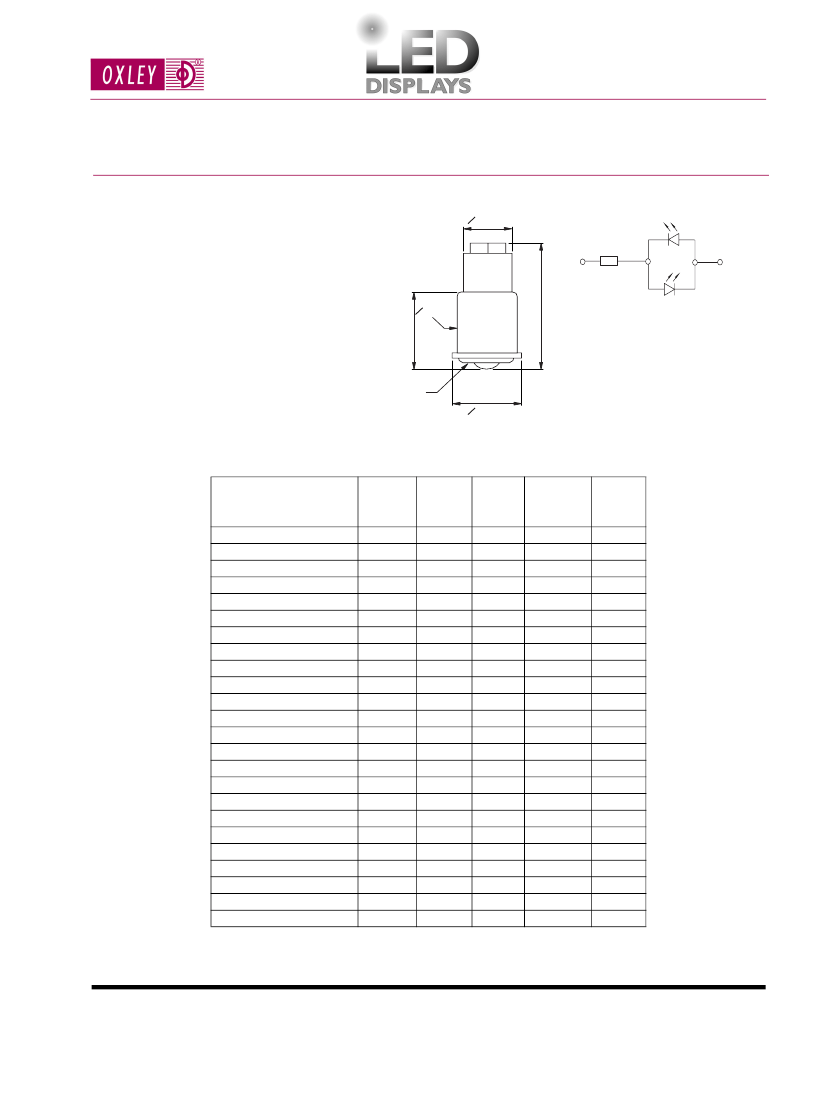

Type No. - ELED/1750/-
LED Bulb Replacement
Unipolar
Features
• LED lens
• Replaces less reliable filament bulbs
• Reduces maintenance costs
• Cool light reduces heat dissipation
• Reduces power consumption
• Normal
(30/45/60
°
)
and wide viewing
(100
°)
options available
• Operating temp -40 to 85°C
• Storage temp -40 to 85°C
Option 2
(wide angle
viewing 100
°
)
Coloured dot on
LED denotes
colour of LED
O6.2 mm
15.5 mm
Centre contact
A - Anode
C - Cathode
O7.2 mm
Coloured dot on
base denotes
voltage
O7.2 mm
Centre contact
A - Anode
C - Cathode
8.5 mm
Single Chip LED
T1¾ Midget Flanged Cap
Option 1
(30/45°viewing
angle)
Coloured dot on
LED denotes
colour of LED
O6.2 mm
15.5 mm
Coloured dot on
base denotes
voltage
Ordering Information and Technical Characteristics
Ordering
Information
ELED/1750/A/6/H/WE
ELED/1750/A/6/AlGaAsRD
ELED/1750/A/6/H/AR
ELED/1750/A/6/H/BE
ELED/1750/A/6/H/GN
ELED/1750/A/6/H/OE
ELED/1750/A/12/H/WE
ELED/1750/A/12/AlGaAsRD
ELED/1750/A/12/H/AR
ELED/1750/A/12/H/BE
ELED/1750/A/12/H/GN
Colour
White
Red
Amber
Blue
Green
Orange
White
Red
Amber
Blue
Green
Luminous Reverse
Forward
Current
Intensity Voltage
Voltage
(mA)
(mcd)
(V)
(V)
6
6
6
6
6
6
12
12
12
12
12
17
17
17
17
17
17
17
17
17
17
17
1000
1200
1000
1200
1250
1000
1000
1200
1000
1200
1250
5
5
5
5
5
5
12
12
12
12
12
Continued ...
64
Oxley Developments Company Ltd
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 840609
8.5 mm
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: +1 (203) 488 1033
Oxley Group Australia Pty Ltd
Email:
sales@oxleygroup.com
Tel +61 (0) 2 9967 9488
www.oxleygroup.com/lamps
ODCSM40565/2/2005
Type No. - ELED/1750/-
Ordering
Information
ELED/1750/A/12/H/OE
ELED/1750/A/24/H/WE
ELED/1750/A/24/AlGaAsRD
ELED/1750/A/24/H/AR
ELED/1750/A/24/H/BE
ELED/1750/A/24/H/GN
ELED/1750/A/24/H/OE
ELED/1750/A/28/H/WE
ELED/1750/A/28/AlGaAsRD
ELED/1750/A/28/H/AR
ELED/1750/A/28/H/BE
ELED/1750/A/28/H/GN
ELED/1750/A/28/H/OE
Colour
Orange
White
Red
Amber
Blue
Green
Orange
White
Red
Amber
Blue
Green
Orange
Forward
Luminous Reverse
Current
Voltage
Intensity Voltage
(mA)
(V)
(mcd)
(V)
12
24
24
24
24
24
24
28
28
28
28
28
28
17
17
17
17
17
17
17
17
17
17
17
17
17
1000
1000
1200
1000
1200
1250
1000
1000
1200
1000
1200
1250
1000
12
24
24
24
24
24
24
28
28
28
28
28
28
Mean time before failure 90,000 hrs
1) Optional centre contact cathode available by changing the letter ‘A’ in the part number to ‘C’,
2) Option 2 wide viewing is available denoted by ‘FT’ into the part number. e.g. ELED/1750/A/28/FT/H/GN
3) Customer specials available on request.
www.oxleygroup.com/lamps
ODCSM40565/2/2005
Oxley Group Australia Pty Ltd
Email:
sales@oxleygroup.com
Tel +61 (0) 2 9967 9488
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: +1 (203) 488 1033
Oxley Developments Company Ltd
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 840609
65
Type No. - ELED/1750/-
LED Bulb Replacement
Bipolar
Features
• LED lens
• Replaces unreliable filament bulbs
• Dual polarity D.C. and A.C. operation
• Multi-chip LED configuration
• 120° Viewing angle
• Operating temp -40 to 70°C
• Storage temp -40 to 70°C
Alumina
base
15.85 mm (0.624") max
Multi-Chip LED
T1¾ Midget Flanged Cap
O6.35 mm
(0.25")max
Aodised Aluminium
Spacer
Two grooves in spacer
denotes dual polarity
version
Spacer is colour coded
(see chart)
2.23mm
(0.088")
O7.23 mm
(0.285")
ELED/1750/DMC/-
Ordering Information and Technical Characteristics
Ordering
Information
ELED/1750/DMC/12/AL
ELED/1750/DMC/12/RD
ELED/1750/DMC/12/AR
ELED/1750/DMC/12/YW
ELED/1750/DMC/12/GN
ELED/1750/DMC/12/EG
ELED/1750/DMC/24/AL
ELED/1750/DMC/24/RD
ELED/1750/DMC/24/AR
ELED/1750/DMC/24/YW
ELED/1750/DMC/24/GN
ELED/1750/DMC/24/EG
ELED/1750/DMC/28/AL
ELED/1750/DMC/28/RD
ELED/1750/DMC/28/AR
ELED/1750/DMC/28/YW
ELED/1750/DMC/28/GN
ELED/1750/DMC/28/EG
Colour
AlGaAsRed
Red
Amber
Yellow
Green
Emerald GN
AlGaAsRed
Red
Amber
Yellow
Green
Emerald GN
AlGaAsRed
Red
Amber
Yellow
Green
Forward
Luminous Reverse
Current
Voltage
Intensity Voltage
(mA)
(V)
(mcd)
(V)
12
12
12
12
12
12
24
24
24
24
24
24
28
28
28
28
28
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
70
40
30
40
70
30
70
40
30
40
70
30
70
40
30
40
40
30
12
12
12
12
12
12
24
24
24
24
24
24
28
28
28
28
28
28
Emerald Green 28
Mean time before failure 90,000 hrs
1) Customer specials available on request.
66
Oxley Developments Company Ltd
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 840609
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: +1 (203) 488 1033
Oxley Group Australia Pty Ltd
Email:
sales@oxleygroup.com
Tel +61 (0) 2 9967 9488
0.38 mm
(0.015")min
www.oxleygroup.com/lamps
ODCSM40565/2/2005
Type No. - ELED/1750/-
LED Bulb Replacement
Bipolar
Features
• LED lens
• Replaces less reliable filament bulbs
• Cool light reduces heat dissipation
• Reduces maintenance costs
• Dual polarity options
• High Brightness
• 120° Viewing angle
• Operating temp -40 to 85°C
• Storage temp -40 to 85°C
Coloured dot
on base
denotes voltage
O7.2 mm
O6.2 mm
O5.8 mm
Centre
Contact
Integral current
limiting rseistor
Case
Single Chip LED
T1¾ Midget Flanged Cap
15 mm
• Reduces power consumption
8.5 mm
Electrical Configuration
Ordering Information and Technical Characteristics L
Ordering
Information
ELED/1750/MF/BT/6/WE
ELED/1750/MF/BT/6/RD
ELED/1750/MF/BT/6/AR
ELED/1750/MF/BT/6/YW
ELED/1750/MF/BT/6/GN
ELED/1750/MF/BT/6/BE
ELED/1750/MF/BT/12/WE
ELED/1750/MF/BT/12/RD
ELED/1750/MF/BT/12/AR
ELED/1750/MF/BT/12/YW
ELED/1750/MF/BT/12/GN
ELED/1750/MF/BT/12/BE
ELED/1750/MF/BT/24/WE
ELED/1750/MF/BT/24/RD
ELED/1750/MF/BT/24/AR
ELED/1750/MF/BT/24/YW
ELED/1750/MF/BT/24/GN
ELED/1750/MF/BT/24/BE
ELED/1750/MF/BT/28/WE
ELED/1750/MF/BT/28/RD
ELED/1750/MF/BT/28/AR
ELED/1750/MF/BT/28/YW
ELED/1750/MF/BT/28/GN
ELED/1750/MF/BT/28/BE
Forward
Luminous Reverse
Current
Colour Voltage
Intensity Voltage
(mA)
(V)
(mcd)
(V)
White
Red
Amber
Yellow
Green
Blue
White
Red
Amber
Yellow
Green
Blue
White
Red
Amber
Yellow
Green
Blue
White
Red
Amber
Yellow
Green
Blue
6
6
6
6
6
6
12
12
12
12
12
12
24
24
24
24
24
24
28
28
28
28
28
28
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
1000
1200
1000
1000
1250
1200
1000
1200
1000
1000
1250
1200
1000
1200
1000
1200
1250
1200
1000
1200
1000
1000
1250
1200
5
5
5
5
5
5
12
12
12
12
12
12
24
24
24
24
24
24
28
28
28
28
28
28
Mean time before failure 90,000 hrs
1) Customer specials available on request.
www.oxleygroup.com/lamps
ODCSM40565/2/2005
Oxley Group Australia Pty Ltd
Email:
sales@oxleygroup.com
Tel +61 (0) 2 9967 9488
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: +1 (203) 488 1033
Oxley Developments Company Ltd
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 840609
67
Type No. - ELED/682/-
LED Bulb Replacement
Unipolar
Features
• Replaces less reliable filament bulbs
• Cool light reduces heat dissipation
• Reduces power consumption
• Reduces maintenance costs
• 180° Viewing angle
• Excellent off-axis viewing
• Meets MIL-DTL-6363H/6363/6A
• Coloured polymer lens
• Operating temp -40 to 85°C
• Storage temp -40 to 85°C
Centre contact
A - anode
C-cathode
O4.6 mm
2.23 mm
O5.8mm
Lens denotes
LED color
O3.17mm
8.37mm +/- 0.38
www.oxleygroup.com/lamps
ODCSM40565/2/2005
Single Chip LED
T1 Midget Flanged Cap
O3.9mm
Ordering Information and Technical Characteristics
Ordering
Information
ELED/682/1/-/-/WE
ELED/682/1/-/-/RD
ELED/682/1/-/-/YW
ELED/682/1/-/-/GN
ELED/682/1/-/-/BE
Luminous
Current
Colour
Intensity
(mA)
(mcd)
White
Red
Yellow
Green
Blue
17
17
17
17
17
40
50
45
45
40
Dominant
Wavlength
See note
660
585
525
475
Mean time before failure 40,000 hrs
Ordering information:
When ordering please state type number, specifying polarity, voltage, and colour
E L E D / 6 8 2 / 1 / A / 2 8 / R D
Centre
A - anode
C - cathode
Voltage
5,6,12,15,24,28
LED Colour
RD, YW, BE, WE, GN
Note: White chromaticity co-ordinates x=0.28, y=0.28
68
Oxley Developments Company Ltd
Email:
sales@oxley.co.uk
Tel: +44 (0)1229 840609
Oxley Inc.
Email:
sales@oxleyinc.com
Tel: +1 (203) 488 1033
Oxley Group Australia Pty Ltd
Email:
sales@oxleygroup.com
Tel +61 (0) 2 9967 9488
