SKM300GB066D

Description
Trench IGBT Modules
CategoryDiscrete semiconductor    The transistor
File Size857KB,6 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric Compare View All

SKM300GB066D Overview

Trench IGBT Modules

SKM300GB066D Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSEMIKRON
Parts packaging codeDO-204
package instructionCASE D 56, SEMITRANS 3, 7 PIN
Contacts2
Manufacturer packaging codeCASE D 56
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresUL RECOGNIZED
Shell connectionISOLATED
Maximum collector current (IC)390 A
Collector-emitter maximum voltage600 V
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Gate-emitter maximum voltage20 V
JESD-30 codeR-XUFM-X7
JESD-609 codee3/e4
Number of components2
Number of terminals7
Maximum operating temperature175 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal surfaceTIN/SILVER
Terminal formUNSPECIFIED
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsPOWER CONTROL
Transistor component materialsSILICON
Nominal off time (toff)593 ns
Nominal on time (ton)198 ns
VCEsat-Max1.9 V

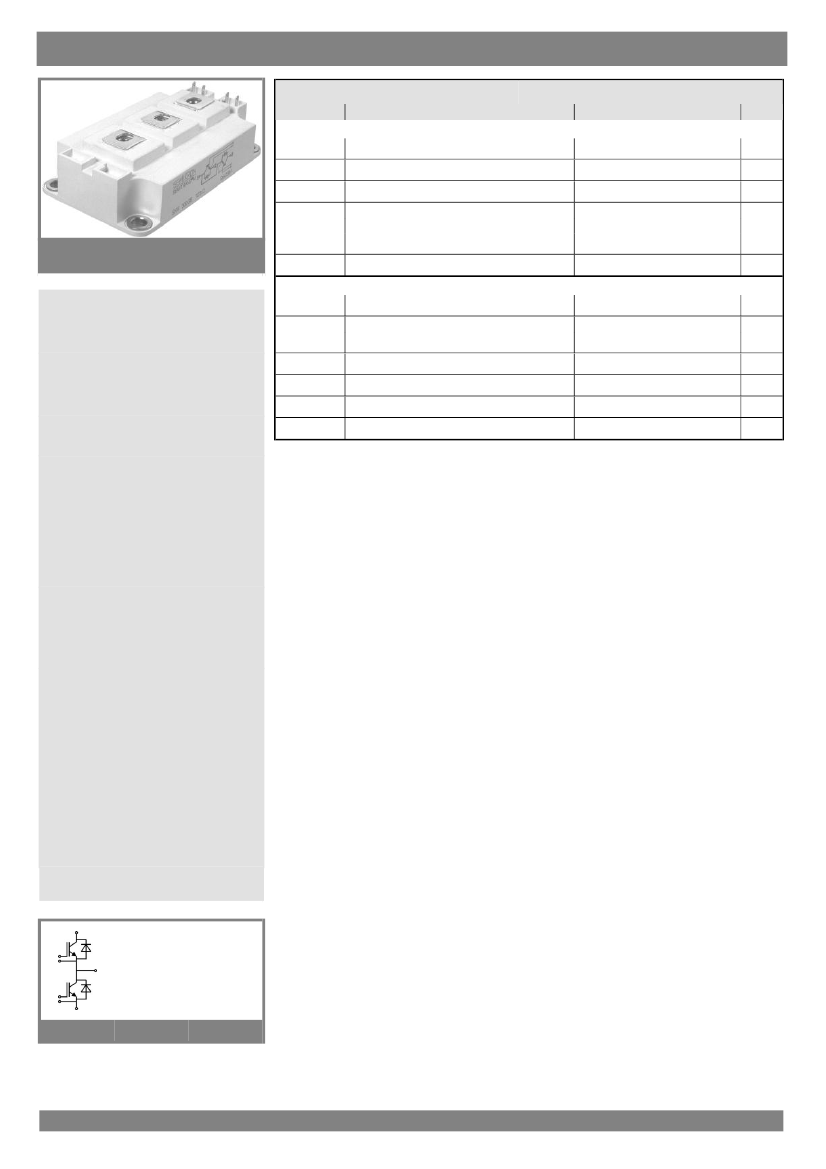

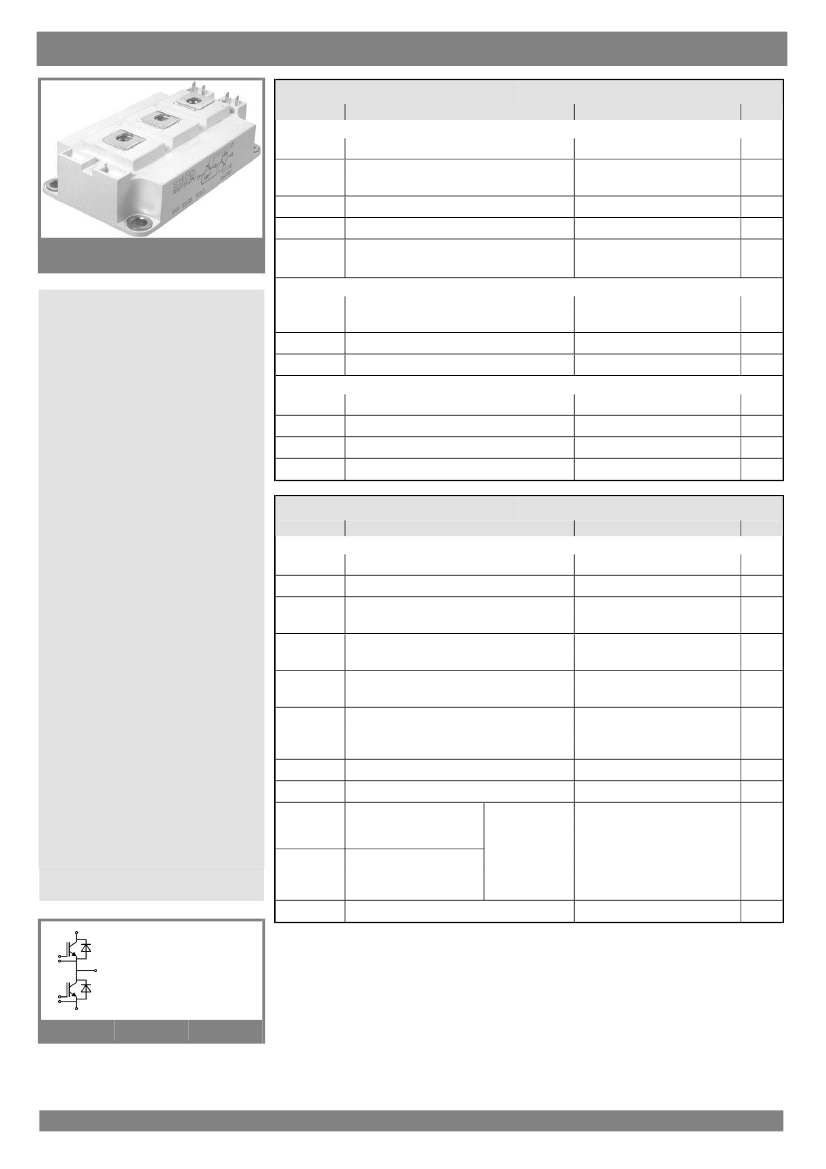

SKM 300GB066D
Absolute Maximum Ratings
Symbol Conditions
IGBT
Values
Units

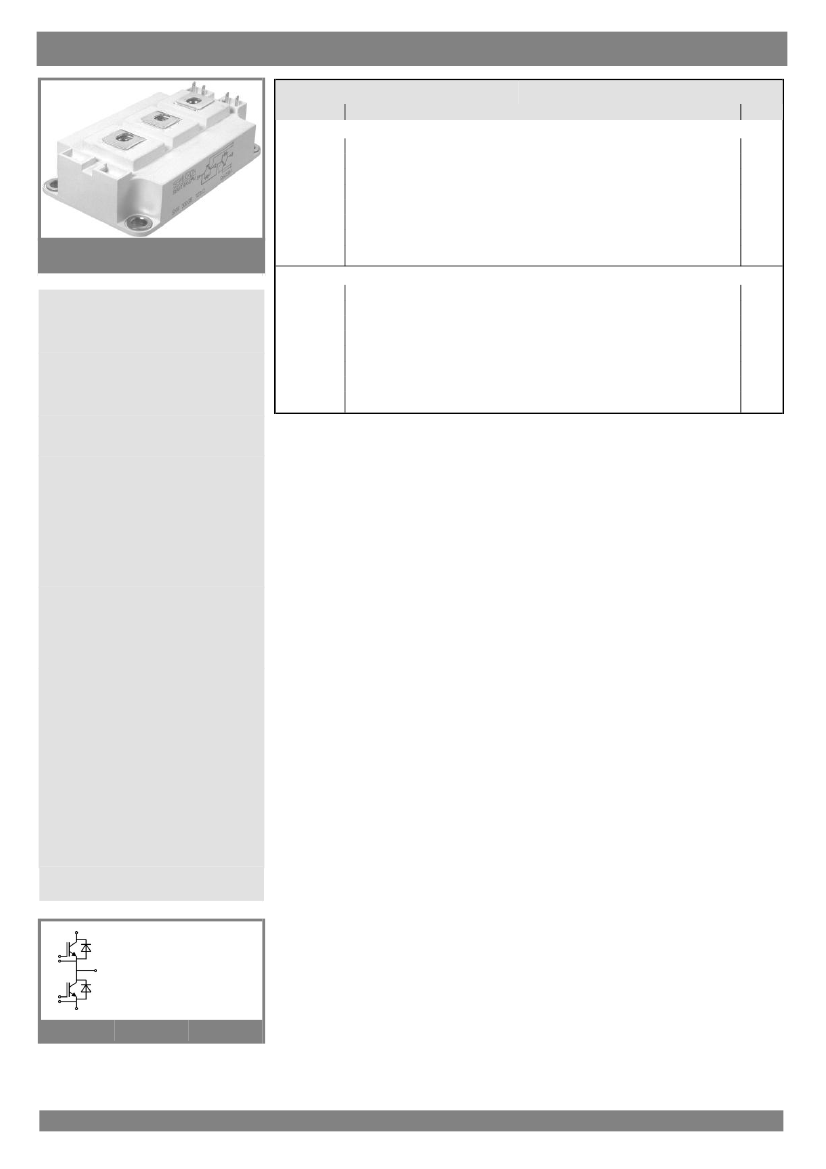

SEMITRANS
®
3
Trench IGBT Modules
SKM 300GB066D
Module
Inverse Diode
Features

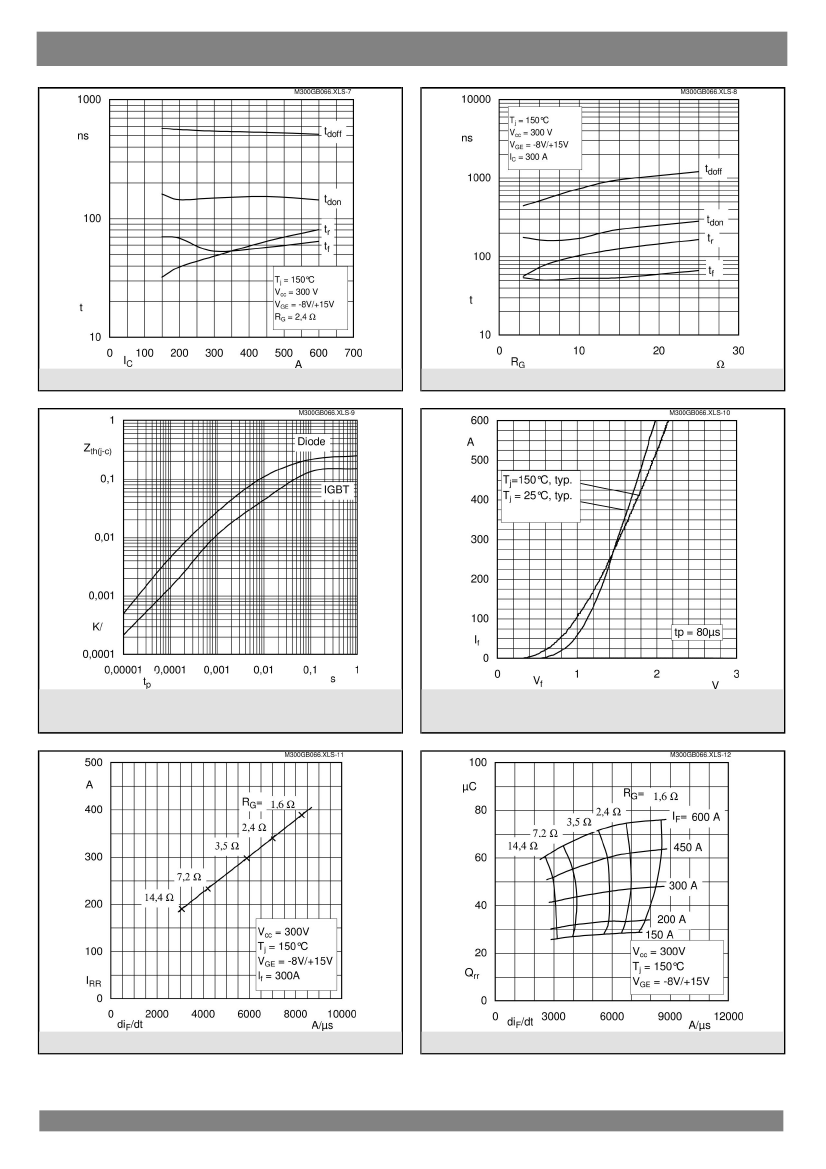

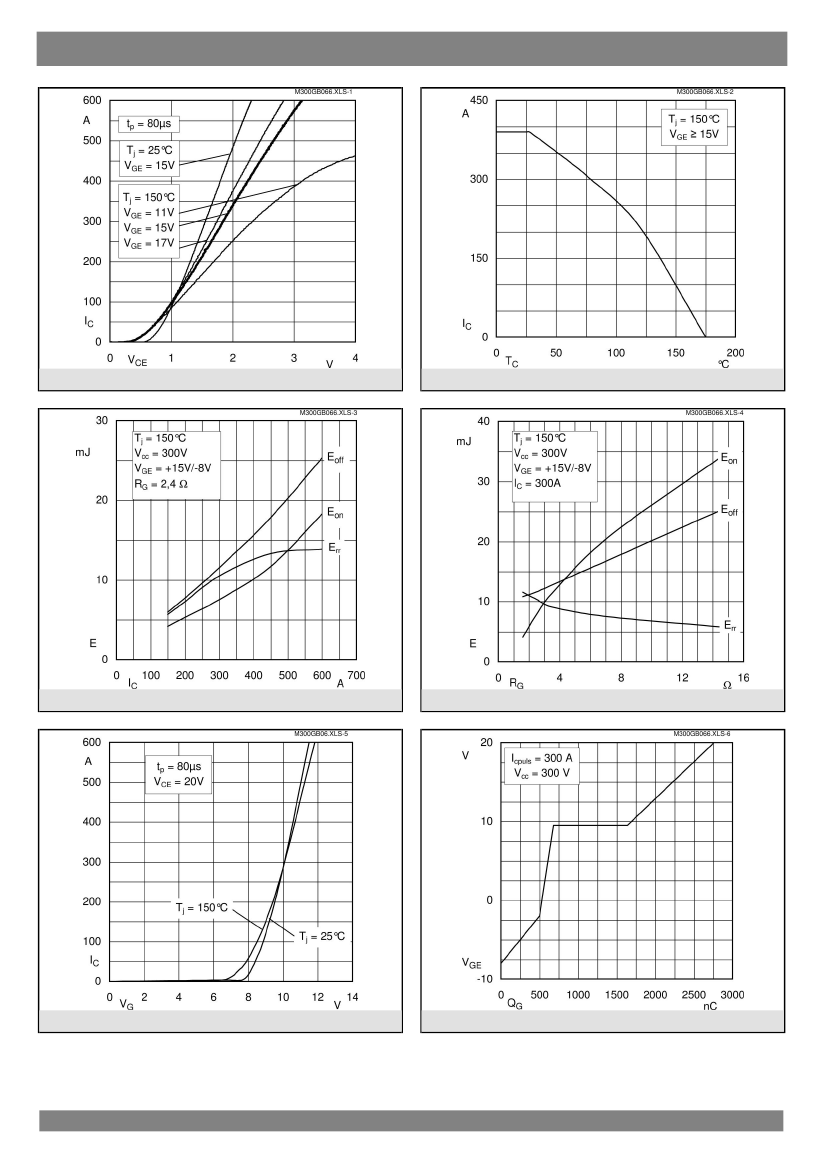

Characteristics
Symbol Conditions
IGBT
min.
typ.
max.
Units
Typical Applications
Remarks
GB
1
06-10-2009 NOS
© by SEMIKRON
