HYM7V64200CLTZG-10P

Description
Synchronous DRAM Module, 2MX64, CMOS, GLASS EPOXY, SODIMM-144
Categorystorage    storage
File Size261KB,14 Pages
ManufacturerSK Hynix
Websitehttp://www.hynix.com/eng/
Download Datasheet Parametric Compare View All

HYM7V64200CLTZG-10P Overview

Synchronous DRAM Module, 2MX64, CMOS, GLASS EPOXY, SODIMM-144

HYM7V64200CLTZG-10P Parametric

Parameter NameAttribute value
MakerSK Hynix
Parts packaging codeMODULE
package instruction,
Contacts144
Reach Compliance Codeunknown
ECCN codeEAR99
access modeDUAL BANK PAGE BURST
JESD-30 codeR-XDMA-N168
memory density134217728 bit
Memory IC TypeSYNCHRONOUS DRAM MODULE
memory width64
Number of functions1
Number of ports1
Number of terminals168
word count2097152 words
character code2000000
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize2MX64
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)3.3 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formNO LEAD
Terminal locationDUAL
HYM7V64200C Z-Series
SO-DIMM 2Mx64 bit SDRAM Module
based on 2Mx8 SDRAM, LVTTL, 4K-Refresh
DESCRIPTION

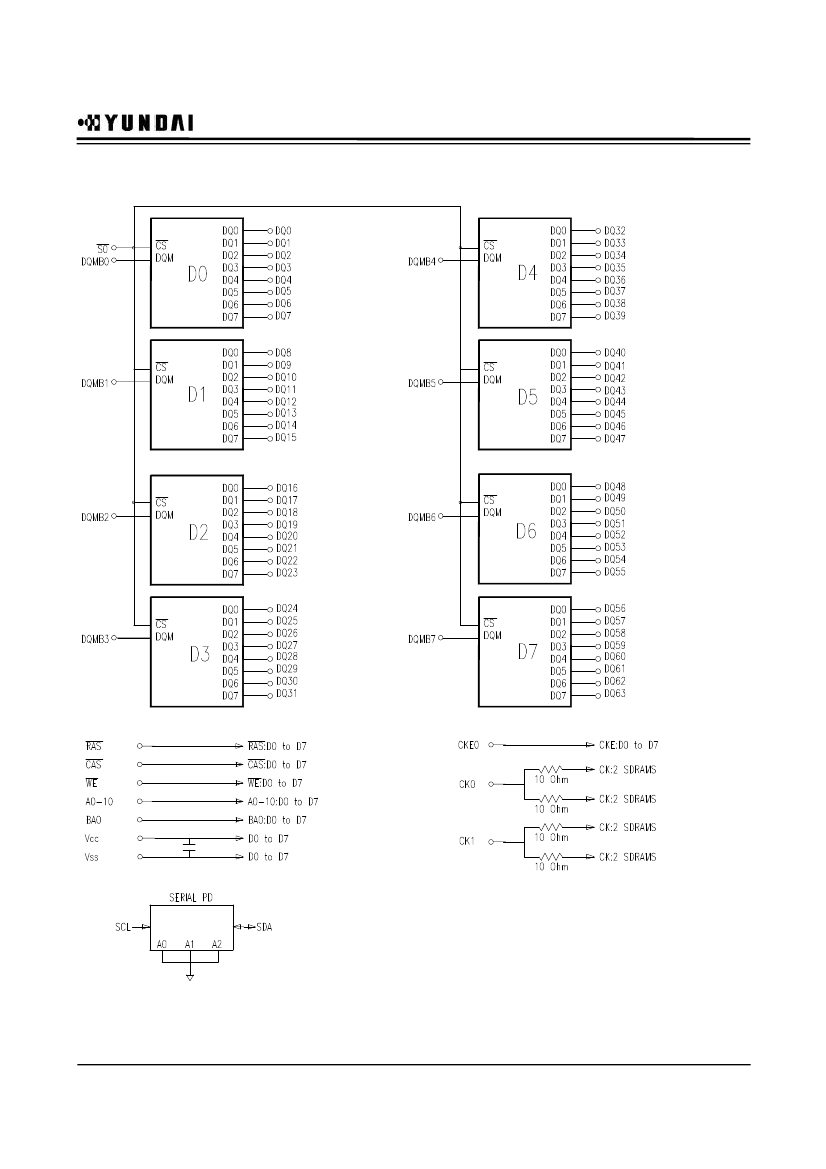

The HYM7V64200C is high speed 3.3Volt CMOS Synchronous DRAM module consisting of eight 2Mx8 bit
Synchronous DRAMs in 44-pin TSOPII and one 8-pin TSSOP 2K bit EEPROM on a 168-pin glass-epoxy
circuit board. One 0.33µF and one 0.1µF decoupling capacitors are mounted for each SDRAM.
The HYM7V64200C is a gold plated socket type Dual In-line Memory Module suitable for easy interchange
and addition of 16M byte memory. All inputs and outputs are synchronized with the rising edge of the clock
input. The data paths are internally pipelined to achieve very high bandwidth. All input and output voltage
levels are compatible with LVTTL.
Programmable options include the length of pipeline (Read latency of 1,2 or 3), the number of
consecutive read of write cycles initiated by a single control command (Burst length of 1,2,4,8, or full page),
and the burst count sequence(sequential or interleave). A burst of read of write cycles in progress can be
terminated by a burst terminate command of can be interrupted and replaced by a new burst read or write
command on any cycle. (This pipelined design is not restricted by a ‘ 2N’ rule.)
FEATURES
144Pin SO-DIMM, JEDEC Standard
Serial Presence Detect with EEPROM
Single 3.3V±0.3V power supply
All module pins are LVTTL compatible
4096 refresh cycles / 64ms
All inputs and outputs referenced to positive
edge of system clock
Auto refresh and Self Refresh
Programmable burst lengths and sequences
- 1,2,4,8 and full page for Sequential type
- 1,2,4 and 8 for Interleave type
Programmable /CAS latency ; 1,2,3 clocks
ORDERING INFORMATION
Part No.
HYM7V64200CLTZG -8
HYM7V64200CLTZG -10P
HYM7V64200CLTZG -10S
HYM7V64200CLTZG -10
Max.
Frequency
125MHz
100MHz
100MHz
100MHz
Power
L-Part
L-Part
L-Part
L-Part
PCB
height
1.00
1.00
1.00
1.00
Package
TSOPII
TSOPII
TSOPII
TSOPII
Based Comp. Part No
HY57V161610CLTC-8
HY57V161610CLTC-10P
HY57V161610CLTC-10S
HY57V161610CLTC-10
This document is a general product description and is subject to change without notice. Hyundai Electronics does not assume
any responsibility for use of circuits described. No patent licenses are implied.
Rev. 0.5 / MAY. 98
1998 Hyundai Semiconductor
