B01T3H06TB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> B01T3H06TB

B01T3H06TB: DescriptionModular Terminal Block, 10A, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size119KB，3 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

B01T3H06TB Overview

Modular Terminal Block, 10A, 1 Row(s), 1 Deck(s)

B01T3H06TB Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYBUTYLENE TEREPHTHALATE, 94V-0
Fastening method	SCREW
Manufacturer's serial number	B01
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	6
Rated current	10 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	16 AWG

Preview

Download Datasheet

View All

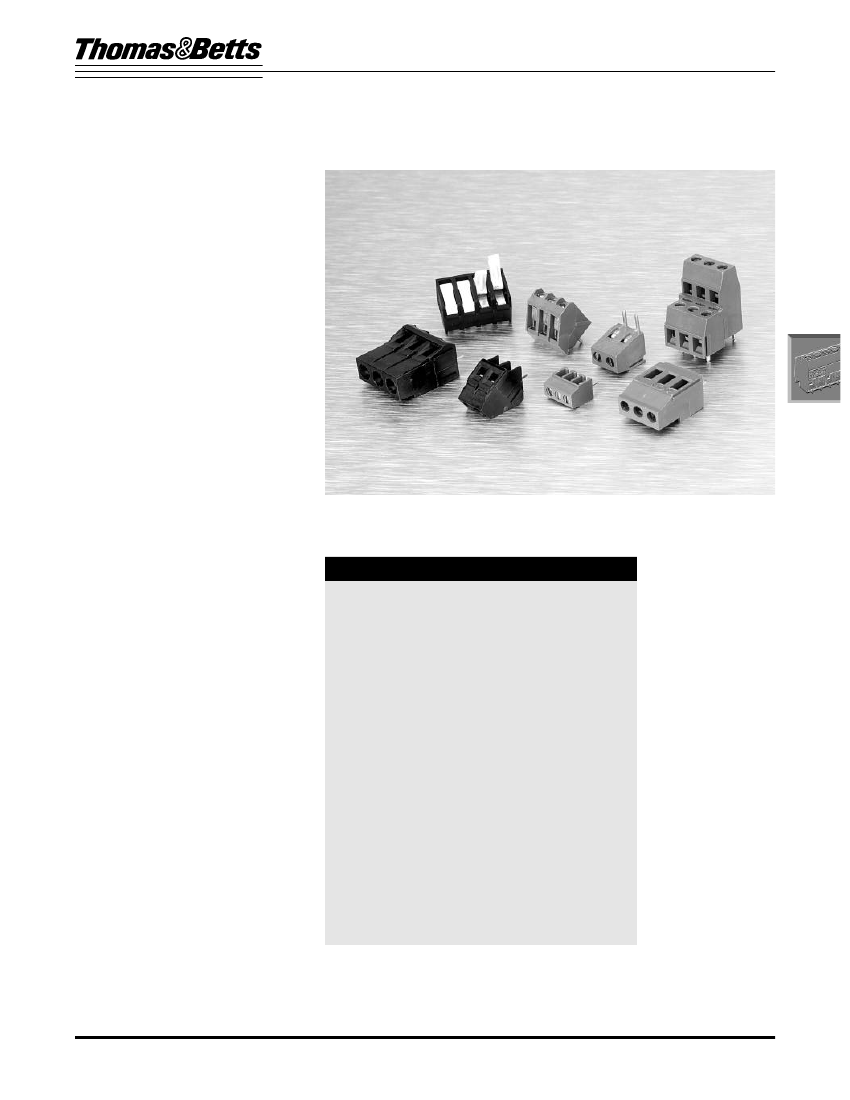

Eurostyle Electronic Connectors

One Piece

ESCRIPTION

PPLICATION

Designed to European specifications,

these one piece blocks facilitate wire

to PC board connections. While all

blocks are modular and can be

interlocked together to extend the

number of terminals to any length,

molded-to-length versions are also

available.

ONE PIECE CONNECTORS

ESIGN

DVANTAGES

• Pitches Available

• 2,5mm (0.098”)

• 3,5mm (0.138")

• 5,0mm (0.197")

• 5,08mm (0.200")

• 0.250" (6,35mm)

• 7,0mm (0.276”)

• 10mm (0.394”)

• 10,16mm (0.400”)

• Effective 2,5mm for Double Decker

Design.

• Vertical and horizontal solder pins

available for most lines.

• Available in four connection styles:

• Cage clamp for superior

connection.

• Wire protection for economical

designs.

• Tunnel connection for most

economical designs.

• Screwless clamp for quick

connections.

• Special “interlocking” feature allows

any length connector to be

assembled in modular fashion —

Also available molded to length.

• Thermoplastic insulator housing —

UL94V-0 rated.

• Gold and silver plated terminals

available in addition to standard tin

plating.

• Hot stamped terminal marking

available.

• Test points for direct reading built

into many connectors.

Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312

CONNECTOR INDEX

2,5mm Surface Mount with Screwless Clamp ..........................8

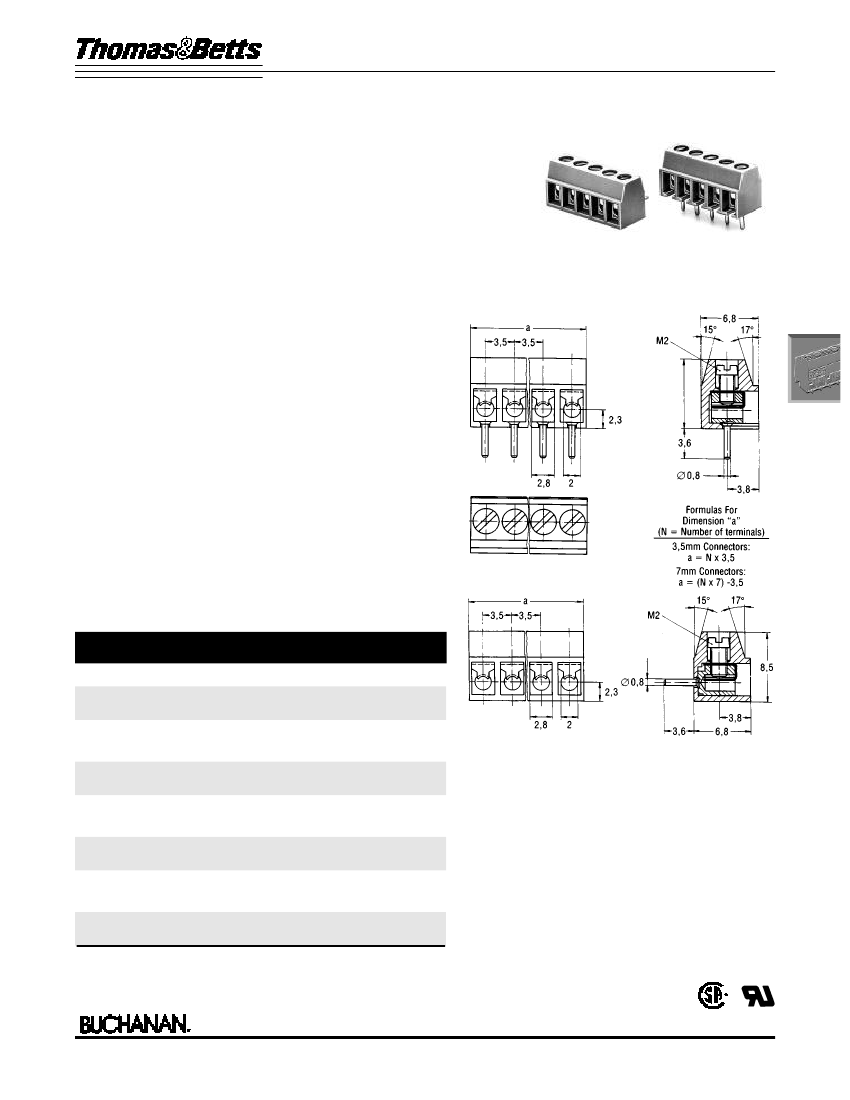

3,5mm Standard with Wire Protector ........................................9

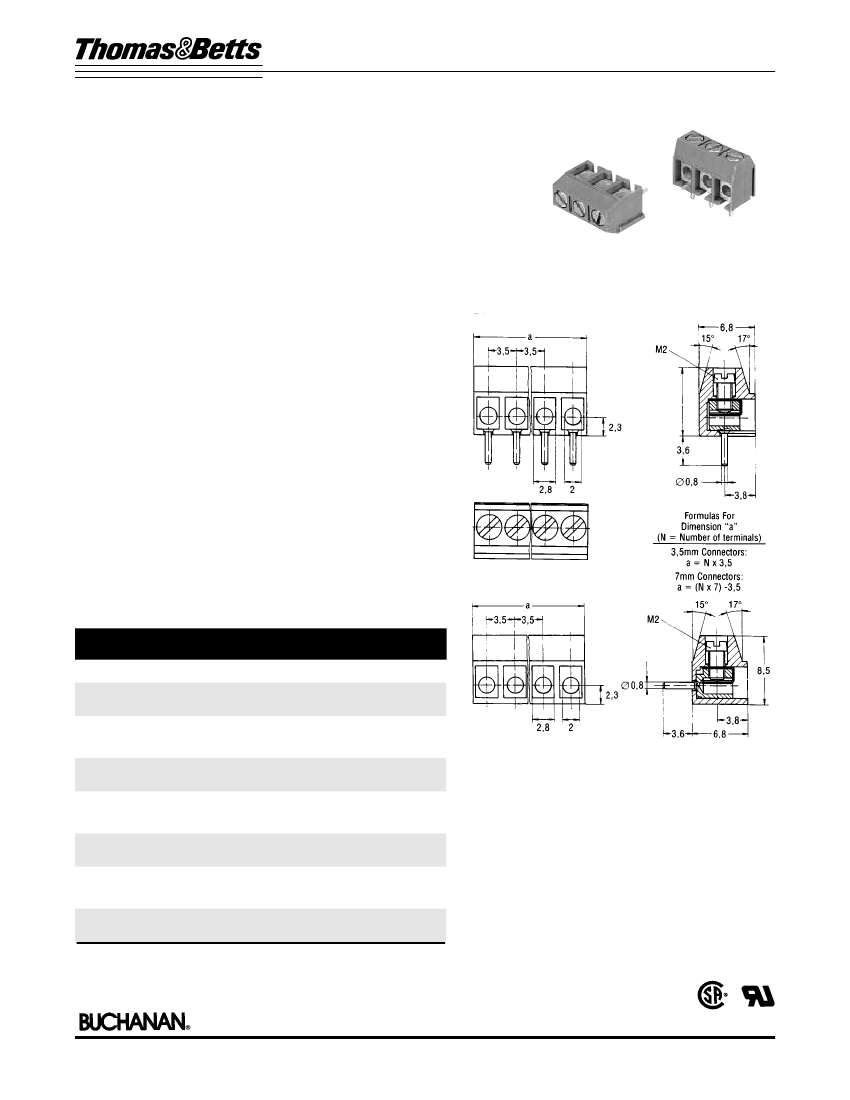

3,5mm Standard with Tunnel Connection ..............................10

5mm Standard with Cage Clamp ......................................11, 14

5mm Standard with Wire Protector ..................................12, 15

5mm Standard with Tunnel Connection ..................................13

5mm High Profile with Cage Clamp ........................................16

5mm High Profile with Wire Protector ....................................17

5mm High Profile with Tunnel Connection ..............................18

5mm Angular with Cage Clamp ........................................19, 20

5mm Double Decker with Cage Clamp ............................21, 22

5,08mm Standard with Cage Clamp ......................................23

5,08mm Standard with Wire Protector ....................................24

5,08mm Angular with Cage Clamp..........................................25

5,08mm Angular with Wire Protector ......................................26

5,08mm Double Decker with Cage Clamp..............................27

5,08mm Standard with Screwless Clamp ..............................28

0.250" Standard with Cage Clamp..........................................29
