HBR-1009-0B1

Description
D Microminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size318KB,4 Pages
ManufacturerCristek Interconnects Inc
Download Datasheet Parametric View All

HBR-1009-0B1 Overview

D Microminiature Connector, 9 Contact(s), Female, Solder Terminal, Receptacle,

HBR-1009-0B1 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Body/casing typeRECEPTACLE
Connector typeD MICROMINIATURE CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberHBR
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialALUMINUM ALLOY
Housing sizeA
Termination typeSOLDER
Total number of contacts9
Base Number Matches1

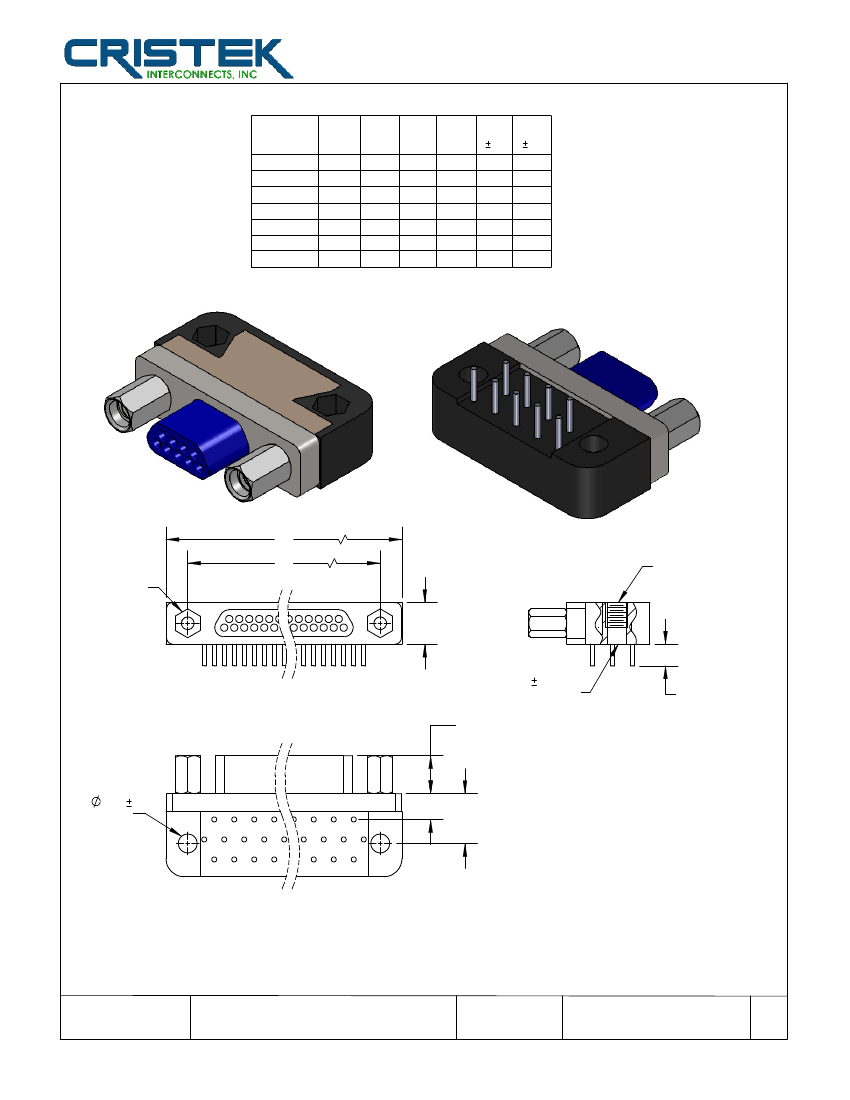

SERIES
HBR
MICRO-D HYBRID SHELL
RIGHT ANGLE P.C.B. MOUNT
NO. OF
POSITIONS
9
15
21
25
31
37
51
MAX
.790
.940
1.090
1.190
1.340
1.550
1.440
A
NOM
.565
.715
.865
.965
1.115
1.265
1.215
B
MAX
.230
.230
.230
.230
.230
.230
.275
C
MAX
.425
.425
.425
.425
.525
.525
.660
D
E
.01
F
.01
.25
.25
.25
.25
.25
.25
.30
.23
.13
.13
.13
.13
.13
.15
A
B
2x JACKPOST
#2-56 UNC-2B
C
#2-56 THREADED INSERT
(OPTIONAL)
.096 .005 DIA
THRU HOLE
.183 MAX (RECEPT)
.202 MAX (PLUG)

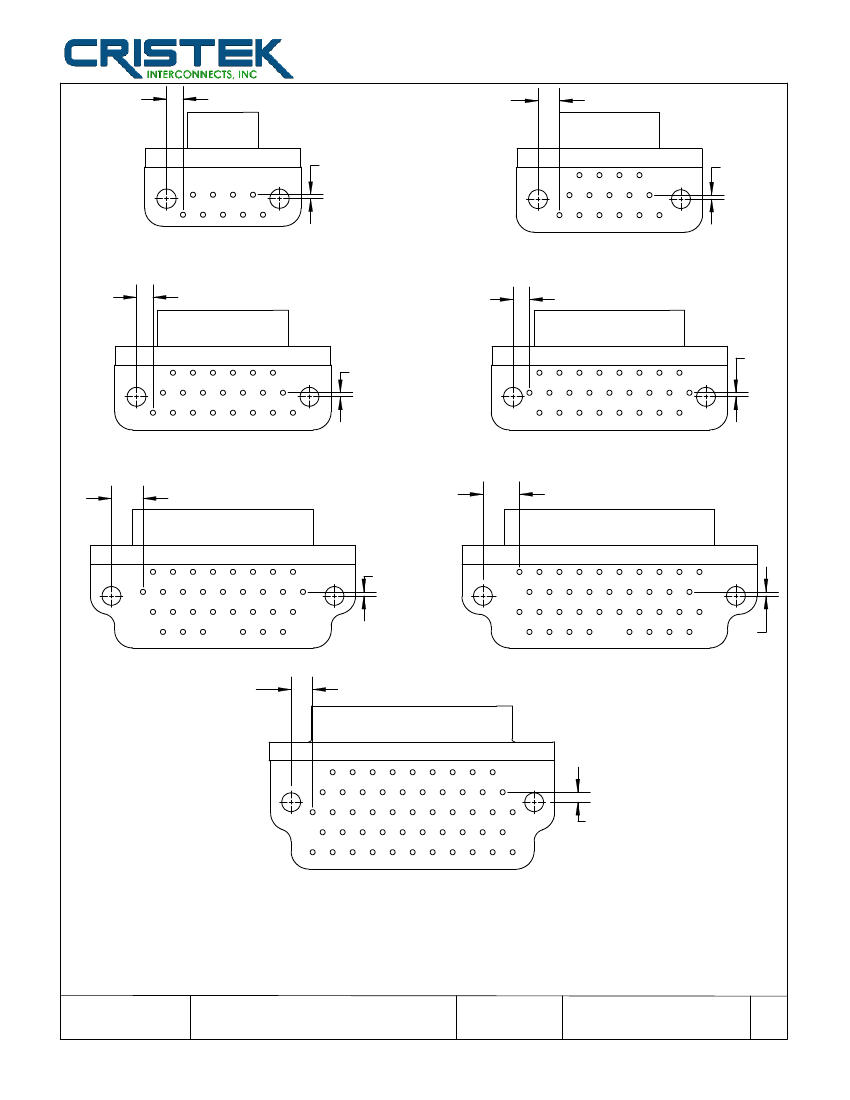

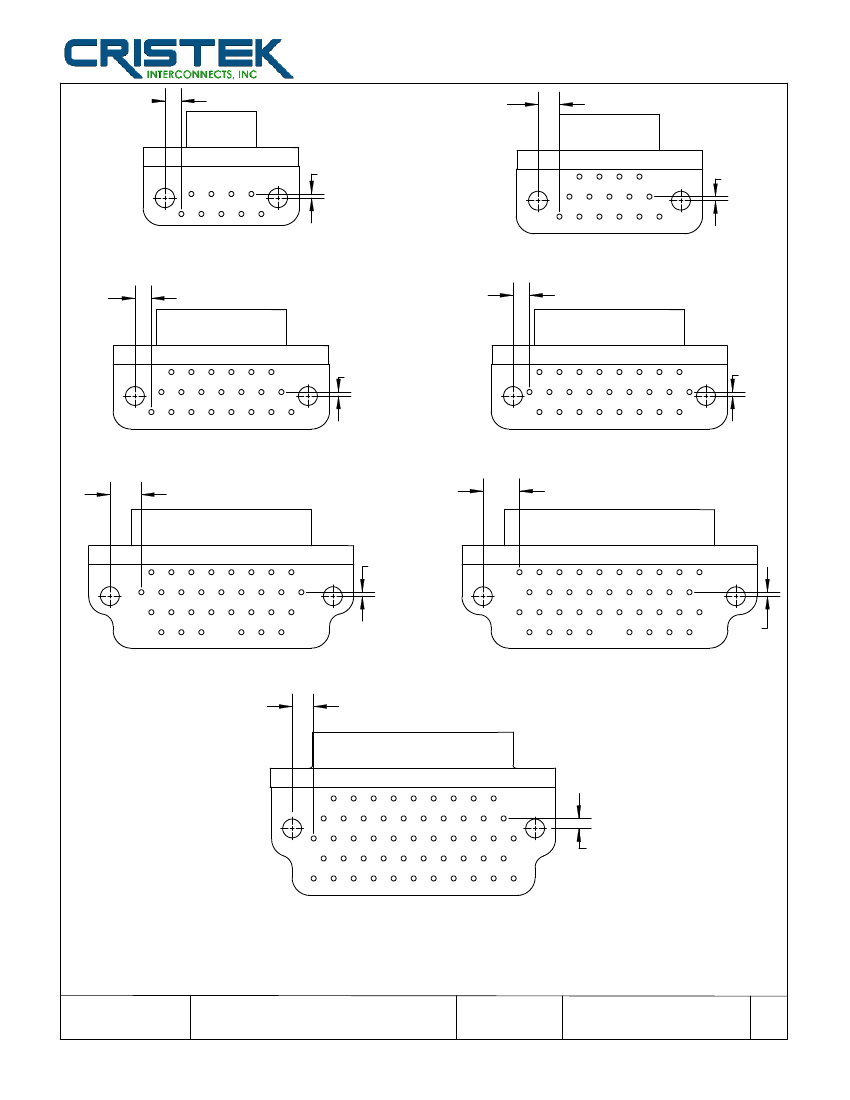

SEE TERMINATION
OPTIONS
2x .096 .005
THRU HOLE
F
E
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
DWG. NO.
MICRO-D HYBRID SHELL
RIGHT ANGLE P.C.B. MOUNT
REV
SHT
1
OF
4
HBR
C
888.265.9162
CRISTEK.COM
