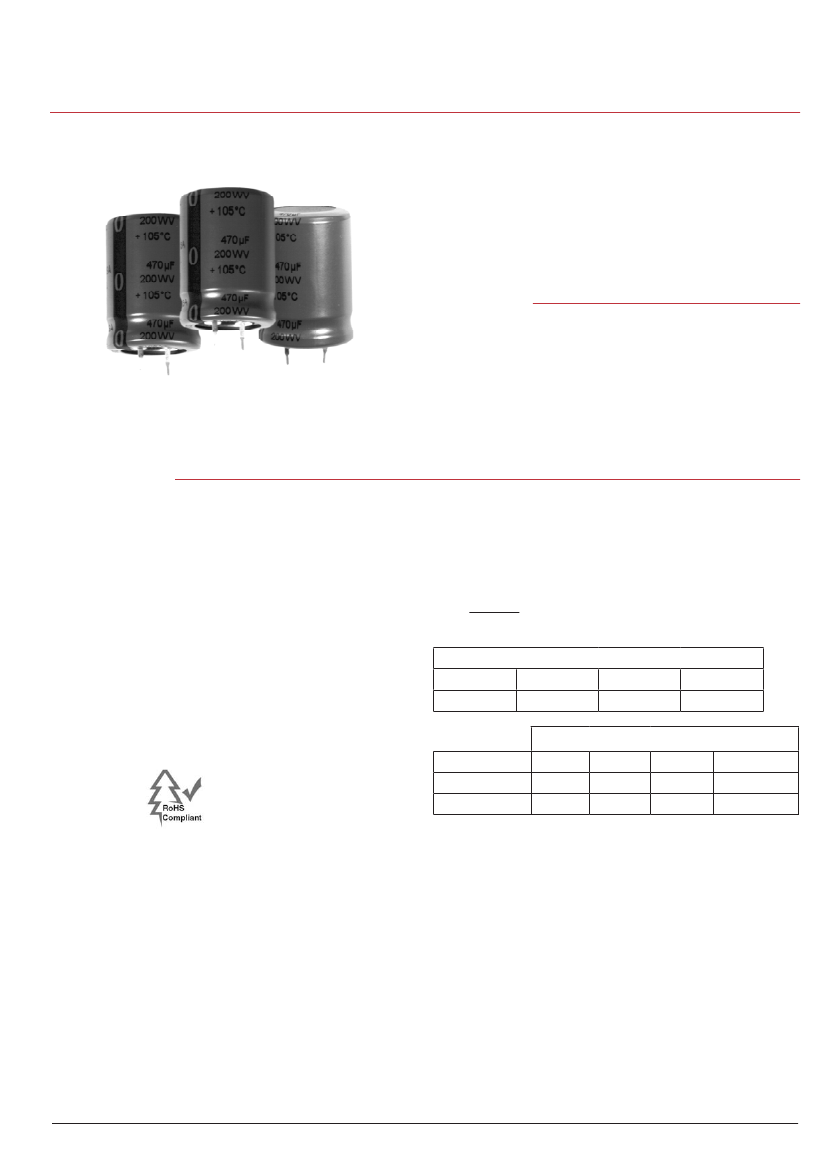

Type SLP
105 ºC Aluminum Electrolytic Snap-In Capacitors
Long Life (3000 h) Wide Range Snap-In
Type SLP can operate at 105 ºC at rated voltage for
3000 h. This aluminum electrolytic snap-in capacitor
offers a wide range of voltages and capacitance values
to fit most DC filtering and switching power supply
applications. The SLP is the best value package
compared to the other snap-in series.
Highlights
•
•
•
•
•
•
•
3000 h ripple load life at rated voltage
105 ºC rated
Small case size with high capacitance
Best for switching power supplies
22 mm to 35 mm diameter, 10 mm lead spacing
Best value snap-in type
High ripple current
Specifications
Operating Temperature Range:
–40 ºC to 105 ºC (10 Vdc~100 Vdc)
–25 ºC to 105 ºC (160 Vdc~250 Vdc)
Voltage Range:
10 Vdc to 250 Vdc
Capacitance Range:
180 µF to 56,000 µF
Capacitance Tolerance:
±20%
Leakage Current:
≤ 3 √CV (µA)
Ripple Current Multipliers:
2.00
Ambient Temperature / Multiplier
20 to 45 ºC
65 ºC
1.89
85 ºC
1.52
105 ºC
1.00
Frequency / Multiplier
Voltage
10 - 100 Vdc
160 - 250 Vdc
60 Hz
0.90
0.80
120 Hz
1.00
1.00
1 kHz
1.15
1.25
10 kHz & Up
1.25
1.47
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
To apply multipliers, see ratings tables for ripple
current values
Ripple Life:
3,000 h @ full load @ 105 ºC
Δ Capacitance ±20% or initial value
ESR ≤200% of limit
Leakage current = initial value
DCL 100 % of limit
Load Life Test:
3000 h at rated voltage at 105 ºC
Δ Capacitance ±20% or initial value
DF ≤200% of specified value
Leakage current = initial value
There shall be no leakage of electrolyte
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type SLP
105 ºC Aluminum Electrolytic Snap-In Capacitors
Specifications
Shelf Life:
Capacitor stored @ no voltage for 1 kh @ 105 ºC
Δ Capacitance ±20% or initial value
DF ≤200% of specified value
Leakage current = initial value
There shall be no leakage of electrolyte
Vibration:
2 h applied in 3 mutually perpendicular directions:
Vibration frequency range: 10 Hz to 55 Hz for one
minute. Peak to peak amplitude: 1.5 mm
Outline Drawings
Insulation Disk
Polarity
Bar
1.5 +0.2/-0.1
0.8 +0.2/-0.1
10.0
±
0.1
+0.2
-0.1
L
± 2.0
Vinyl
Sleeve
6.3 ± 1.0
3.5
0.8
2.0
±
0.01 Dia.
6.3 ± 1.0
D + 1.0
Max.
PC Board
Hole Dimensions
Part Numbering System
SLP
Type
SLP
332
Cap
821
= 820 µF
332
= 3300 µF
103
= 10,000 µF
M
Tolerance
M =
±20%
025
Voltage
025
= 25 Vdc
250
= 250 Vdc
Diameter
25
mm
22
25
30
35
(in)
(0.87)
(1.00)
(1.18)
(1.38)
A1
C1
E1
H1
Length
30
A3
C3
E3
H3
35
A5
C5
E5
H5
(1.00) (1.18) (1.38)
mm
40
(1.57)
A7
C7
E7
H7
(in)
45
(1.77)
A4
C4
E4
H4
50
(2.00)
A9
C9
E9
H9
A1
Case
Code
P
Polarity
P
= Polarized
3
Insulating
Sleeve
3
= PVC
