CD74ACT164M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74ACT164M

CD74ACT164M: DescriptionIC,SHIFT REGISTER,ACT-CMOS,SOP,14PIN,PLASTIC; Categorylogic logic; File Size558KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

CD74ACT164M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74ACT164M	-	-	View	Buy Now

CD74ACT164M Overview

IC,SHIFT REGISTER,ACT-CMOS,SOP,14PIN,PLASTIC

CD74ACT164M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	SOP, SOP14,.25
Reach Compliance Code	not_compliant
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Maximum Frequency@Nom-Sup	70000000 Hz
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

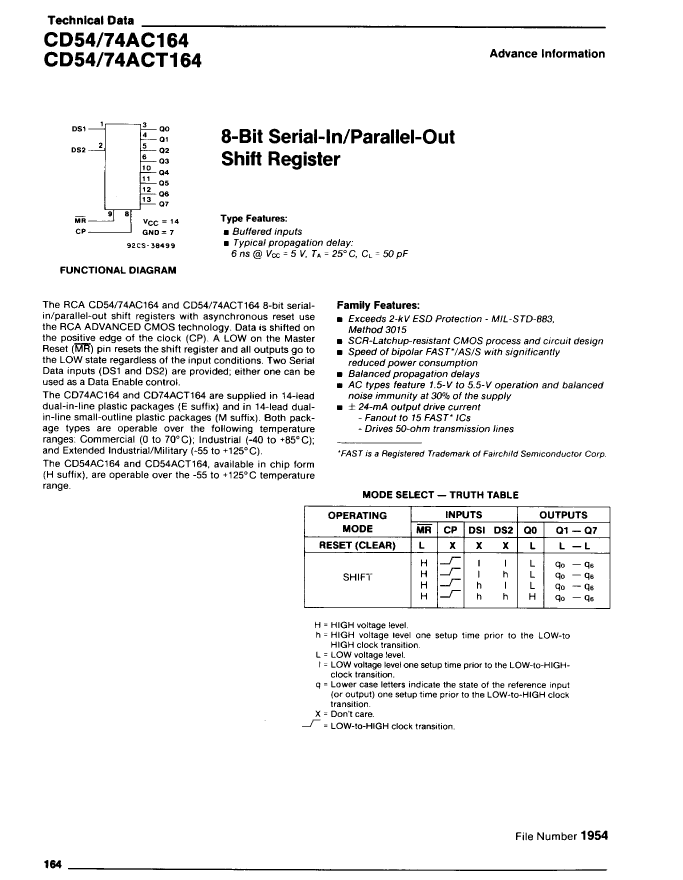

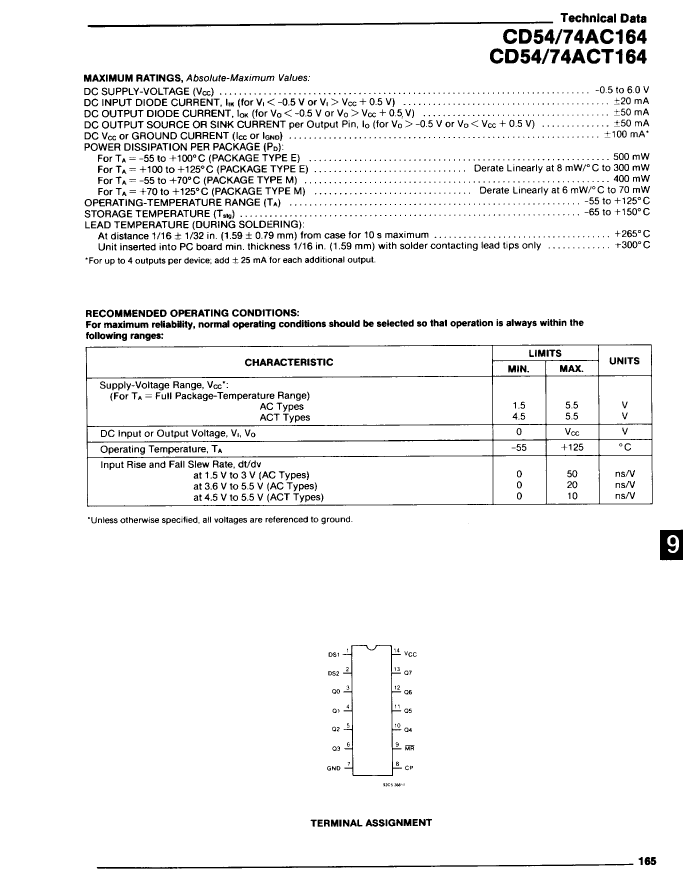

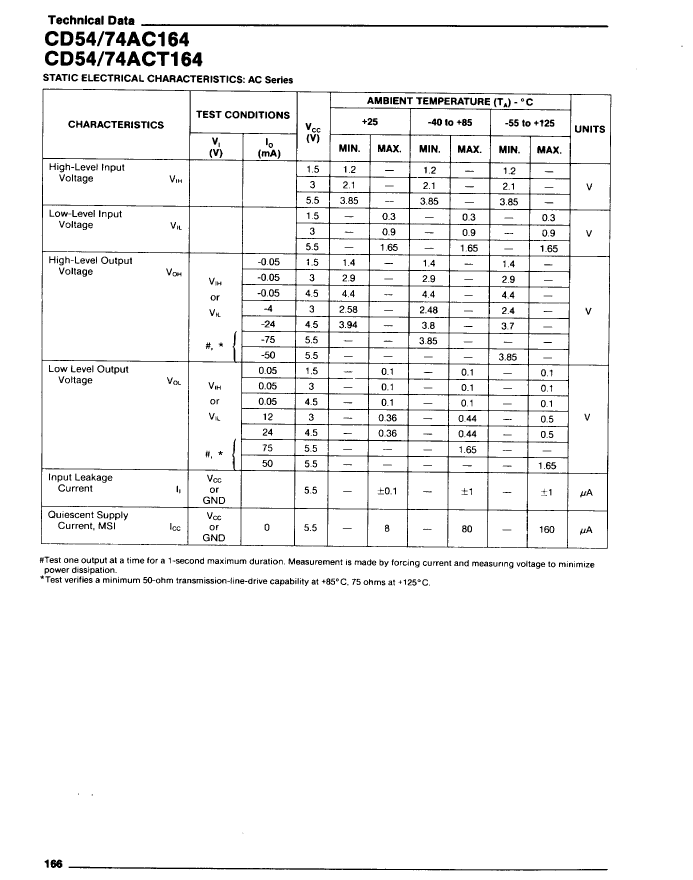

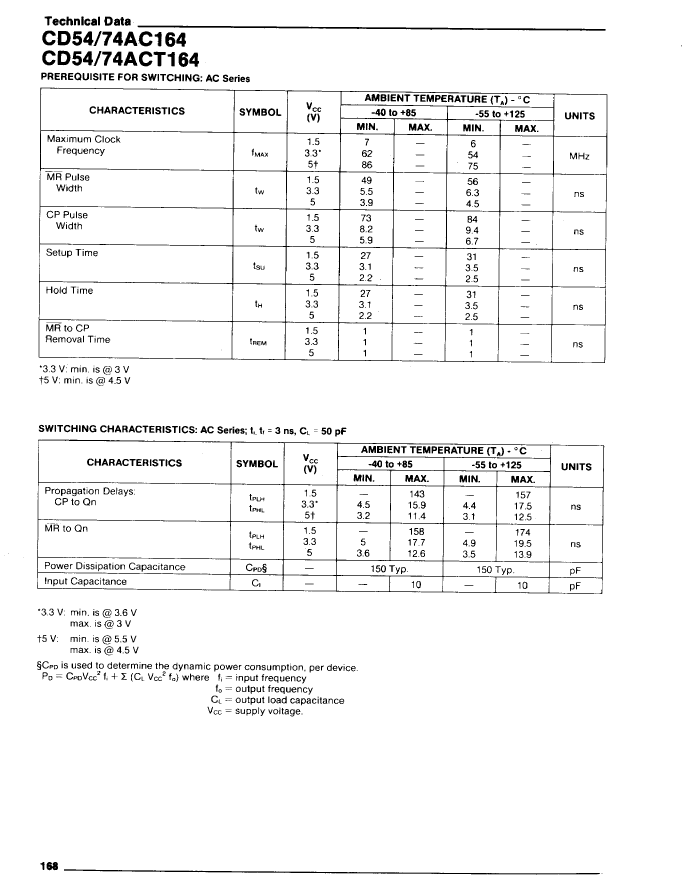

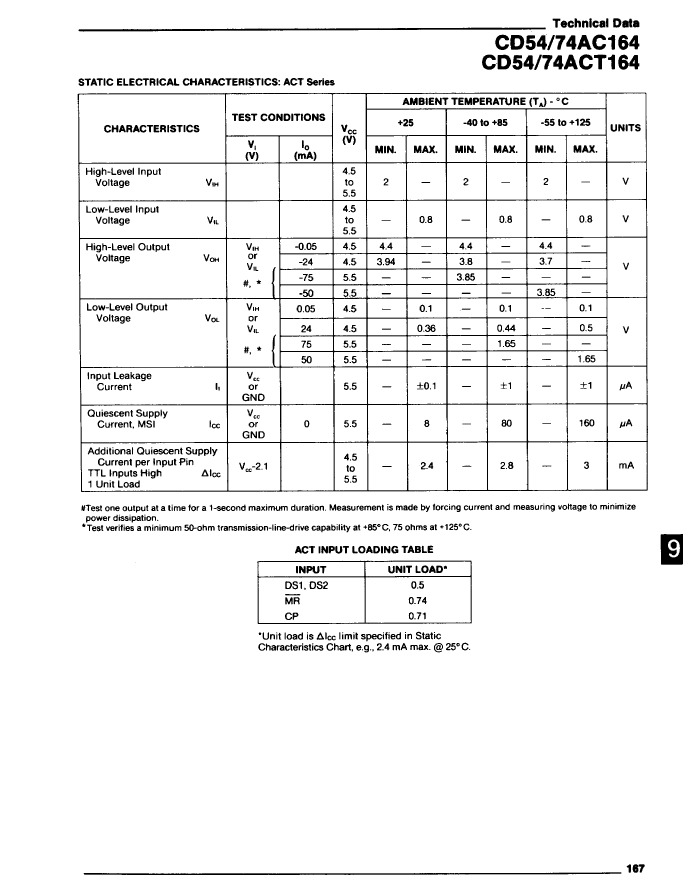

Preview

Download Datasheet

View All

CD74ACT164M Related Products

	CD74ACT164M	CD74ACT164E	CD74ACT164M96	CD74AC164M96	CD74AC164E	CD74AC164M
Description	IC,SHIFT REGISTER,ACT-CMOS,SOP,14PIN,PLASTIC	IC,SHIFT REGISTER,ACT-CMOS,DIP,14PIN,PLASTIC	IC,SHIFT REGISTER,ACT-CMOS,SOP,14PIN,PLASTIC	IC,SHIFT REGISTER,AC-CMOS,SOP,14PIN,PLASTIC	IC,SHIFT REGISTER,AC-CMOS,DIP,14PIN,PLASTIC	IC,SHIFT REGISTER,AC-CMOS,SOP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum Frequency@Nom-Sup	70000000 Hz	70000000 Hz	70000000 Hz	54000000 Hz	54000000 Hz	54000000 Hz
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	SOP	DIP	SOP
Encapsulate equivalent code	SOP14,.25	DIP14,.3	SOP14,.25	SOP14,.25	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
