Bulletin I27135 rev. F 10/02
IRKU/V71, 91 SERIES
THYRISTOR/ THYRISTOR
Features
High Voltage
Industrial Standard Package
Thick Al metal die and double stick bonding
Thick copper baseplate
UL E78996 approved
3500V
RMS
isolating voltage
ADD-A-pak
TM
GEN V Power Modules
Benefits
Up to 1600V
Full compatible TO-240AA
High Surge capability
Easy Mounting on heatsink
Al
2
0
3
DBC insulator
Heatsink grounded
75 A
95 A
Mechanical Description
The Generation V of Add-A-pak module combine the
excellent thermal performance obtained by the usage of
Direct Bonded Copper substrate with superior
mechanical ruggedness, thanks to the insertion of a solid
Copper baseplate at the bottom side of the device.
The Cu baseplate allow an easier mounting on the
majority of heatsink with increased tolerance of surface
roughness and improve thermal spread.
The Generation V of AAP module is manufactured
without hard mold, eliminating in this way any possible
direct stress on the leads.
The electrical terminals are secured against axial pull-out:
they are fixed to the module housing via a click-stop
feature already tested and proved as reliable on other IR
modules.
Electrical Description
These modules are intended for general purpose high
voltage applications such as high voltage regulated power
supplies, lighting circuits, temperature and motor speed
control circuits, UPS and battery charger.
Major Ratings and Characteristics
Parameters IRKU/V71 IRKU/V91
I
T(AV)
@ 85°C
I
T(RMS)
I
TSM
@ 50Hz
@ 60Hz
I
2
t
@ 50Hz
@ 60Hz
I
2
√t
V
RRM
range
T
STG
T
J
75
115
1665
1740
13.86
12.56
138.6
95
150
1785
1870
15.91
14.52
159.1
Units
A
A
A
A
KA
2
s
KA
2
s
KA
2
√s
V
o
400 to 1600
- 40 to 125
- 40 to125
C
C
o
www.irf.com
1
IRKU/V71, 91 Series
Bulletin I27135 rev. F 10/02
ELECTRICAL SPECIFICATIONS
Voltage Ratings
Type number
Voltage
Code
-
04
IRKU/V71, 91
08
12
16
V
RRM
, maximum
V
RSM
, maximum
V
DRM
, max. repetitive
repetitive
non-repetitive
peak off-state voltage,
peak reverse voltage peak reverse voltage
gate open circuit
V
400
800
1200
1600
I
RRM
I
DRM
125°C
mA
V
500
900
1300
1700
V
400
800
1200
1600
15
On-state Conduction
Parameters
I
T(AV)
Max. average on-state
current
I
T(RMS
)
Max. RMS on-state
current
@T
C
I
TSM
Max. peak, one cycle
non-repetitive on-state
current
115
80
1665
1740
1400
1470
1850
1940
I
2
t
Max. I
2
t for fusing
13.86
12.56
9.80
8.96
17.11
15.60
I
√t
2
IRKU/V71
75
IRKU/V91
95
Units
Conditions
180
o
conduction, half sine wave,
T
C
= 85
o
C
DC
A
150
75
1785
1870
1500
1570
2000
2100
15.91
14.52
11.25
10.27
20.00
18.30
159.1
0.80
0.85
2.40
2.25
1.58
KA
√s
2
°C
t=10ms No voltage
t=8.3ms reapplied
A
t=10ms 100% V
RRM
t=8.3ms reapplied
t=10ms T
J
= 25
o
C,
t=8.3ms no voltage reapplied
t=10ms No voltage
t=8.3ms reapplied
KA s
2
Sinusoidal
half wave,
Initial T
J
= T
J
max.
t=10ms 100% V
RRM
t=8.3ms reapplied
t=10ms T
J
= 25
o
C,
Initial T
J
= T
J
max.
t=8.3ms no voltage reapplied
t=0.1 to 10ms, no voltage reapplied
Low level (3)
High level (4)
Low level (3)
High level (4)
I
TM
=
π
x I
T(AV)
I
FM
=
π
x I
F(AV)
T
J
= 25°C
T
J
= T
J
max
T
J
= T
J
max
Max. I
√t
for fusing (1)
2
138.6
0.82
0.85
3.00
2.90
1.59
V
T(TO)
Max. value of threshold
voltage (2)
r
t
V
TM
di/dt
Max. value of on-state
slope resistance (2)
Max. peak on-state
voltage
Max. non-repetitive rate
of rise of turned on
current
I
H
I
L
Max. holding current
Max. latching current
V
mΩ
V
150
A/µs
T
J
= 25
o
C, from 0.67 V
DRM
,
I
TM
=π x I
T(AV)
,
I = 500mA,
g
t
r
< 0.5 µs, t
p
> 6 µs
200
400
T
J
= 25
o
C, anode supply = 6V,
mA
resistive load, gate open circuit
T
J
= 25
o
C, anode supply = 6V,resistive load
(1) I
2
t for time t = I
2
√t
x
√t
.
x
x
(3) 16.7%
x
π
x I
AV
< I <
π
x I
AV
(2) Average power =
V
T(TO)
x I
T(AV)
+
r
t
x
(
I
T(RMS)
)
2
(4)
I >
π
x I
AV
2
www.irf.com
IRKU/V71, 91 Series
Bulletin I27135 rev. F 10/02
Triggering
Parameters
P
GM
I
GM
Max. peak gate power
IRKU/V71
12
3.0
3.0
10
4.0
2.5
1.7
270
150
80
0.25
6
IRKU/V91
12
3.0
3.0
Units
W
A
Conditions
P
G(AV)
Max. average gate power
Max. peak gate current
gate voltage
V
GT
Max. gate voltage
required to trigger
I
GT
Max. gate current
required to trigger
V
GD
I
GD
Max. gate voltage
that will not trigger
Max. gate current
that will not trigger
-V
GM
Max. peak negative
V
T
J
= - 40°C
T
J
= 25°C
T
J
= 125°C
T
J
= - 40°C
T
J
= 25°C
T
J
= 125°C
Anode supply = 6V
resistive load
Anode supply = 6V
resistive load
mA
V
mA
T
J
= 125
o
C,
rated V
DRM
applied
T
J
= 125
o
C,
rated V
DRM
applied
Blocking
Parameters
I
RRM
I
DRM
Max. peak reverse and
off-state leakage current
at V
RRM
, V
DRM
2500 (1 min)
V
INS
RMS isolation voltage
3500 (1 sec)
500
V
50 Hz, circuit to base, all terminals
shorted
T
J
= 125
o
C, linear to 0.67 V
DRM
,
gate open circuit
15
mA
T
J
= 125
o
C, gate open circuit
IRKU/V71, 91
Units
Conditions
dv/dt Max. critical rate of rise
of off-state voltage (5)
V/µs
(5) Available with dv/dt = 1000V/µs, to complete code add S90 i.e. IRKU91/16AS90.
Thermal and Mechanical Specifications
Parameters
T
J
T
stg
Junction operating
temperature range
Storage temper. range
IRK.71
- 40 to 125
IRK.91
Units
Conditions
°C
- 40 to 125
R
thJC
Max. internal thermal
resistance, junction
to case
R
thCS
Typical thermal resistance
case to heatsink
T
Mounting torque ± 10%
to heatsink
busbar
wt
Approximate weight
Case style
0.1
5
Nm
3
110 (4)
TO-240AA
gr (oz)
JEDEC
0.165
0.135
K/W
Mounting surface flat, smooth and greased
A mounting compound is recommended
and the torque should be rechecked after
a period of 3 hours to allow for the spread
of the compound
Per module, DC operation
∆R
Conduction (per Junction)
Devices
IRKU/V71
IRKU/V91
(The following table shows the increment of thermal resistance R
thJC
when devices operate at different conduction angles than DC)
Sine half wave conduction
180
0.06
0.04
o
Rect. wave conduction
30
0.18
0.12
o
120
0.07
0.05
o
90
0.09
0.06
o
60
0.12
0.08
o
180
0.04
0.03
o
120
o
0.08
0.05
90
o
0.10
0.06
60
o
0.13
0.08
30
o
0.18
0.12
Units
°C/W
www.irf.com
3
IRKU/V71, 91 Series
Bulletin I27135 rev. F 10/02
Ordering Information Table
Device Code
IRK
1
1
2
3
4
5
6
-
-
-
-
-
-
Module type
U
2
91
3
/
16
4
A
5
S90
6
IRK.92 types
With no auxiliary cathode
Circuit configuration (See Circuit Configuration table)
Current code
* *
Voltage code (See Voltage Ratings table)
A : Gen V
dv/dt code:
S90 = dv/dt 1000 V/µs
No letter = dv/dt 500 Vµs
e.g. : IRKU92/16A etc.
* *
Available with no auxiliary cathode.
To specify change:
91 to 92
71 to 72

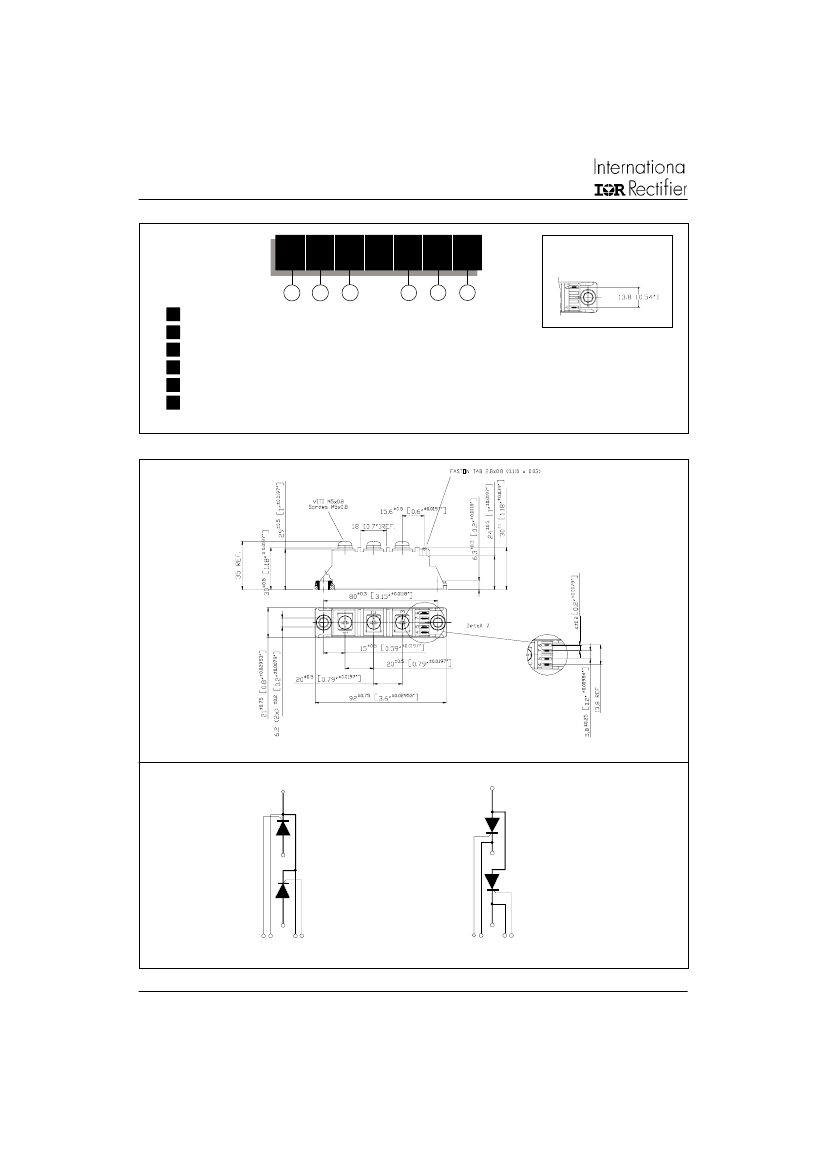

Outline Table
Dimensions are in millimeters and [inches]
IRKU
(1)
+
IRKV
(1)
-
(2)
-
+
(2)
-
(3)
G1
K1
(4) (5)
K2
G2
(7) (6)
G1 K1
+
(3)
K2 G2
(4) (5)
(7) (6)
NOTE: To order the Optional Hardware see Bulletin I27900
4
www.irf.com
IRKU/V71, 91 Series
Bulletin I27135 rev. F 10/02
Maximum Allowable Case Temperature (°C)
Maximum Allowable Case Temperature (°C)
130
120
110
100
90
80
70
IRK.71.. Series
R
thJC
(DC) = 0.33 K/W
130
120
110
IRK.71.. Series
R
thJC
(DC) = 0.33 K/W
Conduction Angle
Conduction Period
100
90
80
70
30°
60°
90°
30°
120°
180°
60°
90°
120°
60
180°
80
DC
100
120
0
10
20
30
40
50
60
70
80
0
20
40
Average On-state Current (A)
Average On-state Current (A)

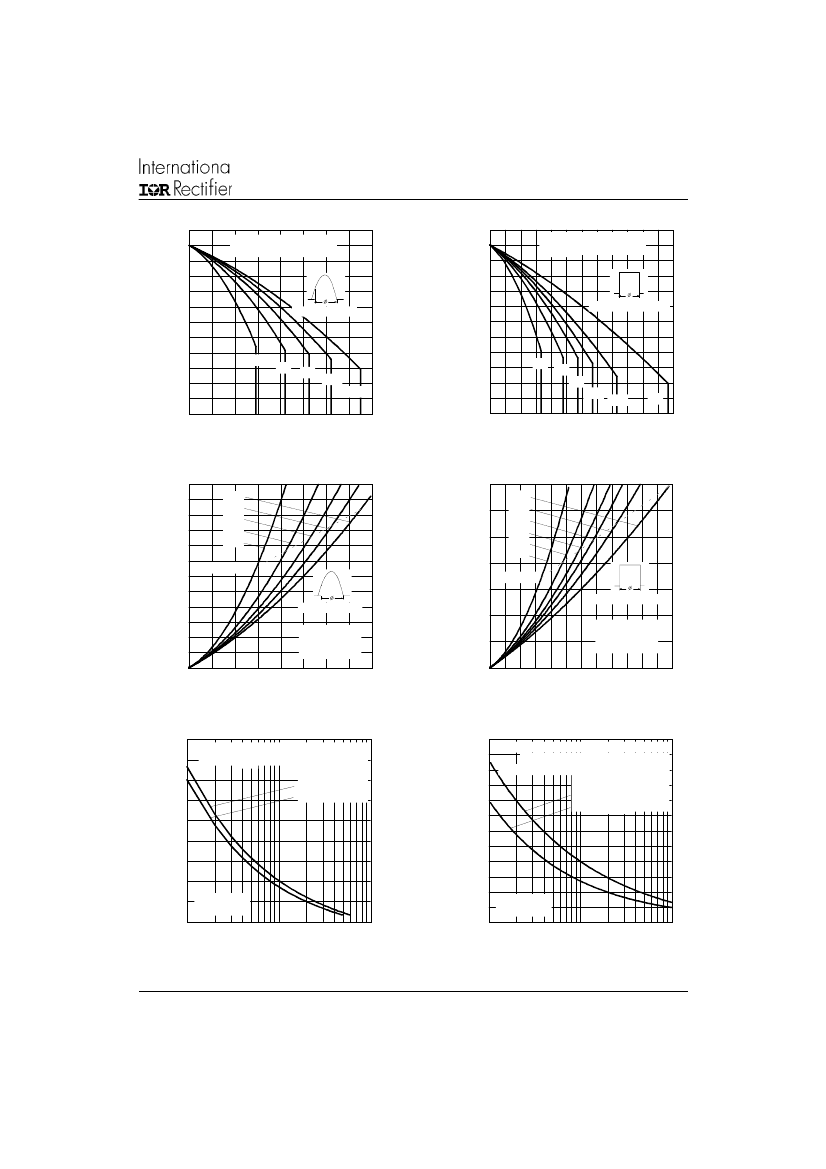

Fig. 1 - Current Ratings Characteristics
Maximum Average On-state Power Loss (W)
Maximum Average On-state Power Loss (W)
120
100
80
60
40
20
0
180°
120°
90°
60°
30°
RMS Limit
140
120
100
80
60
40
20
0
Fig. 2 - Current Ratings Characteristics
DC
180°
120°
90°
60°
30°
RMS Limit
Conduction Period
Conduction Angle
IRK.71.. Series
Per Junction
T
J
= 125°C
0
10
20
30
40
50
60
70
80
IRK.71.. Series
Per Junction
T
J
= 125°C
0
20
40
60
80
100
120
Average On-state Current (A)
Average On-state Current (A)
Fig. 3 - On-state Power Loss Characteristics
Peak Half Sine Wave On-state Current (A)
Fig. 4 - On-state Power Loss Characteristics
Peak Half Sine Wave On-state Current (A)
1800
1600
1400
1200
1000
800
Maximum Non Repetitive Surge Current
Versus Pulse Train Duration. Control
Of Conduction May Not Be Maintained.
Initial T
J
= 125°C
No Voltage Reapplied
Rated V
RRM
Reapplied
1600
1500
1400
1300
1200
1100
1000
900
800
700
1
At Any Rated Load Condition And With
Rated V
RRM
Applied Following Surge.
Initial T
J
= 125°C
@ 60 Hz 0.0083 s
@ 50 Hz 0.0100 s
IRK.71.. Series
Per Junction
10
100
IRK.71.. Series
Per Junction
0.1
Pulse Train Duration (s)
1
600
0.01
Number Of Equal Amplitude Half Cycle Current Pulses (N)
Fig. 5 - Maximum Non-Repetitive Surge Current
Fig. 6 - Maximum Non-Repetitive Surge Current
www.irf.com
5
