ZDCE37POL2

Description
D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, Plug,
CategoryThe connector    The connector
File Size51KB,1 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Environmental Compliance
Download Datasheet Parametric View All

ZDCE37POL2 Overview

D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, Plug,

ZDCE37POL2 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerITT
Reach Compliance Codecompliant
Other featuresPANEL MOUNTABLE
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYETHYLENE
MIL complianceNO
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialSTEEL
Housing size4/C
Termination typeSOLDER
Total number of contacts37
UL Flammability Code94V-0

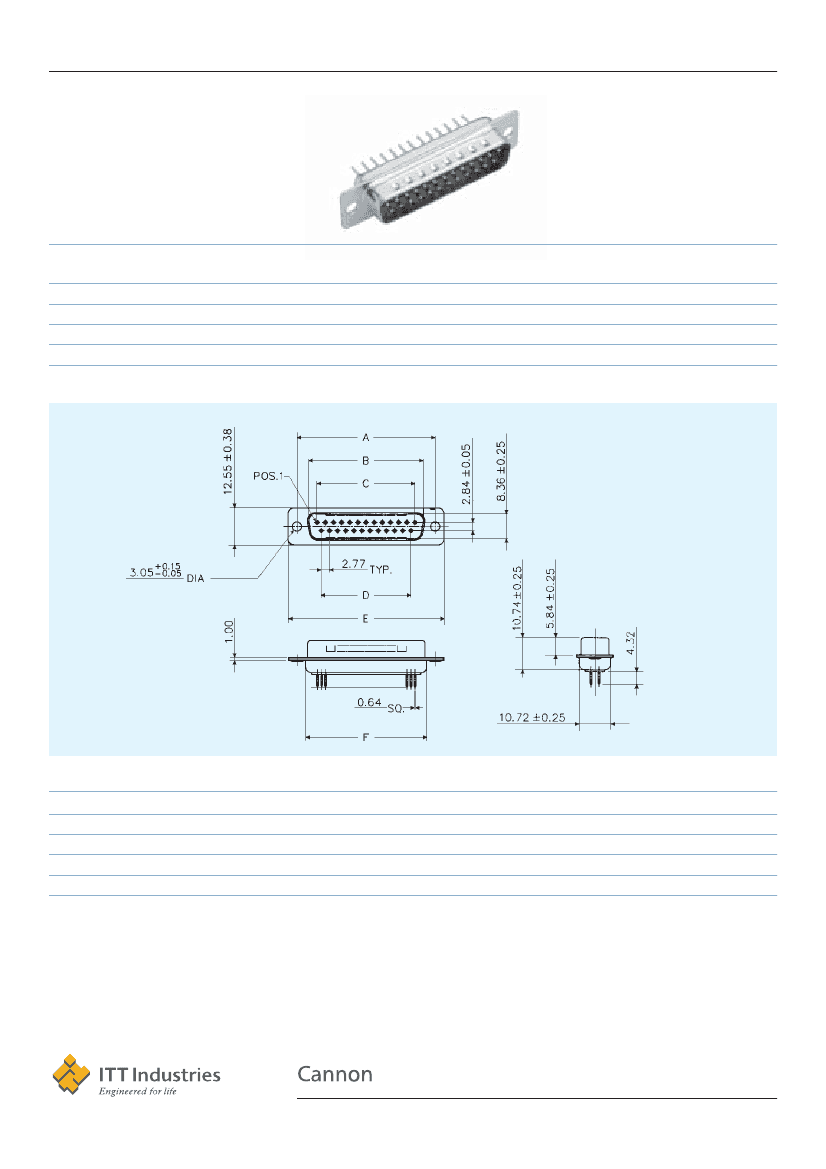

ZD Connectors
Plug 9 – 15 – 25 – 37 contacts
ZD* OL2 Straight PCB
Designation
Shell size /
Arrangement
E / 9
A / 15
B / 25
C / 37
Through hole
ZDE9POL2
ZDA15POL2
ZDB25POL2
ZDC37POL2
Rivnut
thread 4 - 40
ZDEE9POL2
ZDAE15POL2
ZDBE25POL2
ZDCE37POL2
Screwlock
thread 4 - 40
ZDEE9POL2-AB
ZDAE15POL2-AB
ZDBE25POL2-AB
ZDCE37POL2-AB
Boardlock and thread
4 - 40 2B
ZDEE9POL2-146
ZDAE15POL2-146
ZDBE25POL2-146
ZDCE37POL2-146
Boardlock and
screwlock 4 - 40 2B
ZDEE9POL2-AB146
ZDAE15POL2-AB-146
ZDBE25POL2-AB-146
ZDCE37POL2-AB-146
Note: Class 2 - Add suffix A191
Example: ZDE9POL2-A191
Shell
E
A
B
C
A
± 0,13
24,99
33,32
47,04
63,50
B
± 0,25
16,92
25,25
38,96
55,42
see page 44
see page 45
C
± 0,13
11,07
19,39
33,24
49,86
D
± 0,13
8,31
16,60
30,47
47,09
E
± 0,38
30,89
39,10
53,09
69,40
F
± 0,25
19,28
27,51
41,30
57,71
Mounting options
Panel cutouts
Accessories
see page 35, 36, 37, 38
Dimensions are shown in mm
Dimensions subject to change
22
www.ittcannon.com
