69788-008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 69788-008

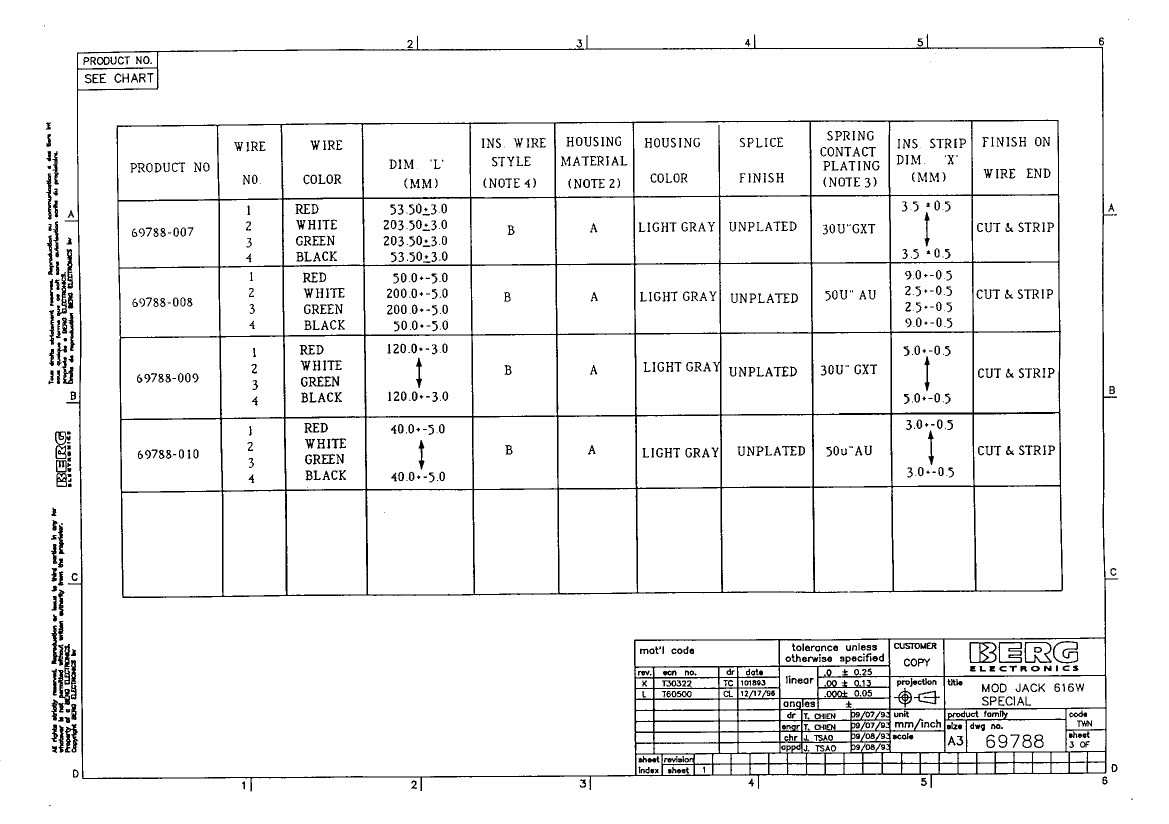

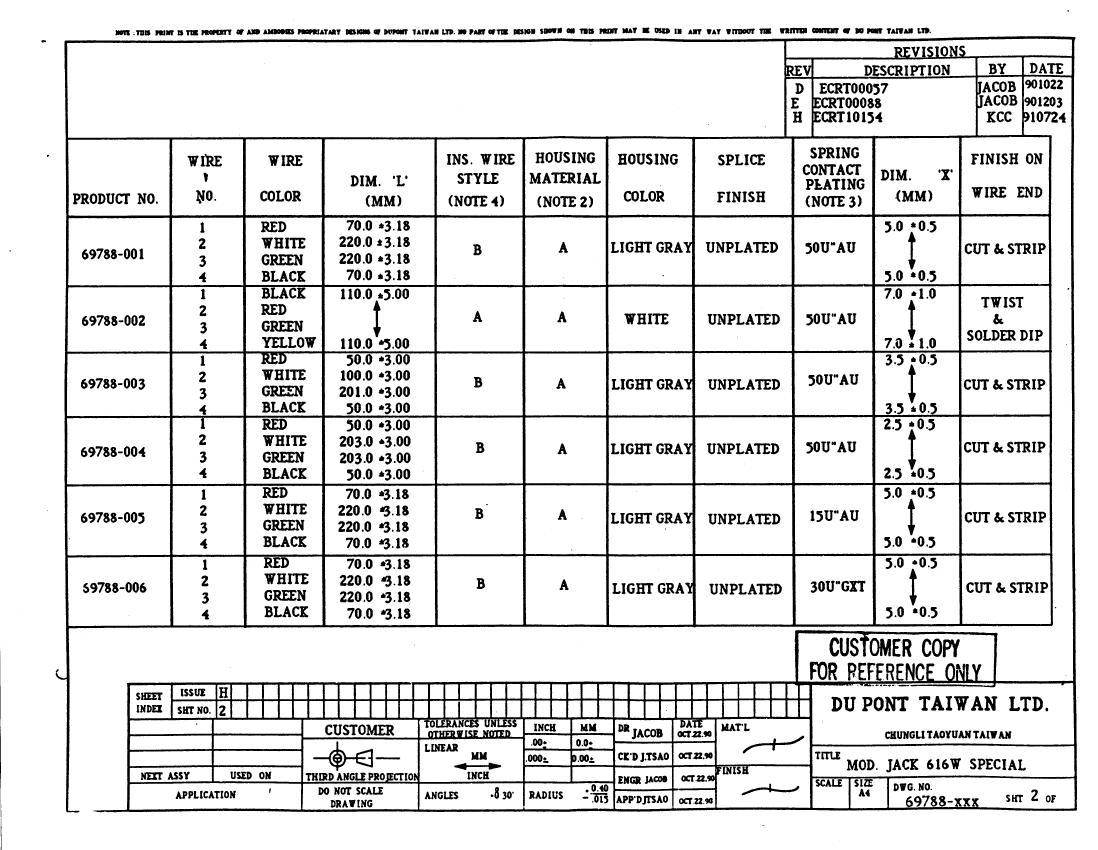

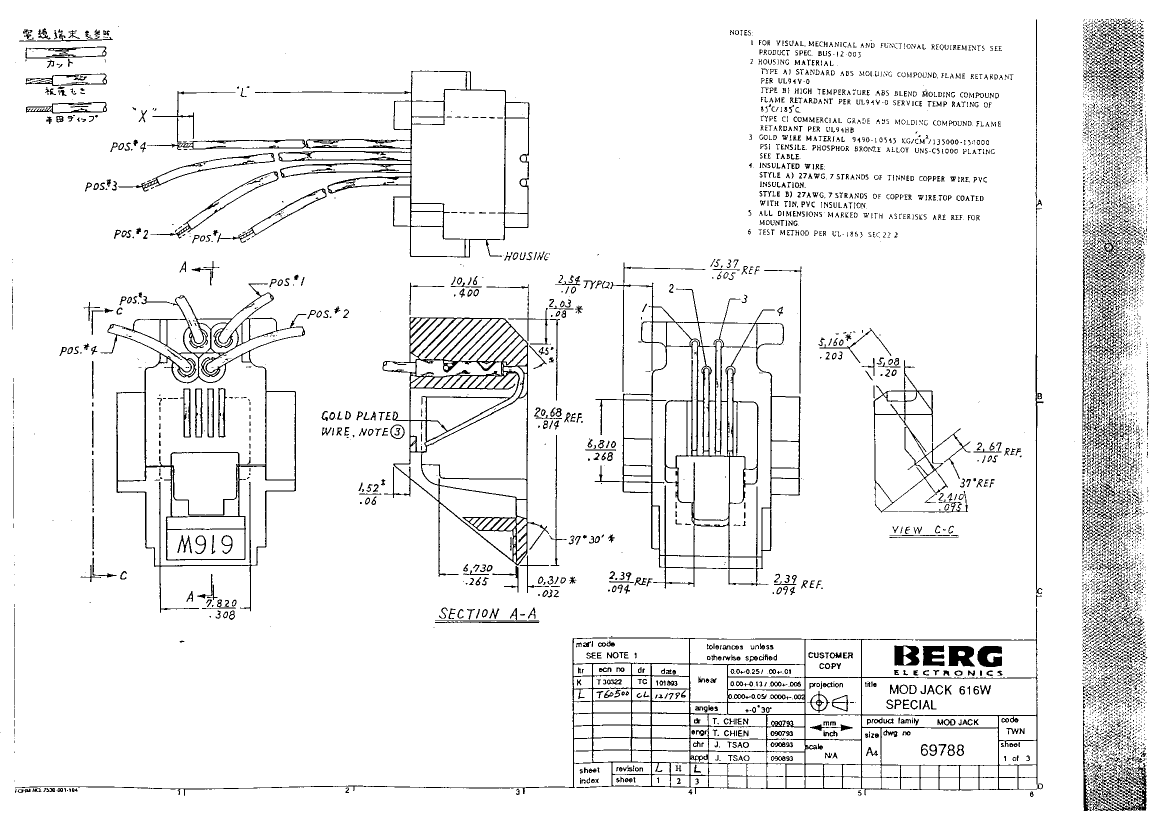

69788-008: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Jack; CategoryThe connector The connector; File Size324KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

69788-008 Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Jack

69788-008 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	69788
Mixed contacts	NO
Installation type	CABLE
Options	WITH CABLE ASSEMBLY
Shell material	ACRYLONITRILE BUTADIENE STYRENE
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:L

STATUS:

Released

Printed: Oct 26, 2005

69788-008 Related Products

	69788-008	69788-004	69788-005	69788-006	69788-007	69788-009	69788-010	69788-001	69788-002	69788-003
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	69788	69788	69788	69788	69788	69788	69788	69788	69788	69788
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY	WITH CABLE ASSEMBLY
Shell material	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE	ACRYLONITRILE BUTADIENE STYRENE
Total number of contacts	4	4	4	4	4	4	4	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
