DE09SL24HT: DescriptionD Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size142KB，3 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

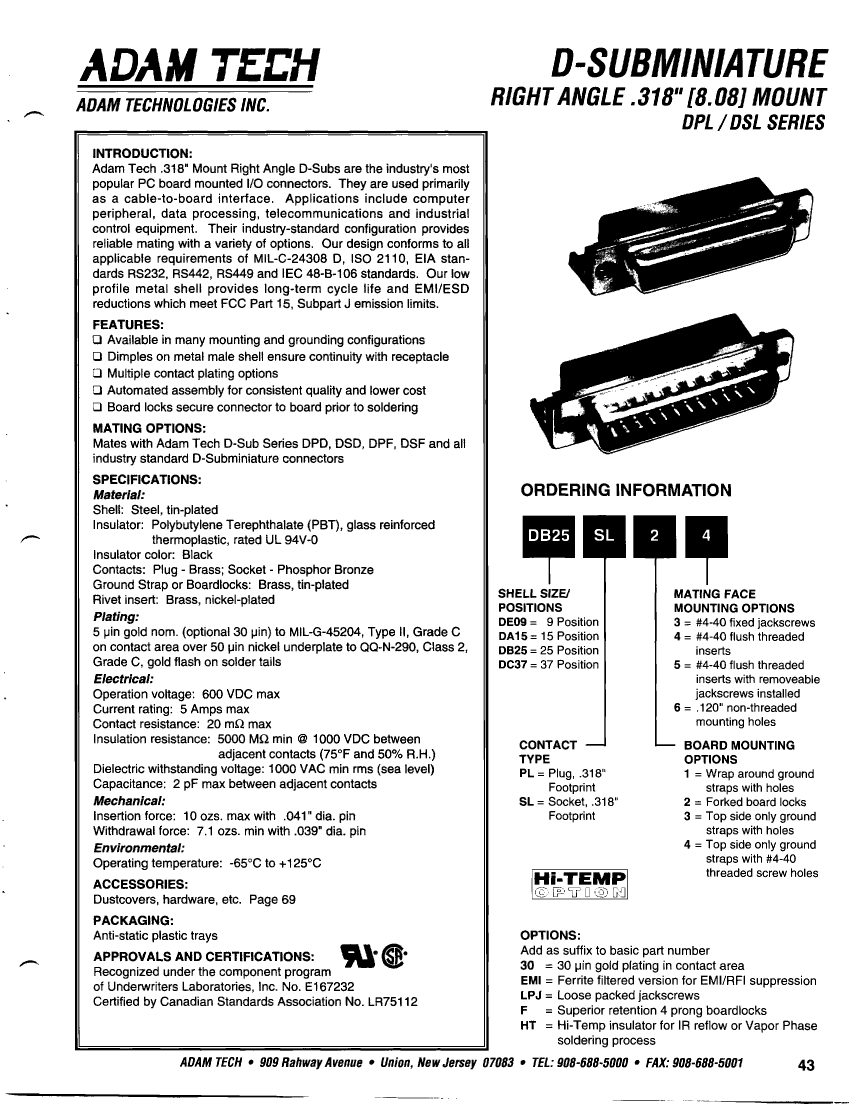

DE09SL24HT Overview

D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,

DE09SL24HT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Adam Tech
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HI-TEMP INSULATOR

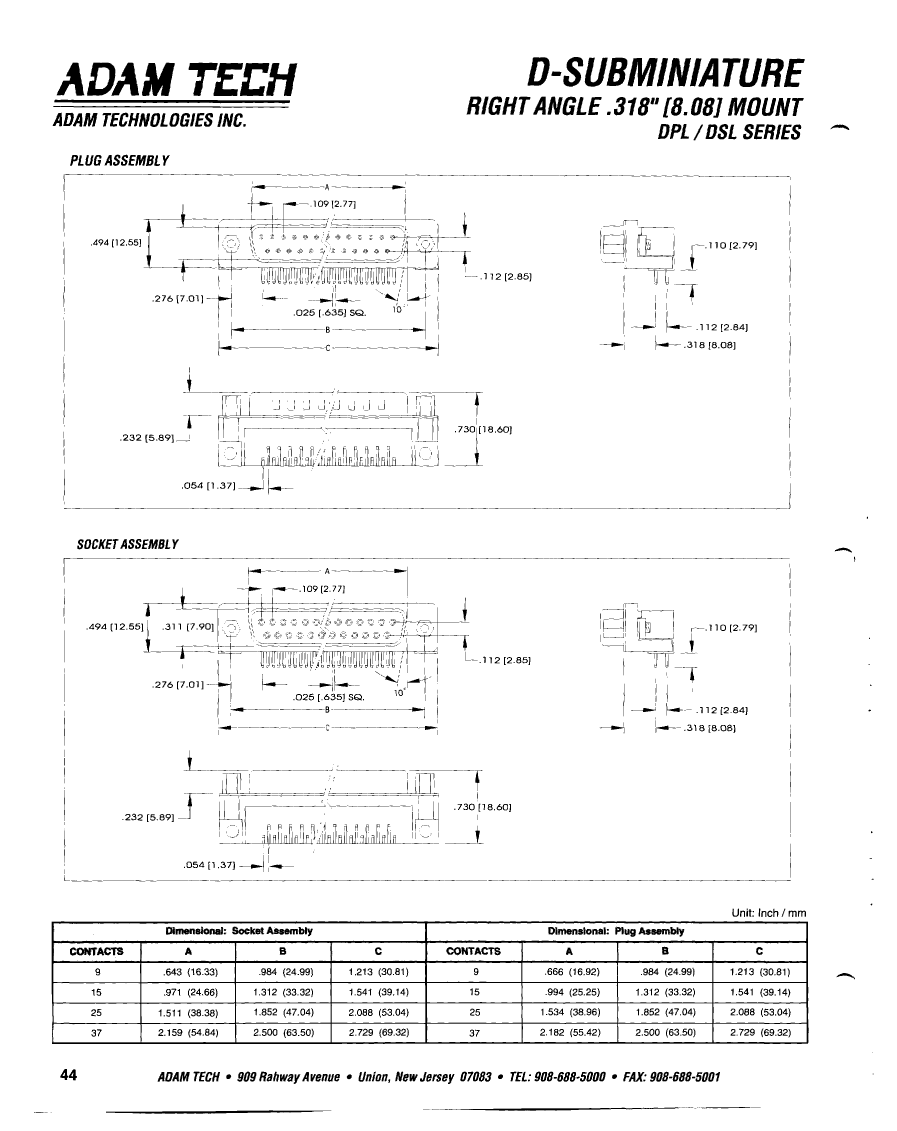

body width	0.494 inch
subject depth	0.5 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE/GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO

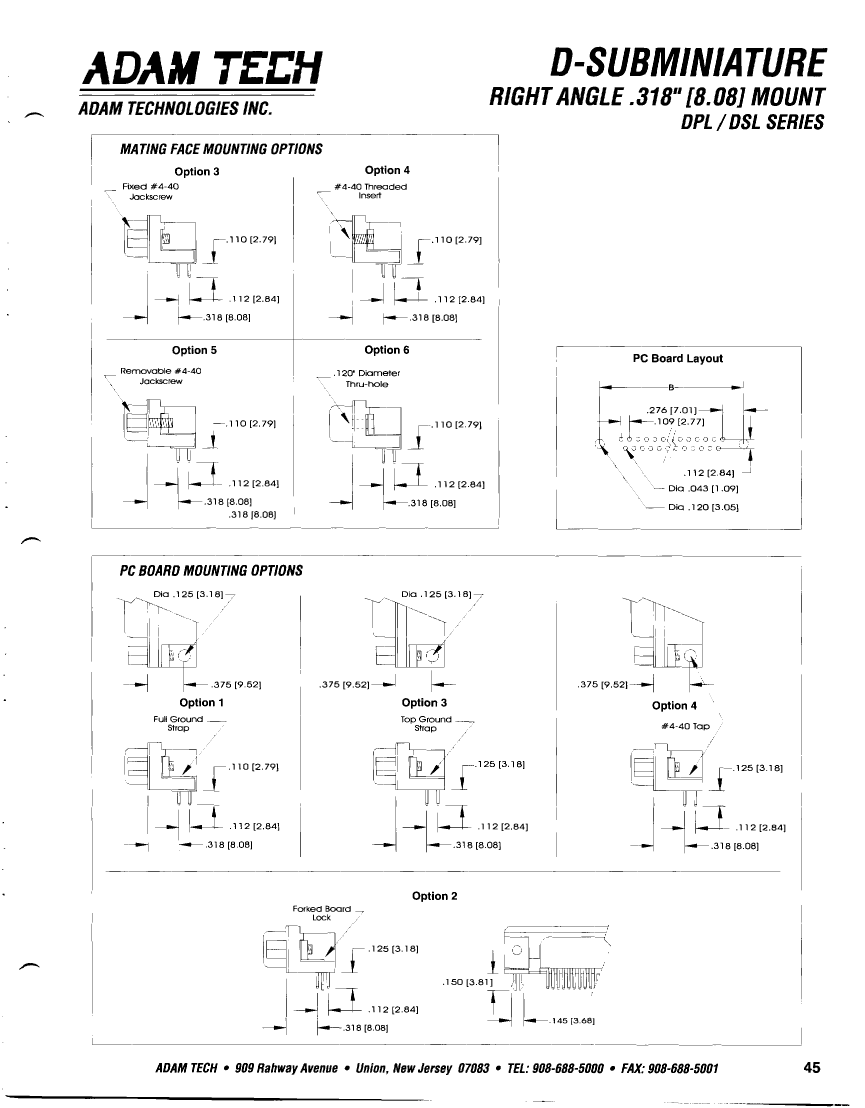

Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	5u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.11 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	1.946 N
