CD4010BMTE4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD4010BMTE4

CD4010BMTE4: DescriptionBuffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16; Categorylogic logic; File Size1MB，18 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

CD4010BMTE4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD4010BMTE4	-	-	View	Buy Now

CD4010BMTE4 Overview

Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16

CD4010BMTE4 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
length	9.9 mm
Logic integrated circuit type	BUFFER
Number of functions	6
Number of entries	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	200 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

Data sheet acquired from Harris Semiconductor

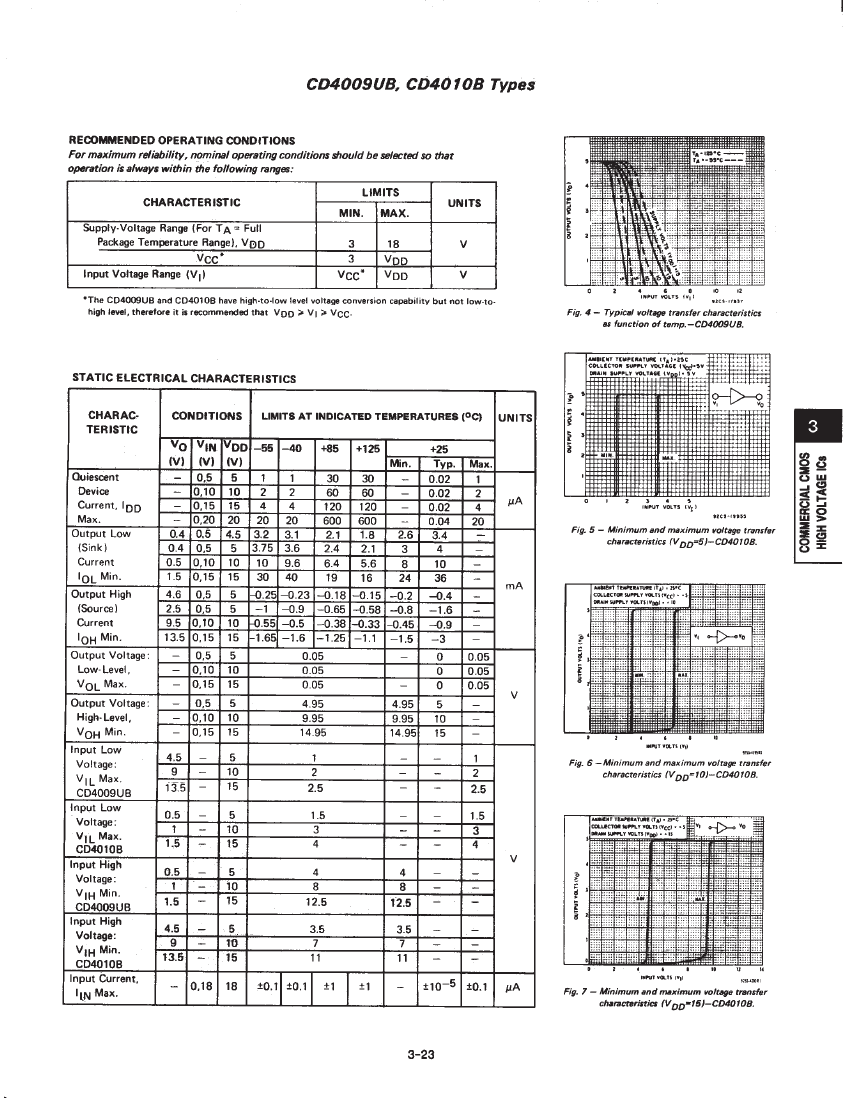

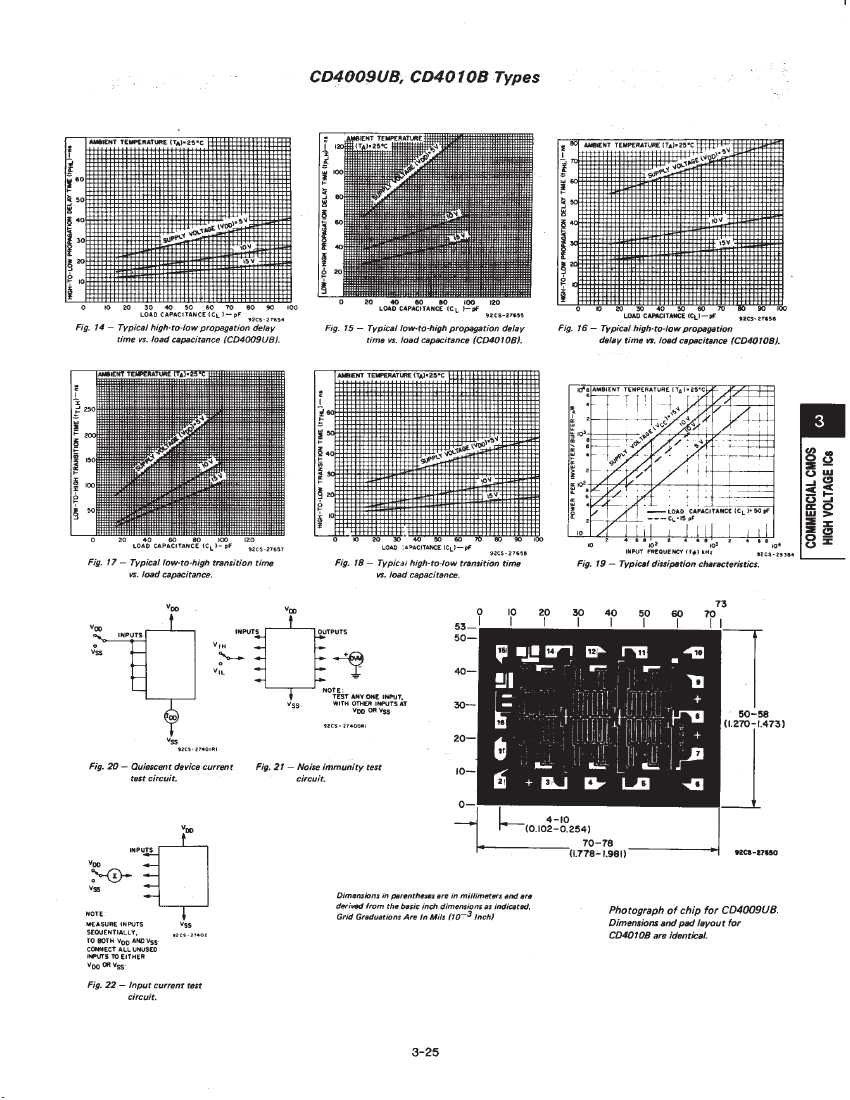

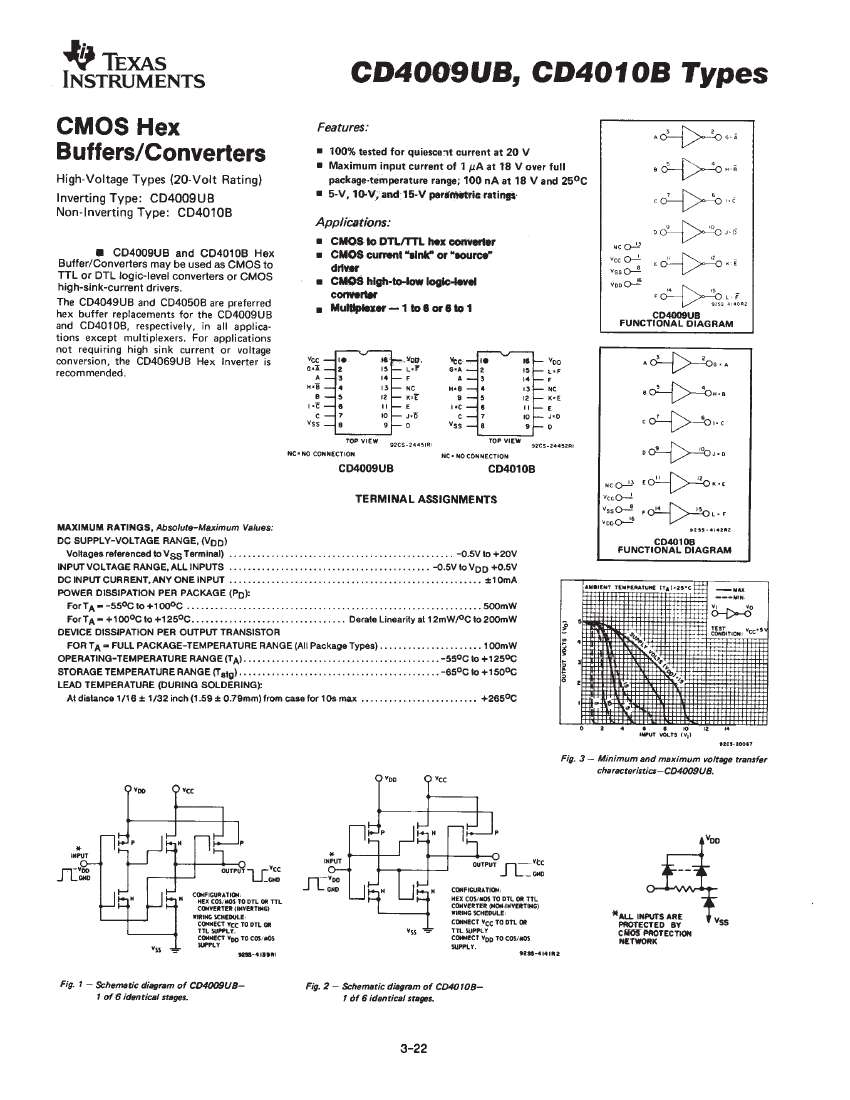

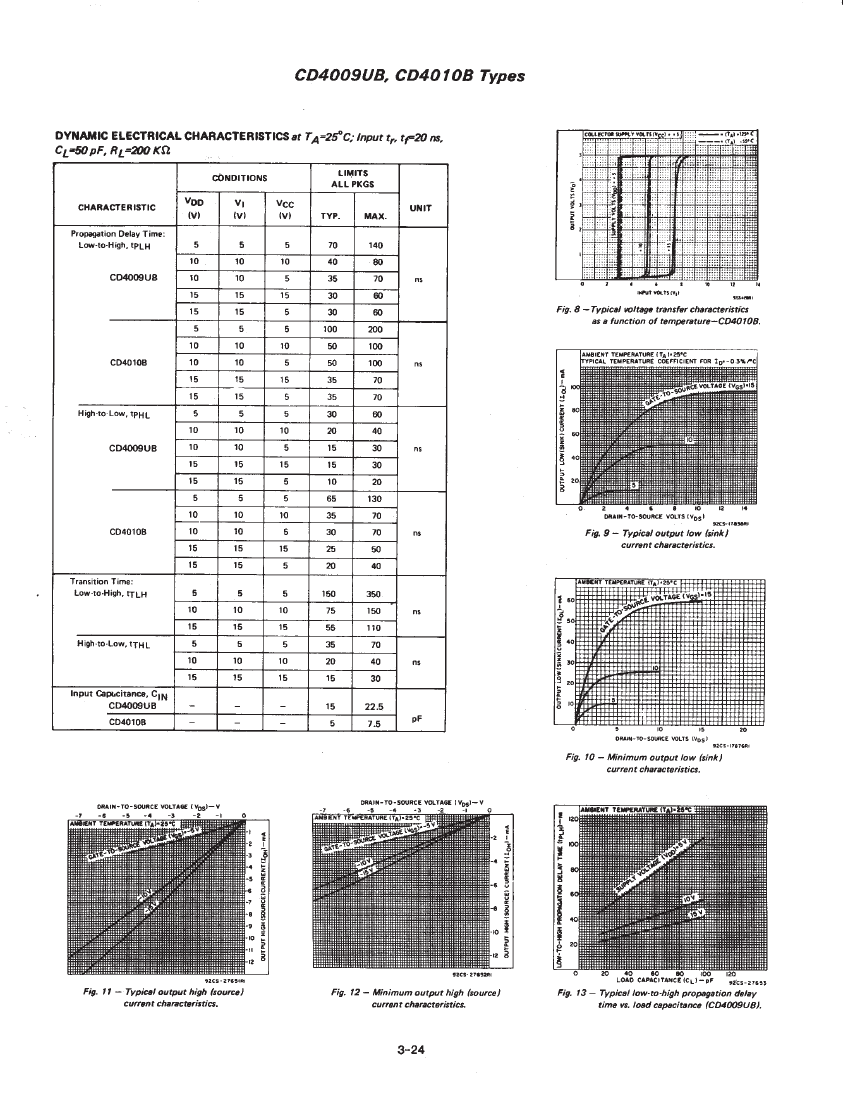

SCHS020C

−

Revised October 2003

The CD4009UB and CD4010B types are

supplied in 16-lead hermetic dual-in-line

ceramic packages (F3A suffix), 16-lead

dual-in-line plastic packages (E suffix), 16-lead

small-outline packages (M, M96, MT, and NSR

suffixes), and 16-lead thin shink small-outline

packages (PW and PWR suffixes).

2003, Texas Instruments Incorporated

CD4010BMTE4 Related Products

	CD4010BMTE4	CD4010BMTG4	CD4009UBPWRG4	CD4010BPWE4	CD4010BPWRE4	CD4010BNSRE4	CD4009UBMTG4	CD4009UBMTE4
Description	Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16	Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16	Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16	Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16	Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, TSSOP-16	Buffer, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, SOP-16	Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16	Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16
package instruction	SOP,	SOP,	TSSOP,	TSSOP,	TSSOP,	SOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	9.9 mm	5 mm	5 mm	5 mm	10.2 mm	9.9 mm	9.9 mm
Logic integrated circuit type	BUFFER	BUFFER	INVERTER	BUFFER	BUFFER	BUFFER	INVERTER	INVERTER
Number of functions	6	6	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	TSSOP	TSSOP	TSSOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	200 ns	200 ns	140 ns	200 ns	200 ns	200 ns	140 ns	140 ns
Maximum seat height	1.75 mm	1.75 mm	1.2 mm	1.2 mm	1.2 mm	2 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.65 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	4.4 mm	4.4 mm	4.4 mm	5.3 mm	3.9 mm	3.9 mm
